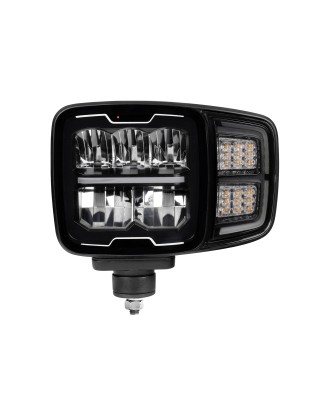

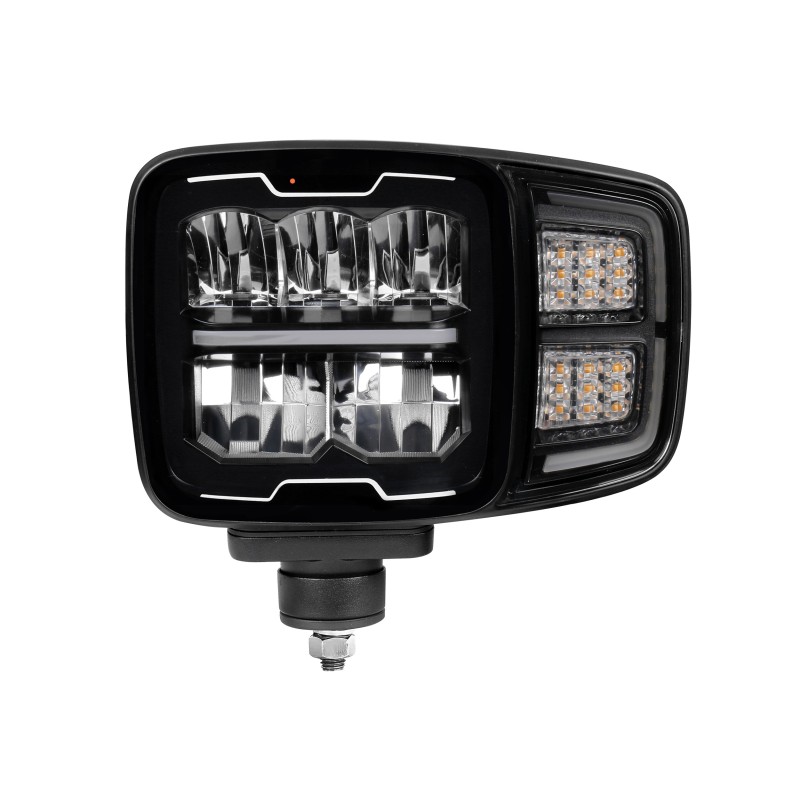

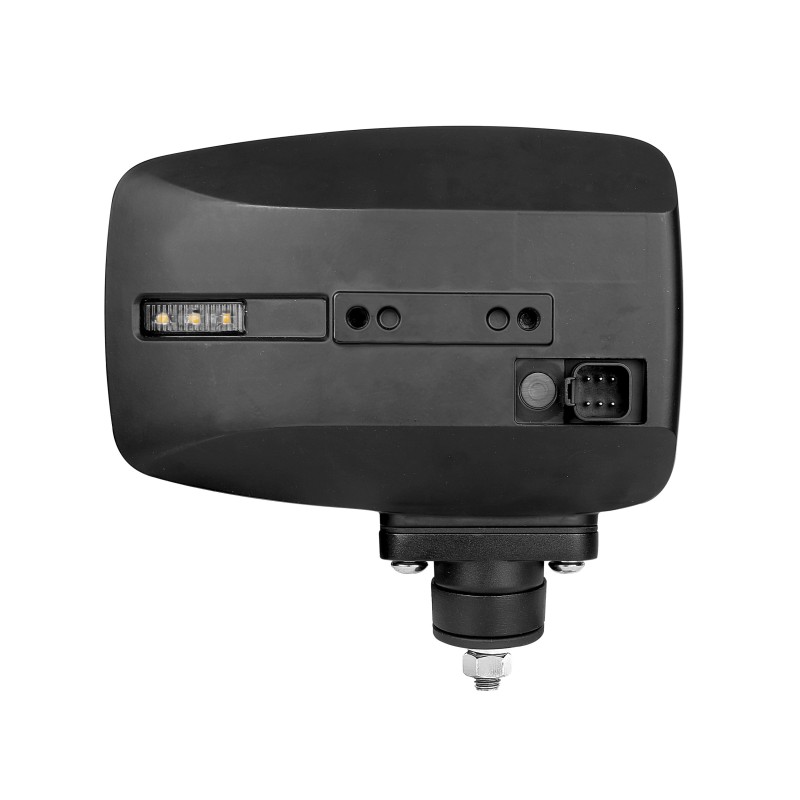

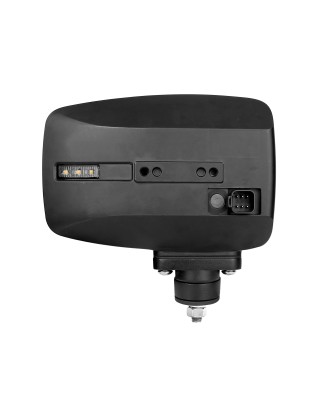

Headlight - Ledson - Plow Arctic - Left - 8.7" - 22cm - Clear - Position light White

Headlight - Ledson - Plow Arctic - 8.7" - 22cm - Clear - Position light White

Headlight - Ledson - Plow Arctic - Left - 8.7" - 22cm - Clear - Position light White

€308.95(tax incl.)

€255.33 (tax excl.)

Reference: 33300560
Producttype: Headlight
Dimensions (mm): 220 (w) x 152 (h) x 81 (d)
E-mark: Yes
Position Light Color: White
Sales unit: Single item
Standard delivery time: 1-3 business days

Ledson Arctic Plow Light (Left Side) - Upgrade your plow or truck with an automatic lens heating system, high/low beam, position light, and indicators!

...Continue

Pay in a secure environment
Questions about this product? Our experts are here to help
4.8/5 More than 10,000 customers have already gone before you

Description
Product Details

Ledson Arctic Plow Light (Left Side) &ndash Automatic Lens Heating & Multi-Function Output

Looking to equip your snowplow, truck, utility vehicle, or off-road machine with professional lighting engineered to conquer extreme winter conditions? The Ledson Arctic plow light for the left side combines elite illumination with advanced cold-weather technology. Featuring an automatic lens heating system that activates whenever ambient temperatures drop below 5 ° C, it ensures the lens stays completely clear of snow and ice. This robust unit integrates low beam, high beam, a xenon-white position light, and front/rear indicators into a single housing.

✓ Fully integrated multi-function output featuring low beam, high beam, xenon-white position light, and front/rear indicators
✓ Automatic lens heating system activating below 5 ° C to prevent snow buildup and ice accumulation seamlessly
✓ Superior illumination: 2,274 actual lumens on high beam (1 lux range up to 275m) and 876 actual lumens on low beam (1 lux range up to 171m)
✓ Fully street-legal with official ECE approvals: ECE R112 (high beam ref. 17.5), ECE R6 (indicators), ECE R7 (position light), and ECE R10 EMC
✓ Heavy-duty, UV-protected aluminum housing with an unbreakable polycarbonate lens and IP68/IP69K waterproof rating
✓ Multi-voltage compatibility supporting 10V to 32V electrical systems (ideal for 12V and 24V setups)
✓ Includes flexible mounting options (center bolt or dual mounting points) and a pre-fitted 6-pin Deutsch DT connector
! Note! The 6-pin DT connector must not be cut, as this increases moisture risk and voids the warranty. A matching connector is included

Technical Specifications & Functions:
&bull Product Series: Ledson Arctic Plow
&bull Implementation: Left side
&bull Lighting Types: Low beam, High beam, Position light, Indicator (front/rear turn signals)
&bull Light Output: High beam: 2,274 actual lumens (1 lux at 275m) &ndash Low beam: 876 actual lumens (1 lux at 171m)
&bull Power: High beam: 60W &ndash Low beam: 30W (Total theoretical power: 90W)
&bull Color Temperature: 6000K (cool white)
&bull Voltage: 10-32V multi-voltage
&bull Dimensions: Width 220 mm x Height 152 mm x Depth 81 mm (Weight: 1.97 kg)
&bull Connector: 6-pin Deutsch DT connector
&bull Wiring Colors: Black (Ground) &ndash Red (High beam) &ndash Yellow (Low beam) &ndash Grey (Position light) &ndash Green (Indicators)
&bull Certifications & Protection: ECE R112 (ref. 17.5), ECE R6, ECE R7, ECE R10 EMC, IP68/IP69K rated
&bull Mounting: Includes mounting bracket, bolts, and hardware for versatile installation

About the Manufacturer &ndash Ledson:
Ledson is a premier Swedish automotive lighting brand recognized across Europe for engineering durable LED solutions. Designed to excel in harsh Nordic winters, Ledson products combine rugged reliability, smart heating technology, and crisp lighting designs that municipal operators and professional drivers rely on every day.

Why Shop at Lights And Styling?
Even though our headquarters is located in the Netherlands, our focus is entirely on your country and delivering top-notch service wherever you are! At Lights And Styling, we deliver quality products with genuine passion for vehicles. We provide proactive problem-solving, personalized advice, and quick responses to all your questions with infectious enthusiasm. Feel free to contact us anytime &ndash we’ll keep you updated throughout your order, guaranteeing a seamless ordering process. You’re in good hands with us!

Reference 33300560

Data sheet

General: Accessory: Lighting
General: Producttype: Headlight
General: Product serie: Plow
General: Serial model: Arctic
Dimensions and weight: Size ( Ø / ↔ ): 3) Large
General: Shape: Rectangular / Oval
Dimensions and weight: Width (mm): 220
Dimensions and weight: Height (mm): 152
Dimensions and weight: Depth (mm): 81
Dimensions and weight: Weight (kg): 2
Light and vision: Light type: LED
Light and vision: Lighting - type: Daytime running light
High beam
Indicator
Low beam
fit and mounting: Position: Front
Left
Light and vision: Light color: White
Design and material: Glass color: Clear
Light and vision: Position light: Position light
Light and vision: Color of position light: White
Light and vision: Color temperature: 6000K
certifications and delivery: Reference number per unit: 17.5
Light and vision: Effective Lumens: 2274
Light and vision: Light distance (m) at 1 lux: 275
certifications and delivery: E-mark: Yes
certifications and delivery: Certifications: R10
R112
R6
R7
Technical specifications: Voltage: 10V
12V
18V
24V
30V
Technical specifications: Number of pins: 6 pins
Technical specifications: Connector: Deutsch DT
certifications and delivery: IP rating: IP67
certifications and delivery: What is delivered: 1 light
Connector
General manual
Mounting material
fit and mounting: Mount: Normal
certifications and delivery: Sales unit: Single item
certifications and delivery: Standard delivery time: 1-3 business days
Size in inches: 8.7
Size in cm: 22
Vehicle type: Heavy Equipment
Tractor
Truck
Prodcat1: M
Shipping Size: Standard
certifications and delivery: Warranty: 3 year
certifications and delivery: IR-code: a0..st
Additional information: Ideal for: Tractors
Trucks
Additional information: Target audience: Fleet owners
Transportation companies
Truckers
Additional information: Commonly used for: Upgrade from existing halogen lighting to LED
Winter conditions
certifications and delivery: Manufacturer: Ledson Lights AB | Bangatan 3 | 265 38 | Astorp | Sweden | www.ledsonlights.com | [email protected]

Specific References

UPC: 1
EAN13: 7323230052193
MPN: 0001-100-005970
