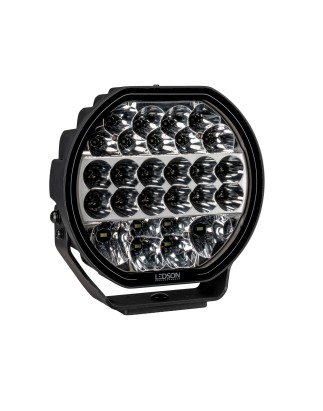

Driving light - Ledson - Sledge 9 - 9" - 22.8cm - Driving Spot Combo

Driving light - Ledson - Sledge 9 - 9" - 22.8cm - Driving Spot Combo

€172.95(tax incl.)

€142.93 (tax excl.)

Reference: 33302165
Producttype: Driving light
Diameter: 228
Dimensions (mm): 228 (w) x 208 (h) x 69 (d)
E-mark: Yes
Beam type: Driving Spot Combo
Sales unit: Single item
Standard delivery time: 1-3 business days

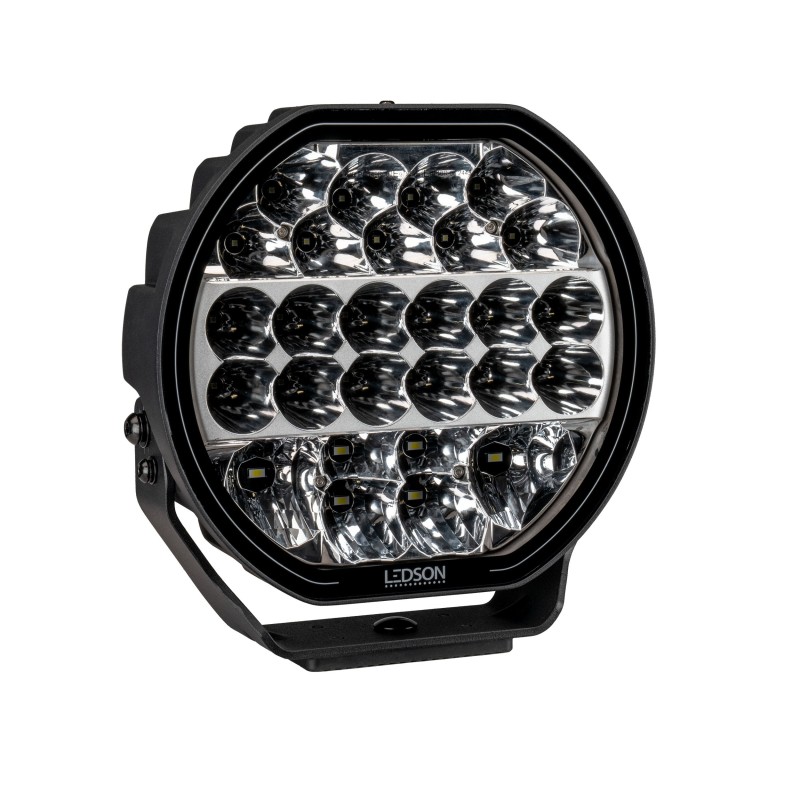

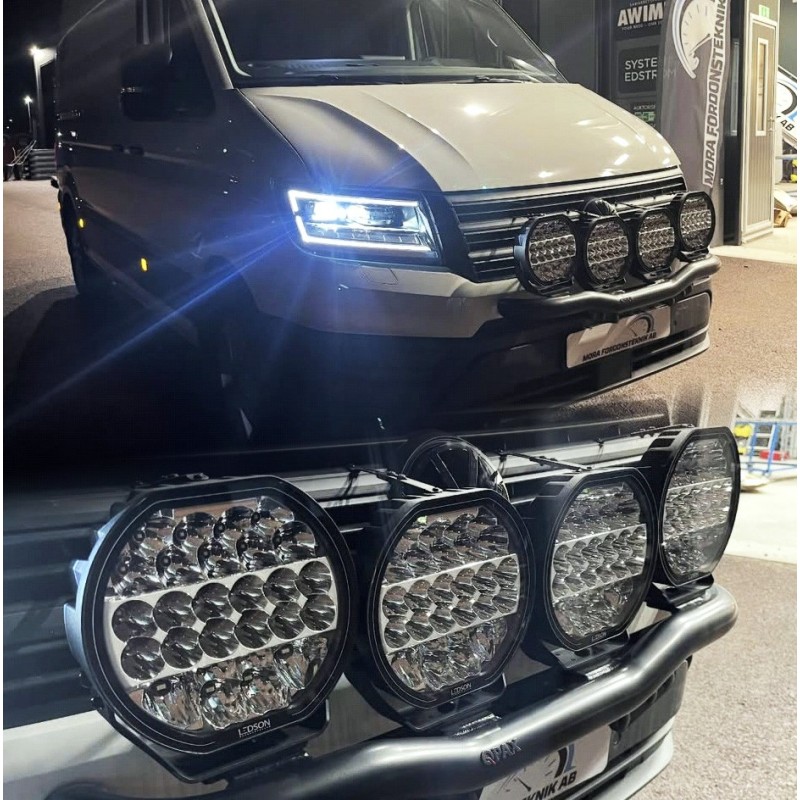

Ledson Sledge9 LED Auxiliary Light 9" - Upgrade your vehicle with a powerful round driving light, Powerboost up to 1025m range, and combo beam!

...Continue

Pay in a secure environment
Questions about this product? Our experts are here to help
4.8/5 More than 10,000 customers have already gone before you

Description
Product Details

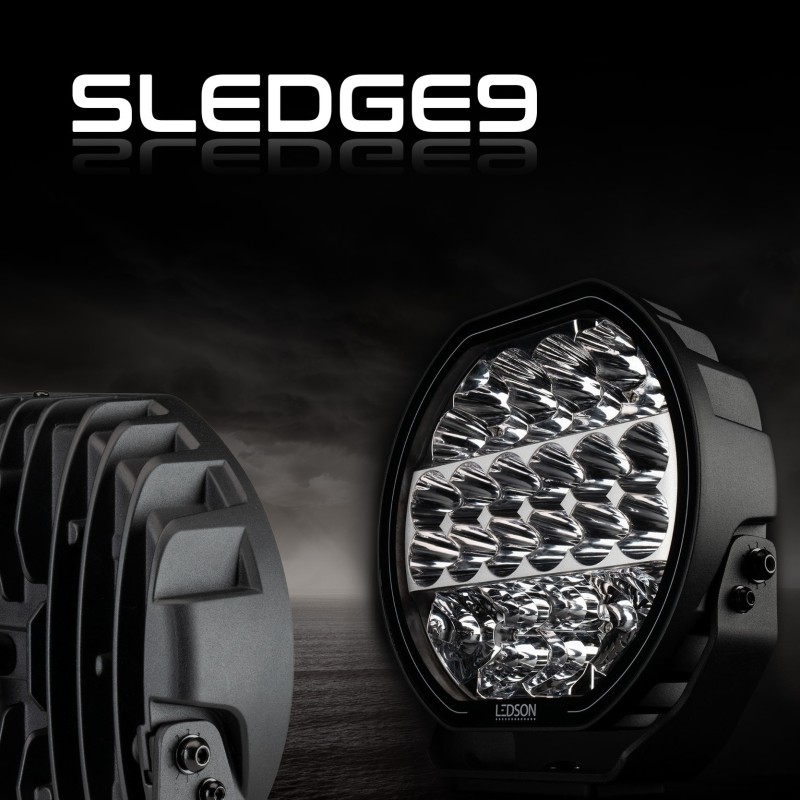

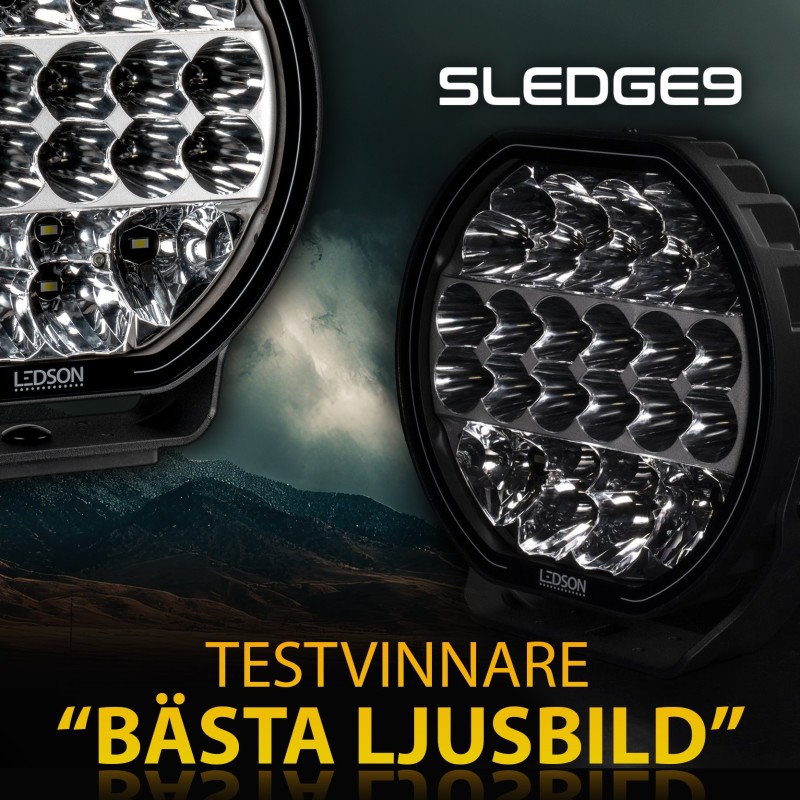

Ledson Sledge9 LED Auxiliary Light 9" &ndash Test-Winning Beam Pattern & Extreme Range

Looking to equip your truck, off-road vehicle, or commercial van with a top-tier round driving light that delivers ultimate performance when every meter counts? The Ledson Sledge9 (9" / 22.8 cm) functions as a premier High beam and Driving light. This test-winning model merges spot, drive, and wide beam patterns into a cohesive combo beam that illuminates both the road edges and distant horizons. In unleashed Powerboost mode, it projects an incredible 1 lux beam range reaching up to 1,025 meters (458 meters in street-legal E-approved mode) with a natural 5500K color temperature for superior detail recognition.

✓ Combined High beam and Driving light functionality featuring an advanced combo beam pattern (Spot, Drive, and Wide) for optimum length and spread
✓ Dual operational modes: ECE R149 approved street-legal mode (ref. 50, 458m range) or maximum Powerboost mode (1,025m range at 1 lux)
✓ Exceptional output in Powerboost: 22,729 theoretical lumens and 14,381 actual lumens (2,793 actual lumens in E-approved mode)
✓ ECE R10 EMC suppressed to guarantee zero radio or electronic interference on your vehicle

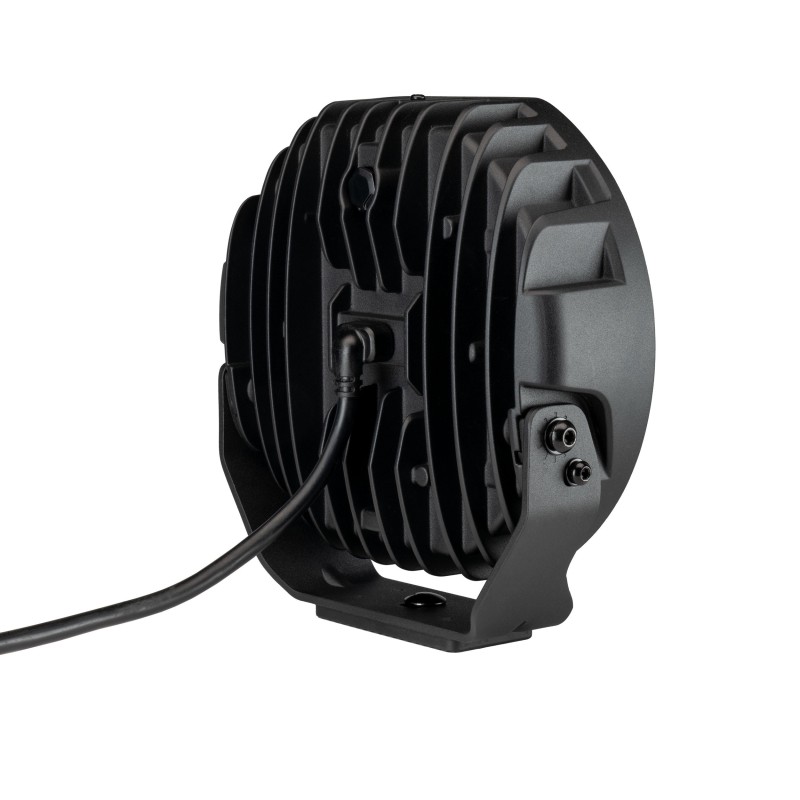

✓ Heavy-duty aluminum housing paired with an unbreakable lens and supreme IP69K waterproof rating
✓ Multi-voltage compatibility supporting 10V to 30V electrical systems (ideal for 12V and 24V setups)
✓ Supplied with an adjustable bracket and a 2-pin DTP connector compatible with Connect DTP wiring harnesses
! Note! The DTP connector must not be cut, as this increases the risk of moisture damage and voids the warranty

Technical Specifications & Performance:
&bull Product Series: Ledson Sledge (Model: Sledge9)
&bull Lighting Types: High beam, Driving light, Round LED auxiliary driving light
&bull Beam Pattern: Combination light / Combo beam (Spot, Drive, and Wide optics)
&bull Light Output Powerboost: 22,729 theoretical lumens / 14,381 actual lumens (5500K cool white)
&bull Light Output E-Approved: 2,793 actual lumens

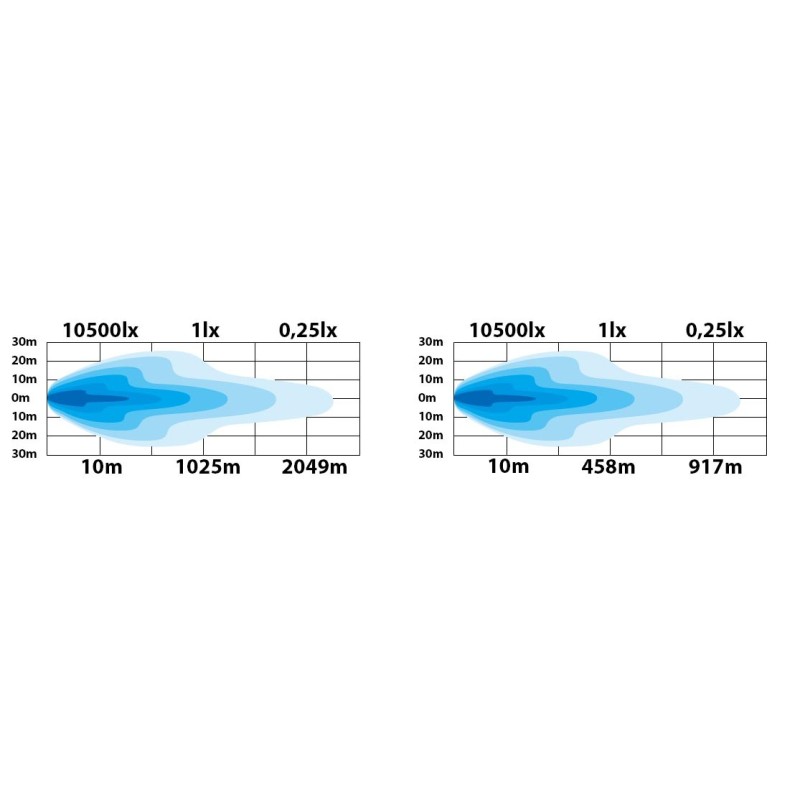

&bull Range (1 lux): 458 meters (E-approved) / 1,025 meters (Powerboost)
&bull Voltage: 10-30V multi-voltage
&bull Current Draw: E-Approved: 2.99A at 12V / 1.45A at 24V &ndash Powerboost: 15.34A at 12V / 7.72A at 24V
&bull Power: 216W (6 x 22W + 21 x 4W LEDs)

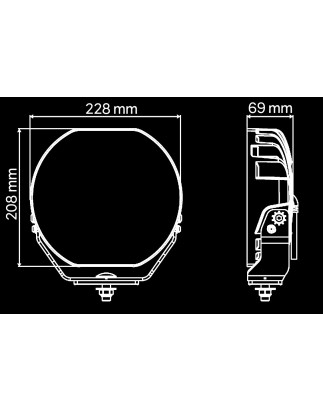

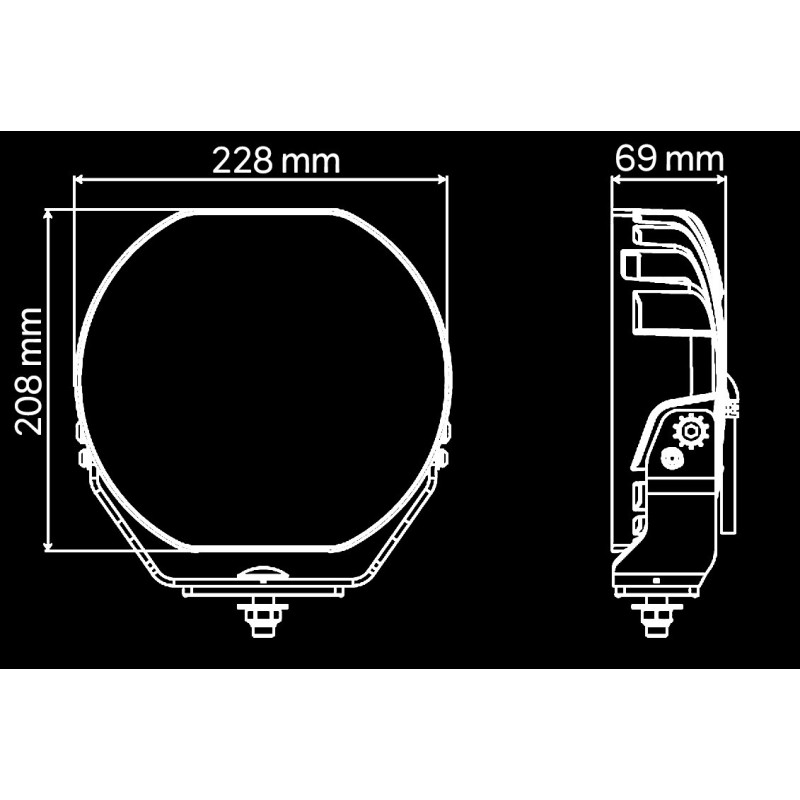

&bull Dimensions: Diameter 208 mm x Width 228 mm x Height 224 mm incl. bracket x Depth 69 mm

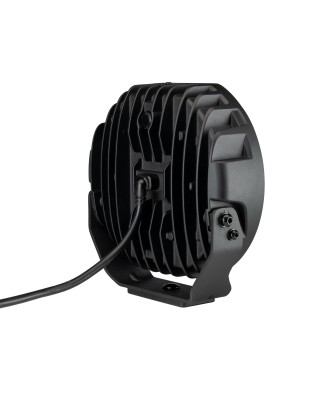

&bull Connector: 2-pole DTP connector (includes 50 cm cable)
&bull Certifications & Protection: ECE R149 approved (ref. 50), ECE R10 EMC, IP69K waterproof rating
&bull Mounting: Includes adjustable mounting bracket and hardware

About the Manufacturer &ndash Ledson:
Ledson is a premier Swedish automotive lighting brand recognized across Europe for engineering durable LED solutions. Designed to excel in harsh Nordic weather, Ledson products combine rugged reliability, smart mounting engineering, and crisp lighting designs that fleet operators and drivers rely on every day.

Why Shop at Lights And Styling?
Even though our headquarters is located in the Netherlands, our focus is entirely on your country and delivering top-notch service wherever you are! At Lights And Styling, we deliver quality products with genuine passion for vehicles. We provide proactive problem-solving, personalized advice, and quick responses to all your questions with infectious enthusiasm. Feel free to contact us anytime &ndash we’ll keep you updated throughout your order, guaranteeing a seamless ordering process. You’re in good hands with us!

Reference 33302165

Data sheet

General: Accessory: Lighting
General: Producttype: Driving light
General: Product serie: Sledge
General: Serial model: 9
Dimensions and weight: Size ( Ø / ↔ ): 3) Large
General: Shape: Round
Dimensions and weight: Diameter (mm): 228
Dimensions and weight: Width (mm): 228
Dimensions and weight: Height (mm): 208
Dimensions and weight: Depth (mm): 69
Dimensions and weight: Weight (kg): 2
Light and vision: Beam type: Driving Spot Combo
Light and vision: Light type: LED
Light and vision: Lighting - type: Driving light
fit and mounting: Position: Front
Light and vision: Light color: White
Design and material: Glass color: Clear
Light and vision: Position light: No position light
Light and vision: Color temperature: 5500K
certifications and delivery: Reference number per unit: 50
Light and vision: Theoretical Lumens: 22729
Light and vision: Effective Lumens: 14381
Light and vision: Light distance (m) at 1 lux: 715
certifications and delivery: E-mark: Yes
certifications and delivery: Certifications: R10
R149
Technical specifications: Voltage: 10V
12V
18V
24V
30V
Technical specifications: Watts: 168W
Technical specifications: Number of pins: 2 pins
Technical specifications: Connector: 2 pin DTP
certifications and delivery: IP rating: IP69K
certifications and delivery: What is delivered: 1 light
Connector
General manual
Mounting material
fit and mounting: Mount: Normal
certifications and delivery: Sales unit: Single item
certifications and delivery: Standard delivery time: 1-3 business days
Size in inches: 9
Size in cm: 22.8
Vehicle type: Car
Pickup
Tractor
Truck
Van
Prodcat1: M
Shipping Size: Standard
certifications and delivery: Warranty: 3 year
certifications and delivery: IR-code: a0.G12.st
Additional information: Ideal for: Off-road vehicles
Rally cars
Tractors
Trucks
Vans
Additional information: Target audience: People who live in rural areas
Transportation companies
Truckers
Additional information: What does Douwe say?: This spotlight is the first on the market to feature the PowerTouch function, which allows you to activate the Powerboost using a magnet. That makes this spotlight unique and user-friendly.
certifications and delivery: Manufacturer: Ledson Lights AB | Bangatan 3 | 265 38 | Astorp | Sweden | www.ledsonlights.com | [email protected]

Specific References

UPC: 1
EAN13: 7323230055361
