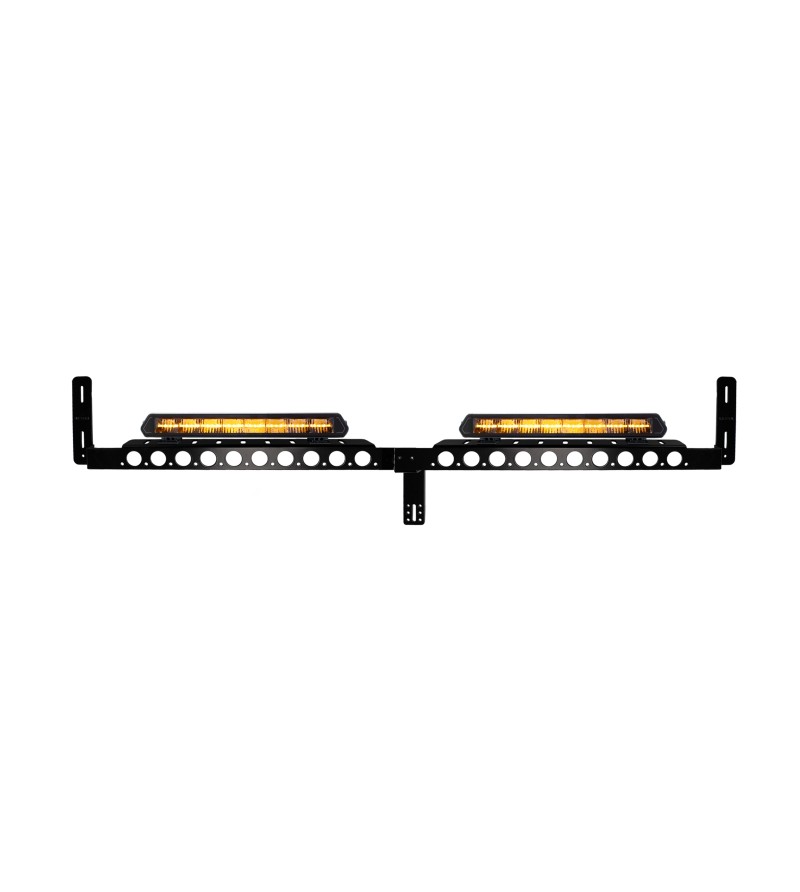

Grille kit - Ledson - Epix 14+ - 14.1" - 35.7cm - Pack - Volvo - FH - 2013-2020
      Grille kit - Ledson - Epix 14+ - 14.1" - 35.7cm - Pack - Volvo - FH - 2013-2020
      Grille kit - Ledson - Epix 14+ - 14.1" - 35.7cm - Pack - Volvo - FH - 2013-2020
      Grille kit - Ledson - Epix 14+ - 14.1" - 35.7cm - Pack - Volvo - FH - 2013-2020
      Grille kit - Ledson - Epix 14+ - 14.1" - 35.7cm - Pack - Volvo - FH - 2013-2020
      Grille kit - Ledson - Epix 14+ - 14.1" - 35.7cm - Pack - Volvo - FH - 2013-2020
      2x Ledson Epix14+ LED bar package for Volvo FH 21+ - 1360273 2x Ledson Epix14+ LED bar package for Volvo FH 21+ - 1360273 2x Ledson Epix14+ LED bar package for Volvo FH 21+ - 1360273 2x Ledson Epix14+ LED bar package for Volvo FH 21+ - 1360273 2x Ledson Epix14+ LED bar package for Volvo FH 21+ - 1360273
      2x Ledson Epix14+ LED bar package for Volvo FH 21+ - 1360273

      Grille kit - Ledson - Epix 14+ - 14.1" - 35.7cm - Pack - Volvo - FH - 2013-2020

      €559.95(tax incl.)

      €462.77 (tax excl.)

      • Reference: 1360273
      • Producttype: Grille kit
      • Dimensions (mm): 357 (w) x 43 (h) x 61 (d)
      • E-mark: Yes
      • Light Color: White
      • Position Light Color: White/Amber
      • Sales unit: Pack
      • Standard delivery time: 4-7 business days
      x
      ...Continue

      Driving Beam Pattern

      Model :
      Quantity :

      2x Ledson Epix14+ LED bar package for Volvo FH 14-20

      What's included:

      • 2x Ledson Epix14+ LED bar package for Volvo FH 14-20 / 2x Ledson Epix14+ Strobe LED bar package for Volvo FH 14-20
      • Installation kit with all necessary components for an easy and quick setup, including installation manual
      • Adapter cable with Volvo connector (3-pin Volvo to 2-pin DT)
      • DT splitter (1 male to 2 female connections)
      • DT extension cable male/female (40 cm)
      • 2x DT adapter (2-pin to 4-pin)

      The ultimate LED bar for modern vehicles: Epix+

      Indulge yourself with the best. Epix+ stands out from the crowd with a self-developed sporty design, created with today's modern vehicles in mind. A unique feature worldwide is its position lights, fully integrated into the reflector. The dynamic ignition of the position lights gives the bar an effective start-up effect. Everything you need and want in an LED bar is found in Epix+. We have maximized performance in an E-approved mode, with the option for Powerboost when choosing "off-road". Approved R65 strobe lights ensure your visibility during roadworks and keep you safe in all weather conditions and at any time of day. Self-developed smart mounts ensure easy installation almost anywhere on the vehicle, however you wish.

      Features and technical specifications:

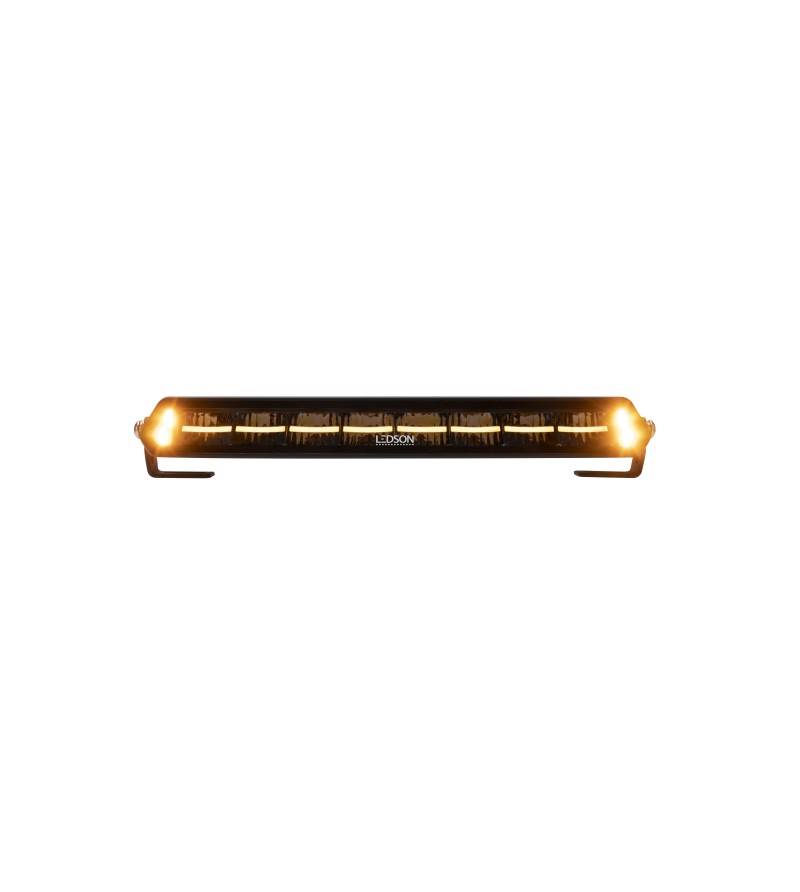

      • Position light with unique dynamic ignition, integrated into the reflector
      • Selectably position light in xenon white or yellow/orange
      • Beam pattern (wide and elongated)
      • E-marked R112, R7, R10 (EMC certified)
      • Range: 328 m (1 lux), Powerboost: 459 m (1 lux)
      • 9,800 lumens (theoretical), 7,300 lumens (actual)
      • Color temperature 5000K (Neutral White)
      • 120 W (8 x 15 W LEDs)
      • Voltage: 9-36V
      • IP69K (water/dustproof)
      • Aluminum housing and polycarbonate lens
      • Reflective side optics
      • Pressure equalizing membrane
      • Electronic heat management
      • DT connector (included)
      Ledson
      1360273

      Data sheet

      General: Accessory
      Lighting
      General: Producttype
      Grille kit
      General: Product serie
      Epix
      General: Serial model
      14+
      General: Series
      Ledson Signal
      Dimensions and weight: Size ( Ø / ↔ )
      2) Medium
      General: Shape
      Ledbar
      Dimensions and weight: Width (mm)
      357
      Dimensions and weight: Height (mm)
      43
      Dimensions and weight: Depth (mm)
      61
      Light and vision: Beam type
      Driving
      Light and vision: Light type
      LED
      Light and vision: Lighting - type
      Driving light
      Light and vision: Light color
      White
      design and material: Glass color
      Clear
      Light and vision: Position light
      Position light
      Light and vision: Color of position light
      Amber
      White
      Lights and vision: Light distance (m) at 1 lux
      459
      certifications and delivery: E-mark
      Yes
      certifications and delivery: Certifications
      R10
      R112
      Technical specifications: Voltage
      12V
      18V
      24V
      30V
      36V
      Technical specifications: Watts
      120W
      Technical specifications: LEDs per lamp
      8
      Technical specifications: Wattage per LED
      15W
      design and material: Chrome / RVS
      No
      design and material: Housing color
      Black
      design and material: Housing material
      Aluminum
      design and material: Lamp rim color
      Black
      design and material: Lamp rim material
      Aluminum
      certifications and delivery: IP rating
      IP69K
      certifications and delivery: What is delivered
      2 lights
      General manual
      Mounting material
      Wiring set
      fit and mounting: Vehicle brand
      Volvo
      fit and mounting: Model
      FH
      fit and mounting: Year of construction series
      2013-2020
      certifications and delivery: Sales unit
      Pack
      certifications and delivery: Standard delivery time
      4-7 business days
      Size in inches
      14.1
      Size in cm
      35.7
      Vehicle type
      Truck
      Prodcat1
      M
      certifications and delivery: IR-code
      a0..co
      certifications and delivery: Disclaimer
      Volvo is a registered trademark. Any use of this name is solely for identification and reference purposes. This product is not an original Volvo product and is not manufactured, sponsored, or approved by the trademark owner. The mention of the trademark indicates only that the product is compatible with vehicles of this brand.

      Specific References

      UPC
      1
      EAN13
      7323230050786
