      Ledson Epix 30+ LED bar package for Volvo FH - 1360264 Ledson Epix 30+ LED bar package for Volvo FH - 1360264 Ledson Epix 30+ LED bar package for Volvo FH - 1360264 Ledson Epix 30+ LED bar package for Volvo FH - 1360264 Ledson Epix 30+ LED bar package for Volvo FH - 1360264 Ledson Epix 30+ LED bar package for Volvo FH - 1360264
      Ledson Epix 30+ LED bar package for Volvo FH - 1360264

      Grille kit - Ledson - Epix 30+ - 29.1" - 74cm - Pack - Volvo - FH - 2013-2020

      €489.95(tax incl.)

      €404.92 (tax excl.)

      • Reference: 1360264
      • Producttype: Grille kit
      • Dimensions (mm): 740 (w) x 43 (h) x 61 (d)
      • E-mark: Yes
      • Light Color: White
      • Position Light Color: White/Amber
      • Sales unit: Pack
      • Standard delivery time: 4-7 business days
      x
      ...Continue

      Model :
      Quantity :

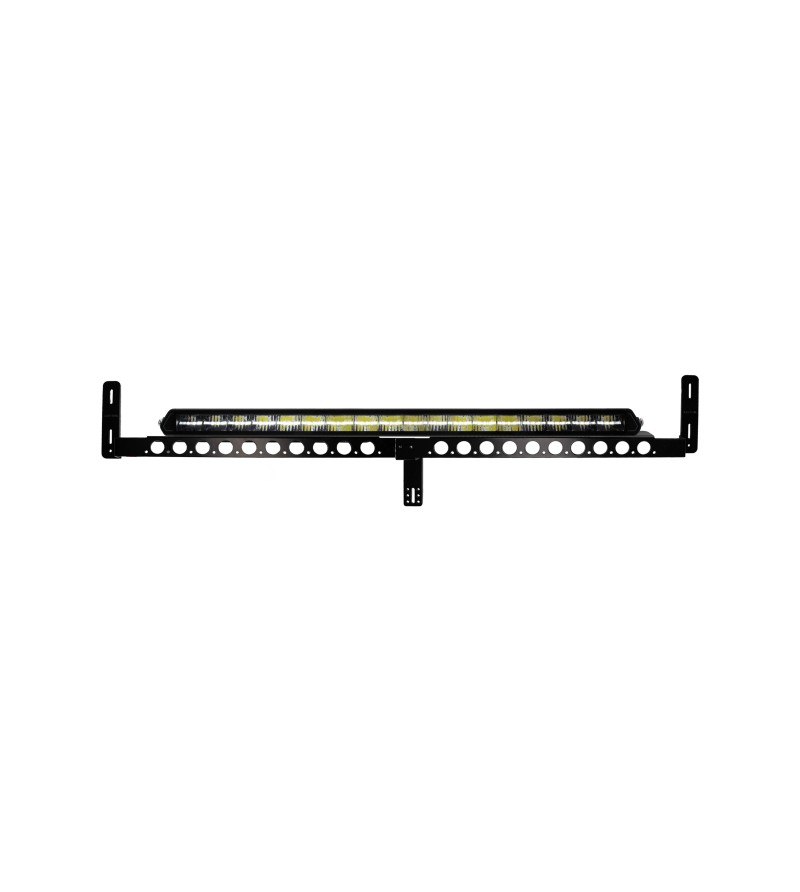

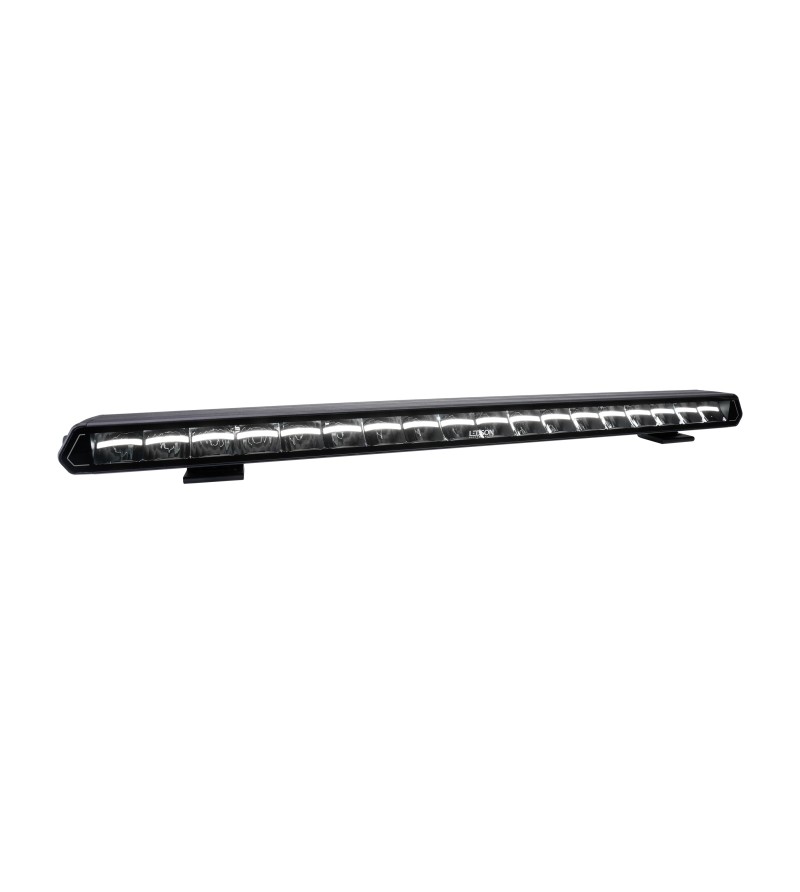

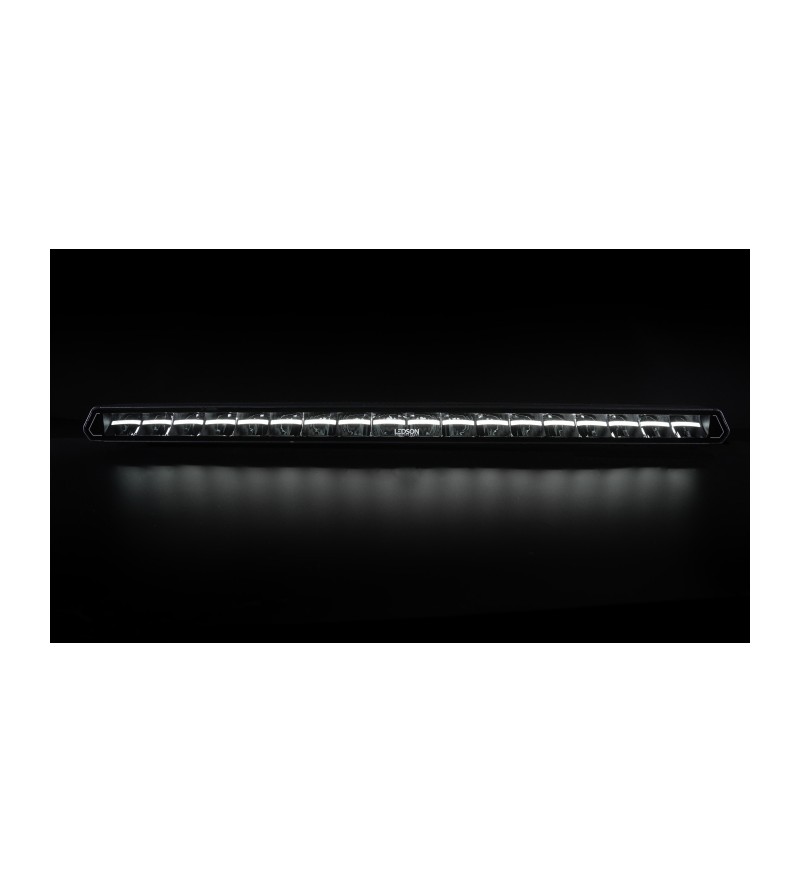

      Ledson Epix 30+ LED Bar Package for Volvo FH

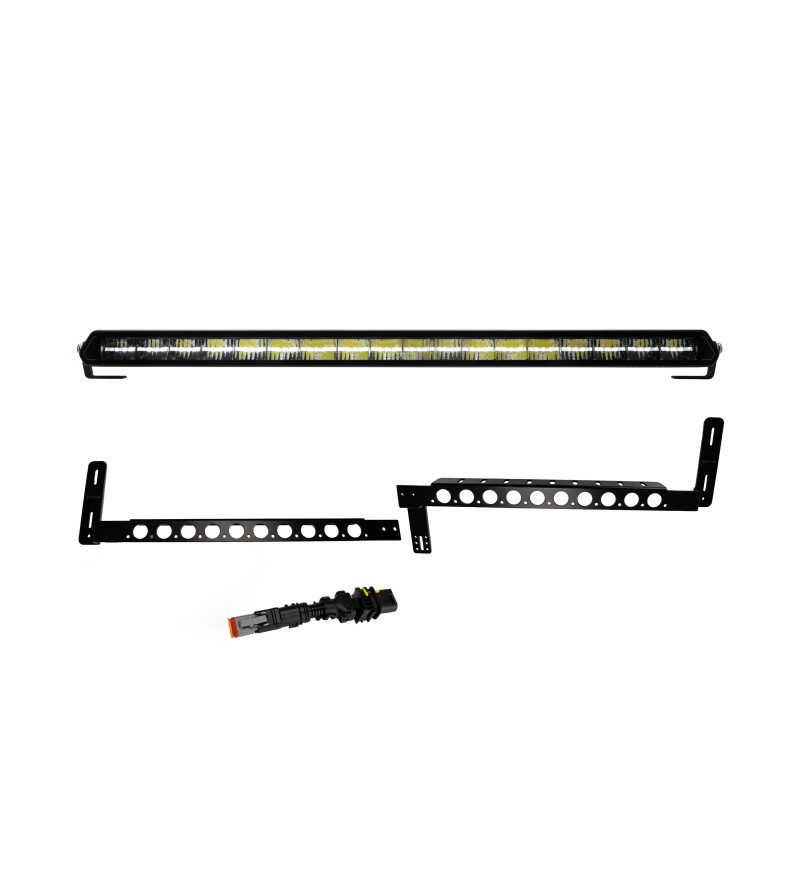

      What's included:

      • Ledson Epix 30+ LED Bar 30" 270W Powerboost / Ledson Epix 30+ Strobe LED Bar 30" 270W Powerboost
      • Installation kit with all necessary components for a simple and quick installation, including installation instructions
      • Adapter cable with Volvo connector

      Discover the Unique Design Details of the Ledson Light Bar

      The design of the light bar is uniquely developed by Ledson and perfectly matches today’s most modern trucks, taking your vehicle to the next level. The dynamic position light is activated with a powerful movement that neatly guides the light from one side of the bar to the other before fully illuminating. The position light is integrated into the reflector, a completely unique feature that makes you stand out just a little more.

      Features and Technical Data:

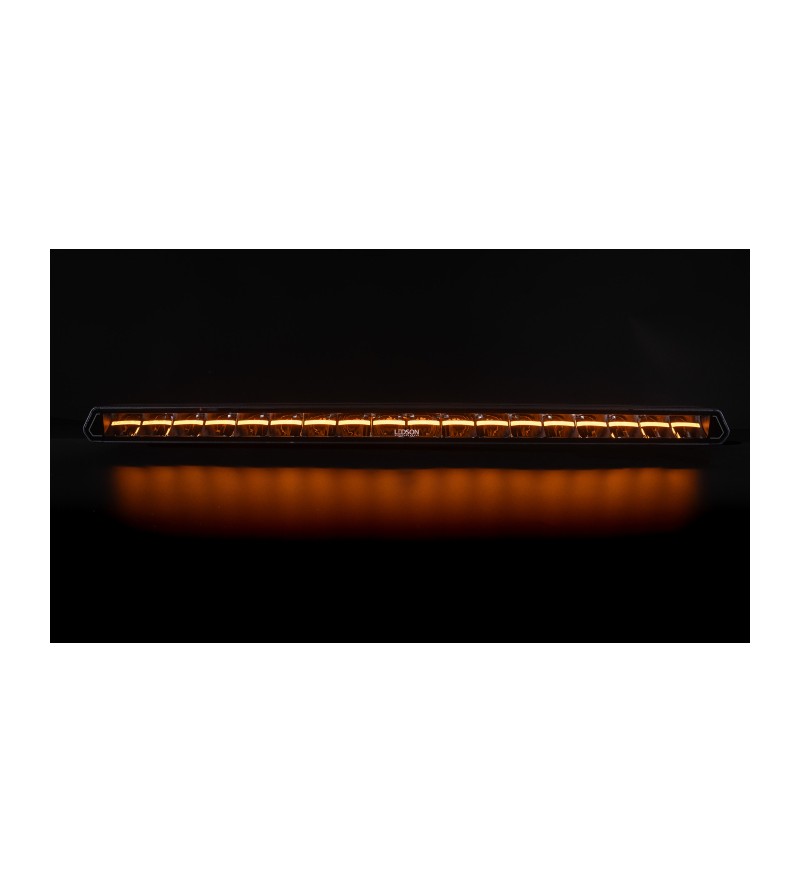

      • Position light with unique dynamic ignition, integrated in the reflector
      • Selectable position light in xenon white or yellow/orange
      • Driving Beam light pattern (wide and oblong)
      • E-marked R112, R7, R10 (EMC rated)
      • Range: 458 m (1 lux), Powerboost: 672 m (1 lux)
      • 23,200 lumens (theoretical), 16,300 lumens (actual)
      • Color temperature 5000K (Neutral White)
      • 270 W (18 x 15 W LEDs)
      • Voltage: 9-36V
      • IP69K (water/dustproof)
      • Aluminum housing and polycarbonate lens
      • Side reflective optics
      • Pressure equalization membrane
      • Electronic heat management
      • Supplied connectors: 1 x DTP connector 2 pole (LED bar high beam) and 1 x DT connector 2 pole (LED bar position light)
      Ledson
      1360264

      Data sheet

      General: Accessory
      Lighting
      General: Producttype
      Grille kit
      General: Product serie
      Epix
      General: Serial model
      30+
      General: Series
      Lights & Styling
      Dimensions and weight: Size ( Ø / ↔ )
      2) Medium
      General: Shape
      Ledbar
      Dimensions and weight: Width (mm)
      740
      Dimensions and weight: Height (mm)
      43
      Dimensions and weight: Depth (mm)
      61
      Light and vision: Light type
      LED
      Light and vision: Lighting - type
      Driving light
      Light and vision: Light color
      White
      design and material: Glass color
      Clear
      Light and vision: Position light
      Position light
      Light and vision: Color of position light
      Amber
      White
      Light and vision: Lumen
      16300-23200
      Lights and vision: Light distance (m) at 1 lux
      Range: 458 m (1 lux), Powerboost: 672 m (1 lux)
      certifications and delivery: E-mark
      Yes
      certifications and delivery: Certifications
      R10
      Technical specifications: Voltage
      12V
      18V
      24V
      Technical specifications: Watts
      270W
      Technical specifications: Wattage per LED
      15W
      certifications and delivery: Wiring kit included
      No
      design and material: Chrome / RVS
      No
      design and material: Housing material
      Aluminum
      design and material: Lamp rim color
      Black
      design and material: Lamp rim material
      Aluminum
      certifications and delivery: IP rating
      IP69K
      certifications and delivery: What is delivered
      1 light
      General manual
      Mounting material
      Wiring set
      fit and mounting: Mount
      Normal
      fit and mounting: Vehicle brand
      Volvo
      fit and mounting: Model
      FH
      fit and mounting: Year of construction series
      2013-2020
      certifications and delivery: Sales unit
      Pack
      certifications and delivery: Standard delivery time
      4-7 business days
      Size in inches
      29.1
      Size in cm
      74
      Vehicle type
      Truck
      Prodcat1
      M
      certifications and delivery: IR-code
      a-1..co
      certifications and delivery: Disclaimer
      Volvo is a registered trademark. Any use of this name is solely for identification and reference purposes. This product is not an original Volvo product and is not manufactured, sponsored, or approved by the trademark owner. The mention of the trademark indicates only that the product is compatible with vehicles of this brand.

      Specific References

      UPC
      1
      EAN13
      7323230044426
