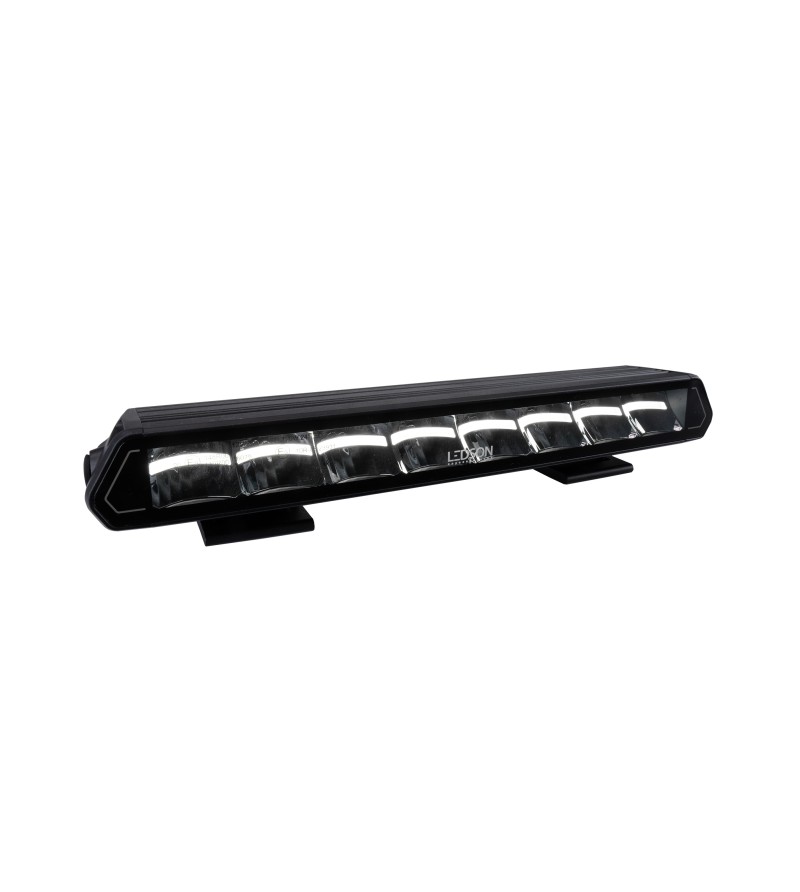

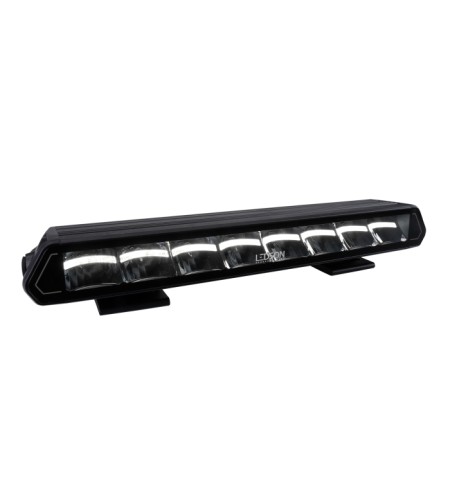

LED Light bar - Ledson - Epix 14+ - 14.1" - 35.7cm - Powerboost - Position light White/Amber - Driving

Ledson Epix 14+ LED bar 14" 120W Powerboost - 334915088

LED Light bar - Ledson - Epix 14+ - 14.1" - 35.7cm - Powerboost - Position light White/Amber - Driving

€209.95(tax incl.)

€173.51 (tax excl.)

Reference: 334915088
Producttype: LED Light bar
Dimensions (mm): 357 (w) x 43 (h) x 61 (d)
E-mark: Yes
Beam type: Driving
Sales unit: Single item
Standard delivery time: 1-3 business days

...Continue

Must-have accessoires

Wiring Kit

	Reference: 7801004 Producttype: Wiring kit Standard delivery time: 1-3 business days x ...Continue	Wiring kit - Ledson - Connect - 1 lamp - 4 pins - Deutsch DT - 12V €47.95
	Reference: 7801013 Producttype: Wiring kit Standard delivery time: 1-3 business days x ...Continue	Wiring kit - Ledson - Connect - 2 lamps - 4 pins - Deutsch DT - 12V €62.99
	Reference: 8213-DT4 Producttype: Wiring kit Sales unit: Single item Standard delivery time: 1-3 business days The Lazer 3-meter extension cable with 4 pins easily creates extra connections for all your 12V projects. This flexible cable is perfect for expanding your lighting or equipment setup. ...Continue	Wiring kit - Lazer - Extension cable - 4 pins - Deutsch DT - 12V €44.95

Pay in a secure environment
Questions about this product? Our experts are here to help
4.8/5 More than 10,000 customers have already gone before you

Ledson Epix 14+ LED Bar 14" 120W Powerboost

What is included:

Mounting materials: Bolts and screws to secure the bar to a suitable surface
Mounting details
DT 4-pin cable (you also need a DT harness, available here)
Installation instructions

Dynamic Ignition and Performance of the Epix+ LED Bar

The dynamic ignition of the position lights gives the bar an effective start-up. Everything you need and want in an LED bar can be found in the Epix+. We have maximized performance in an E-approved mode, with the option for Powerboost when you choose to go “off-road.” Approved R65 flashers ensure your visibility while working on the road and keep you safe in any weather and at any time of day. Our self-developed smart mounting accessories ensure easy installation on almost any part of the vehicle, exactly as you want it.

Features and Technical Specifications:

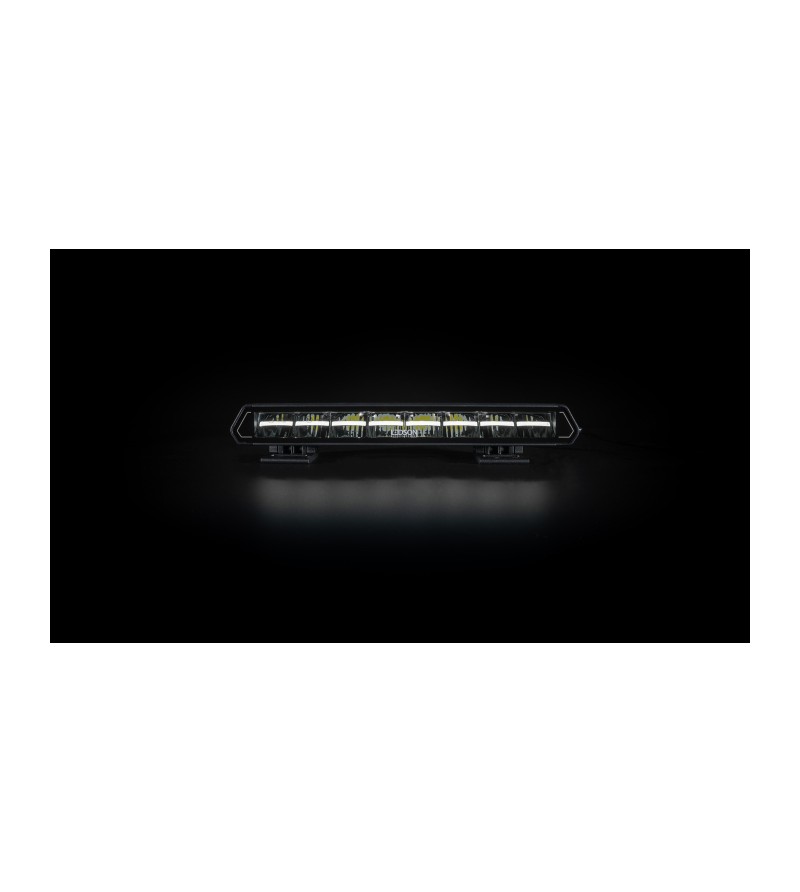

Position light with unique dynamic ignition, integrated into the reflector

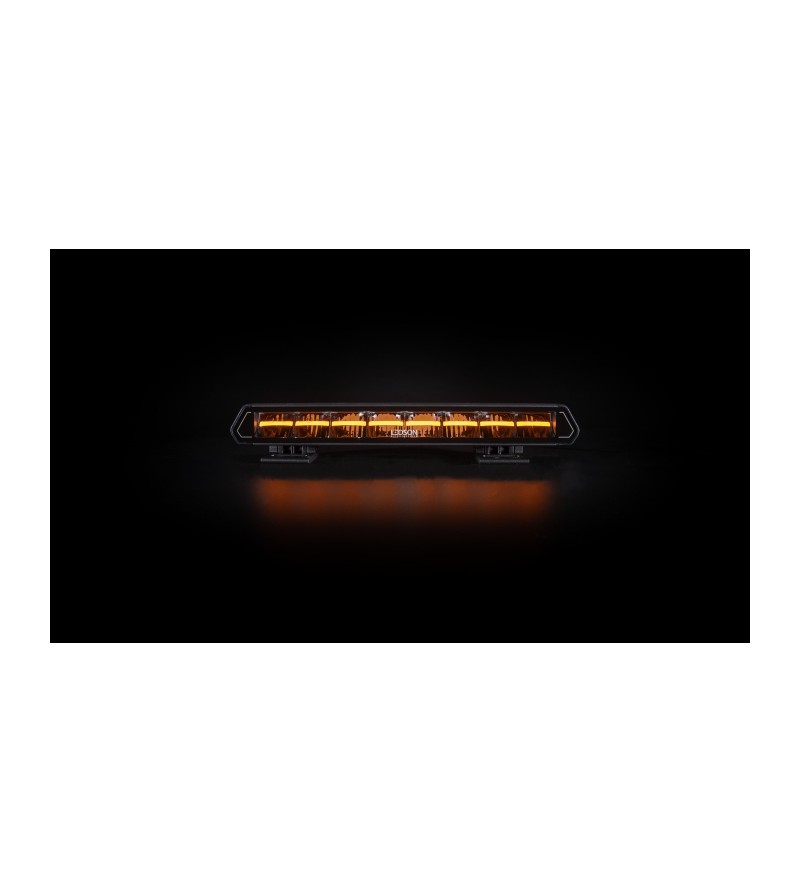

Selectable position light in xenon white or yellow/orange
Lighting pattern for driving light (wide and elongated)
E-approved R112, R7, R10 (EMC certified)
Range: 328 m (1 lux), Powerboost: 459 m (1 lux)
9,800 lumens (theoretical), 7,300 lumens (actual)
Color temperature 5000K (Neutral White)
120 W (8 x 15 W LEDs)
Voltage: 9-36V
IP69K (water/dust resistant)
Aluminum housing and polycarbonate lens
Side-reflecting optics
Pressure equalization membrane
Electronic thermal management
DT connector (included)

Reference 334915088

Data sheet

General: Accessory: Lighting
General: Producttype: LED Light bar
General: Product serie: Epix
General: Serial model: 14+
General: Feature: Powerboost
General: Series: Ledson Signal
Dimensions and weight: Size ( Ø / ↔ ): 2) Medium
General: Shape: Ledbar
Dimensions and weight: Width (mm): 357
Dimensions and weight: Height (mm): 43
Dimensions and weight: Depth (mm): 61
Light and vision: Beam type: Driving
Light and vision: Light type: LED
Light and vision: Lighting - type: Driving light
Light and vision: Light color: White
Design and material: Glass color: Clear
Light and vision: Position light: Position light
Light and vision: Color of position light: Amber
White
Light and vision: Light distance (m) at 1 lux: Range: 328 m (1 lux), Powerboost: 459 m (1 lux)
certifications and delivery: E-mark: Yes
certifications and delivery: Certifications: R10
R112
Technical specifications: Voltage: 12V
18V
24V
30V
36V
Technical specifications: Watts: 120W
Technical specifications: LEDs per lamp: 8
Technical specifications: Wattage per LED: 15W
Technical specifications: Number of pins: 4 pins
Technical specifications: Connector: Deutsch DT
Design and material: Chrome / RVS: No
Design and material: Housing color: Black
Design and material: Housing material: Aluminum
Design and material: Lamp rim color: Black
Design and material: Lamp rim material: Aluminum
certifications and delivery: IP rating: IP69K
fit and mounting: Vehicle brand: Universal
certifications and delivery: Sales unit: Single item
certifications and delivery: Standard delivery time: 1-3 business days
Size in inches: 14.1
Size in cm: 35.7
Prodcat1: M
Shipping Size: Standard
certifications and delivery: IR-code: a6.D13.st

Specific References

UPC: 1
EAN13: 7323230047410
