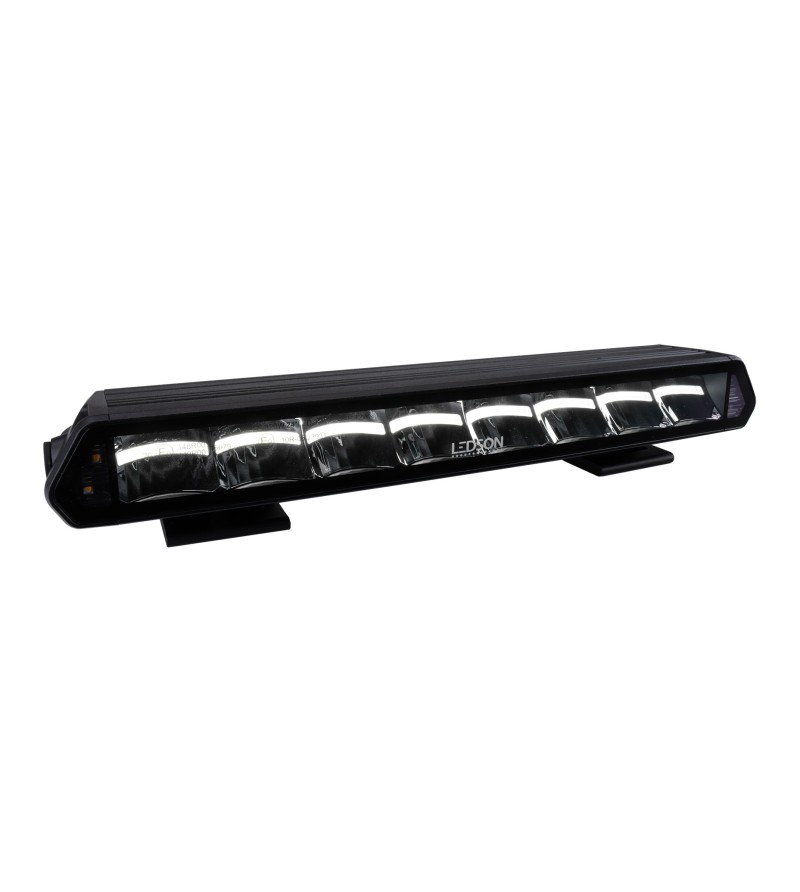

LED Light bar - Ledson - Epix 14+ - Strobe - 14.1" - 35.7cm - Position light White/Amber - 10 flash patterns - Driving
€241.95(tax incl.)
€199.96 (tax excl.)
- Reference: 334915089
- Producttype: LED Light bar
- Diameter: 218

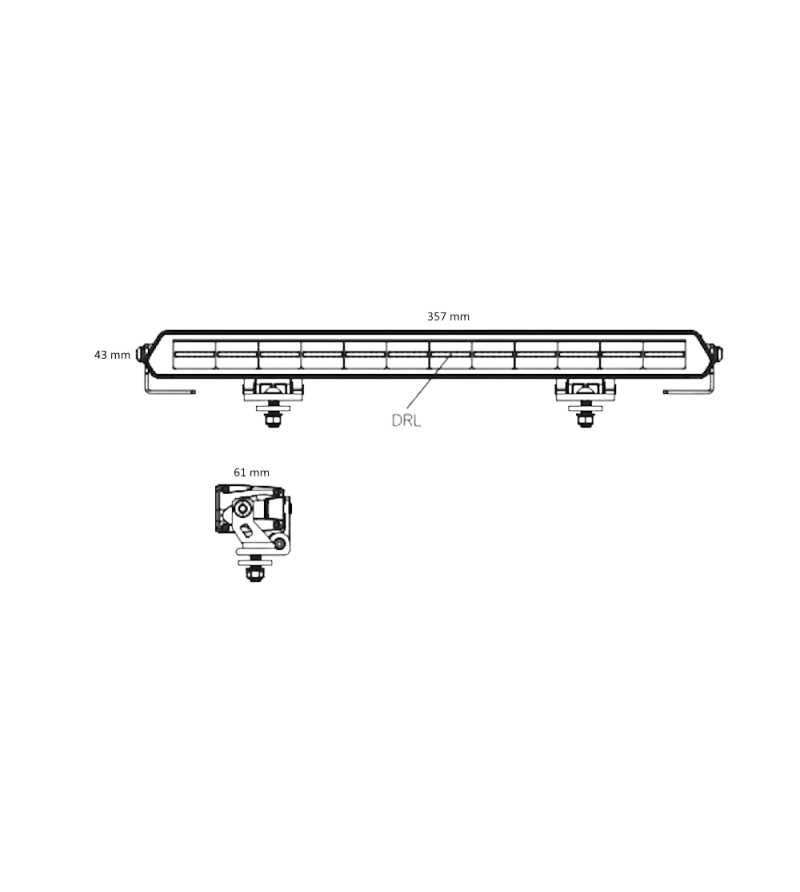

- Dimensions (mm): 357 (w) x 43 (h) x 61 (d)
- E-mark: Yes
- Strobe function: 10 flash patterns
- Beam type: Driving
- Sales unit: Single item
- Standard delivery time: 1-3 business days
x
...Continue
Must-have accessoires
Wiring Kit
Pay in a secure environment
Questions about this product? Our experts are here to help
4.8/5 More than 10,000 customers have already gone before you
Ledson - Epix 14+
What is Included:
- Epix14+ Powerboost 14" LED bar
- Mounting brackets
- DT 4-pin cable
- Installation manual
The LED bar for your vehicle!
The dynamic ignition of the position lights ensures an effective startup of the bar. Everything you need and want in an LED bar can be found with Epix+. We have maximized performance in an E-approved mode, with the option for Powerboost when you choose to go "off-road." Approved R65 strobe lights ensure visibility while working on the road and keep you safe in all weather conditions and at any time of day. Self-developed smart mounting brackets make installation easy, no matter where you want it on the vehicle.
Specifications:
- Position light with unique dynamic ignition, integrated into the reflector

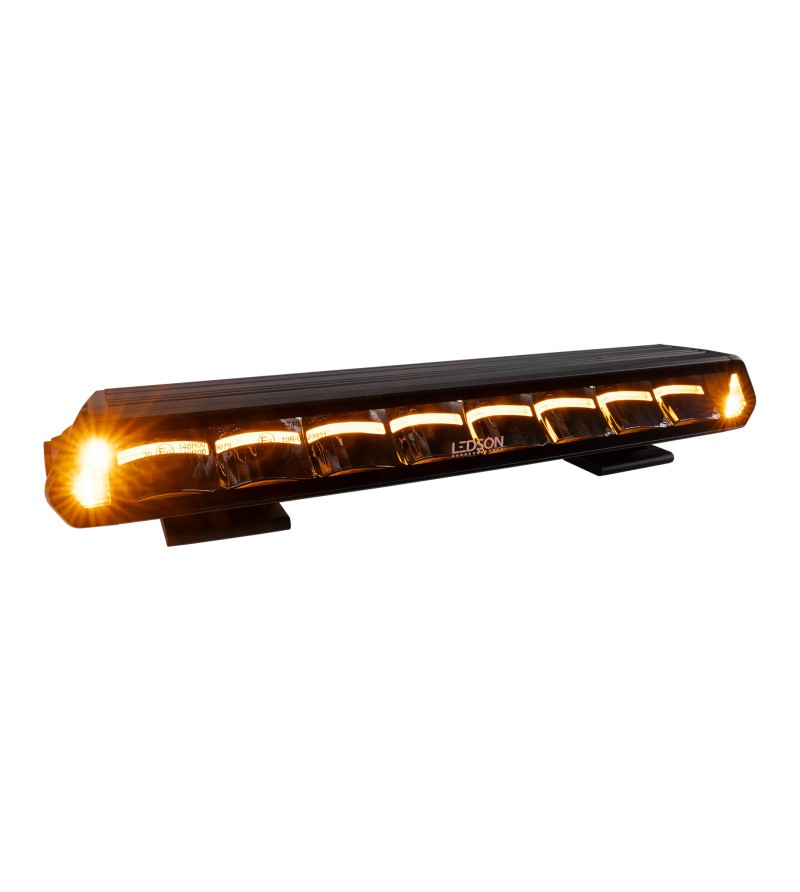

- Selectable position light in xenon white or yellow/orange
- Driving light pattern (wide and elongated)
- E-approved R112, R7, R10 (EMC classified)
- Range: 328 m (1 lux), Powerboost: 459 m (1 lux)
- 9,800 lumens (theoretical), 7,300 lumens (actual)
- Color temperature 5000K (neutral white)
- 120 W (8 x 15 W LEDs)
- Voltage: 9-36V
- IP69K (water and dustproof)
- Aluminum housing and polycarbonate lens
- Side-reflecting optics
- Pressure equalizing membrane
- Electronic heat management
- DT connector (included)
Flash Patterns:
- Single flash synchronization: 2.2 Hz
- Single flash asynchronous: 2.2 Hz
- Triple flash synchronization: 1.1 Hz
- Triple flash asynchronous: 1.1 Hz
- Quad flash synchronization: 1.25 Hz
- Quad flash asynchronous: 1.25 Hz
- Combination of one long and five short synchronization: 0.83 Hz
- Combination of one long and five short asynchronous: 0.83 Hz
- Burst flash synchronization: 10 Hz
- Burst flash asynchronous: 10 Hz
WARNING: The DT connector must not be cut, as this increases the risk of moisture damage and voids the warranty.
334915089
Data sheet
- General: Accessory
- Lighting
- General: Producttype
- LED Light bar
- General: Product serie
- Epix
- General: Serial model
- 14+
- General: Version
- Strobe
- General: Series
- Lights & Styling
- Dimensions and weight: Size ( Ø / ↔ )
- 2) Medium
- General: Shape
- Ledbar
- Dimensions and weight: Diameter (mm)
- 218
- Dimensions and weight: Width (mm)
- 357
- Dimensions and weight: Height (mm)
- 43
- Dimensions and weight: Depth (mm)
- 61
- Light and vision: Beam type
- Driving
- Light and vision: Light type
- LED
- Light and vision: Lighting - type
- Driving light
Signal light - Light and vision: Light color
- White
- Light and vision: Position light
- Position light
- Light and vision: Color of position light
- Amber
White - Light and vision: Signal lights
- Flash light
- Light and vision: Strobe function
- 10 flash patterns
- Light and vision: Theoretical Lumens
- 12000
9600 - Light and vision: Light distance (m) at 1 lux
- 425
- Light and vision: Light distance (m) at 0.25 lux
- 850
- certifications and delivery: E-mark
- Yes
- certifications and delivery: Certifications
- R10
R112 - Technical specifications: Voltage
- 12V
18V
24V
30V
36V - Technical specifications: LEDs per lamp
- 12
- Technical specifications: Wattage per LED
- 10W
- Technical specifications: Number of pins
- 6 pins
- Technical specifications: Connector
- Deutsch DT
- Design and material: Chrome / RVS
- No
- Design and material: Housing color
- Black
- Design and material: Housing material
- Aluminum
- certifications and delivery: IP rating
- IP68
- fit and mounting: Mount
- Normal
- certifications and delivery: Sales unit
- Single item
- certifications and delivery: Standard delivery time
- 1-3 business days
- Size in inches
- 14.1
- Size in cm
- 35.7
- Prodcat1
- M
- Prodcat2
- AB
- Shipping Size
- Standard
- certifications and delivery: IR-code
- a3.D13.st
Specific References
- UPC
- 1
- EAN13
- 7323230047427
- MPN
- 0002-100-012497
