Work light - Ledson - Helix - Work Strobe - 6.5" - 16.4cm - 1 flash pattern - Work / Scene

Ledson Helix Reverse / Work light with strobe - 33492418

Work light - Ledson - Helix - Work Strobe - 6.5" - 16.4cm - 1 flash pattern - Work / Scene

€99.50(tax incl.)

€82.23 (tax excl.)

Reference: 33492418
Producttype: Work light
Dimensions (mm): 164 (w) x 41 (h) x 61 (d)
E-mark: Yes
Strobe function: 1 flash pattern
Beam type: Work / Scene
Sales unit: Single item
Standard delivery time: 1-3 business days

...Continue

Must-have accessoires

Wiring Kit

	Reference: 7801004 Producttype: Wiring kit Standard delivery time: 1-3 business days x ...Continue	Wiring kit - Ledson - Connect - 1 lamp - 4 pins - Deutsch DT - 12V €47.95
	Reference: 7801013 Producttype: Wiring kit Standard delivery time: 1-3 business days x ...Continue	Wiring kit - Ledson - Connect - 2 lamps - 4 pins - Deutsch DT - 12V €62.99

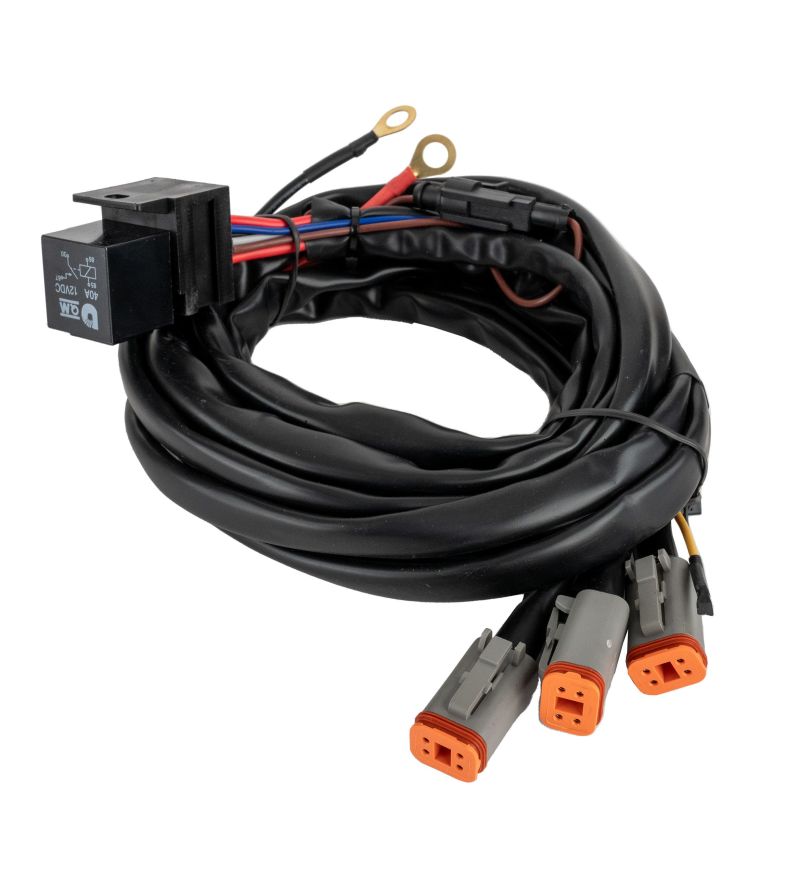

	Reference: 7801005 Producttype: Wiring kit Standard delivery time: 1-3 business days x ...Continue	Wiring kit - Ledson - Connect - 3 lamps - 4 pins - Deutsch DT - 12V €56.95

Pay in a secure environment
Questions about this product? Our experts are here to help
4.8/5 More than 10,000 customers have already gone before you

Ledson Helix Reversing lamp / Work lamp with strobe flash

✓ Helix reversing light with flash light
✓ A multifunctional lamp that makes it all easier!
✓ E-marked ECE R23 and R65

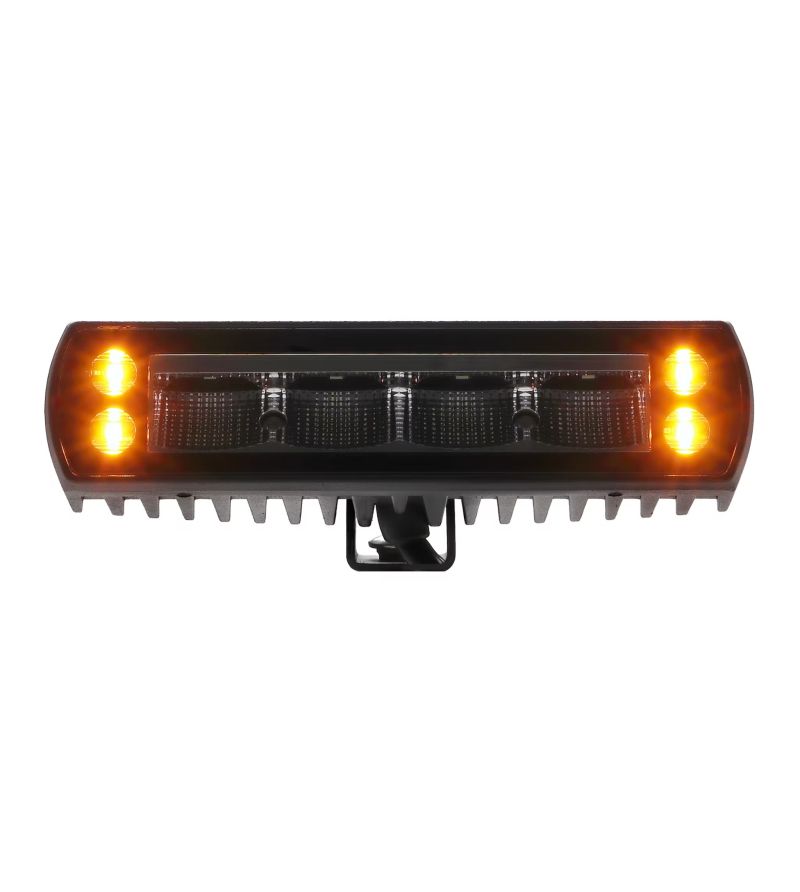

The Ledson Helix is an E-marked reversing light that, in addition to lighting up well behind you, also has an approved flash light. With two functions in one product, you save space on the vehicle and simplify your installation!

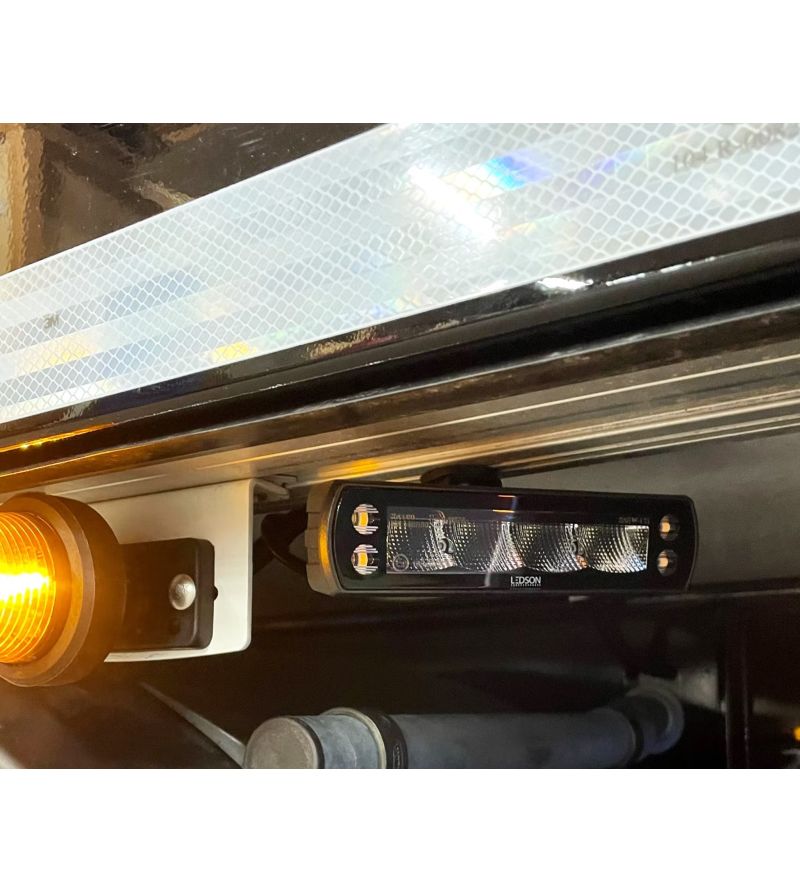

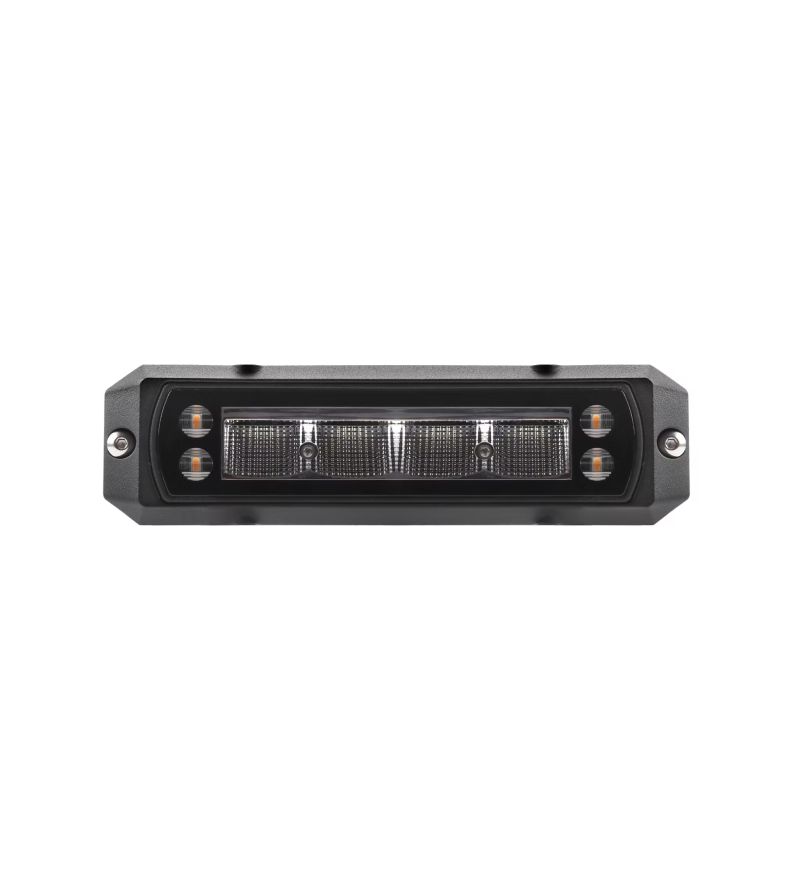

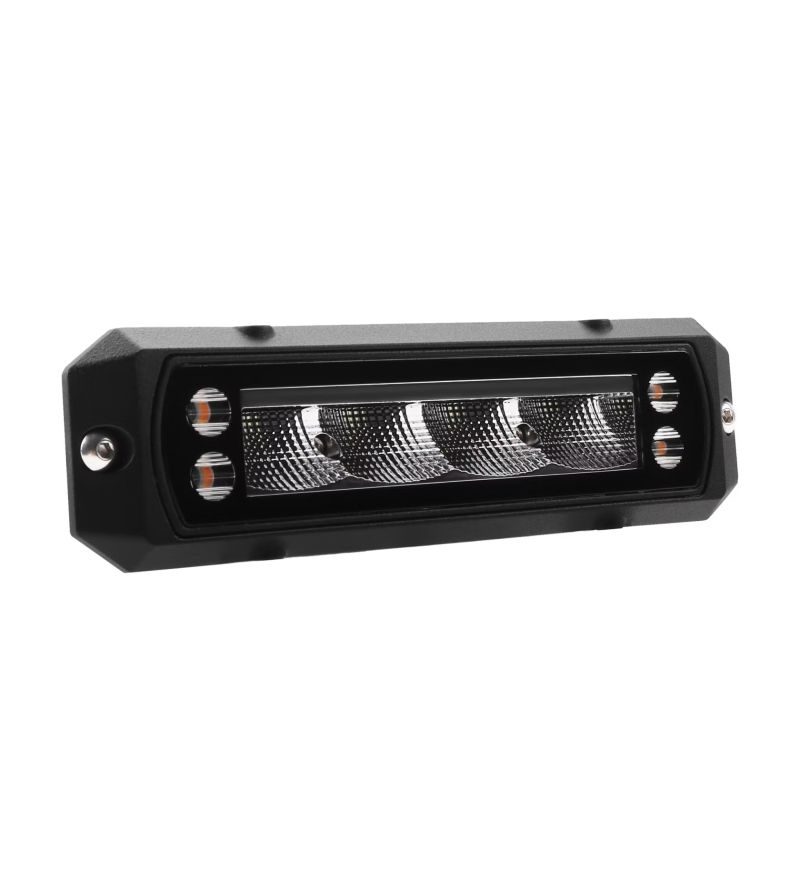

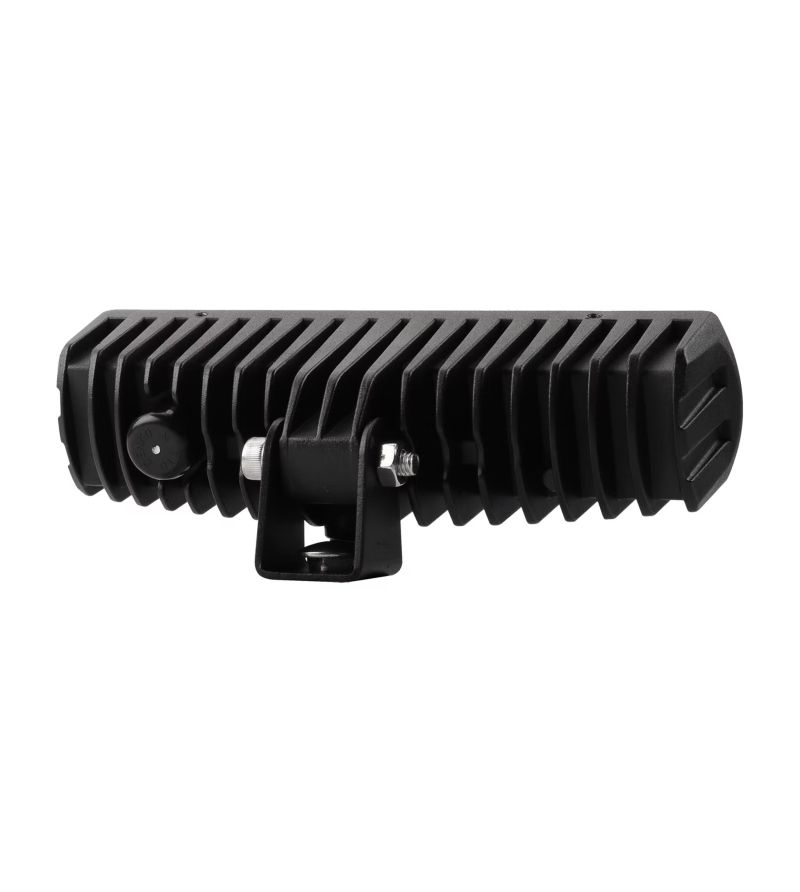

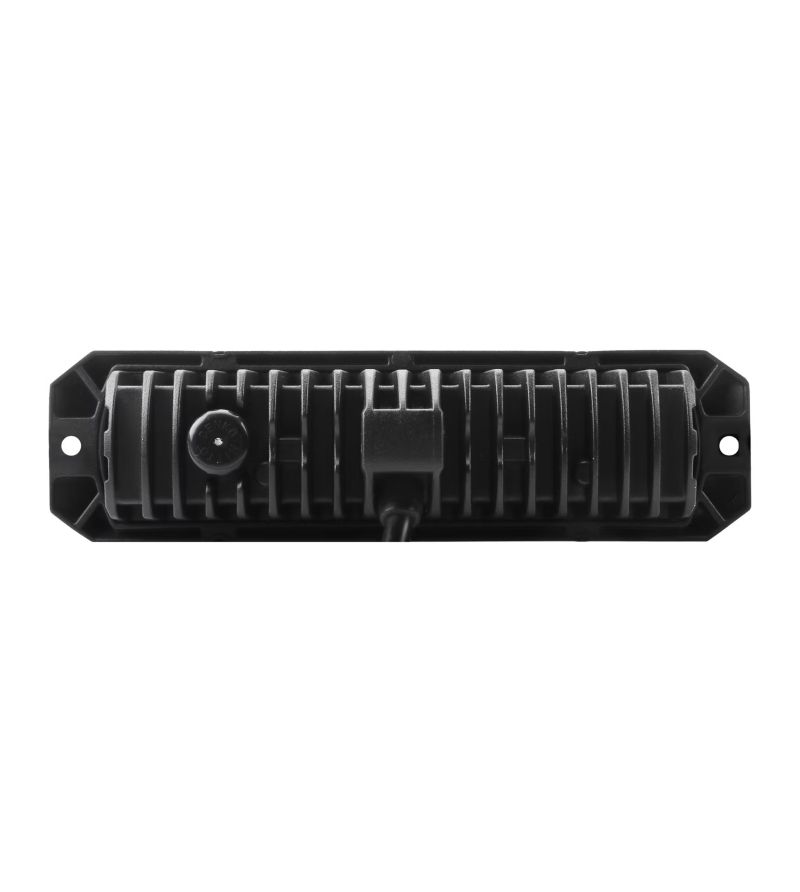

Helix can be mounted upright, hanging or flush-mounted.

Characteristics:

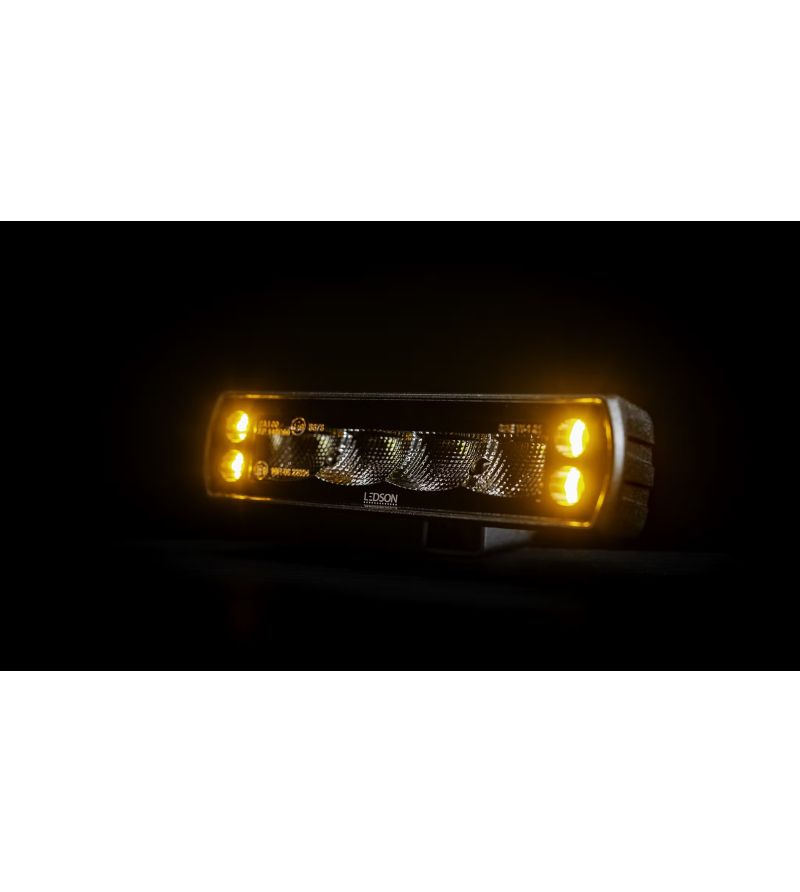

E-marked reversing light equipped with approved flash light
ECE R23, R65, R10, CISPR25 class 3

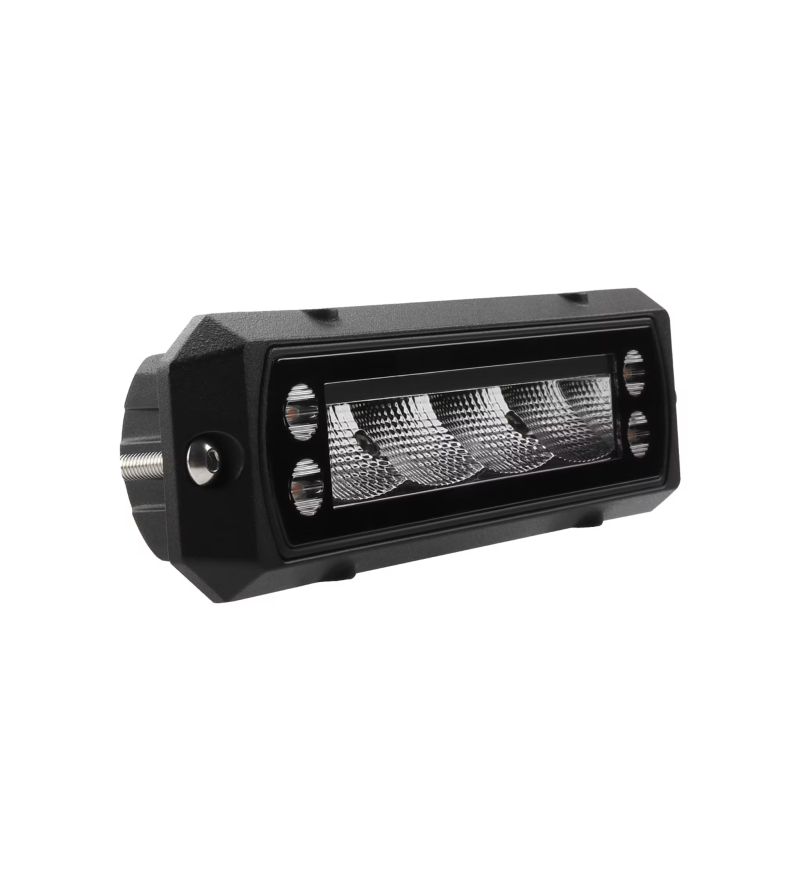

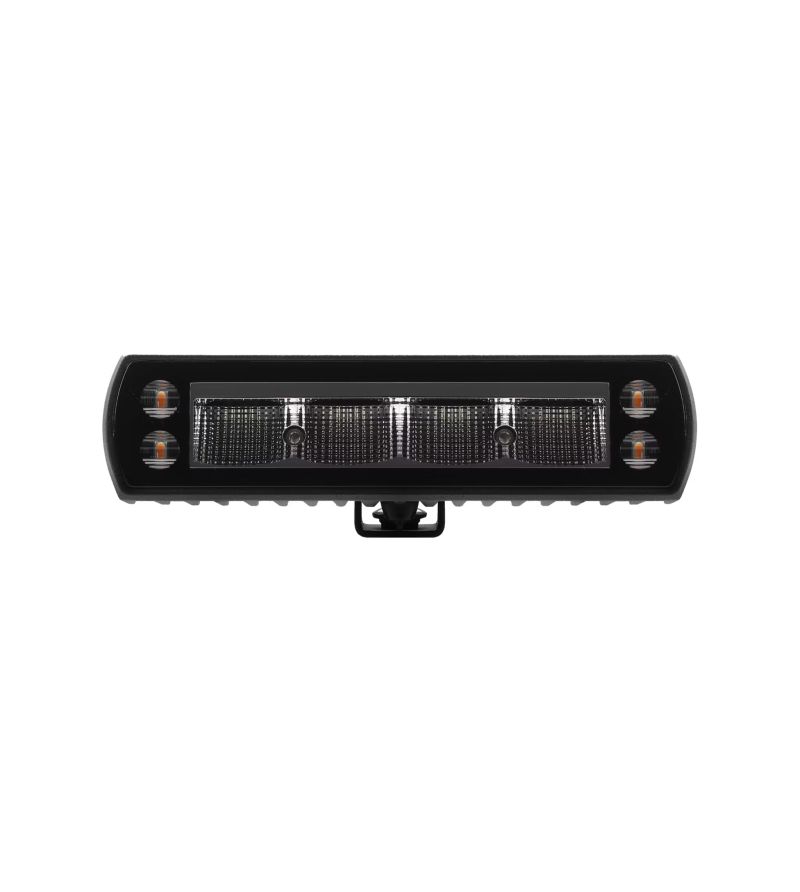

Includes bracket for upright/hanging & recessed mounting
River light image (wide light)
Lumens: 3200 (theoretical), 2700 (actual)
Side-reflecting optical system
Electronic heat management
Cool white light (6000K)

Technical data:
4 x 8 W LED (reversing light) + 4 x 3 W LED (flash light)
Load 1.9 A at 12 V and 1 A at 24 V
IP69K (water/dustproof)
Voltage 9-36 V
Mounted 4-pin DT connector on the cable to prevent moisture ingress
Including DT female

Measuring unit:
Width: 164mm
Height: 41 mm excluding bracket
Depth: 61mm
Cable length: 30 cm

Cable installation instructions (detailed installation instructions included)

Red: Reversing light (+)
Black: Reversing light (- ground)
Yellow: Warning/flash light (+)
Green: Sync (+) Connection when using multiple lamps at the same time

NOTE: The DT connector must not be cut as this increases the risk of moisture damage and will void the warranty. DT connector (male) with hinge supplied with the product.

More information
Attribute Value
Color Xenon white
Voltage 9-36 V
Ignition time, cold to full power Instant
Manufacturer Ledson
Scope of application Outdoor use
Number of diodes 8 pieces
Warranty 24 months
Light source LEDs
Delivered part
E-marking ECE R23, ECE R65
Equipped with Reversing light, flash light
Number of contacts 1 x DT connector
Type of light image Flood

Reference 33492418

Data sheet

General: Accessory: Lighting
General: Producttype: Work light
General: Product serie: Helix
General: Version: Work Strobe
General: Series: Lights & Styling
Dimensions and weight: Size ( Ø / ↔ ): 2) Medium
General: Shape: Ledbar
Dimensions and weight: Width (mm): 164
Dimensions and weight: Height (mm): 41
Dimensions and weight: Depth (mm): 61
Light and vision: Beam type: Work / Scene
Light and vision: Light type: LED
Light and vision: Lighting - type: Reverse light
Signal light
Work light
Light and vision: Light color: White
Design and material: Glass color: Clear
Light and vision: Position light: No position light
Light and vision: Signal lights: Flash light
Light and vision: Strobe function: 1 flash pattern

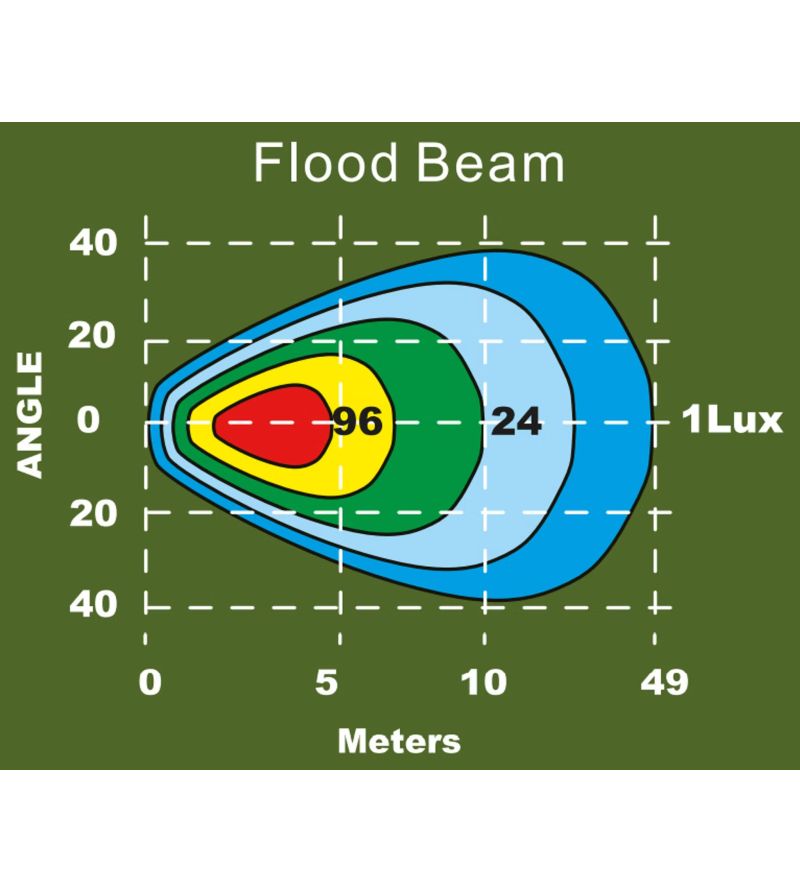

Light and vision: Light distance (m) at 1 lux: 49
certifications and delivery: E-mark: Yes
certifications and delivery: Certifications: R23
R65
Technical specifications: Voltage: 12V
18V
24V
30V
36V
Technical specifications: LEDs per lamp: 4
Technical specifications: Wattage per LED: 8W
Technical specifications: Number of pins: 4 pins
Technical specifications: Connector: Deutsch DT
Technical specifications: Cable Length (cm): 30
Design and material: Chrome / RVS: No
Design and material: Housing color: Black
Design and material: Housing material: Aluminum
Design and material: Lamp rim color: Black
Design and material: Lamp rim material: Aluminum
certifications and delivery: IP rating: IP69K
fit and mounting: Vehicle brand: Universal
certifications and delivery: Sales unit: Single item
certifications and delivery: Standard delivery time: 1-3 business days
Size in inches: 6.5
Size in cm: 16.4
Prodcat1: M
Shipping Size: Standard
certifications and delivery: IR-code: a2.K23.st

Specific References

UPC: 1
EAN13: 7323230037442
MPN: 0008-100-005970
