LED Light bar - Ledson - Phoenix - 31.4" - 79.8cm - Smoke - Position light White/Amber - 1 flash pattern - Driving Spot Combo

LEDSON Phoenix+ LED bar 32" with beacon - 33305335

LED Light bar - Ledson - Phoenix - 31.4" - 79.8cm - Smoke - Position light White/Amber - 1 flash pattern - Driving Spot Combo

€399.95(tax incl.)

€330.54 (tax excl.)

Reference: 33305335
Producttype: LED Light bar
Dimensions (mm): 798 (w) x 40 (h) x 54 (d)
E-mark: Yes
Strobe function: 1 flash pattern
Beam type: Driving Spot Combo
Sales unit: Single item
Standard delivery time: 1-3 business days

...Continue

Must-have accessoires

Wiring Kit

	Reference: 1L-UT-500 Producttype: Wiring kit Sales unit: Single item Standard delivery time: 1-3 business days The Lazer Utility cable set easily connects two lamps with a switch for reliable lighting. Perfect for all your 12V projects and quick to install, so you can get back on the road right away. ...Continue	Wiring kit - Lazer - 1 lamp - Incl. switch - 2 pins - Deutsch DT - 12V €44.95
	Reference: 7801001 Producttype: Wiring kit Standard delivery time: 1-3 business days x ...Continue	Wiring kit - Ledson - Connect - Reversing light - 2 lamps - 2 pins - Deutsch DT - 12V €42.95

Pay in a secure environment
Questions about this product? Our experts are here to help
4.8/5 More than 10,000 customers have already gone before you

Description
Product Details

LEDSON Phoenix+ LED bar 32" with beacon

The Phoenix series offers true multifunctionality with additional lighting and warning lights in one! Now you don't have to mount both additional lamps and flashlights, save space and get a simplified installation.

Phoenix+ is available in three different sizes (20", 32" and 40") and therefore fits everything from transport vehicles to trucks and excavators - to meet your needs. All lengths are E-approved as additional lighting according to ECE R112 and have approved flashlights (ECE R65). Phoenix+ are also equipped with xenon white or yellow/orange position lights, which can be switched on.

You get great power in the high beams and a safer job on the road!

Characteristics:
E-marked ECE R112 (ref. 50)
ECE R65 / R7 / R10 (EMC classified)
Range: 449 m (1 lux)
Lumen: 13860 lm (theoretical), 5583 lm (actual)
Color temperature 5700K (cold white)
Flashlight: Orange (ECE R65)
Position light: Xenon white alt. yellow orange

Technical data:
165 W (33 x OSRAM CSHP LED)
IP68/69K: resistant to hot water under pressure
Aluminum housing and polycarbonate lens
4-pin DT connector (included)
Voltage: 10-30V

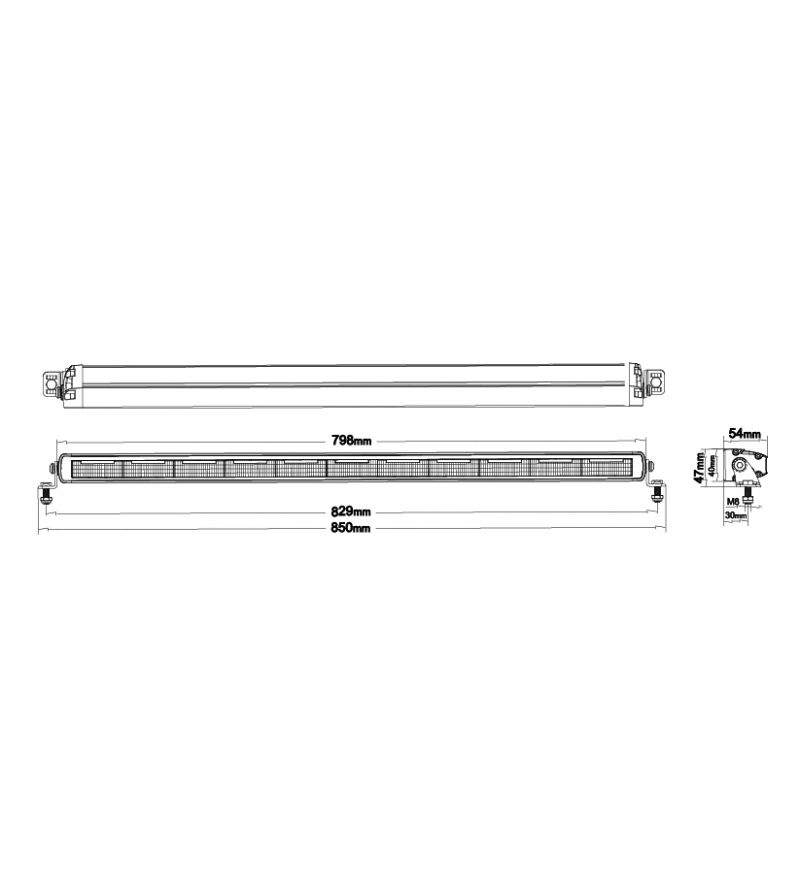

Dimensions & weight (excl. brackets):
Width: 798mm
Height: 40mm
Depth: 54 mm (excl. bracket)
Weight: 2100 grams

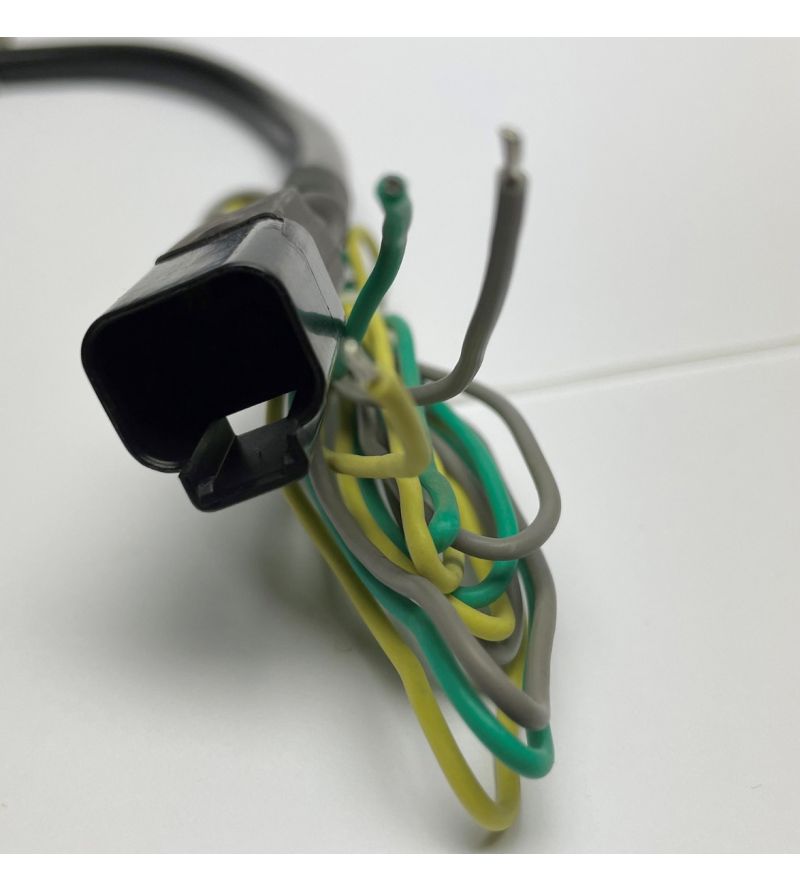

Cable colors:
Green: Flash function
Gray: White position light
Yellow: Orange position light

NOTE: The DT connector should not be cut as this increases the risk of moisture damage and will void the warranty. DT connector (male) with hinge supplied with the product.

Reference 33305335

Data sheet

General: Accessory: Lighting
General: Producttype: LED Light bar
General: Product serie: Phoenix
General: Series: Lights & Styling
Dimensions and weight: Size ( Ø / ↔ ): 2) Medium
General: Shape: Ledbar
Dimensions and weight: Width (mm): 798
Dimensions and weight: Height (mm): 40
Dimensions and weight: Depth (mm): 54
Light and vision: Beam type: Driving Spot Combo
Light and vision: Light type: LED
Light and vision: Lighting - type: Driving light
Signal light
Light and vision: Light color: White
Design and material: Glass color: Smoke
Light and vision: Position light: Position light
Light and vision: Color of position light: Amber
White
Light and vision: Signal lights: Flash light
Light and vision: Strobe function: 1 flash pattern
Light and vision: Color temperature: 5700K
certifications and delivery: Reference number per unit: 50
Light and vision: Theoretical Lumens: 13860
8820

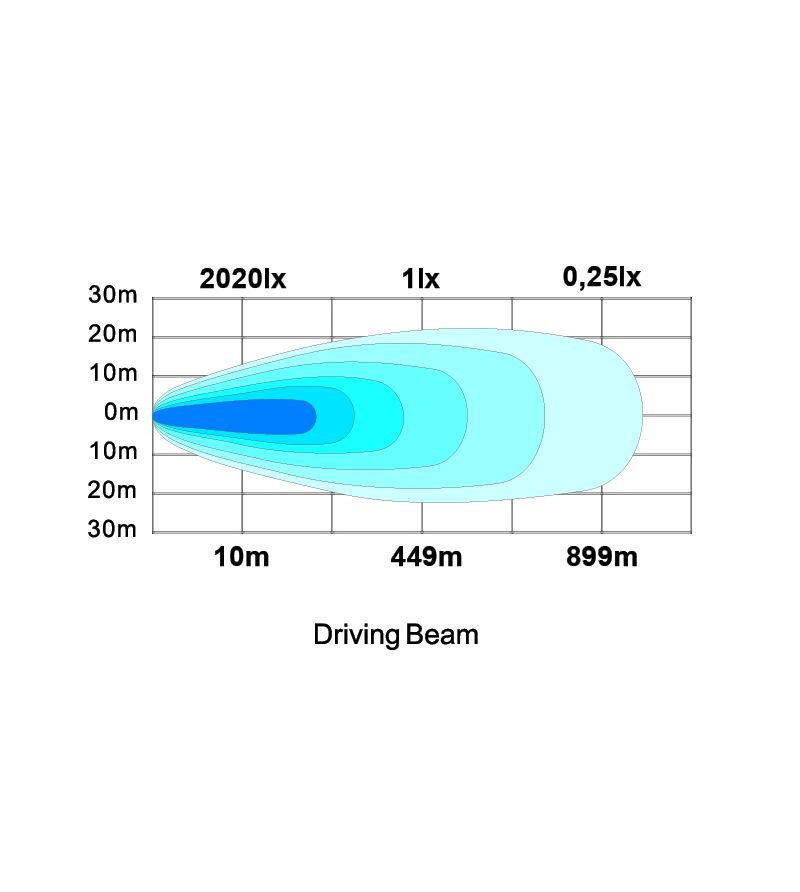

Light and vision: Light distance (m) at 1 lux: 449
Light and vision: Light distance (m) at 0.25 lux: 899
certifications and delivery: E-mark: Yes
certifications and delivery: Certifications: R112
R65
Technical specifications: Voltage: 12V
18V
24V
Technical specifications: Watts: 165W
Technical specifications: LEDs per lamp: 33
Technical specifications: Wattage per LED: 5W
Technical specifications: Number of pins: 2 pins
Technical specifications: Connector: Deutsch DT
certifications and delivery: Wiring kit included: No
Technical specifications: Switch: Without switch
Design and material: Chrome / RVS: No
Design and material: Housing color: Black
Design and material: Housing material: Aluminum
Design and material: Lamp rim color: Black
Design and material: Lamp rim material: Aluminum
certifications and delivery: IP rating: IP68
IP69K
fit and mounting: Mount: Normal
fit and mounting: Vehicle brand: Universal
certifications and delivery: Sales unit: Single item
certifications and delivery: Standard delivery time: 1-3 business days
Size in inches: 31.4
Size in cm: 79.8
Prodcat1: M
Shipping Size: Standard
certifications and delivery: IR-code: a1.D12.st

Specific References

UPC: 1
EAN13: 7323230042705
MPN: 0002-050-020136
