Driving light - Ledson - Sarox 9+ - 8.6" - 21.8cm - Position light White/Amber - Driving

Driving light - Ledson - Sarox 9+ - 8.6" - 21.8cm - Position light White/Amber - Driving

€219.50(tax incl.)

€181.40 (tax excl.)

Reference: 33491220
Producttype: Driving light
Diameter: 218
Dimensions (mm): 218 (w) x 233 (h) x 84 (d)
E-mark: Yes
Beam type: Driving
Sales unit: Single item
Standard delivery time: 1-3 business days

...Continue

Must-have accessoires

Wiring Kit

	Reference: 7801004 Producttype: Wiring kit Standard delivery time: 1-3 business days x ...Continue	Wiring kit - Ledson - Connect - 1 lamp - 4 pins - Deutsch DT - 12V €47.95
	Reference: 7801013 Producttype: Wiring kit Standard delivery time: 1-3 business days x ...Continue	Wiring kit - Ledson - Connect - 2 lamps - 4 pins - Deutsch DT - 12V €62.99
	Reference: 7801005 Producttype: Wiring kit Standard delivery time: 1-3 business days x ...Continue	Wiring kit - Ledson - Connect - 3 lamps - 4 pins - Deutsch DT - 12V €56.95

Pay in a secure environment
Questions about this product? Our experts are here to help
4.8/5 More than 10,000 customers have already gone before you

Description
Product Details

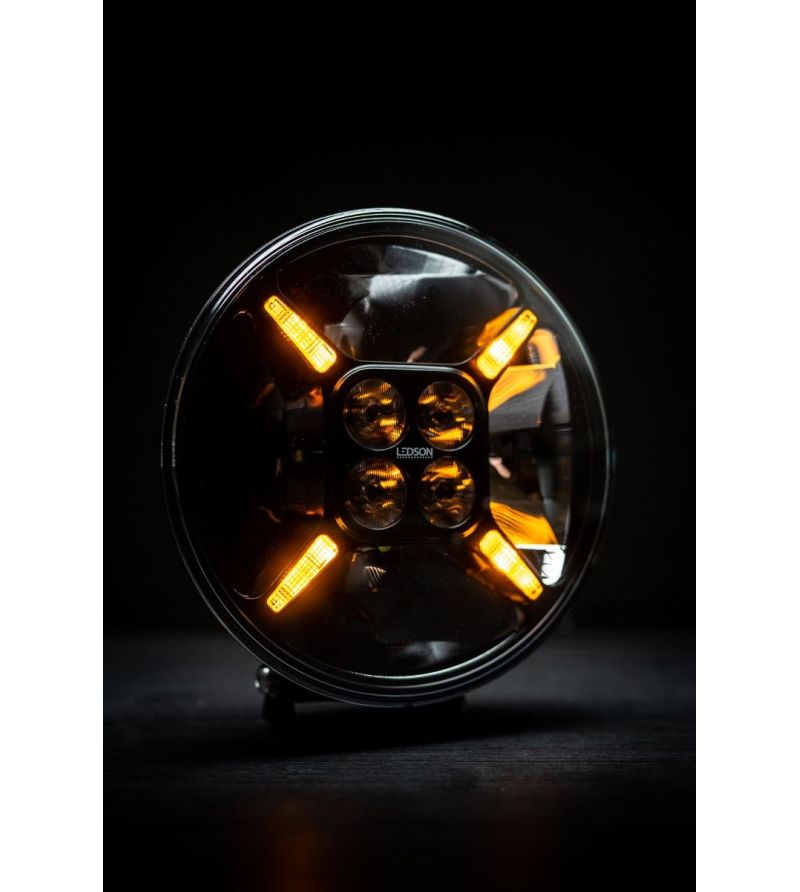

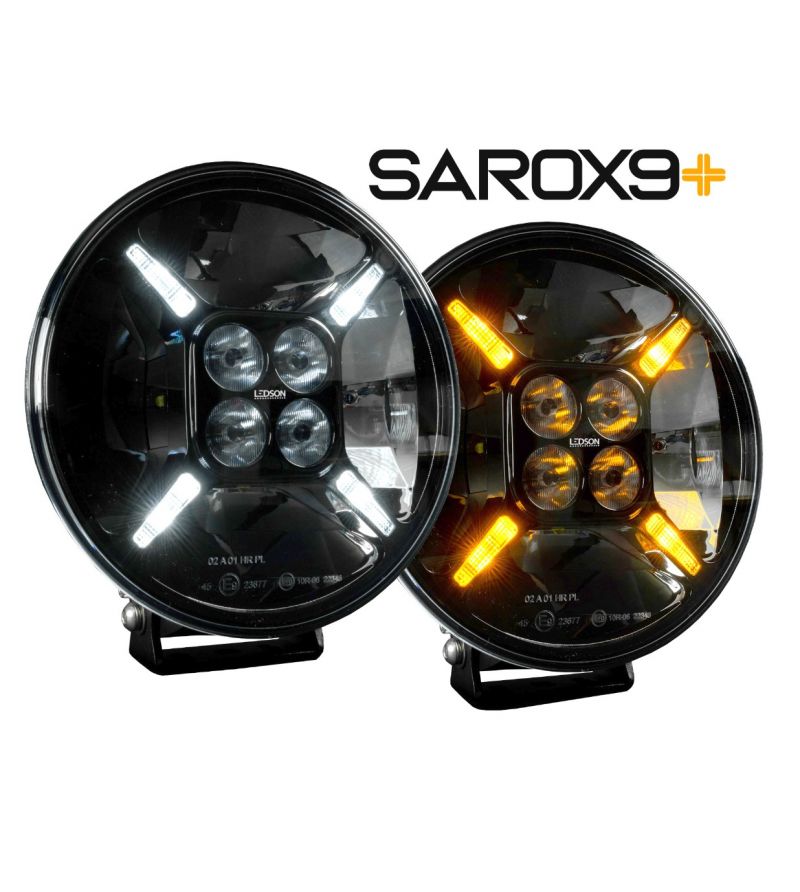

Ledson Sarox9+ LED

Ledson Sarox9+ has four strong LEDs as position lights and lets you choose between xenon white or yellow-orange, just like the rest of our additional lamps in the "+ series".
Sarox's contemporary design is a combination of stylish and progressive, while the interior of the extra light impresses with quality components that make a difference when you go out and drive in the dark.

How about: 1 lux brightness at 469 meters and 10200 real lumens, a real protection against harsh climates on our Nordic roads with IP68 / IP69K rating, E-marks (ECE R112 / R10 / R7), diaphragm for automatic pressure equalization, electronic heating management for optimal LED performance and lifespan, heat sink in aluminum, LEDson bracket in stainless steel.

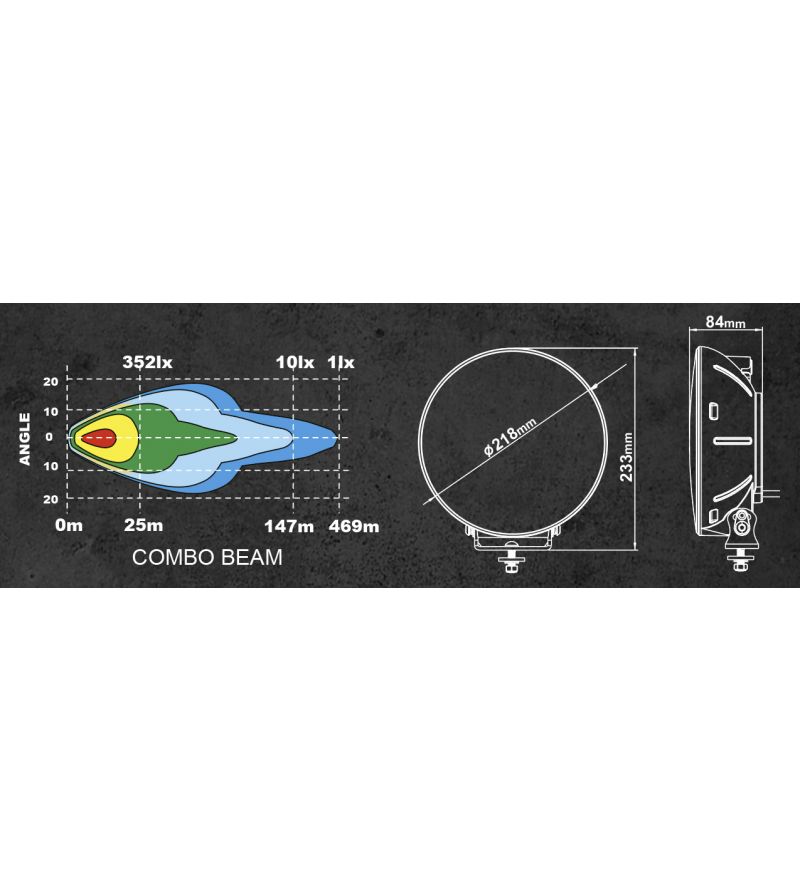

Sarox 9+ has a combined light image (combo)

A combined light image is a mix of high beam (distance) and river light (width). The ramp has diodes that reflect light both straight ahead and to the side. This light pattern is ideal if you want a lot of light close to the vehicle for smaller roads, but still have the length to illuminate the road far in front of you.

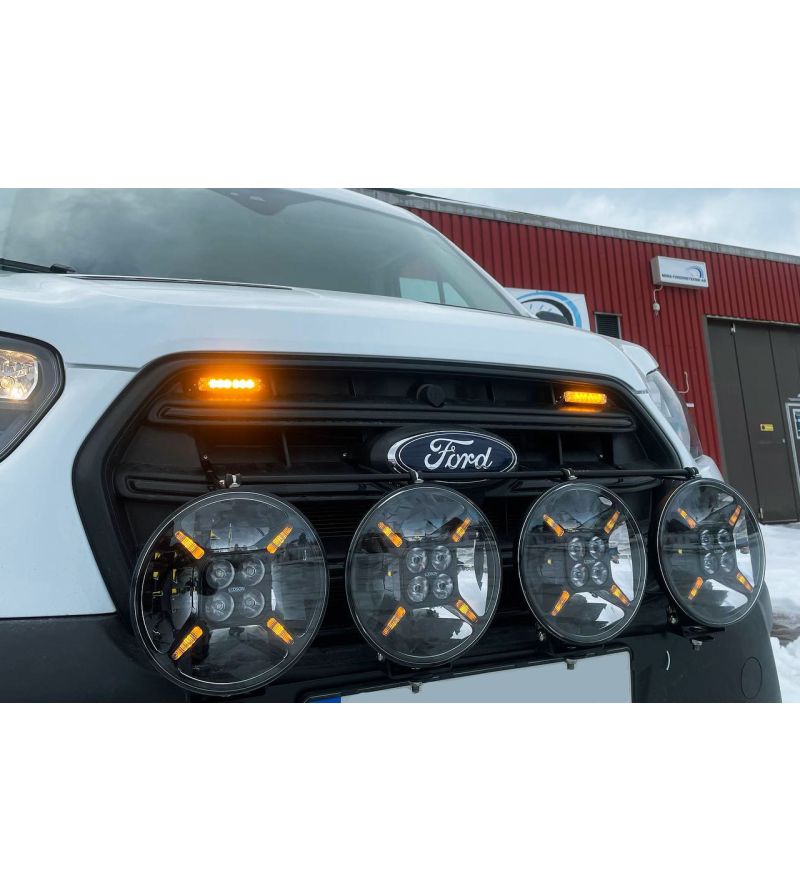

Mounting of Sarox9+ on the vehicle

Can be installed smoothly and neatly with the help of a license plate holder or pipe bracket. See our various accessories for mounting options.
We strongly recommend that you use our DT relay with original connection to connect the LED ramp to the vehicle. You then have the option to choose between operating the ramp with a button or connecting it to the high beam (the ramp is then automatically switched on and off together with the high beam switching on and off, which is what most people prefer) . There is a fuse between the auxiliary light and the battery to prevent possible damage to the battery and other equipment. . If you want to connect three Sarox9+, two DT relay cables are recommended (one with 1 x DT connector and one with 2 x DT connector.)

Characteristics:
With position light, yellow-orange or xenon white (switch the desired color)
Combo beam light image (a mix between spot and flood)
E-marking ECE R112 (ref. 45), R10 / R7 (white position light)
Range: 938 m (0.25 lux), 469 m (1 lux)
EMC-fused (does not interfere with the radio)
12000 lumens (theoretical), 10200 lumens (actual)
Cold white light (5700K)
TIR (Total Inner Reflection) uses all light and minimizes light waste
ETM (Electronic Thermal Management) - adjusts the strength of the diodes depending on how hot they are, for optimal lifespan
Side-reflecting optical system
Pressure equalization membrane
Aluminum heat sink
Adjustable bracket in stainless steel
Lexan polycarbonate
Polycarbonate lens
24 months warranty

Technical data:
120W (4 x 20W Cree LED + 4 x 10W Cree LED)
IP68/IP69K (waterproof/dustproof)
Including DT connector 4-pin
Voltage 9-36 V
Lighting load: 8.1 A at 12 V and 4.4 A at 24 V
Position light load: 0.9A

Dimensions and weight:
Width: 218mm
Height: 218 mm (233 mm incl. bracket)
Depth: 84mm
Cable length: 42 cm
Weight: 1.8kg

Included:
Ledson Sarox9 + LED spotlight 9 "
Bracket, bolts and screws for attaching the additional lighting with one or two mounting points
DT connector (4 pin) complete with DT relay wiring
Installation instructions
Cable Installation Instructions (detailed installation instructions included):
Red: Extra light (+)
Black: Extra light / position light (- ground)
White: position light (+) white light
Yellow: position light (+) yellow-orange light

NOTE: The DT connector should not be cut as this increases the risk of moisture damage and will void the warranty.

Reference 33491220

Data sheet

General: Accessory: Lighting
General: Producttype: Driving light
General: Product serie: Sarox
General: Serial model: 9+
General: Series: Lights & Styling
Dimensions and weight: Size ( Ø / ↔ ): 3) Large
General: Shape: Round
Dimensions and weight: Diameter (mm): 218
Dimensions and weight: Width (mm): 218
Dimensions and weight: Height (mm): 233
Dimensions and weight: Depth (mm): 84
Light and vision: Beam type: Driving
Light and vision: Light type: LED
Light and vision: Lighting - type: Driving light
Light and vision: Light color: White
Light and vision: Position light: Position light
Light and vision: Color of position light: Amber
White
Light and vision: Theoretical Lumens: 10200
12000
Light and vision: Light distance (m) at 1 lux: 475
Light and vision: Light distance (m) at 0.25 lux: 950
certifications and delivery: E-mark: Yes
certifications and delivery: Certifications: R10
R112
Technical specifications: Voltage: 12V
18V
24V
30V
36V
Technical specifications: Watts: 120W
Technical specifications: LEDs per lamp: 8
Technical specifications: Number of pins: 4 pins
Technical specifications: Connector: Deutsch DT
Technical specifications: Cable Length (cm): 42
Design and material: Chrome / RVS: No
Design and material: Housing color: Black
Design and material: Housing material: Aluminum
certifications and delivery: IP rating: IP68
fit and mounting: Mount: Normal
certifications and delivery: Sales unit: Single item
certifications and delivery: Standard delivery time: 1-3 business days
Size in inches: 8.6
Size in cm: 21.8
Prodcat1: M
Shipping Size: Standard
certifications and delivery: IR-code: a2.G12.st

Specific References

UPC: 1
EAN13: 7323230037411
MPN: 0004-100-011694
