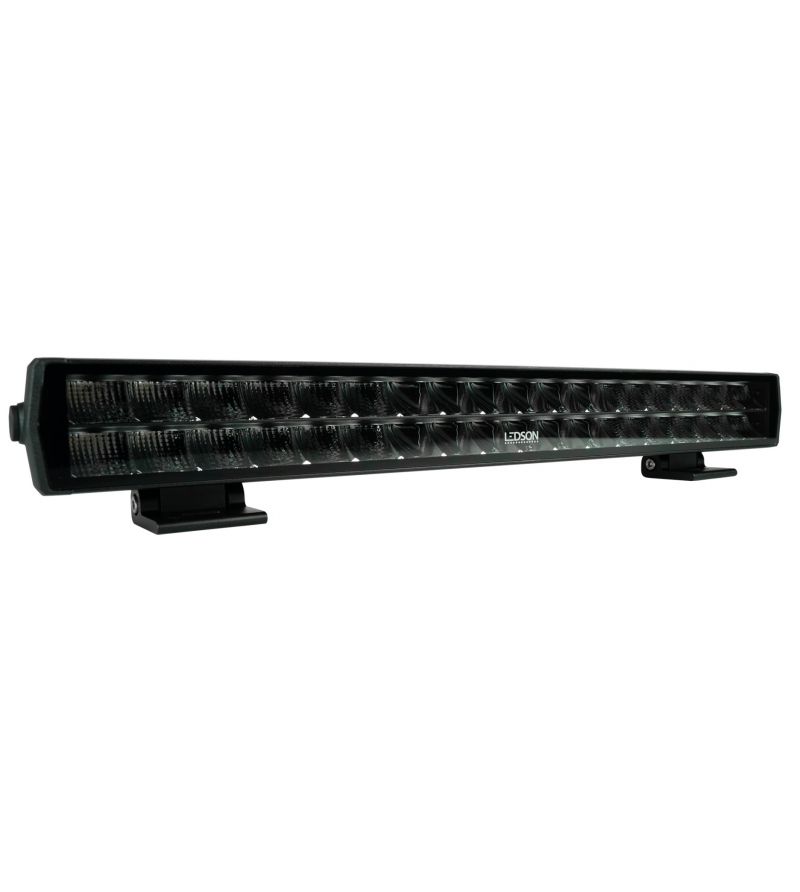

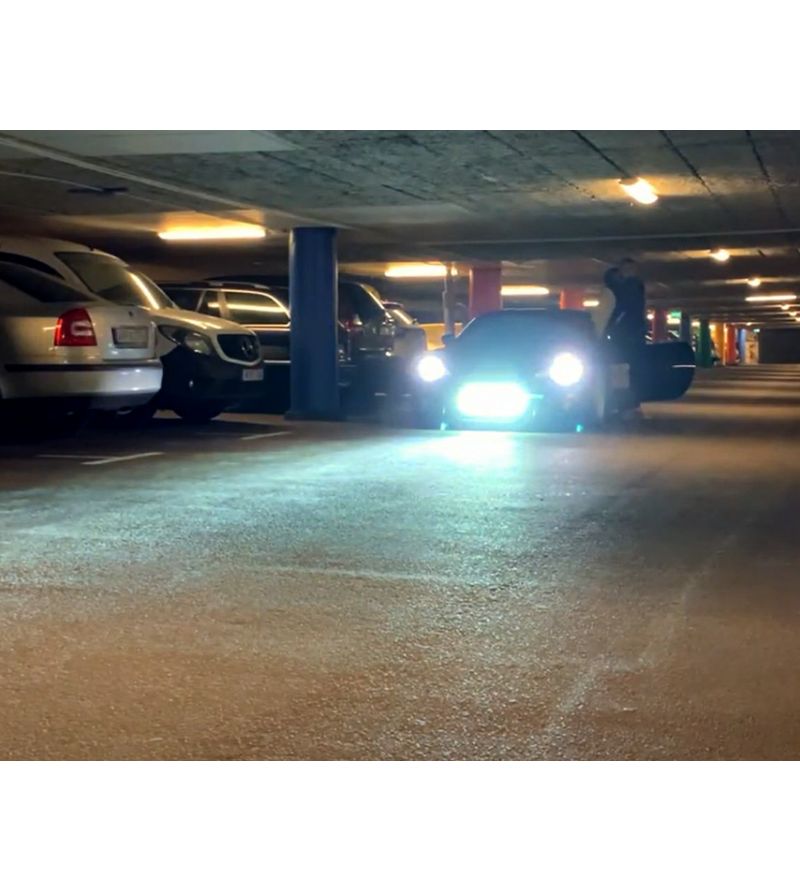

LED Light bar - Ledson - Alfa - 20.6" - 52.2cm - Smoke - Driving Spot Combo

LED Light bar - Ledson - Alfa - 20.6" - 52.2cm - Smoke - Driving Spot Combo

€289.92(tax incl.)

€239.60 (tax excl.)

Reference: 33495365
Producttype: LED Light bar
Dimensions (mm): 522 (w) x 58 (h) x 53 (d)
E-mark: Yes
Beam type: Driving Spot Combo
Sales unit: Single item
Standard delivery time: 1-3 business days

...Continue

Must-have accessoires

Wiring Kit

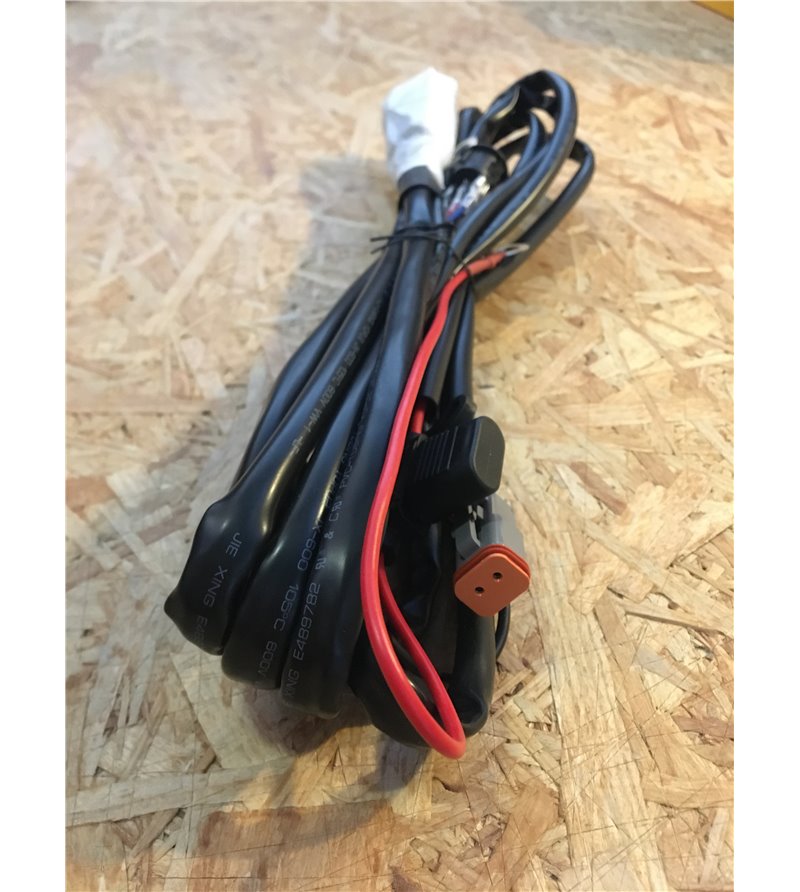

	Reference: AM Single Cable Producttype: Wiring kit Sales unit: Single item Standard delivery time: 1-3 business days The Angry Moose cable set for one lamp includes a switch and a 2-pin Deutsch DT connector, suitable for 12V-30V systems. Enjoy reliable connections and easy installation to enhance your lighting setup. ...Continue	Wiring kit - Angry Moose - 1 lamp - Incl. switch - 2 pins - Deutsch DT - 12V €25.00

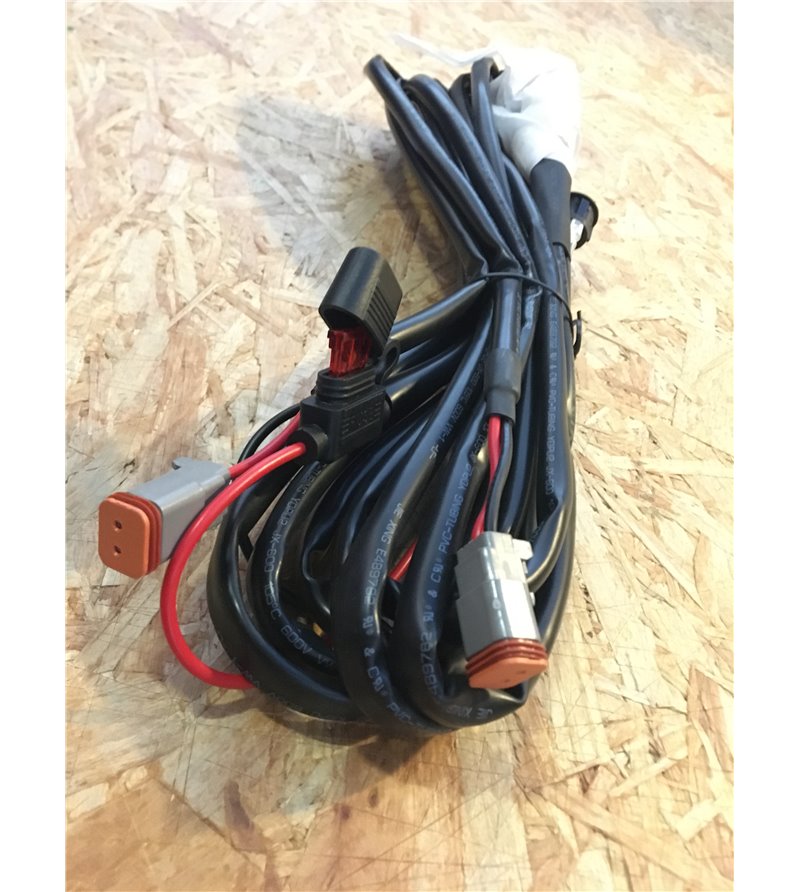

	Reference: AM-Double-Cable Producttype: Wiring kit Sales unit: Single item Standard delivery time: 1-3 business days The Angry Moose cable set for two lamps includes a switch and features a 2-pin Deutsch DT connector, designed for 12V-30V systems. This set ensures reliable connections and easy installation for your lighting needs. ...Continue	Wiring kit - Angry Moose - 2 lamps - Incl. switch - 2 pins - Deutsch DT - 12V €30.00

Pay in a secure environment
Questions about this product? Our experts are here to help
4.8/5 More than 10,000 customers have already gone before you

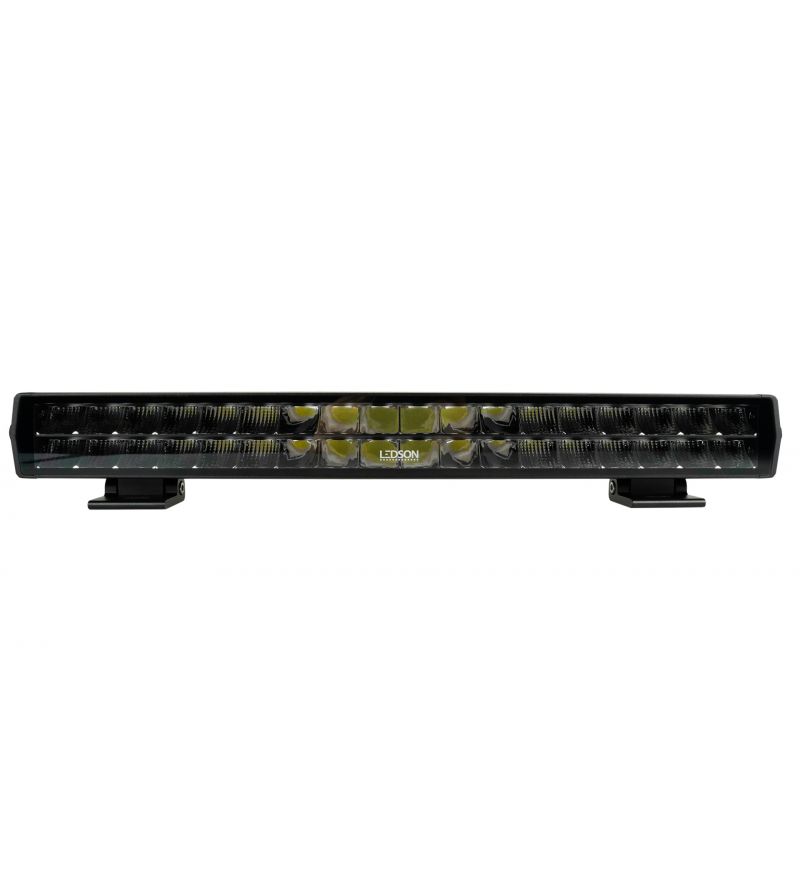

LEDSON Alfa LED bar 20” 180W

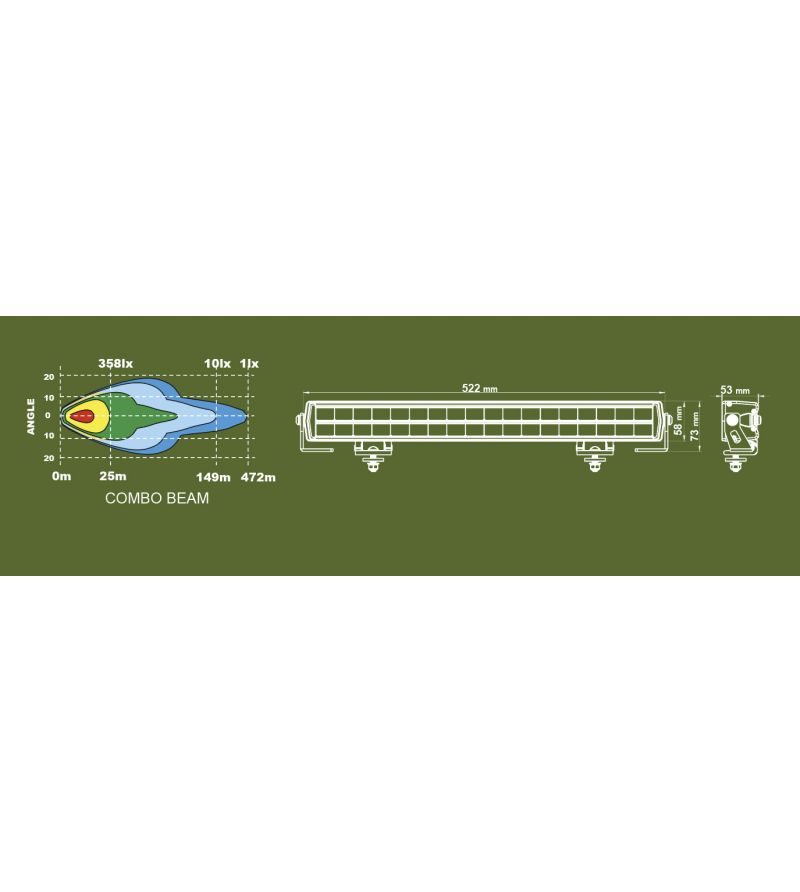

Combined light image (combo)

A combined light image is a mix of high beam (distance) and wide beam (width). The LED bar has diodes that reflect light both straight ahead and to the side. This light pattern is ideal if you want a lot of light close to the vehicle for smaller roads, but also to illuminate the road far in front of you in the distance.

Characteristics:
Combo Beam light image (wide and elongated)
E-marked ECE R112 (ref.50)
ECE R10 (EMC certified)
Range: 472 m (1 lux)
Lumen: 16200 lm (theoretical), 13700 lm (actual)
Color temperature 6000K (cold white)

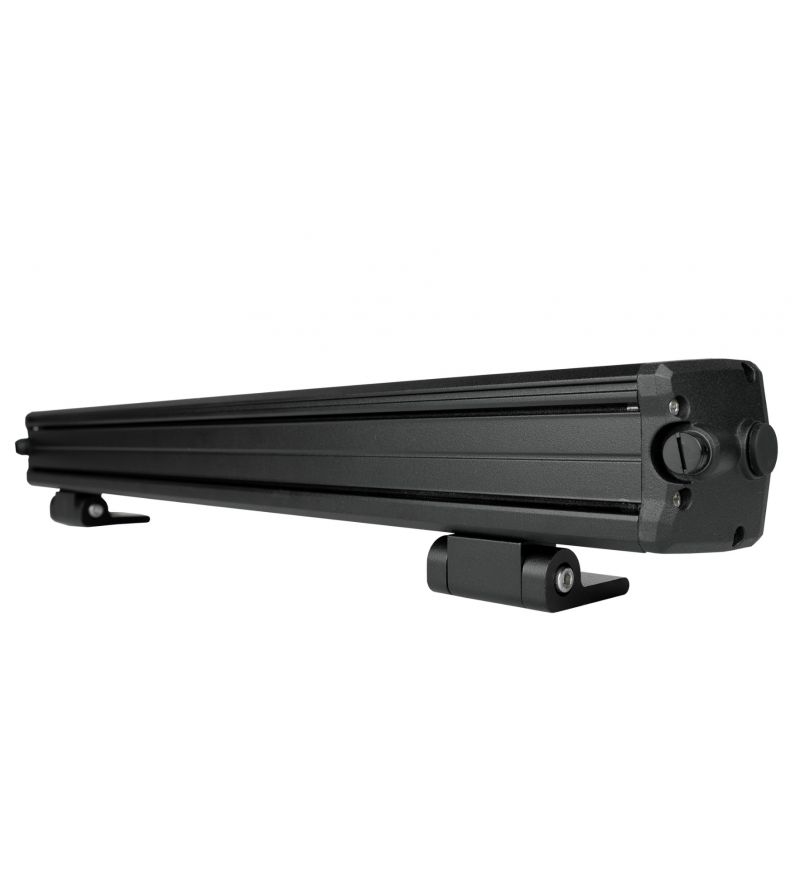

Dual mounting options

Technical data:
140W (36 x 5W LP LED)
IP68 (waterproof/dustproof)
IP69K: withstands hot water under pressure
Aluminum housing and polycarbonate lens
DT connector (included)
Voltage: 9-36V

Included:
Alpha 20" LED bar
Side mounted legs
Sliding brackets (standing / hanging)
Bolts and screws to fix the LED bar to a suitable surface
DT contact person
Installation instructions

Dimensions and weight (excl. brackets):
Width: 522mm
Height: 58mm
Depth: 53mm

NOTE: The DT connector must not be cut as this increases the risk of moisture damage and will void the warranty. DT connector (male) with joint supplied with the product.

Reference 33495365

Data sheet

General: Accessory: Lighting
General: Producttype: LED Light bar
General: Product serie: Alfa
General: Series: Lights & Styling
Dimensions and weight: Size ( Ø / ↔ ): 2) Medium
General: Shape: Ledbar
Dimensions and weight: Width (mm): 522
Dimensions and weight: Height (mm): 58
Dimensions and weight: Depth (mm): 53
Light and vision: Beam type: Driving Spot Combo
Light and vision: Light type: LED
Light and vision: Lighting - type: Driving light
Light and vision: Light color: White
Design and material: Glass color: Smoke
Light and vision: Position light: No position light
Light and vision: Color temperature: 6000K
certifications and delivery: Reference number per unit: 50
Light and vision: Theoretical Lumens: 13700
Light and vision: Light distance (m) at 1 lux: 475
certifications and delivery: E-mark: Yes
certifications and delivery: Certifications: R112
Technical specifications: Voltage: 12V
18V
24V
30V
36V
Technical specifications: Watts: 180W
Technical specifications: LEDs per lamp: 36
Technical specifications: Wattage per LED: 5W
Technical specifications: Connector: Deutsch DT
certifications and delivery: Wiring kit included: No
Design and material: Chrome / RVS: No
Design and material: Housing color: Black
Design and material: Housing material: Aluminum
Design and material: Lamp rim color: Black
Design and material: Lamp rim material: Aluminum
certifications and delivery: IP rating: IP69K
fit and mounting: Mount: Normal
fit and mounting: Vehicle brand: Universal
certifications and delivery: Sales unit: Single item
certifications and delivery: Standard delivery time: 1-3 business days
Size in inches: 20.6
Size in cm: 52.2
Prodcat1: M
Shipping Size: Standard
certifications and delivery: IR-code: a3.D12.st

Specific References

UPC: 1
EAN13: 7323230037398
MPN: 0001-100-014376

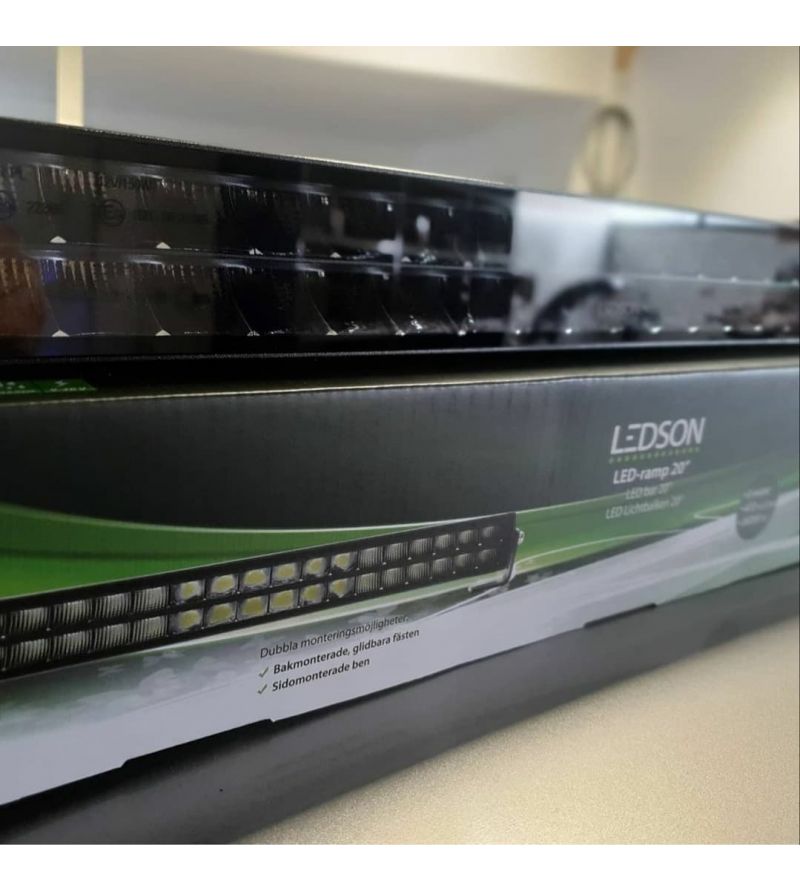

Unboxing Ledson Alfa 20
