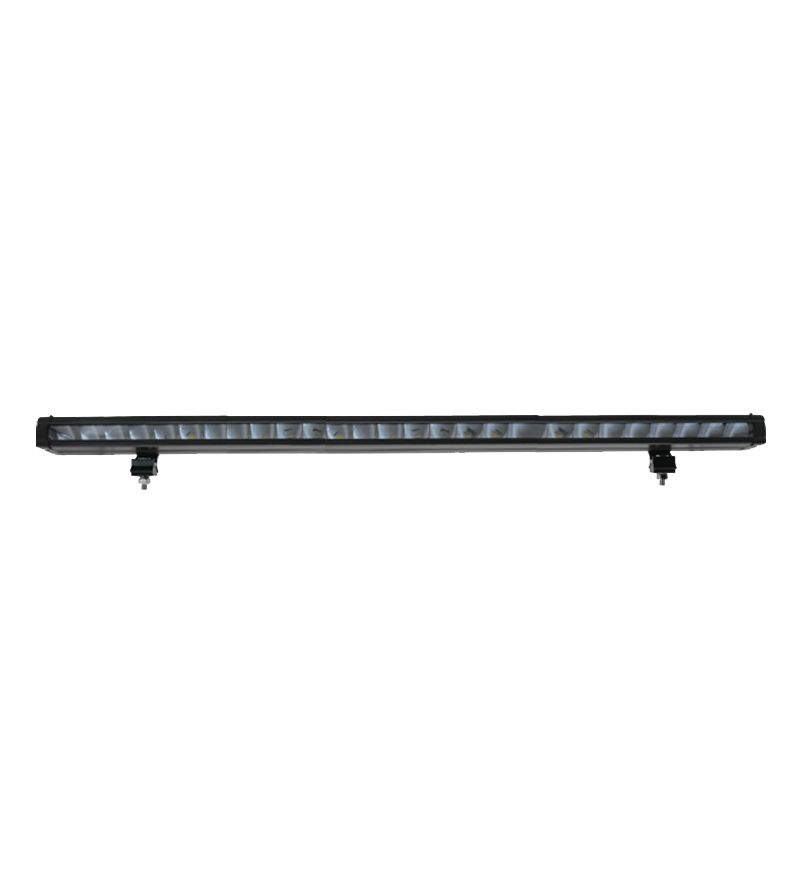

LED Light bar - Ledson - Juno - 30.6" - 77.8cm - Smoke - Driving Spot Combo

LEDSON Juno LED bar 31" 135W Curved - 33502759

LED Light bar - Ledson - Juno - 30.6" - 77.8cm - Smoke - Driving Spot Combo

€230.95(tax incl.)

€190.87 (tax excl.)

Reference: 33502759
Producttype: LED Light bar
Dimensions (mm): 778 (w) x 33 (h) x 68 (d)
E-mark: Yes
Beam type: Driving Spot Combo
Sales unit: Single item
Standard delivery time: 1-3 business days

...Continue

Must-have accessoires

Wiring Kit

	Reference: 7801004 Producttype: Wiring kit Standard delivery time: 1-3 business days x ...Continue	Wiring kit - Ledson - Connect - 1 lamp - 4 pins - Deutsch DT - 12V €47.95
	Reference: 7801013 Producttype: Wiring kit Standard delivery time: 1-3 business days x ...Continue	Wiring kit - Ledson - Connect - 2 lamps - 4 pins - Deutsch DT - 12V €62.99
	Reference: 8213-DT4 Producttype: Wiring kit Sales unit: Single item Standard delivery time: 1-3 business days The Lazer 3-meter extension cable with 4 pins easily creates extra connections for all your 12V projects. This flexible cable is perfect for expanding your lighting or equipment setup. ...Continue	Wiring kit - Lazer - Extension cable - 4 pins - Deutsch DT - 12V €44.95

Pay in a secure environment
Questions about this product? Our experts are here to help
4.8/5 More than 10,000 customers have already gone before you

Description
Product Details

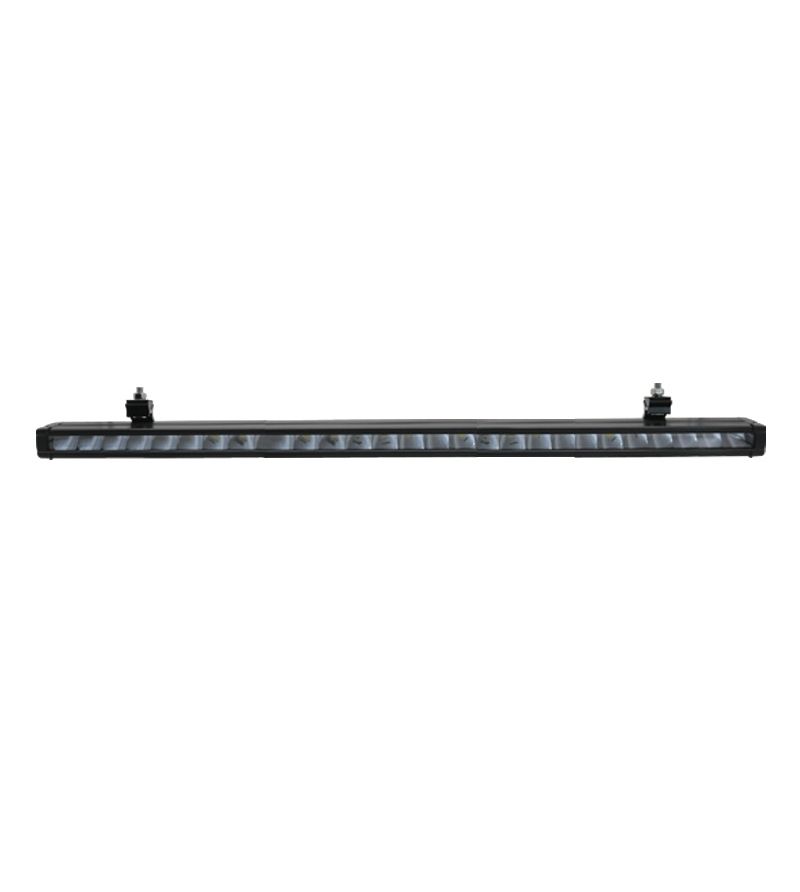

LEDSON Juno LED bar 31" 135W

Due to the low construction height, this LED beam from LEDSON is one of the easiest to install ramps on the market! Juno 31" is a medium-sized LED bar for those who want the newest and thinnest, but with a lot of brightness in the housing.

This is one of the larger LED bars in the Juno series with its 31 inches (78 cm wide) delivering 1 lux at 520 m distance and 7047 actual lumens!

Characteristics:
EMC protected according to ECE R10
Light image "high beam" (wide and elongated)
11340 lumens (actual 7047)
Color temperature 5700K (cold white)

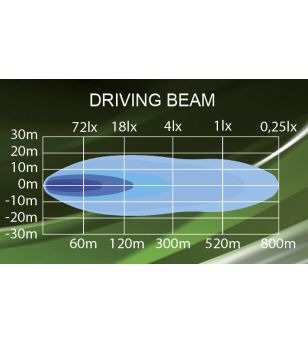

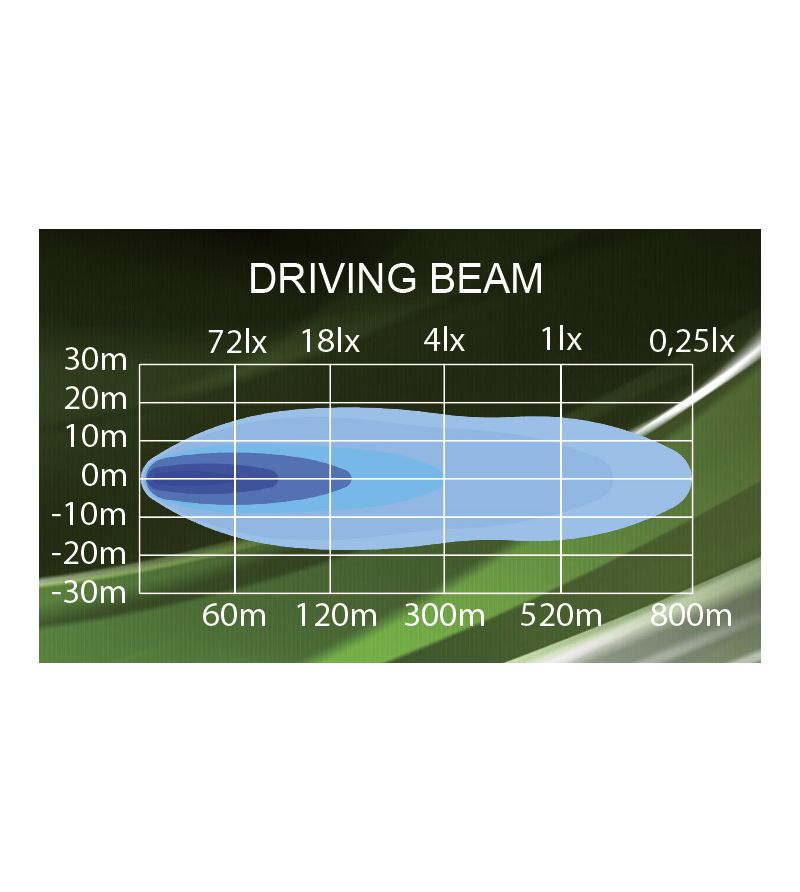

Range 520 m (1 lux), 800 m (0.25 lux)

Double mounting options: Supplied with brackets for side mounting and brackets for bottom and top mounting that fit around the LED bar.

Technical data:
135 W (27 x 5 W OSRAM LED)
IP67/IP69K (waterproof/dustproof)
Aluminum housing and polycarbonate lens
DT connector (included)
Voltage: 10-48 V

Dimensions:
Width: 778mm
Height: 33 mm (excl. brackets)
Depth: 68 mm

NOTE: The DT connector must not be cut as this increases the risk of moisture damage and will void the warranty. DT connector (male) supplied with the product.

Reference 33502759

Data sheet

General: Accessory: Lighting
General: Producttype: LED Light bar
General: Product serie: Juno
General: Series: Lights & Styling
Dimensions and weight: Size ( Ø / ↔ ): 2) Medium
General: Shape: Ledbar
Dimensions and weight: Width (mm): 778
Dimensions and weight: Height (mm): 33
Dimensions and weight: Depth (mm): 68
Light and vision: Beam type: Driving Spot Combo
Light and vision: Light type: LED
Light and vision: Lighting - type: Driving light
Light and vision: Light color: White
Design and material: Glass color: Smoke
Light and vision: Position light: No position light
Light and vision: Color temperature: 5700K
Light and vision: Theoretical Lumens: 11250
Light and vision: Light distance (m) at 1 lux: 522
Light and vision: Light distance (m) at 0.25 lux: 800
certifications and delivery: E-mark: Yes
certifications and delivery: Certifications: R10
Technical specifications: Voltage: 12V
18V
24V
Technical specifications: Watts: 135
153W
Technical specifications: LEDs per lamp: 27
Technical specifications: Wattage per LED: 5W
Technical specifications: Connector: Deutsch DT
certifications and delivery: Wiring kit included: No
Design and material: Housing color: Black
Design and material: Housing material: Aluminum
Design and material: Lamp rim color: Black
Design and material: Lamp rim material: Aluminum
certifications and delivery: IP rating: IP67
IP69K
fit and mounting: Mount: Normal
fit and mounting: Vehicle brand: Universal
certifications and delivery: Sales unit: Single item
certifications and delivery: Standard delivery time: 1-3 business days
Size in inches: 30.6
Size in cm: 77.8
Prodcat1: M
Shipping Size: Standard
certifications and delivery: IR-code: a1.D12.st

Specific References

UPC: 1
EAN13: 7323230035769
MPN: 0001-100-011496
