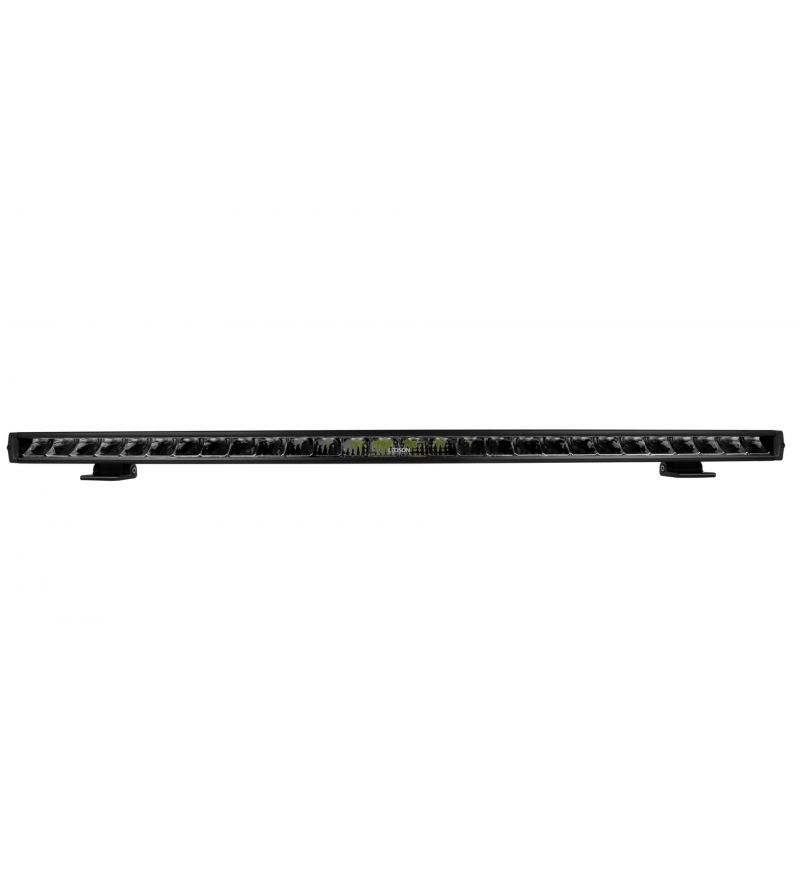

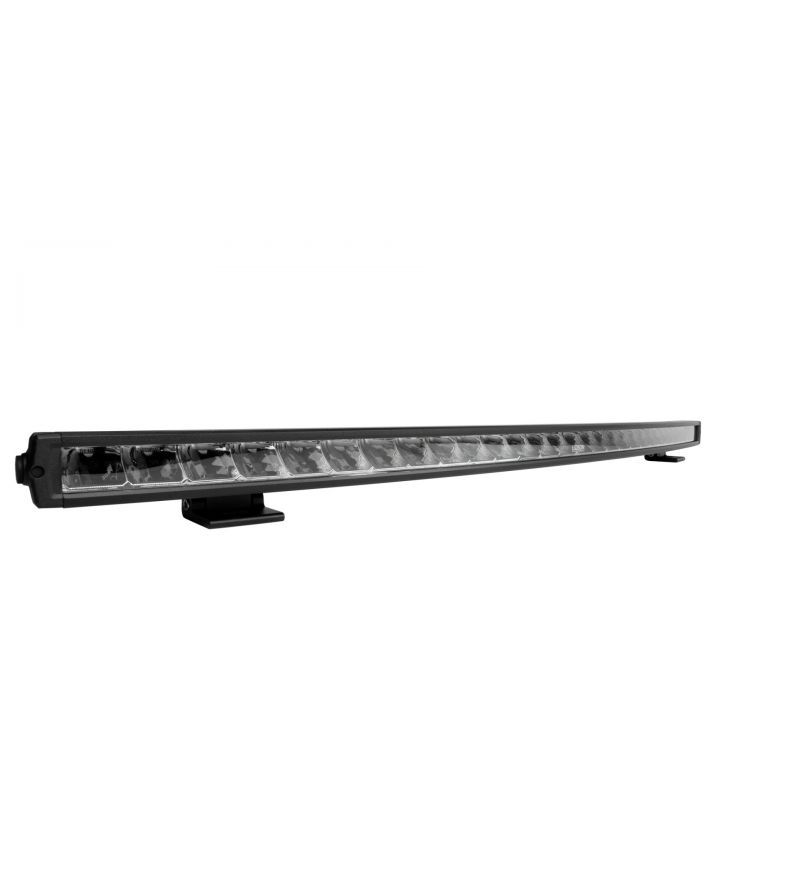

LED Light bar - Ledson - Nova - 39.5" - 100.3cm - Smoke - Curved - Driving Spot Combo
€299.95(tax incl.)
€247.89 (tax excl.)
- Reference: 33497282
- Producttype: LED Light bar
- Dimensions (mm): 1003 (w) x 40 (h) x 58 (d)
- E-mark: Yes
- Beam type: Driving Spot Combo
- Sales unit: Single item
- Standard delivery time: 1-3 business days
x
...Continue
Pay in a secure environment
Questions about this product? Our experts are here to help
4.8/5 More than 10,000 customers have already gone before you
LEDSON Nova C 40" LED bar 196W Curved
Nova C 40" LED Ramp (curved, Driving Beam)

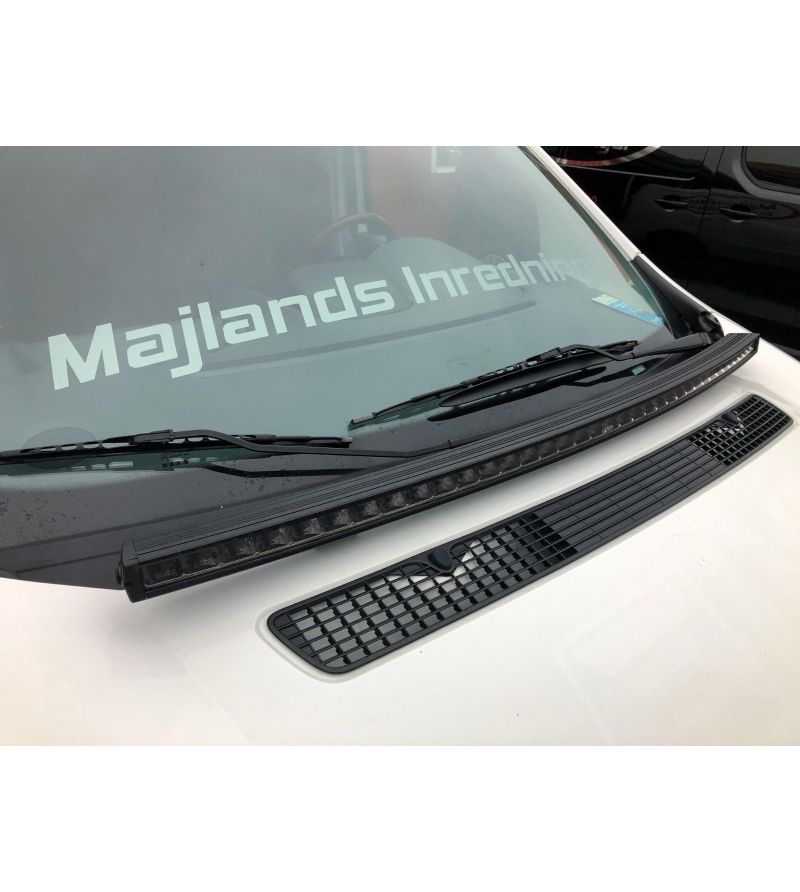

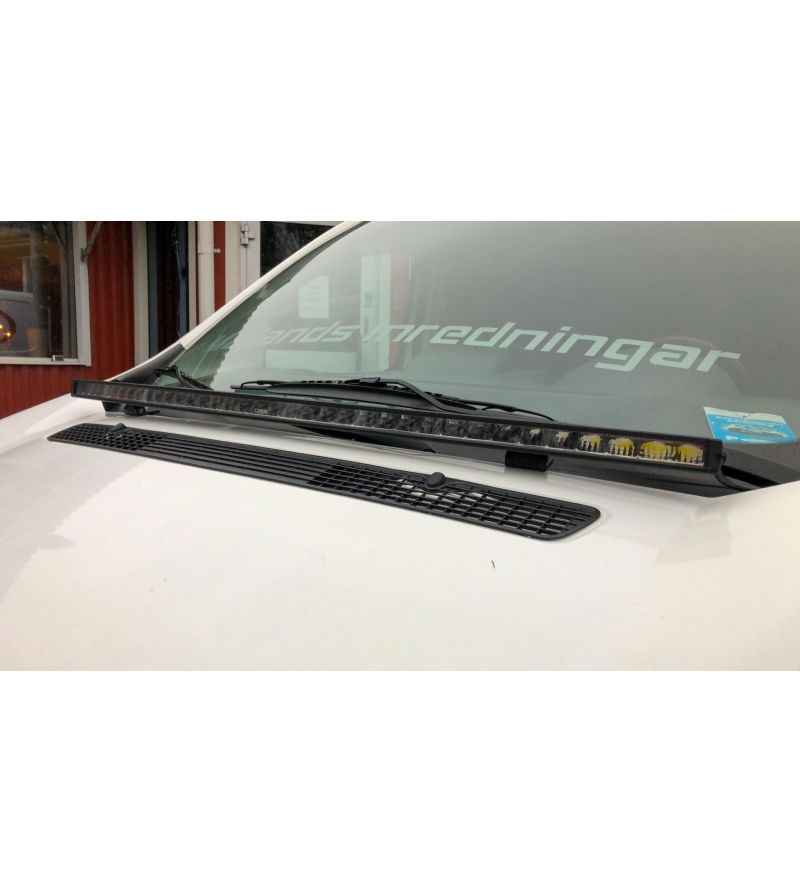

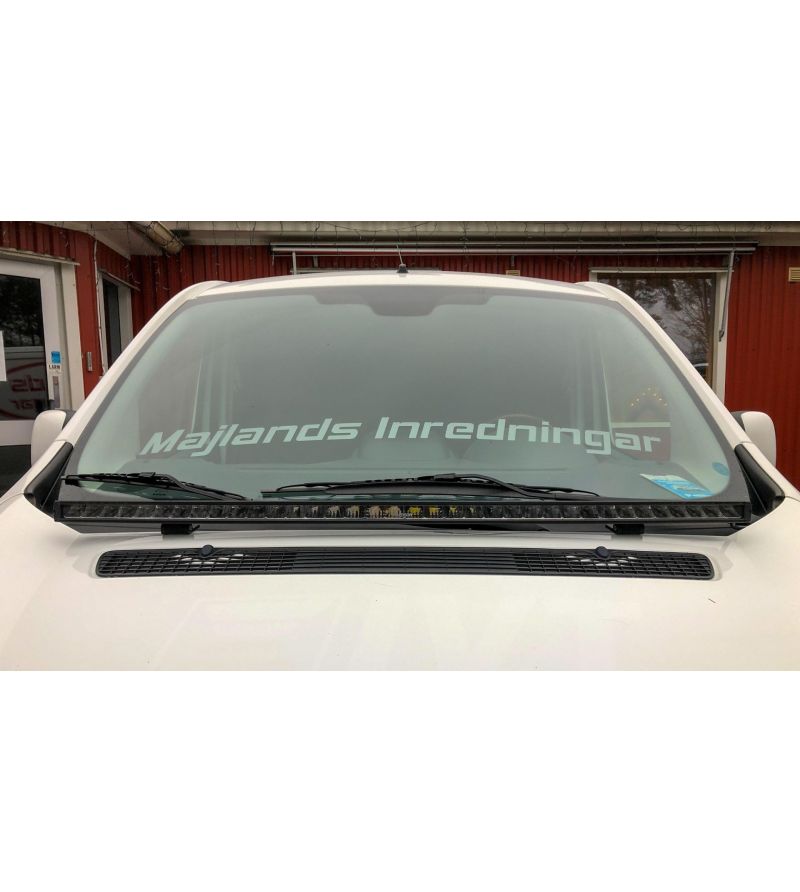

A curved LED bar often looks better mounted on the vehicle, as many cars have a slightly curved front,
Driving Beam 'imitates' the normal light image of the vehicle. So you get a similar light scatter to the low beam and high beam of your existing vehicle, but amplified.
Characteristics:
Curved design to suit cars with a curved front
Driving Beam light image (wide and elongated)
E-marked ECE R112 (ref.45)
ECE R10 (EMC certified)
17500 lumens (theoretical), 14800 lumens (actual)
Color temperature 6000K (cold white)

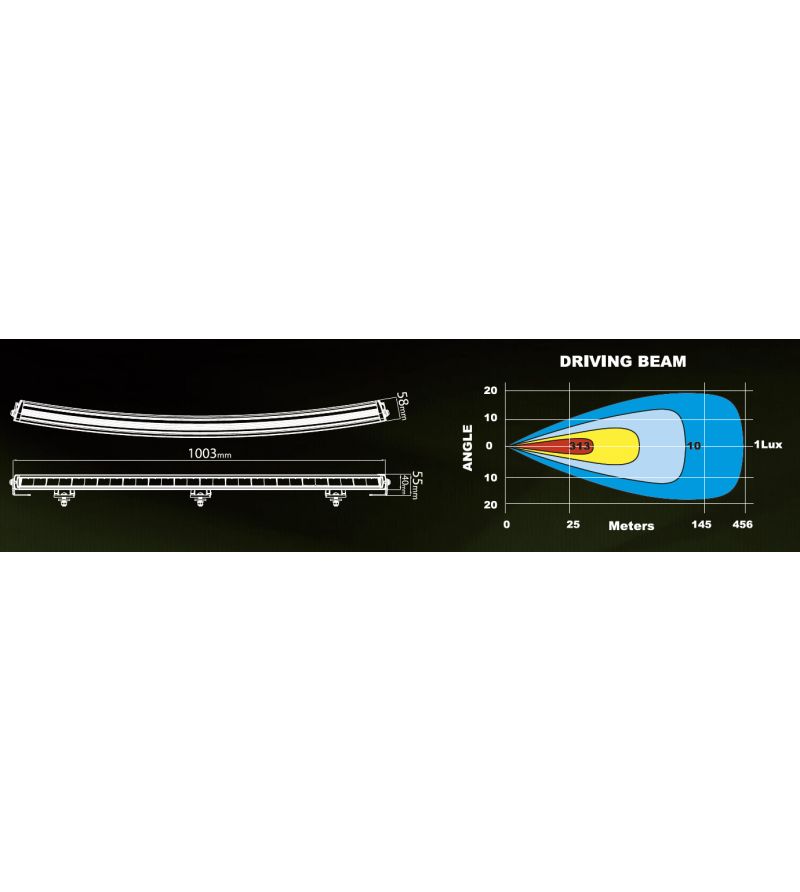

Range 456 (1 lux) with 40 m width (10 lux)

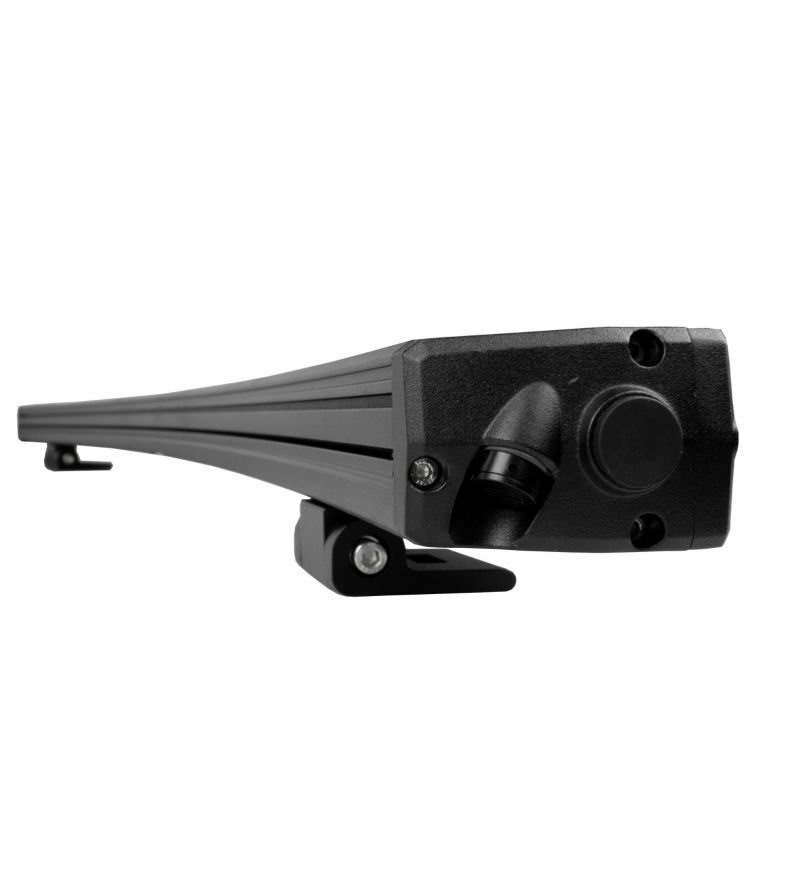

Dual mounting options
Technical data:
196 W (28 x 7 W LED)
IP68 (waterproof/dustproof)
IP69K: withstands hot water under pressure
Aluminum housing and polycarbonate lens
ATP connector (included)
Included:
Nova C 40" LED LED bar
Side mounted legs
Sliding supports
Bolts and screws to fix the LED bar to a suitable surface
ATP contact
Installation instructions
Sizes:
Width: 1003mm
Height: 40mm
Depth: 58mm
NOTE: The ATP connector should not be cut as this increases the risk of moisture damage and will void the warranty. ATP connector (male) with joint supplied with the product.
33497282
Data sheet
- General: Accessory
- Lighting
- General: Producttype
- LED Light bar
- General: Product serie
- Nova
- General: Feature
- Curved
- General: Series
- Lights & Styling
- Dimensions and weight: Size ( Ø / ↔ )
- 3) Large
- General: Shape
- Ledbar
- Dimensions and weight: Width (mm)
- 1003
- Dimensions and weight: Height (mm)
- 40
- Dimensions and weight: Depth (mm)
- 58
- Light and vision: Beam type
- Driving Spot Combo
- Light and vision: Light type
- LED
- Light and vision: Lighting - type
- Driving light
- Light and vision: Light color
- White
- Design and material: Glass color
- Smoke
- Light and vision: Position light
- No position light
- Light and vision: Color temperature
- 6000K
- certifications and delivery: Reference number per unit
- 45
- Light and vision: Theoretical Lumens
- 14800
- Light and vision: Light distance (m) at 1 lux
- 456
- certifications and delivery: E-mark
- Yes
- certifications and delivery: Certifications
- R112
- Technical specifications: Voltage
- 12V
18V
24V
30V
36V - Technical specifications: Watts
- 196W
- Technical specifications: LEDs per lamp
- 28
- Technical specifications: Wattage per LED
- 7W
- Technical specifications: Connector
- DTP/ATP
- certifications and delivery: Wiring kit included
- No
- Design and material: Chrome / RVS
- No
- Design and material: Housing color
- Black
- Design and material: Housing material
- Aluminum
- Design and material: Lamp rim color
- Black
- Design and material: Lamp rim material
- Aluminum
- certifications and delivery: IP rating
- IP69K
- fit and mounting: Mount
- Normal
- fit and mounting: Vehicle brand
- Universal
- certifications and delivery: Sales unit
- Single item
- certifications and delivery: Standard delivery time
- 1-3 business days
- Size in inches
- 39.5
- Size in cm
- 100.3
- Prodcat1
- M
- Prodcat2
- AB
- Shipping Size
- Large
- certifications and delivery: IR-code
- a1.D12.st
Specific References
- UPC
- 1
- EAN13
- 7323230037374
- MPN
- 0002-050-015600
