LED Light bar - Ledson - Alfa - 30.1" - 76.5cm - Smoke - Powerboost - Driving Spot Combo

LEDSON Alfa Powerboost LED bar 30” 270W - 33495542

LED Light bar - Ledson - Alfa - 30.1" - 76.5cm - Smoke - Powerboost - Driving Spot Combo

€379.50(tax incl.)

€313.64 (tax excl.)

Reference: 33495542
Producttype: LED Light bar
Dimensions (mm): 765 (w) x 58 (h) x 53 (d)
E-mark: Yes
Beam type: Driving Spot Combo
Sales unit: Single item
Standard delivery time: 1-3 business days

...Continue

Must-have accessoires

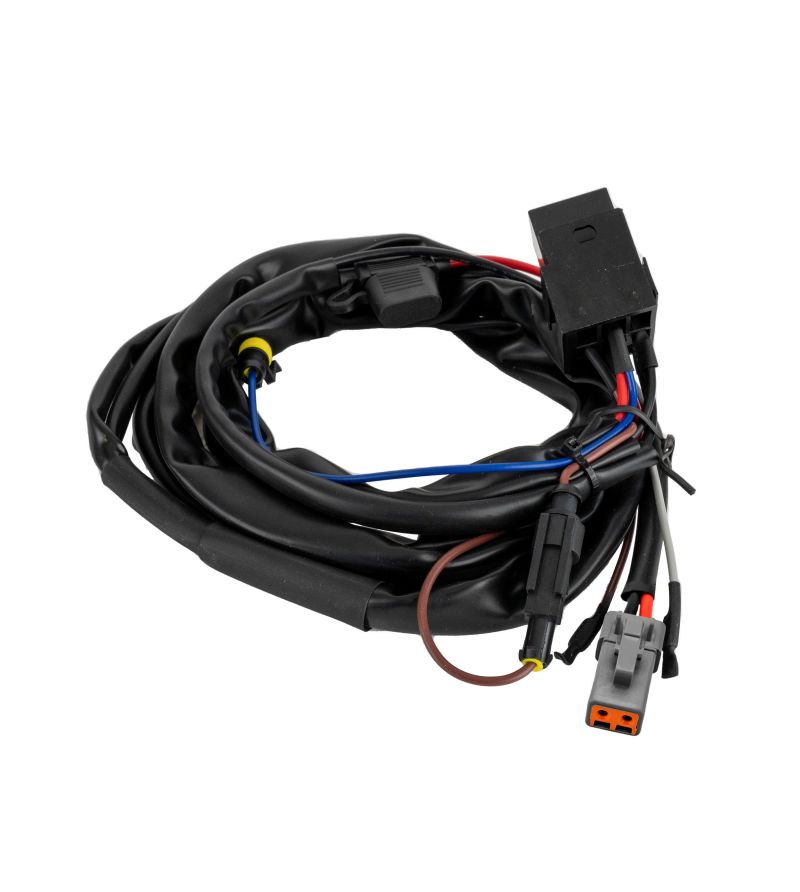

Wiring Kit

Wiring kit - Ledson - Connect - 1 lamp - 2 pins - DTP/ATP - 12V

€59.95

Pay in a secure environment
Questions about this product? Our experts are here to help
4.8/5 More than 10,000 customers have already gone before you

Description
Product Details

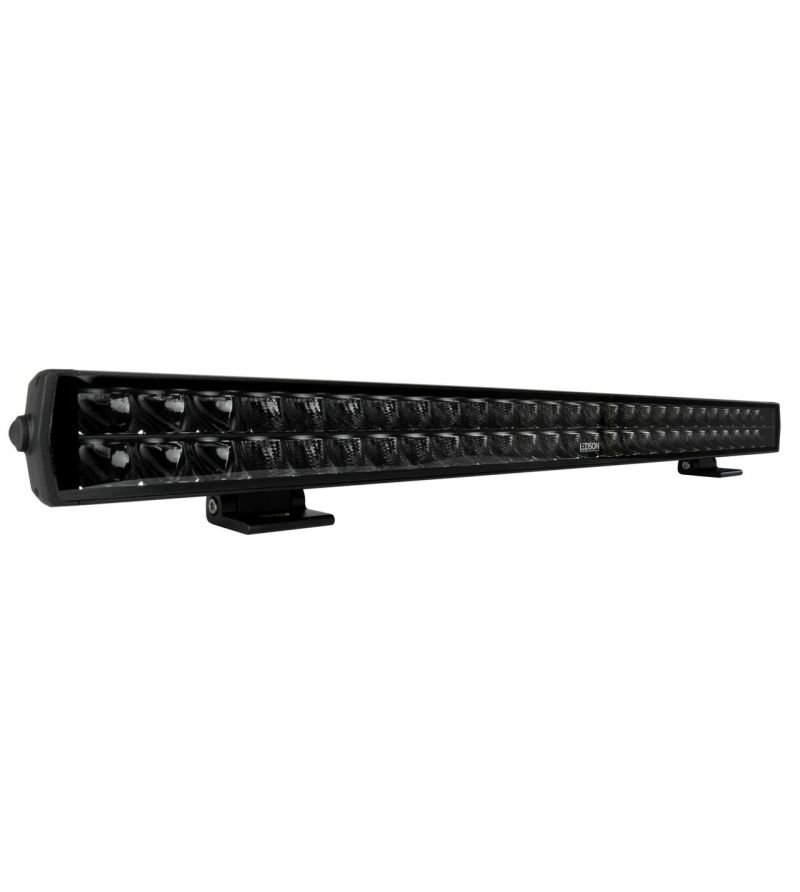

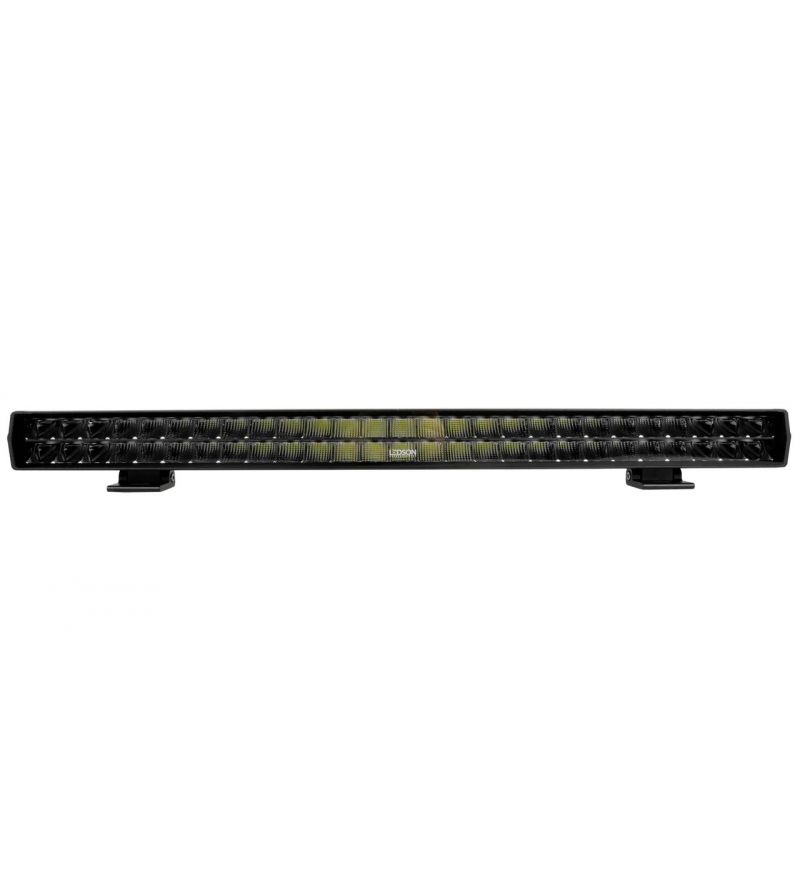

LEDSON Alfa Powerboost LED bar 30” 270W

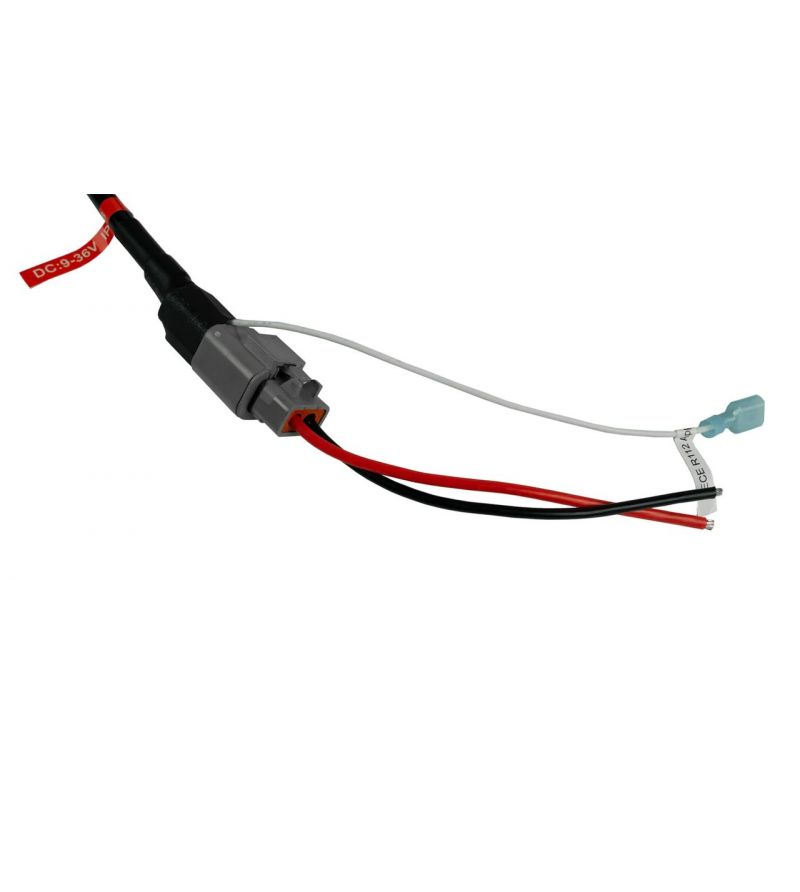

With Alfa Powerboost you can choose whether you want to drive with an E-marked ECE R112 LED bar and 1 lux brightness at 466 meters or with a little extra gunpowder in the light with Powerboost activated and 1 lux at 673 meters and 20,600 actual lumens (not E-marked). You can easily select this by connecting a third cable!

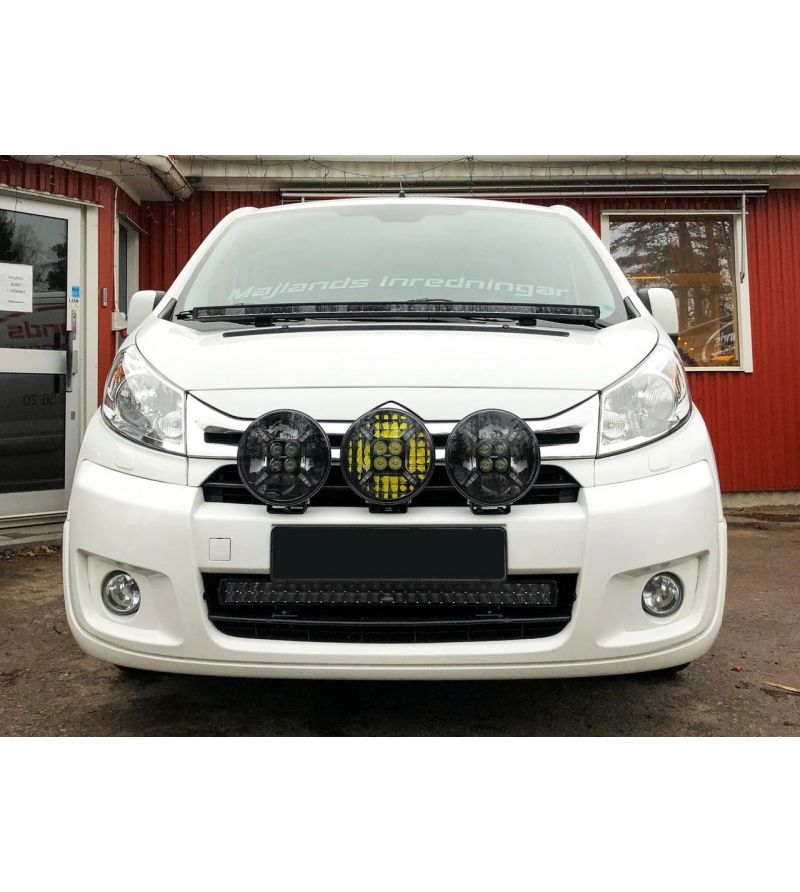

Regardless of the Powerboost, this stylish light LED bar is able to provide large amounts of light and ensure that you drive safely and comfortably while the hinged ramp is really nicely mounted to your vehicle.

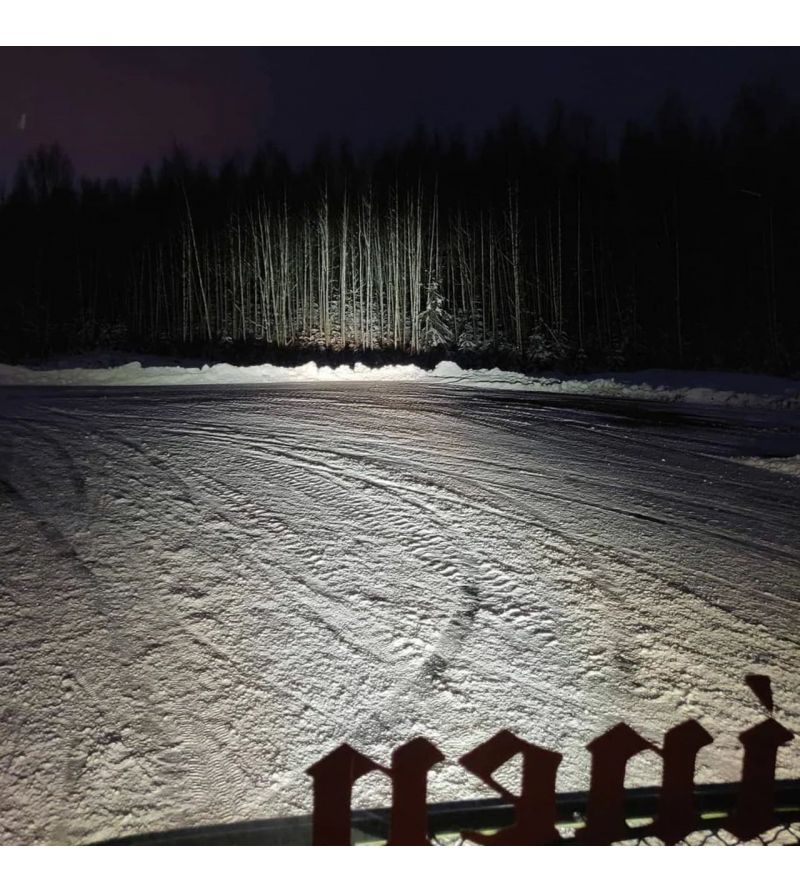

Combined light image (combo)

A combined light image is a mix of high beam (distance) and river light (width). The LED bar has diodes that reflect light both straight ahead and to the side. This light image is ideal if you want a lot of light close to the vehicle for smaller roads, but still have the length to illuminate the road far in front of you.

Characteristics:
Combo Beam light image (wide and elongated)
E-marked ECE R112 (ref. 50) NOTE: only if Powerboost is not activated
ECE R10 (EMC certified)

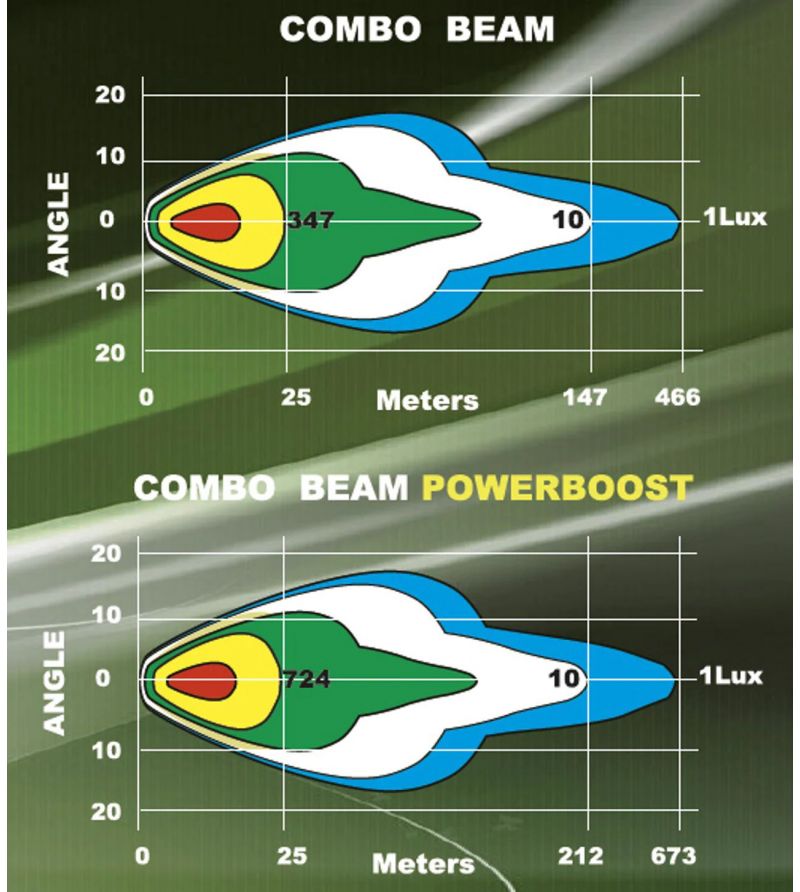

Range without Powerboost: 466 m (1 lux)
Range with Powerboost: 673 m (1 lux)
Lumen without Powerboost: 12150 lm (theoretical), 10300 lm (actual)
Lumen with Powerboost: 24300 lm (theoretical), 20600 lm (actual)
Color temperature 6000K (cold white)
Dual mounting options

Technical data:
270 W (54 x 5 W LED)
IP68 (waterproof/dustproof)
IP69K: withstands hot water under pressure
Aluminum housing and polycarbonate lens

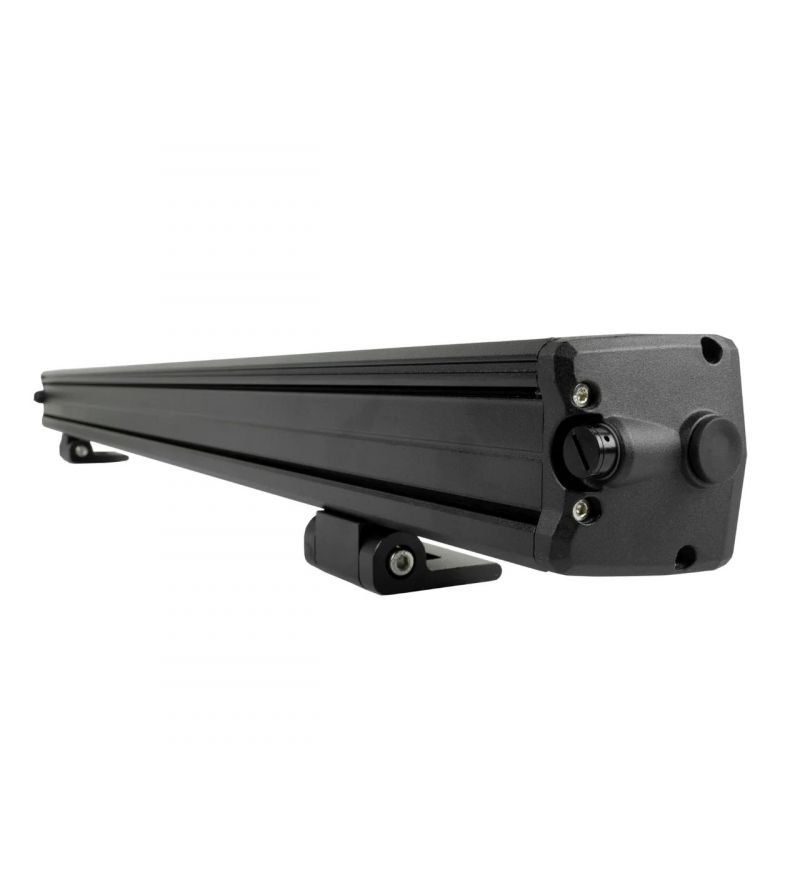

ATP connector (included)
Voltage: 9-36V

Included:
Alfa Powerboost LED LED bar
Side mounted legs
Sliding supports
Bolts and screws to fix the LED bar to a suitable surface
ATP contact
Installation instructions

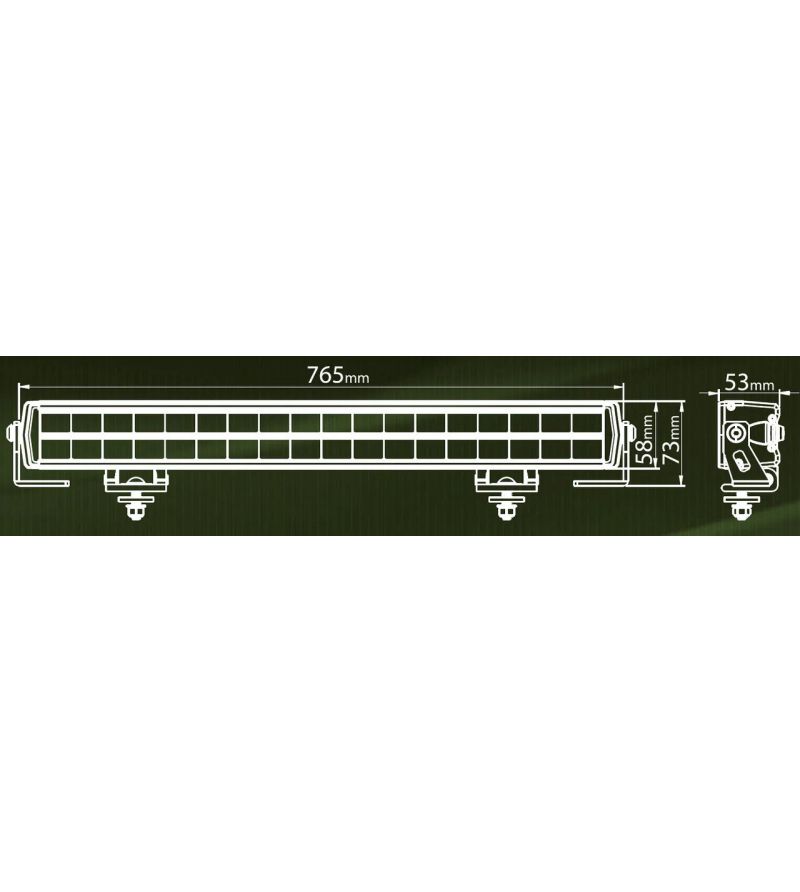

Dimensions and weight (excl. brackets):
Width: 765mm
Height: 58mm
Depth: 53mm

NOTE: The ATP connector should not be cut as this increases the risk of moisture damage and will void the warranty. ATP connector (male) supplied with the product.

More information
Colour: 6000K
Voltage: 9-36 V
Light source: LED
Number of diodes: 54 pieces
E-mark: ECE R10, ECE R112, Yes
Light image: High beam
Number of contacts: 1 x ATP connector
Scope of application: Outdoor use
Ignition time, cold to full power: Instant
Manufacturer: Ledson
Type of light image: Combination light image

Reference 33495542

Data sheet

General: Accessory: Lighting
General: Producttype: LED Light bar
General: Product serie: Alfa
General: Feature: Powerboost
General: Series: Lights & Styling
Dimensions and weight: Size ( Ø / ↔ ): 2) Medium
General: Shape: Ledbar
Dimensions and weight: Width (mm): 765
Dimensions and weight: Height (mm): 58
Dimensions and weight: Depth (mm): 53
Light and vision: Beam type: Driving Spot Combo
Light and vision: Light type: LED
Light and vision: Lighting - type: Driving light
Light and vision: Light color: White
Design and material: Glass color: Smoke
Light and vision: Position light: No position light
Light and vision: Color temperature: 6000K
certifications and delivery: Reference number per unit: 50
Light and vision: Theoretical Lumens: 10300
20600
Light and vision: Light distance (m) at 1 lux: 675
certifications and delivery: E-mark: Yes
certifications and delivery: Certifications: R10
R112
Technical specifications: Voltage: 12V
18V
24V
30V
36V
Technical specifications: Watts: 270W
Technical specifications: LEDs per lamp: 54
Technical specifications: Wattage per LED: 5W
Technical specifications: Number of pins: 2 pins
Technical specifications: Connector: DTP/ATP
certifications and delivery: Wiring kit included: No
Design and material: Chrome / RVS: No
Design and material: Housing color: Black
Design and material: Housing material: Aluminum
Design and material: Lamp rim color: Black
Design and material: Lamp rim material: Aluminum
certifications and delivery: IP rating: IP69K
fit and mounting: Mount: Normal
fit and mounting: Vehicle brand: Universal
certifications and delivery: Sales unit: Single item
certifications and delivery: Standard delivery time: 1-3 business days
Size in inches: 30.1
Size in cm: 76.5
Prodcat1: M
Shipping Size: Standard
certifications and delivery: IR-code: a0.L-I21.st

Specific References

UPC: 1
EAN13: 7323230037404
MPN: 0002-100-020254
