LED Light bar - Ledson - Juno - 20.7" - 52.7cm - Smoke - Curved - Driving
€169.50(tax incl.)
€140.08 (tax excl.)
- Reference: 33501852
- Producttype: LED Light bar
- Dimensions (mm): 527 (w) x 35 (h) x 72 (d)
- E-mark: Yes
- Beam type: Driving
- Sales unit: Single item
- Standard delivery time: 1-3 business days
x
...Continue
Must-have accessoires
Wiring Kit
|
Wiring kit - Ledson - Connect - 1 lamp - 4 pins - Deutsch DT - 12V |
|
|
Wiring kit - Ledson - Connect - 2 lamps - 4 pins - Deutsch DT - 12V |
|
The Lazer 3-meter extension cable with 4 pins easily creates extra connections for all your 12V projects. This flexible cable is perfect for expanding your lighting or equipment setup. ...Continue |
Wiring kit - Lazer - Extension cable - 4 pins - Deutsch DT - 12V |

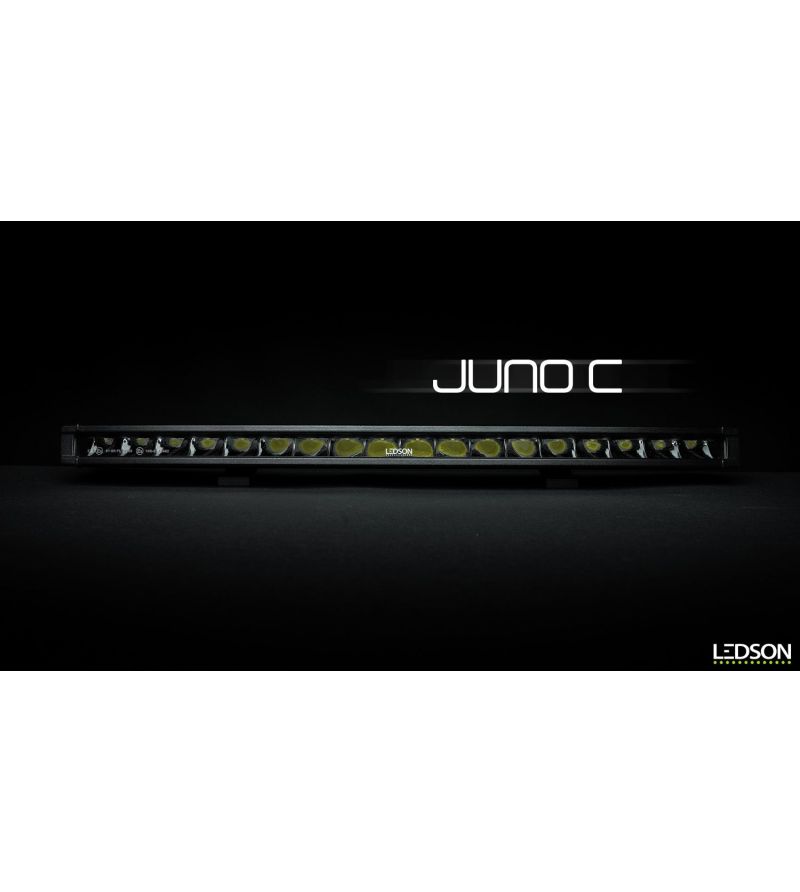

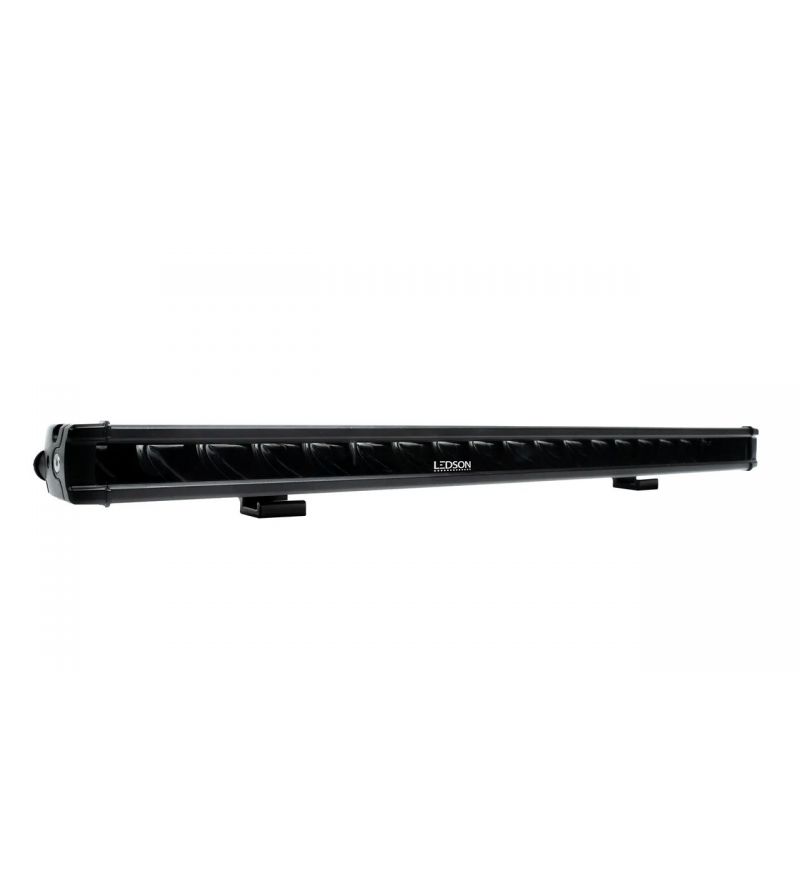

Juno C LED bar with curved design
Juno C is the "sequel" to our extremely popular Juno LED bar. C stands for Curved, which means that the bar has a curved design. This makes it even more attractive on vehicles with a curved front in addition to 30 m extra range at 1 lux brightness!
Curved design (C = Curved) with Driving Beam light pattern (Drive)

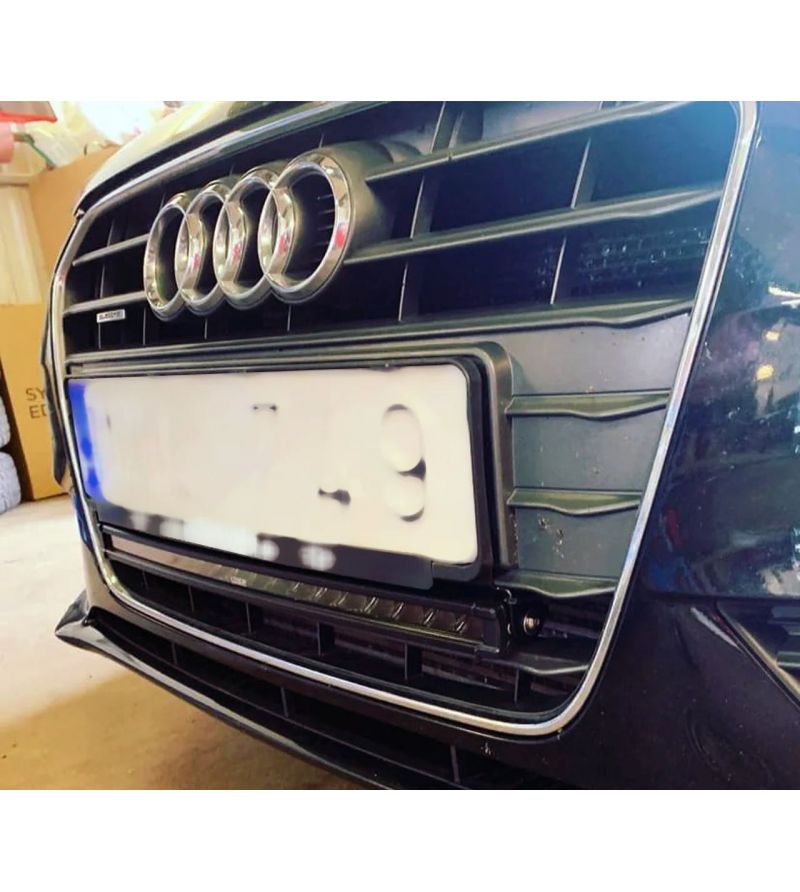

A curved beam often looks neater mounted on the vehicle, as many cars have a slightly curved front end that a curved beam blends in nicely.

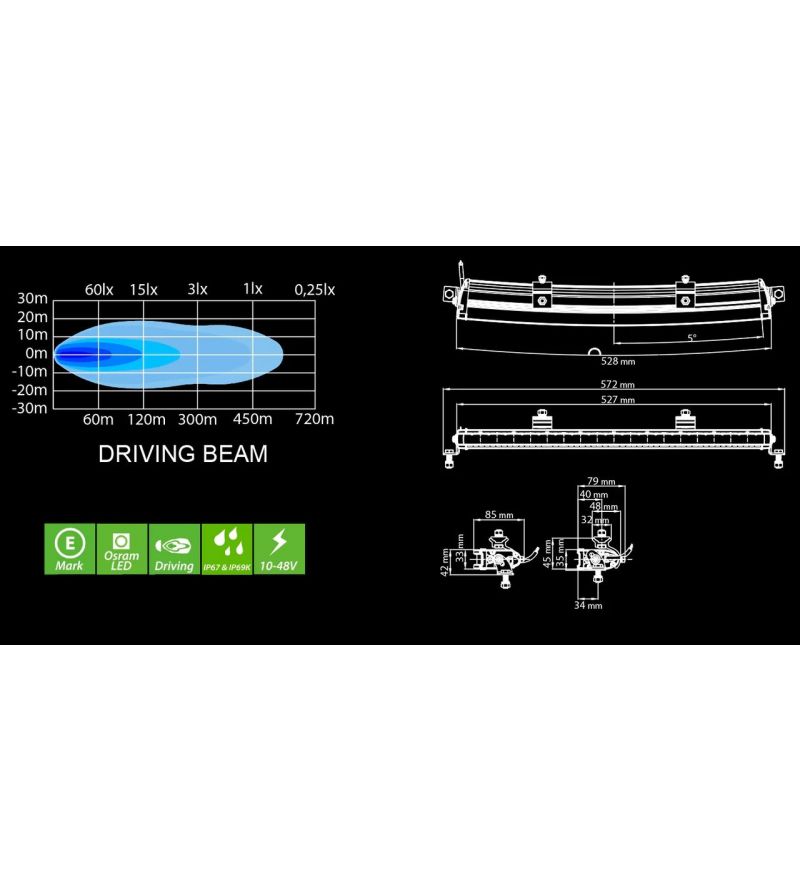

The Driving Beam 'imitates' the normal light pattern of the vehicle. So you get a similar light scatter as the low and high beams of your existing vehicle, but amplified.
Characteristics:
Curved design to suit cars with a curved front
Driving Beam light pattern (wide and elongated)
E marked (E9, ref. 45), ECE R112 / R10
CISPR25 class 3 (EMC protected)
6669 lumens (raw), 3928 lumens (actual)
Color temperature 5700K (bright white)
Range 720 m (0.25 lux), 450 m (1 lux)
Double mounting options: Supplied with brackets for side mounting and brackets for bottom and top mounting that fit around the LED bar.
Technical data:
90 W (18 x 5 W OSRAM LED)
IP68 (waterproof/dustproof)
IP69K: withstands hot water under pressure
Aluminum housing and polycarbonate lens
6.22 A at 12 V and 2.90 A at 24 V
DT plug with mating plug
Delivered:
Juno C LED bar
Side mounted brackets
Sliding brackets for upright or hanging mounting
bolts and nuts
DT plug
Installation manual
NOTE: The DT connector must not be cut as this increases the risk of moisture damage and will void the warranty. DT connector (male) supplied with the product.
33501852
Data sheet
- General: Accessory
- Lighting
- General: Producttype
- LED Light bar
- General: Product serie
- Juno
- General: Feature
- Curved
- General: Series
- Lights & Styling
- Dimensions and weight: Size ( Ø / ↔ )
- 2) Medium
- General: Shape
- Ledbar
- Dimensions and weight: Width (mm)
- 527
- Dimensions and weight: Height (mm)
- 35
- Dimensions and weight: Depth (mm)
- 72
- Light and vision: Beam type
- Driving
- Light and vision: Light type
- LED
- Light and vision: Lighting - type
- Driving light
- Light and vision: Light color
- White
- design and material: Glass color
- Smoke
- Light and vision: Position light
- No position light
- Light and vision: Color temperature
- 5700K
- certifications and delivery: Reference number per unit
- 37.5
- Light and vision: Lumen
- 13500
- Lights and vision: Light distance (m) at 1 lux
- 450
- Lights and vision: Light distance (m) at 0.25 lux
- 725
- certifications and delivery: E-mark
- Yes
- certifications and delivery: Certifications
- R10
R112 - Technical specifications: Voltage
- 12V
18V
24V - Technical specifications: Watts
- 90W
- Technical specifications: LEDs per lamp
- 18
- Technical specifications: Wattage per LED
- 5W
- Technical specifications: Number of pins
- 4 pins
- Technical specifications: Connector
- Deutsch DT
- certifications and delivery: Wiring kit included
- No
- design and material: Housing color
- Black
- design and material: Housing material
- Aluminum
- design and material: Lamp rim color
- Black
- design and material: Lamp rim material
- Aluminum
- certifications and delivery: IP rating
- IP67
IP69K - fit and mounting: Mount
- Normal
- fit and mounting: Vehicle brand
- Universal
- certifications and delivery: Sales unit
- Single item
- certifications and delivery: Standard delivery time
- 1-3 business days
- Size in inches
- 20.7
- Size in cm
- 52.7
- Prodcat1
- M
- Shipping Size
- Standard
- certifications and delivery: IR-code
- a1.D13.st
Specific References
- UPC
- 1
- EAN13
- 7323230035356
- MPN
- 0001-100-008755
