LED Light bar - Viklight - Ymer 30 - 30'' - Position light White/Amber - Driving

€569.95 (tax incl.)

€471.03 (tax excl.)

  • Reference: VLY30
  • Producttype: LED Light bar
  • Dimensions (mm): 758 (w) x 38 (h) x 69 (d)
  • E-mark: yes
  • Position Light Color: White/Amber
  • Beam type: Driving
  • Sales unit: Single item
  • Standard Delivery time: 4-7 business days
x
...Continue

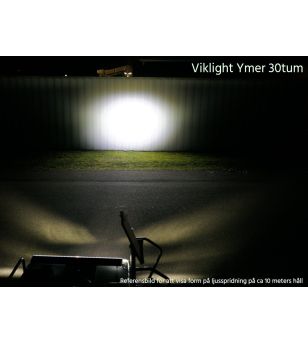

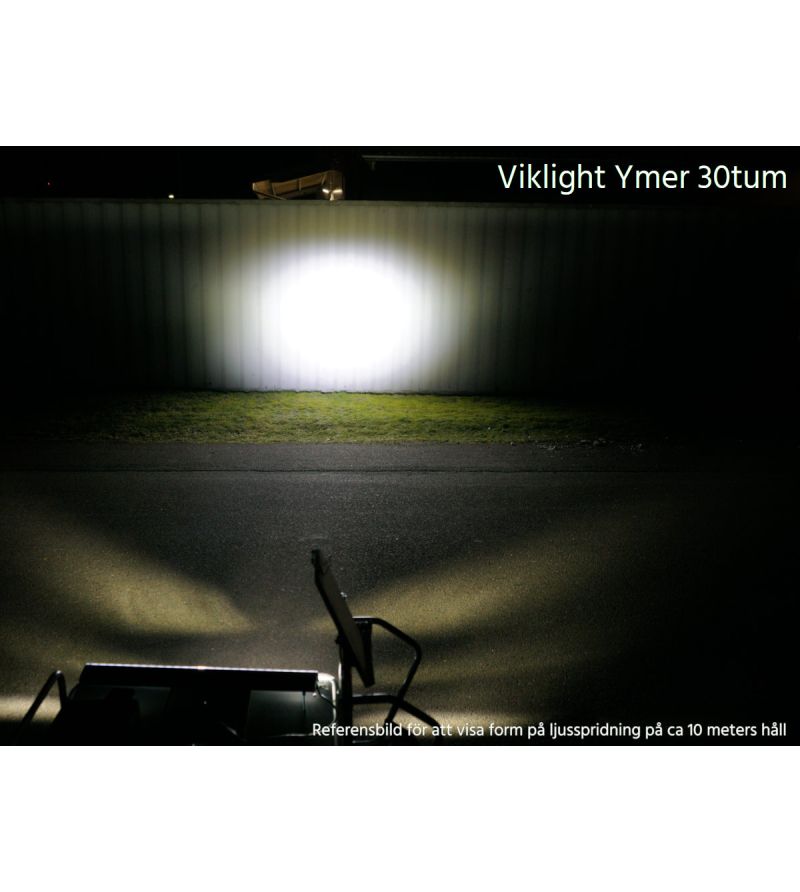

Driving Beam Pattern

Quantity

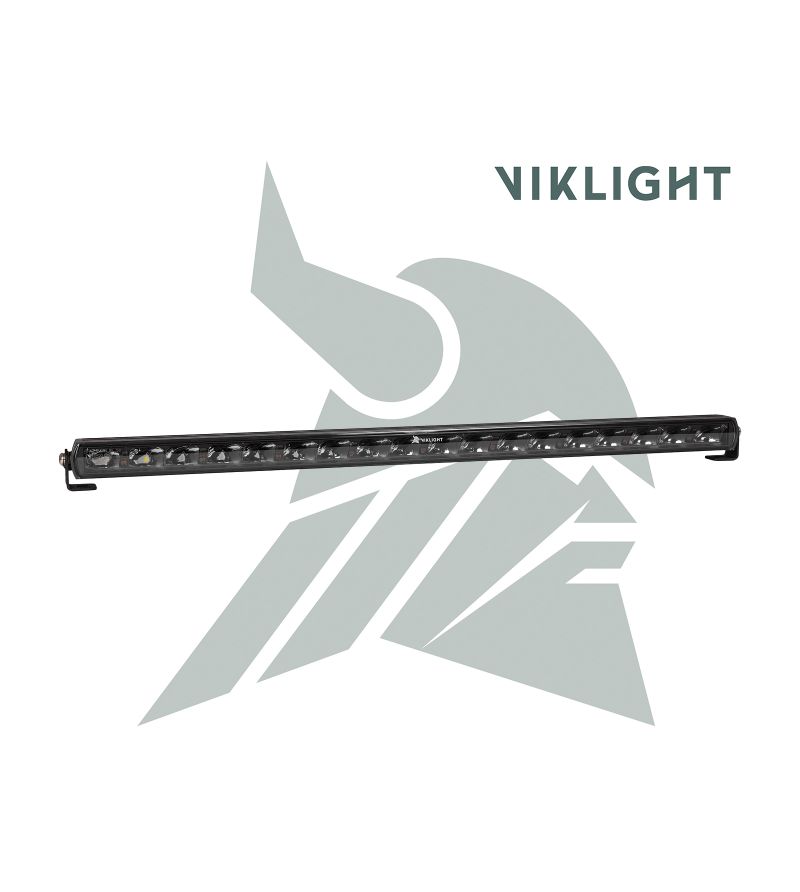

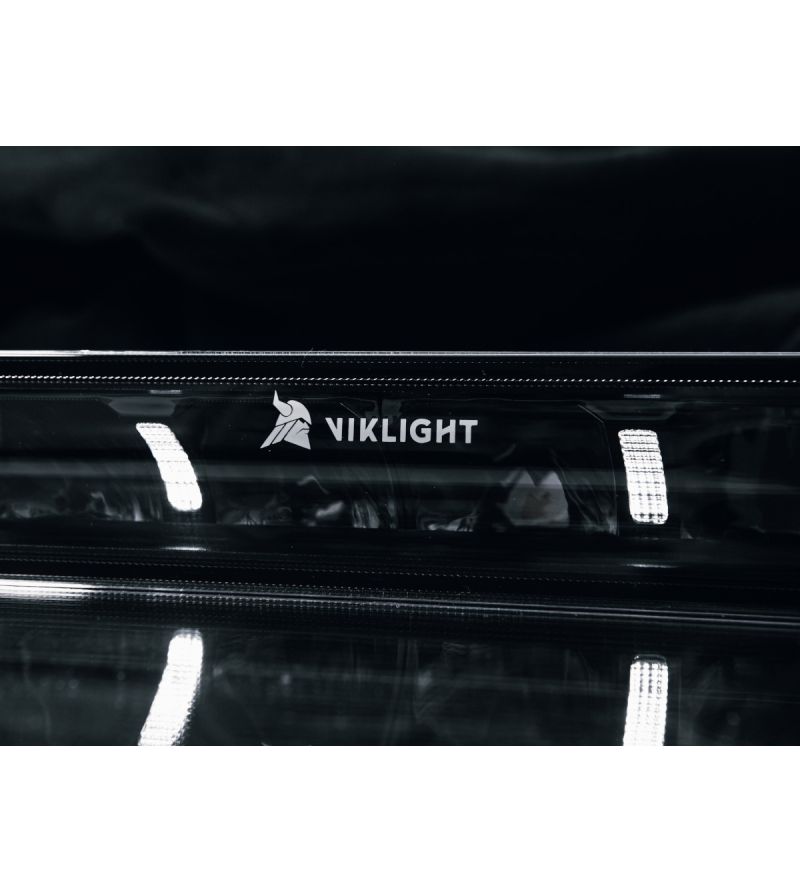

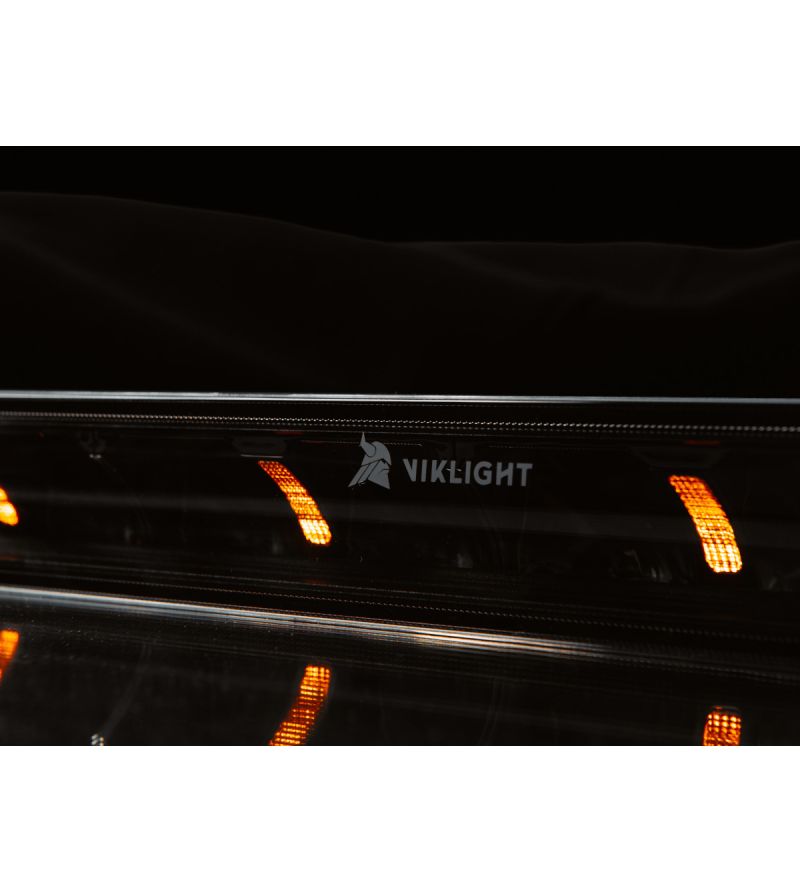

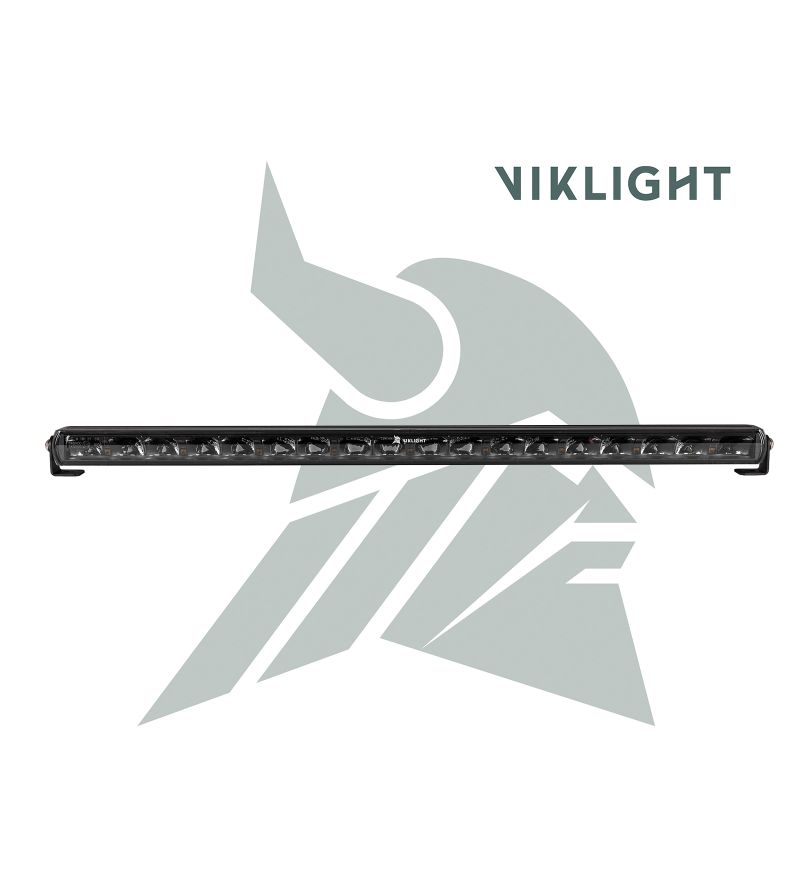

One of our most popular light bars, the Viklight Ymer, is now available in a 30-inch version for slightly larger vehicles. The ramp has now been fitted with a modern vertical position light in a choice of orange or white.

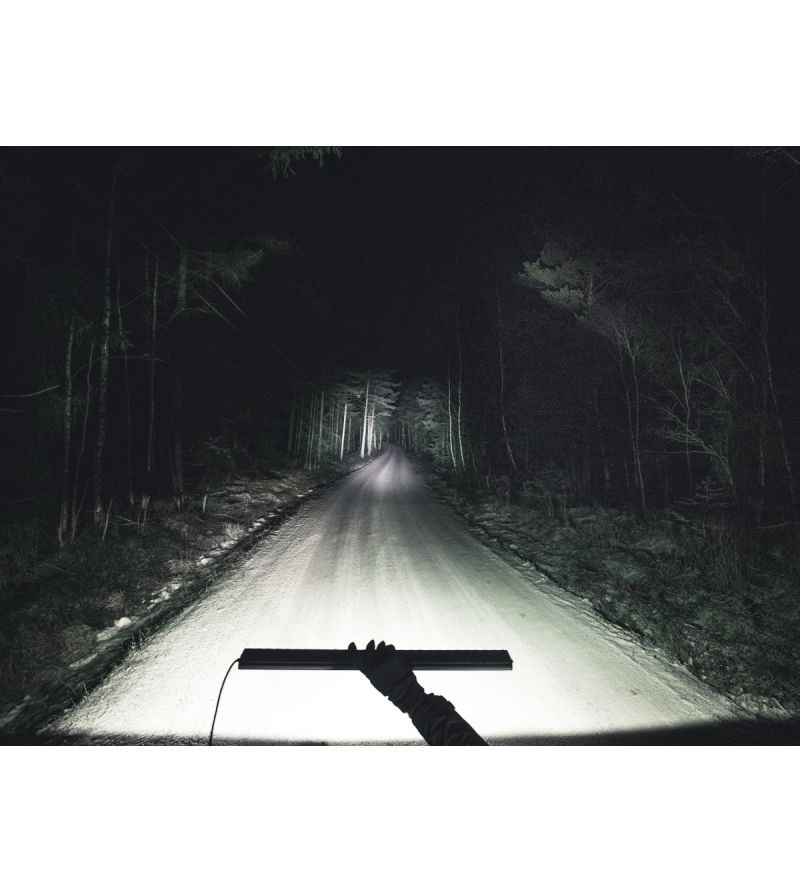

The combined light pattern provides both wide light on the outer edges of the road and good length on straight country roads.

-Three-year warranty
-E-marked as auxiliary light
-Double mounting system, stepless rail and side feet.
-Only 38 mm high, light and easy to mount
-Good light output, 1 lux at 640 meters!
-Full-coverage Lexan lens to avoid paint loss due to stone chips

The Ymer series is our thinnest LED ramps yet with only 38mm height.

Ymer in the 30-inch version has a light pattern that extends the vehicle's regular high beam and shines 640 meters.

The Viklight Ymer has a fully curved polycarbonate lens that protects the paint from stone chips and facilitates water run-off.
This LED lightbar is covered by a full three-year warranty!

What else do I need?
The lightbar does not include its own wiring kit but the DTP connector of the lightbar fits well with our DTP wiring kit. The wiring kit includes a fuse, relay and switch. The wiring harness has no ready-made connection for position lights.
An extra loose DTP connector is included in the box.
Note that the DTP connector is larger than the more common DT connector and that they are different connectors that do not fit into each other.

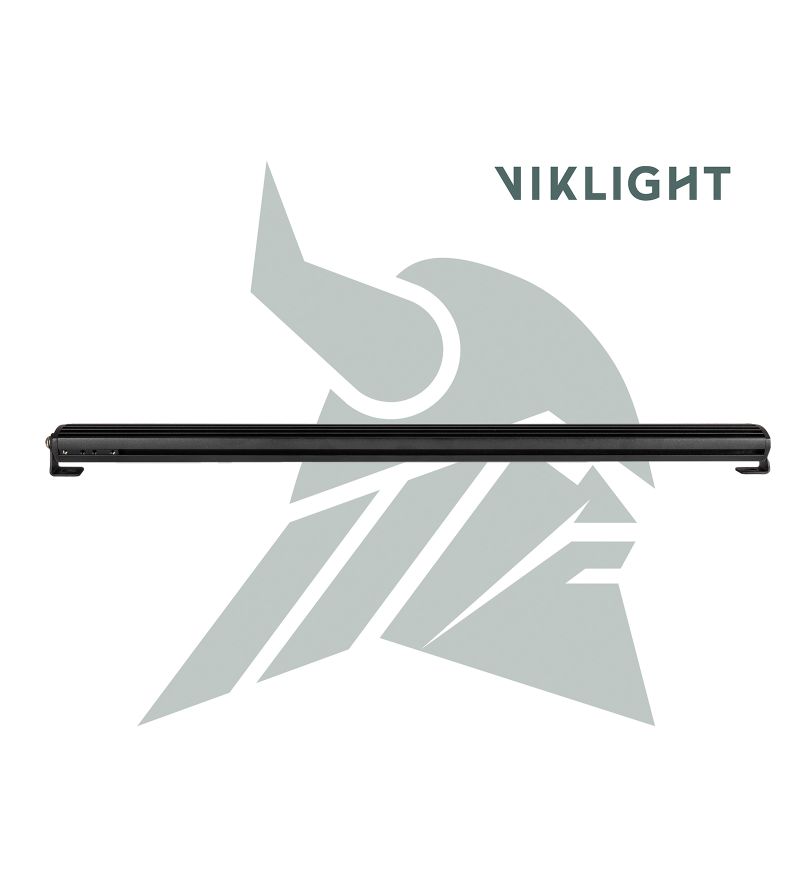

The LED lightbar has two different mounting systems included to facilitate installation, a stepless rail at the rear of the lightbar and L-shaped metal feet for mounting on the short sides.

Data LED Extra Light Ramp Viklight Ymer 30-inch:
Lamp body: Aluminum
Bracket: Stepless rail on the underside of the ramp, approx. 30 degrees of height adjustment. Side-mounted feet with 360 degree adjustability included. Can be mounted hanging and standing.
Ventilating membrane according to the Gore-Tex principle releases any condensation.
Number of LEDs: 27 LG LEDs (154W)
Number of lumens: 17,100 theoretical (4800 in ECE mode)
Light length with 1 lux: 640 meters
E-marked: Yes, ECE R112 Reference number 50 in ECE mod
Voltage: 9-30 volts DC
Power consumption: 12.8 Amp at 12 v
Power consumption position light 12V: 1.44W
Power consumption position light 24V: 1.68W
Color temperature: approx. 6500 K
Light pattern: Driving beam, extends the high beam
IP class: IP68, withstands weather and wind.
Length: 758 mm
Height excl. mounting bracket: 38 mm
Height incl. mounting bracket: 55 mm
Depth: 69 mm
Lens: Polycarbonate

Electrical connection:
White cable: 12/24v+ for White position light
Yellow cable: 12/24v+ for Orange position light
Green cable: 12/24v+ for ECE mod (lower power)

WLTP information
WLTP weight: 1.8kg
WLTP front area: 0.0309(m2)

3 years warranty.

Viklight
VLY30

Data sheet

Accessory
Lighting
Producttype
LED Light bar
Product serie
Ymer
Serial model
30
Size ( Ø / ↔ )
2) Medium
Shape
Ledbar
Width (mm)
758
Height (mm)
38
Depth (mm)
69
Weight (kg)
1.8
Beam type
Driving
Light type
LED
Lighting - Type
Driving Light
Light color
White
Position light
Position light
Color of position light
Amber
White
Color temperature
6000K
Reference number per unit
50
E-mark
yes
ECE approval
R112
Glass color
Clear
Chrome / RVS
no
Housing color
black
Housing material
Aluminum
Lamp rim color
black
Lamp rim material
Aluminum
Product color
black
IP rating
IP68
Mount
Normal
Lumen
17100
Light distance (m) at 1 lux
640
Voltage
12V
18V
24V
30V
Watts
154W
LEDs per lamp
27
Wattage per LED
6W
number of pins
2 pins
Connector
2 pins DTP
Wiring included
No
Sales unit
Single item
Standard Delivery time
4-7 business days
prodcat1
M
Shipping Size
S
