LED Light bar - Ledson - Epix 31 - Slim Curved - 30.9" - 78.4cm - Powerboost - Driving
      LED Light bar - Ledson - Epix 31 - Slim Curved - 30.9" - 78.4cm - Powerboost - Driving
      LED Light bar - Ledson - Epix 31 - Slim Curved - 30.9" - 78.4cm - Powerboost - Driving
      LED Light bar - Ledson - Epix 31 - Slim Curved - 30.9" - 78.4cm - Powerboost - Driving
      LED Light bar - Ledson - Epix 31 - Slim Curved - 30.9" - 78.4cm - Powerboost - Driving
      LED Light bar - Ledson - Epix 31 - Slim Curved - 31'' - Powerboost - Driving LED Light bar - Ledson - Epix 31 - Slim Curved - 31'' - Powerboost - Driving LED Light bar - Ledson - Epix 31 - Slim Curved - 31'' - Powerboost - Driving LED Light bar - Ledson - Epix 31 - Slim Curved - 31'' - Powerboost - Driving
      LED Light bar - Ledson - Epix 31 - Slim Curved - 31'' - Powerboost - Driving

      LED Light bar - Ledson - Epix 31 - Slim Curved - 30.9" - 78.4cm - Powerboost - Driving

      €279.95(tax incl.)

      €231.36 (tax excl.)

      • Reference: 334906272
      • Producttype: LED Light bar

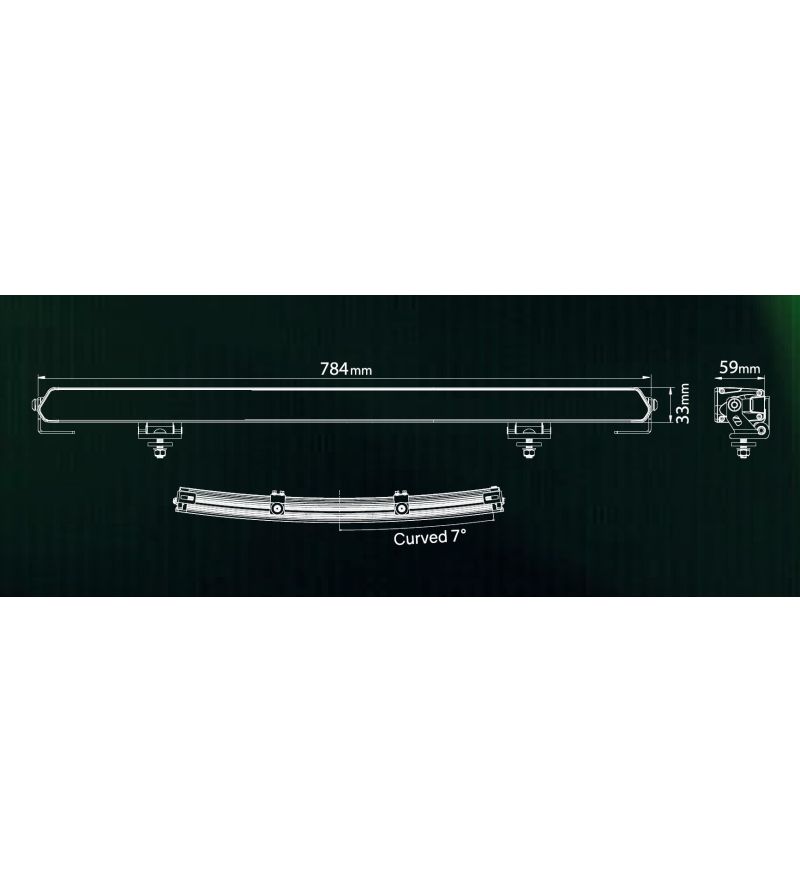

      • Dimensions (mm): 784 (w) x 33 (h) x 59 (d)
      • E-mark: Yes
      • Beam type: Driving
      • Sales unit: Single item
      • Standard delivery time: 4-7 business days
      πŸš— Epix31 Slim Curved – Compact, stylish curved light bar with wide and powerful beam
      ...Continue

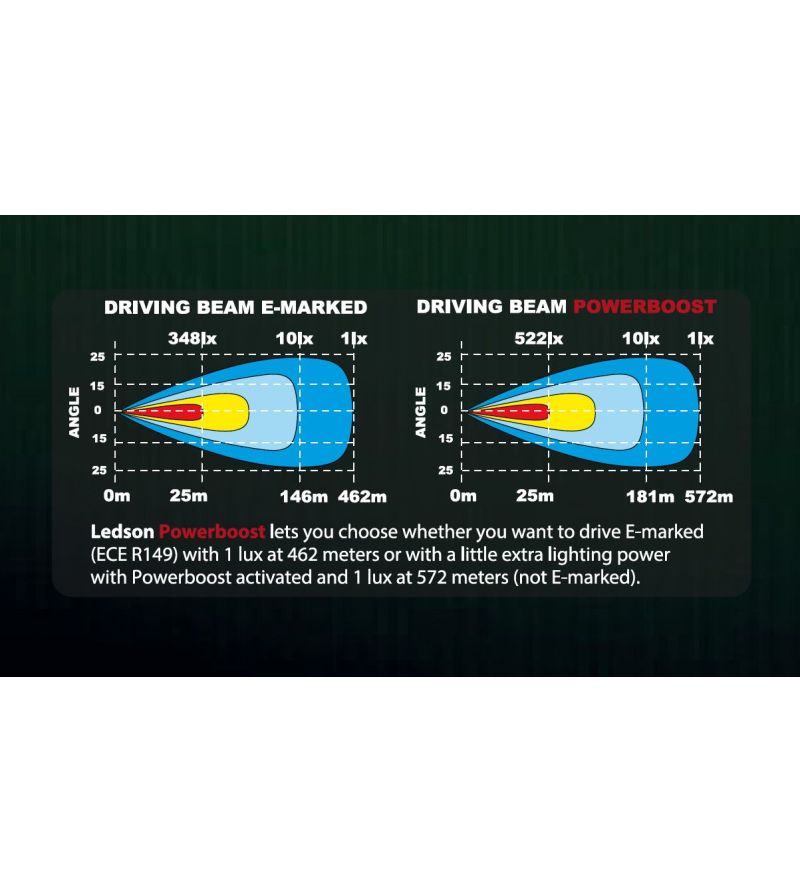

      Driving Beam Pattern

      Quantity :
      • Pay Pay in a secure environment
      • Questions Questions about this product? Our experts are here to help
      • 4.8/5 4.8/5 More than 10,000 customers have already gone before you

      πŸš— Epix31 Slim Curved – Compact, stylish curved light bar with wide and powerful beam

      Pitch: Experience the perfect blend of design and performance with the Epix31 Slim Curved – ideal LED bar for modern vehicles with a curved front.

      • 🌟 Elegant curved design that perfectly matches your vehicle's lines
      • πŸ’‘ Driving Beam light pattern for optimal visibility and wider side illumination
      • ⚑ Pulse-controlled Powerboost for extra brightness whenever you need it
      • πŸ”§ Easy installation with Ledson Connect wiring harness and versatile mounting options
      • πŸ’§ IP69K water and dust proof for reliable performance in all conditions

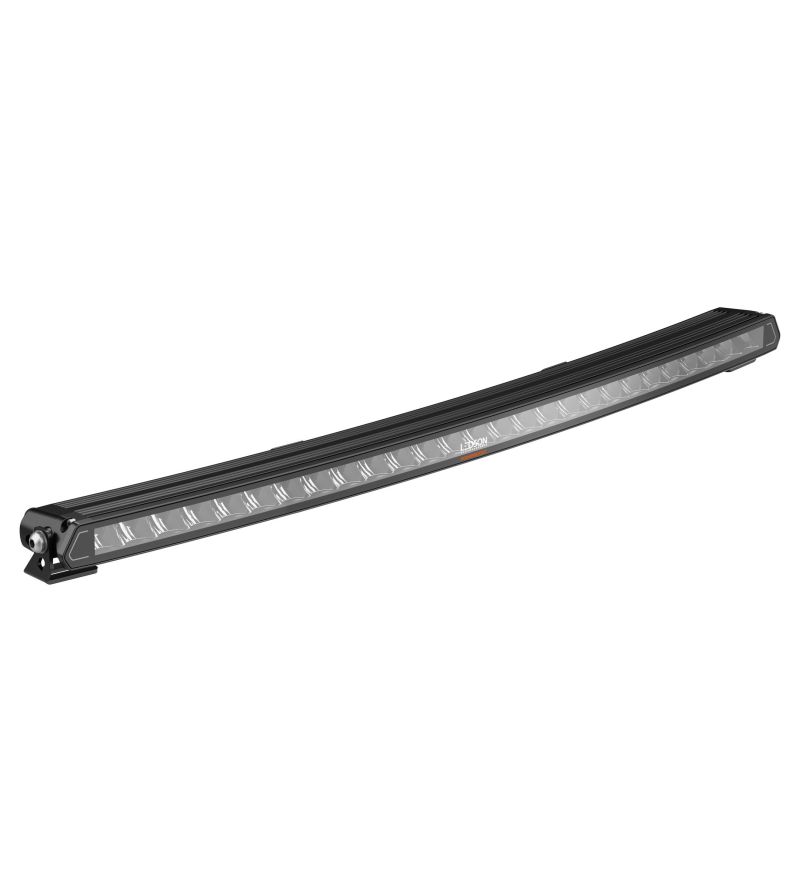

      The Epix31 Slim Curved (784 mm wide) is carefully designed for vehicles with a curved front, ensuring the bar fits perfectly while providing a wider light spread than traditional straight bars. With up to 11,000 lumens in powerboost mode and a reach of up to 572 meters, you get outstanding visibility even in the darkest conditions.

      Technical specifications

      Width 784 mm
      Height 33 mm
      Depth 59 mm
      Power 162W (27 x 6W LEDs)
      Voltage 9-36V
      Luminous flux (E-approved) 6,810 lumens (actual)
      Luminous flux (Powerboost) 11,000 lumens (actual)
      Range (E-approved) 462 m (1 lux)
      Range (Powerboost) 572 m (1 lux)
      Color temperature 5000K (neutral white)
      Protection IP69K (water and dust proof)
      Certification E-mark R149, R10 (EMC)

      Included in the package

      • Epix31 Slim Curved 31" LED bar
      • Bolts and screws for mounting
      • Mounting accessories for end and rear mounting
      • 2-pin DT connector
      • Installation instructions

      Note: Do not cut the DT connector to avoid moisture damage and warranty issues.

      Ledson
      334906272

      Data sheet

      General: Accessory
      Lighting
      General: Producttype
      LED Light bar
      General: Product serie
      Epix
      General: Serial model
      31
      General: Version
      Slim Curved
      General: Feature
      Powerboost
      General: Series
      Lights & Styling
      Dimensions and weight: Size ( Ø / ↔ )
      2) Medium
      General: Shape
      Ledbar
      Dimensions and weight: Width (mm)
      784
      Dimensions and weight: Height (mm)
      33
      Dimensions and weight: Depth (mm)
      59
      Light and vision: Beam type
      Driving
      Light and vision: Light type
      LED
      Light and vision: Lighting - type
      Driving light
      Light and vision: Light color
      White
      Design and material: Glass color
      Clear
      Light and vision: Position light
      No position light
      Light and vision: Color temperature
      5000K
      certifications and delivery: Reference number per unit
      50
      Light and vision: Theoretical Lumens
      14600
      Light and vision: Effective Lumens
      11000
      Light and vision: Light distance (m) at 1 lux
      572
      certifications and delivery: E-mark
      Yes
      certifications and delivery: Certifications
      R10
      R149
      Technical specifications: Voltage
      12V
      18V
      24V
      30V
      36V
      Technical specifications: Watts
      162W
      Technical specifications: LEDs per lamp
      27
      Technical specifications: Wattage per LED
      6W
      Technical specifications: Number of pins
      2 pins
      Technical specifications: Connector
      DTP/ATP
      Design and material: Chrome / RVS
      No
      Design and material: Housing material
      Aluminum
      Design and material: Lamp rim color
      Black
      Design and material: Lamp rim material
      Aluminum
      certifications and delivery: IP rating
      IP69K
      certifications and delivery: What is delivered
      1 light
      General manual
      Mounting bracket
      fit and mounting: Mount
      Normal
      certifications and delivery: Sales unit
      Single item
      certifications and delivery: Standard delivery time
      4-7 business days
      Size in inches
      30.9
      Size in cm
      78.4
      Prodcat1
      M
      Shipping Size
      Standard
      certifications and delivery: IR-code
      a1.L-I11.st

      Specific References

      UPC
      1
      EAN13
      7323230052001
