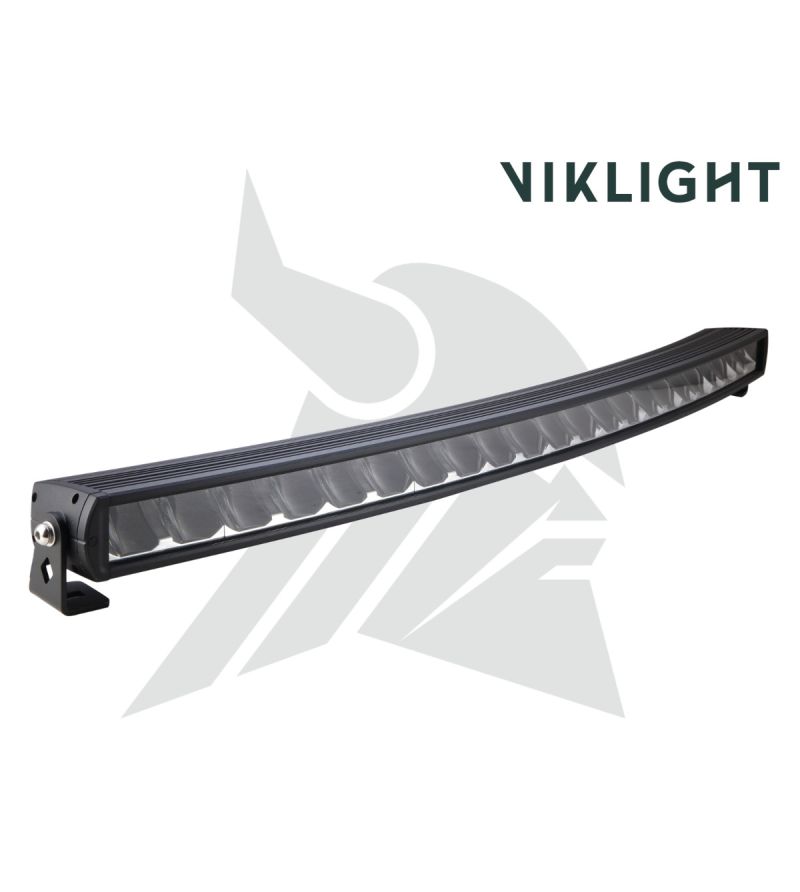

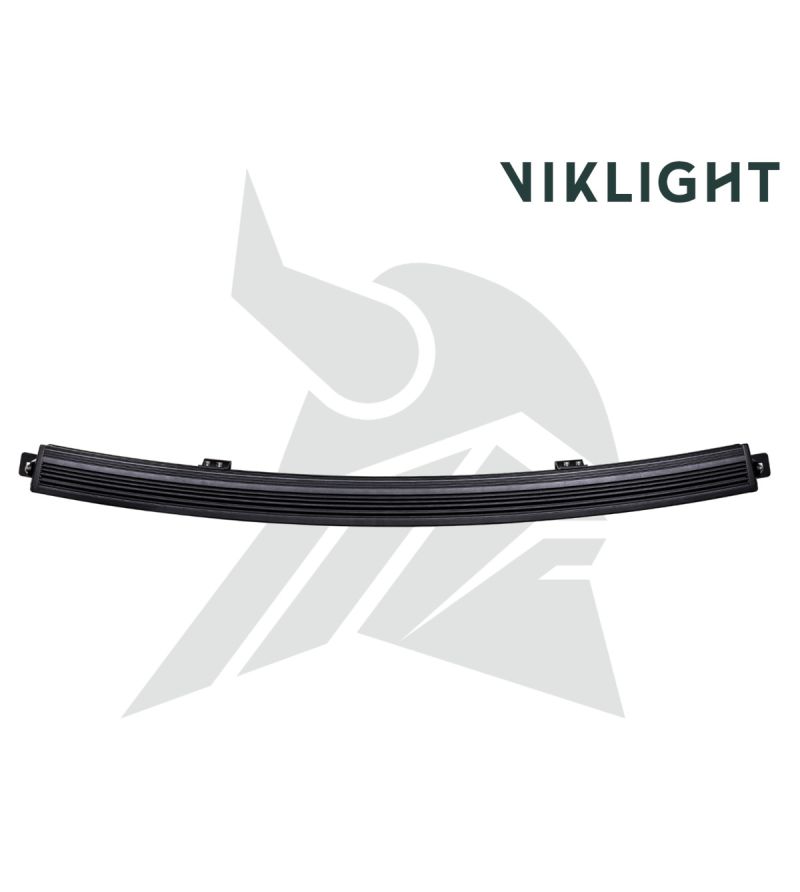

LED Light bar - Viklight - Tellus 40 - 43.3" - 110cm - Curved - Position light White - Driving
€644.95(tax incl.)
€533.02 (tax excl.)
- Reference: TEL40EM
- Producttype: LED Light bar
- Dimensions (mm): 1100 (w) x 56 (h) x 79 (d)
- E-mark: Yes
- Beam type: Driving
- Sales unit: Single item
- Standard delivery time: 4-7 business days
x
...Continue
Pay in a secure environment
Questions about this product? Our experts are here to help
4.8/5 More than 10,000 customers have already gone before you

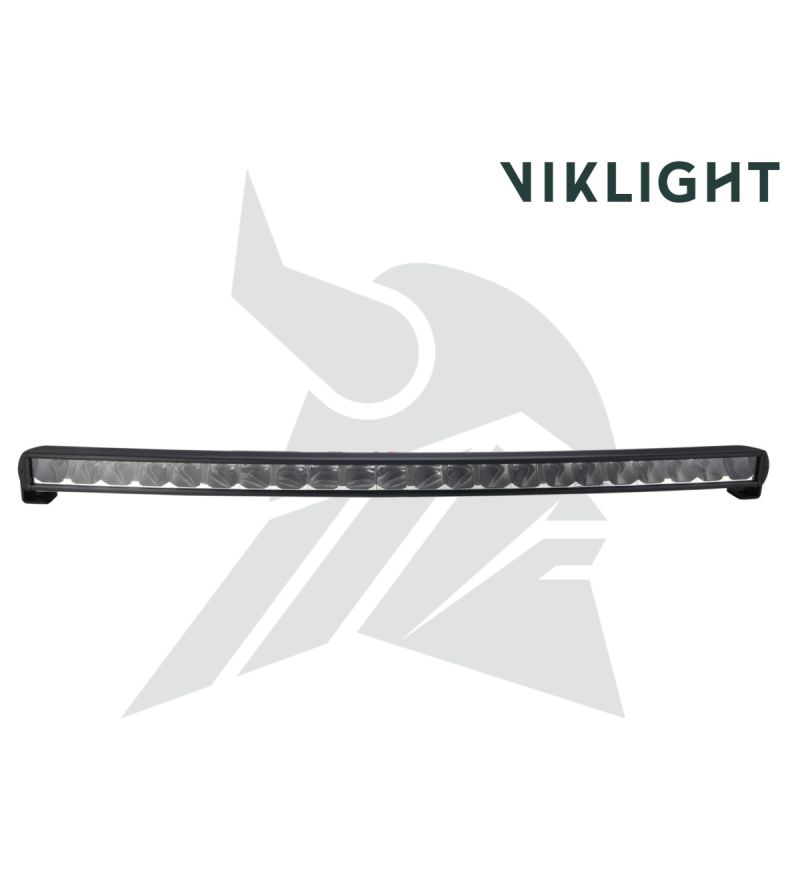

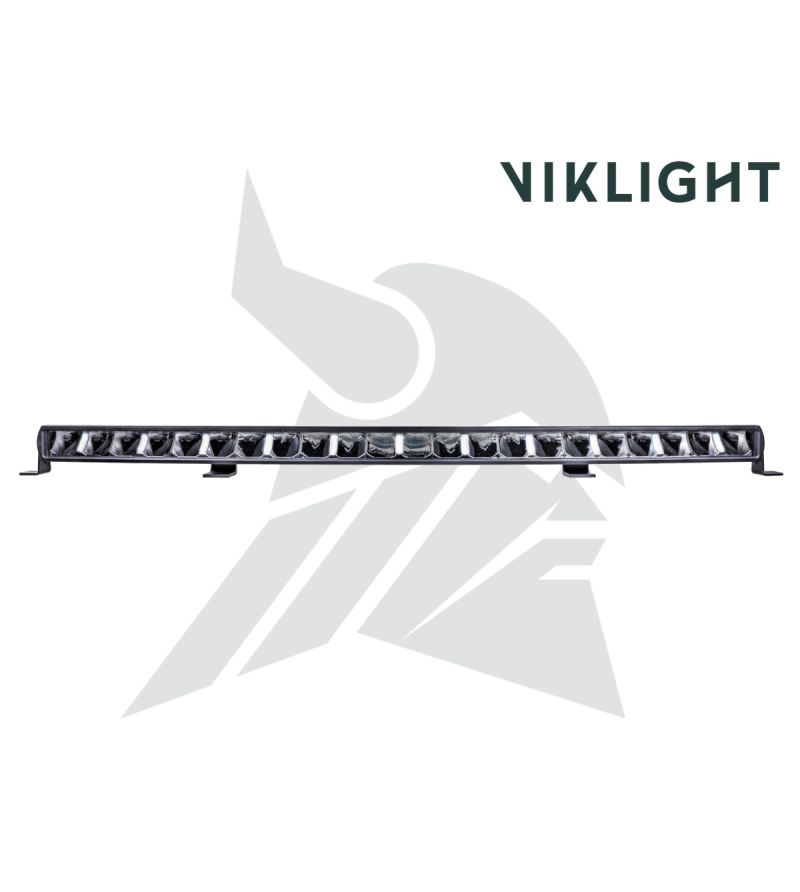

The Viklight Tellus is a curved LED light bar for those who need a bright spotlight with a slightly lower profile than the Ramer series, for example. The curvature of the LED Light bar provides a wide, fan-shaped light pattern and has a range of approximately 512 meters (the distance at which the light level of 1 lux is measured). The light pattern is suitable for roads and highways.

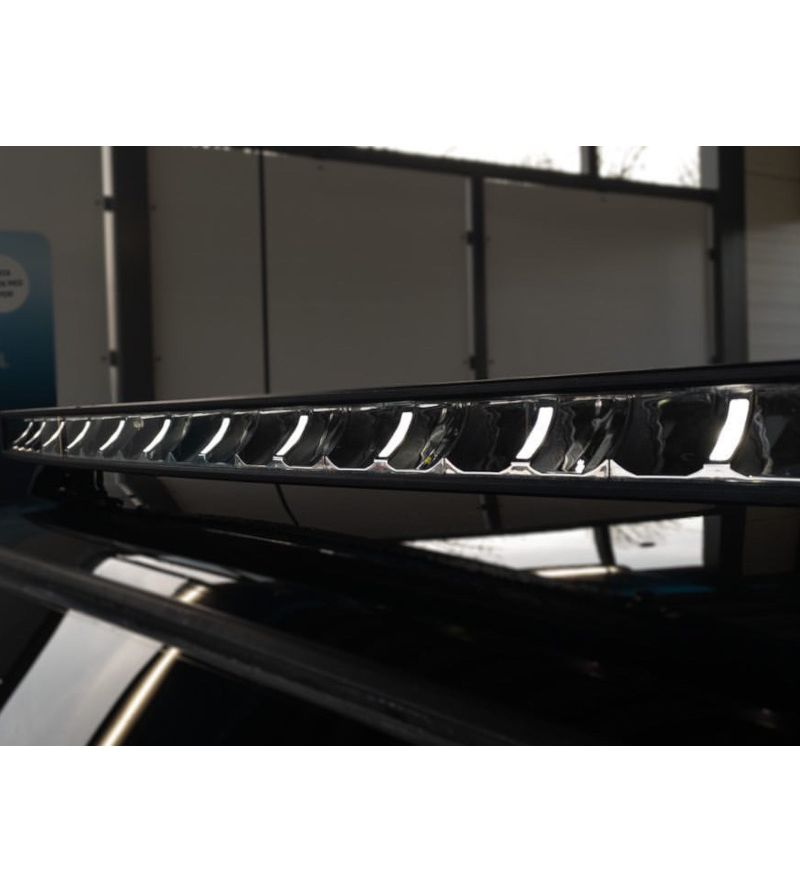

LED position light
Viklight Tellus has a modern LED position light that can be switched on and off separately from the additional light function (separate cable). Like all spotlights, the position light is not legal for use on public roads.
What else do you need?
The lightbar does not include its own wiring kit, but the DTP connector of the lightbar fits well on our wiring kits
What type of vehicle does this LED lightbar fit?
The Tellus 40” fits well on the roof of slightly larger vehicles such as vans, campers, trucks and buses.
The LED Light bars have two different mounting systems to facilitate installation, a stepless rail at the back of the LED Light bar and L-shaped metal feet for mounting on the short sides.

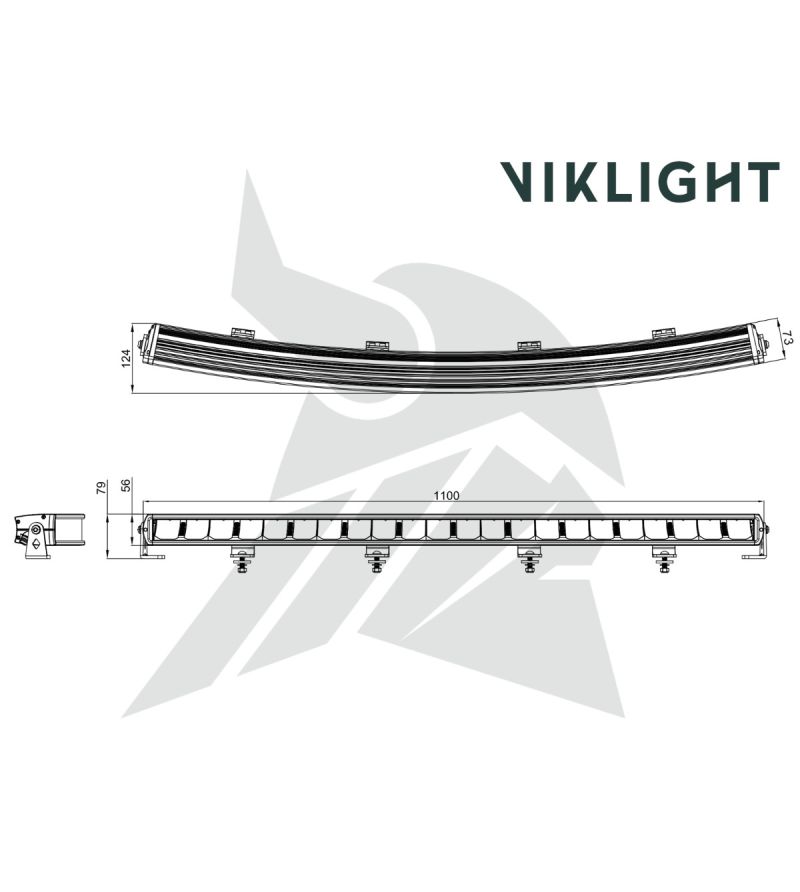

Viklight Tellus 40-inch LED Light bar specifications:
Bracket: Stepless rail at the back of the LED Light bar and side-mounted feet with 360 degree adjustability included.
Ventilating membrane based on the Gore-Tex principle allows any condensation to escape.
Number of LEDs: 22 10 watt LEDs (220W)
Number of lumens: 20,900 theoretical

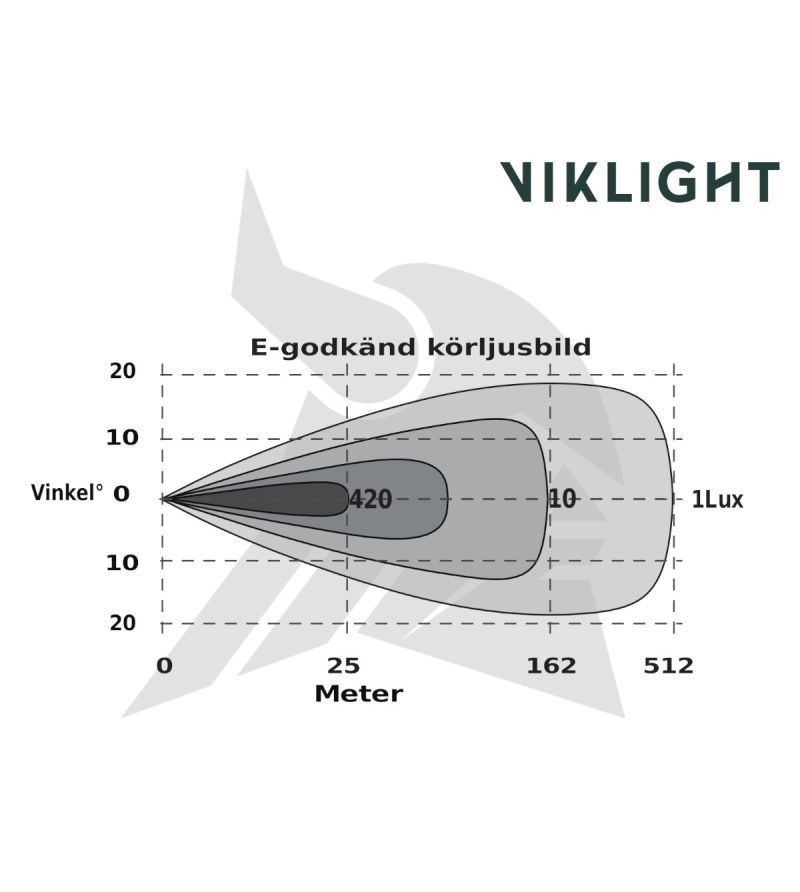

Light distance at 1 lux: 512 meters
E-mark: Yes, according to ECE R7, R10 & R112 (reference number 45)
Voltage: 9-36 volts DC
Light pattern: High beam, extends and widens the main beam
IP class: IP68, weatherproof.
Length: 1100 mm
Height excl. mounting bracket: 56 mm
Height incl. mounting bracket: 79 mm
Depth: 73 mm
WLTP information
WLTP weight: 3.9 kg
WLTP front surface: 0.0608 (m2)
This handrail comes with a 3-year warranty.
TEL40EM
Data sheet
- General: Accessory
- Lighting
- General: Producttype
- LED Light bar
- General: Product serie
- Tellus
- General: Serial model
- 40
- General: Feature
- Curved
- Dimensions and weight: Size ( Ø / ↔ )
- 3) Large
- General: Shape
- Ledbar
- Dimensions and weight: Width (mm)
- 1100
- Dimensions and weight: Height (mm)
- 56
- Dimensions and weight: Depth (mm)
- 79
- Dimensions and weight: Weight (kg)
- 3.9
- Light and vision: Beam type
- Driving
- Light and vision: Light type
- LED
- Light and vision: Lighting - type
- Driving light
- Light and vision: Light color
- White
- Design and material: Glass color
- Clear
- Light and vision: Position light
- Position light
- Light and vision: Color of position light
- White
- Light and vision: Color temperature
- 6000K
- certifications and delivery: Reference number per unit
- 45
- Light and vision: Theoretical Lumens
- 20900
- Light and vision: Light distance (m) at 1 lux
- 512
- certifications and delivery: E-mark
- Yes
- certifications and delivery: Certifications
- R10
R112
R7 - Technical specifications: Voltage
- 12V
18V
24V
30V
36V - Technical specifications: Watts
- 220W
- Technical specifications: LEDs per lamp
- 22
- Technical specifications: Wattage per LED
- 10W
- Technical specifications: Number of pins
- 3 pins
- Technical specifications: Connector
- Deutsch DT
- certifications and delivery: Wiring kit included
- No
- Design and material: Chrome / RVS
- No
- Design and material: Housing color
- Black
- Design and material: Housing material
- Aluminum
- Design and material: Lamp rim color
- Black
- Design and material: Lamp rim material
- Aluminum
- Design and material: Product color
- Black
- certifications and delivery: IP rating
- IP68
- fit and mounting: Mount
- Normal
- certifications and delivery: Sales unit
- Single item
- certifications and delivery: Standard delivery time
- 4-7 business days
- Size in inches
- 43.3
- Size in cm
- 110
- Prodcat1
- M
- Prodcat2
- AB
- Shipping Size
- Large
- certifications and delivery: Warranty
- 5 year
- certifications and delivery: IR-code
- a1..st
