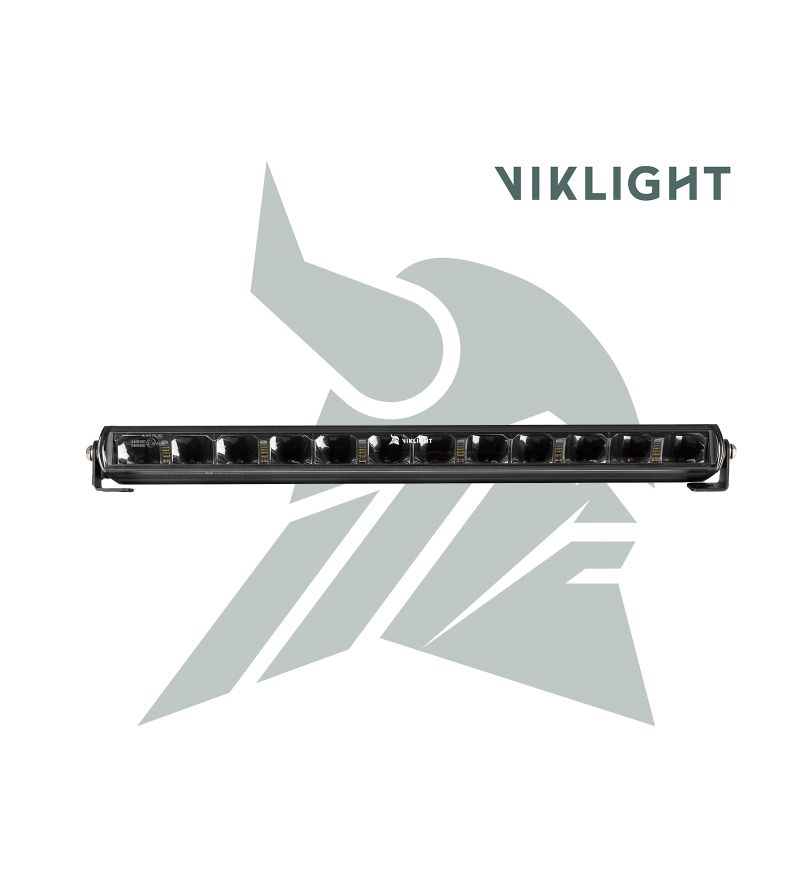

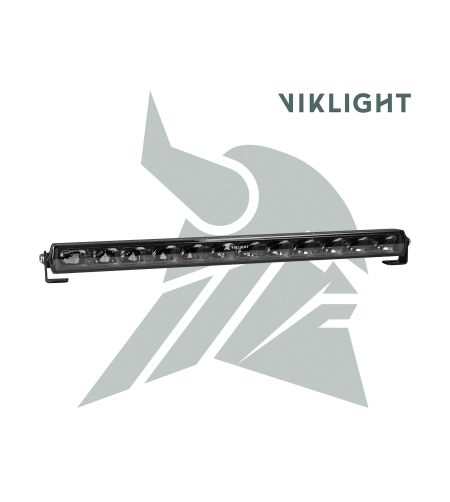

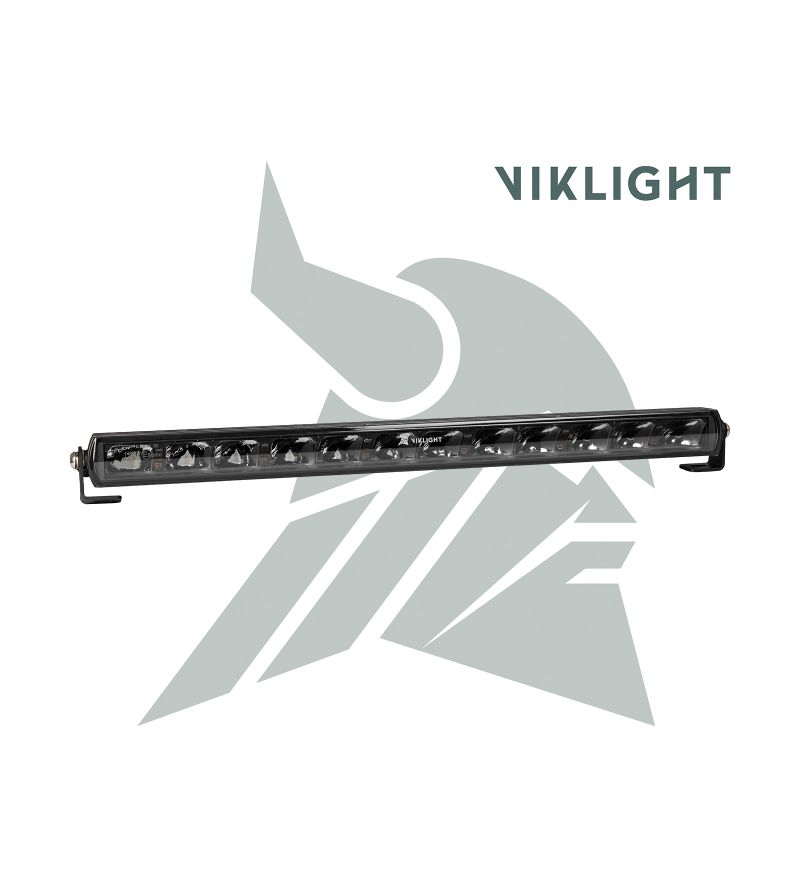

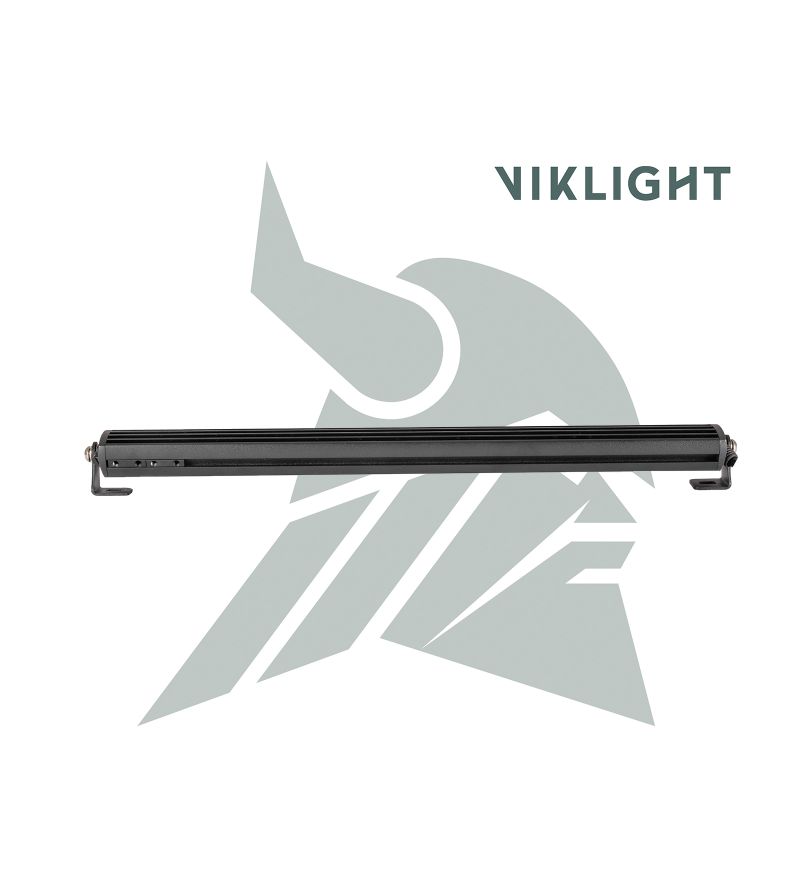

LED Light bar - Viklight - Ymer 20 - 20.3" - 51.5cm - Position light White/Amber - Driving
€324.95(tax incl.)
€268.55 (tax excl.)
- Reference: VLY20EM
- Producttype: LED Light bar
- Dimensions (mm): 515 (w) x 38 (h) x 69 (d)
- E-mark: Yes
- Beam type: Driving
- Sales unit: Single item
- Standard delivery time: 4-7 business days
x
...Continue
Must-have accessoires
Wiring Kit
x ...Continue |
Wiring kit - Lazer - 1 lamp - Incl. switch - 4 pins - Deutsch DT - 12V |
Pay in a secure environment
Questions about this product? Our experts are here to help
4.8/5 More than 10,000 customers have already gone before you

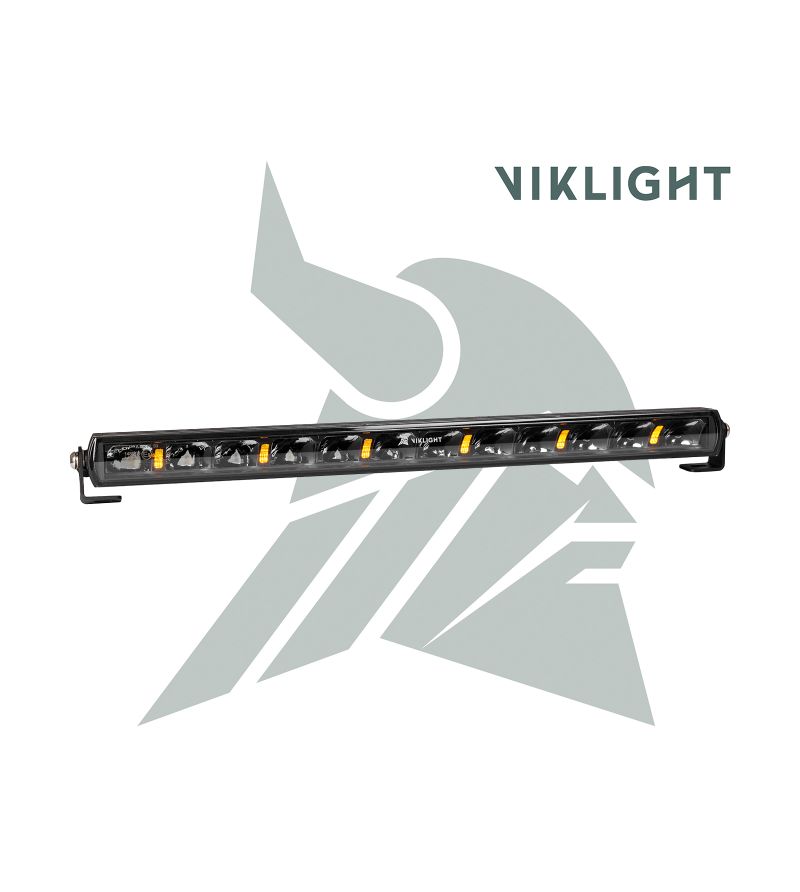

An evolution of one of our most popular LED Light bars, the updated Viklight Ymer now shines even further than before at 1 lux at 581 meters. The LED Light bar features a modern upright position light in a choice of orange or white.
The combined light pattern provides both wide light on the outer edges of the road and length on straight country roads.

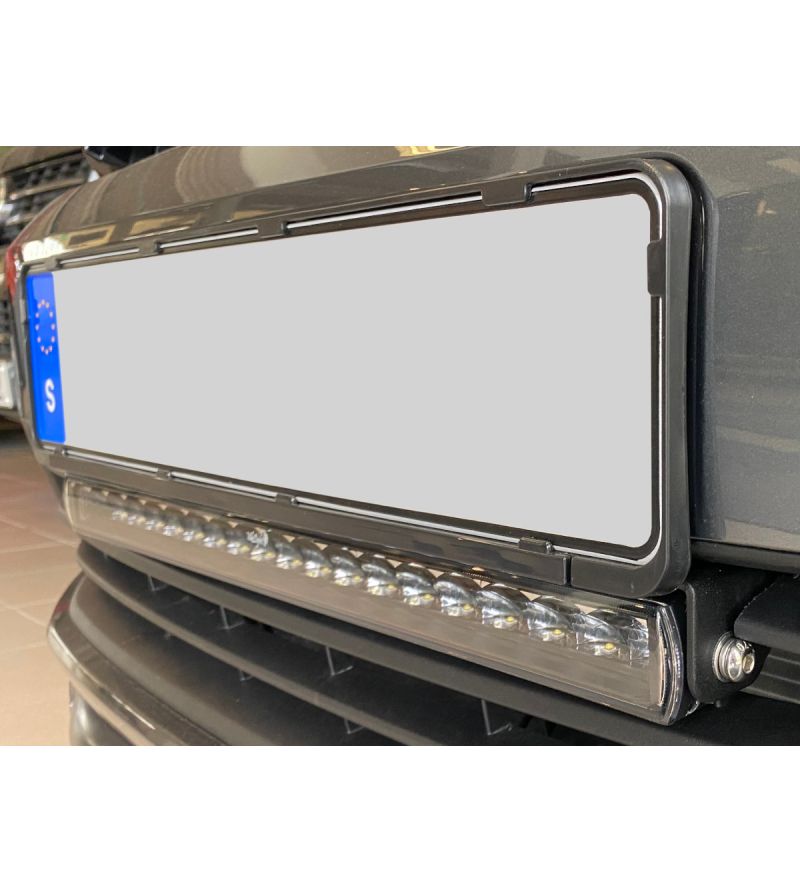

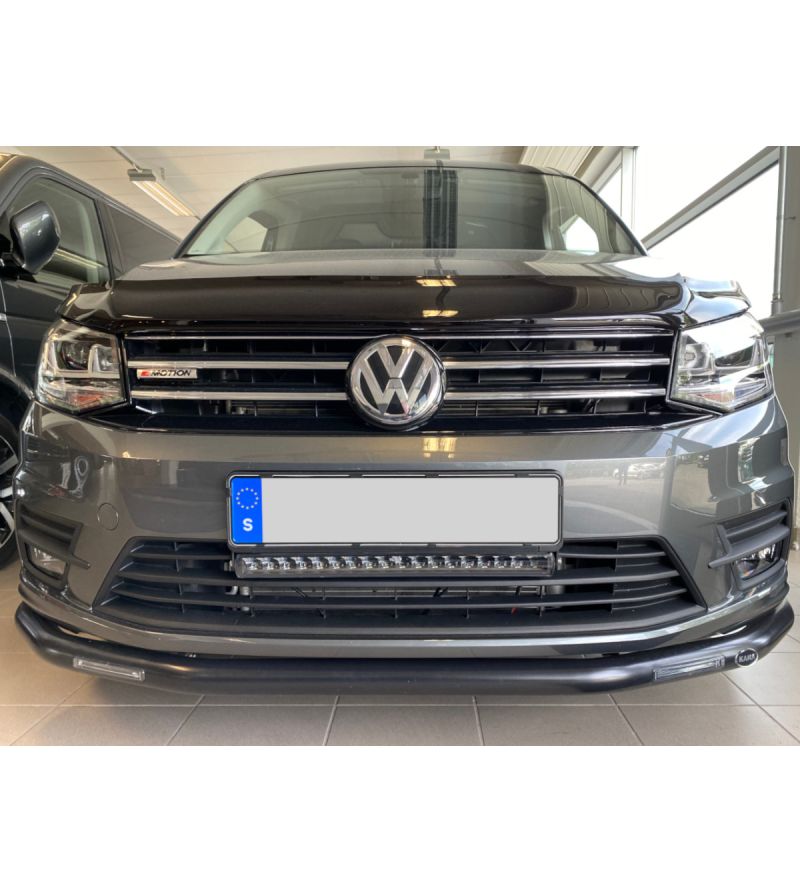

The convenient dimensions allow the LED Light bar to be easily mounted below or above the license plate, and the ramp dimensions match a standard license plate.
-E-mark as additional lighting
-Customized license plate holder available as an accessory
-Only 38.5 mm high, lightweight and easy to mount
-Good light output, 1 lux at 581 meters!
-Lexan lens
What else do I need?
The lightbar does not include its own cable set, but the lightbar's DT connector fits well with our DT cable set.
An additional separate DT connector is included.

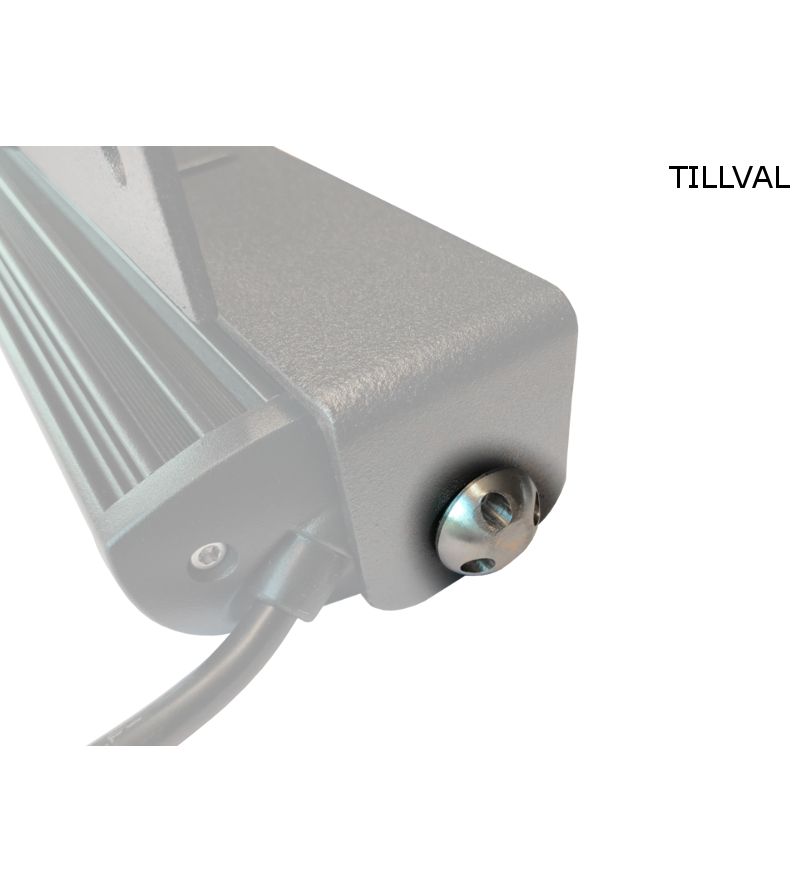

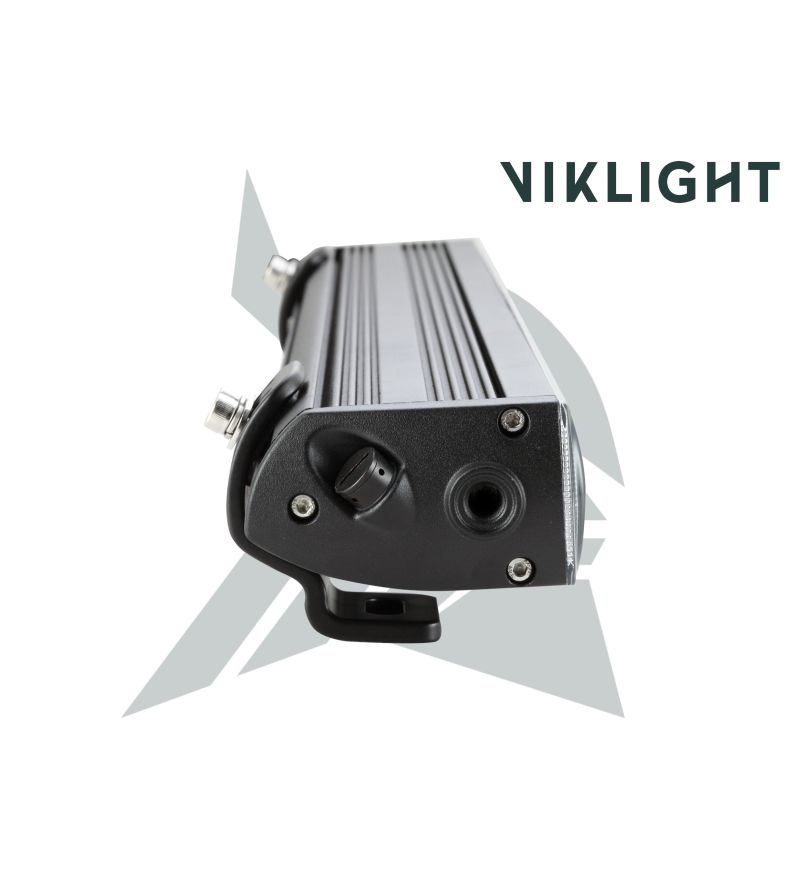

The LED Light bar has two different mounting systems to facilitate installation, a stepless rail on the back of the bar and L-shaped metal feet for mounting on the short sides
LED Light bar data Viklight Ymer 20-inch:
Lamp housing: Aluminum
Ventilating membrane according to the Gore-Tex principle allows any condensation to escape.
Number of LEDs: 12 LG LEDs (94W)
Number of lumens: 11 400 theoretical (5800 in ECE mode)
Light intensity at 1 lux: 581 meters
E-mark: Yes, ECE R112 Reference number 50 in ECE mode
Voltage: 9-30 volt DC
Color temperature: approx. 6500 K

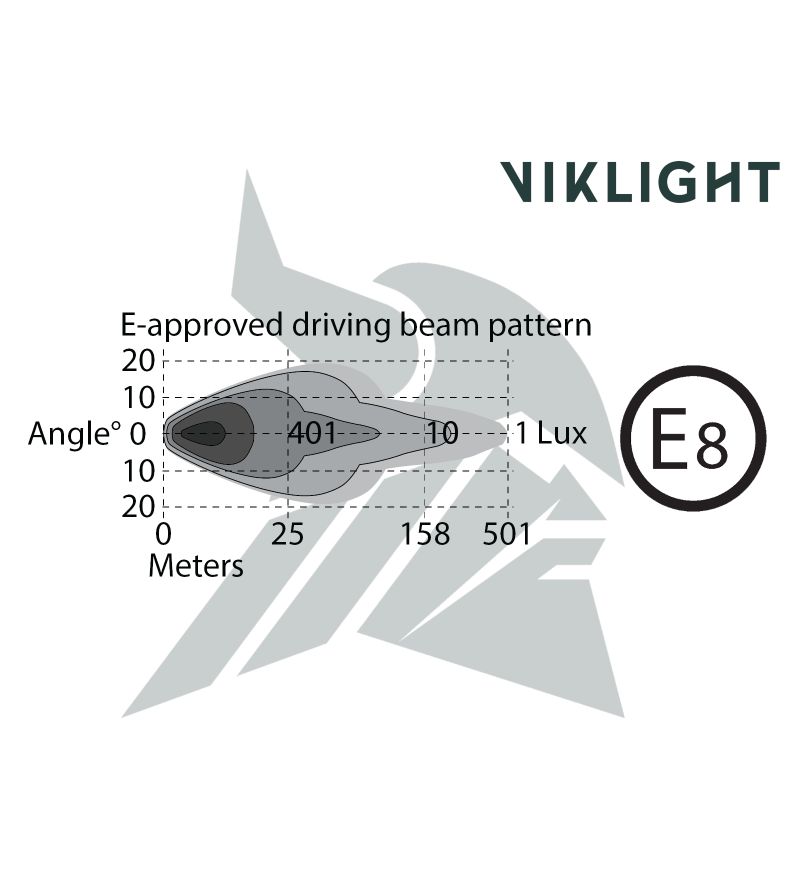

Light pattern: Combination light pattern, extends and widens the main beam.
IP class: IP68, weatherproof.

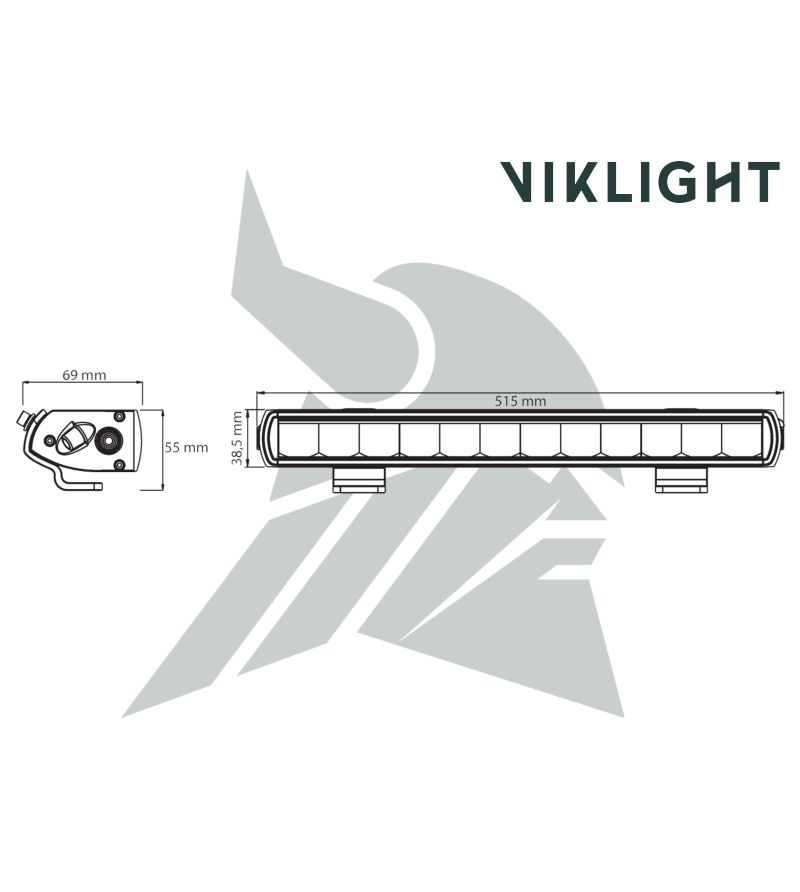

Length: 515 mm
Height excl. mounting bracket: 38.5 mm
Height incl. mounting bracket: 55 mm
Depth: 69 mm
Lens: Polycarbonate
Electrical connection:
White cable: 12/24v+ for white position light
Yellow cable: 12/24v+ for orange position light
Green cable: 12/24v+ for ECE mod (lower power)
WLTP information
WLTP weight: 1.2kg
WLTP frontal area: 0.0206 (m2)
3-year warranty.
VLY20EM
Data sheet
- General: Accessory
- Lighting
- General: Producttype
- LED Light bar
- General: Product serie
- Ymer
- General: Serial model
- 20
- Dimensions and weight: Size ( Ø / ↔ )
- 2) Medium
- General: Shape
- Ledbar
- Dimensions and weight: Width (mm)
- 515
- Dimensions and weight: Height (mm)
- 38
- Dimensions and weight: Depth (mm)
- 69
- Dimensions and weight: Weight (kg)
- 1.2
- Light and vision: Beam type
- Driving
- Light and vision: Light type
- LED
- Light and vision: Lighting - type
- Driving light
- Light and vision: Light color
- White
- Design and material: Glass color
- Clear
- Light and vision: Position light
- Position light
- Light and vision: Color of position light
- Amber
White - Light and vision: Color temperature
- 6500K
- certifications and delivery: Reference number per unit
- 50
- Light and vision: Theoretical Lumens
- 11400
- Light and vision: Light distance (m) at 1 lux
- 581
- certifications and delivery: E-mark
- Yes
- certifications and delivery: Certifications
- R112
- Technical specifications: Voltage
- 12V
18V
24V
30V - Technical specifications: Watts
- 94W
- Technical specifications: LEDs per lamp
- 12
- Technical specifications: Number of pins
- 4 pins
- Technical specifications: Connector
- 2 pins DTP
- certifications and delivery: Wiring kit included
- No
- Design and material: Chrome / RVS
- No
- Design and material: Housing color
- Black
- Design and material: Housing material
- Aluminum
- Design and material: Lamp rim color
- Black
- Design and material: Lamp rim material
- Aluminum
- Design and material: Product color
- Black
- certifications and delivery: IP rating
- IP68
- fit and mounting: Mount
- Normal
- certifications and delivery: Sales unit
- Single item
- certifications and delivery: Standard delivery time
- 4-7 business days
- Size in inches
- 20.3
- Size in cm
- 51.5
- Prodcat1
- M
- Shipping Size
- Standard
- certifications and delivery: Warranty
- 5 year
- certifications and delivery: IR-code
- a0..st
