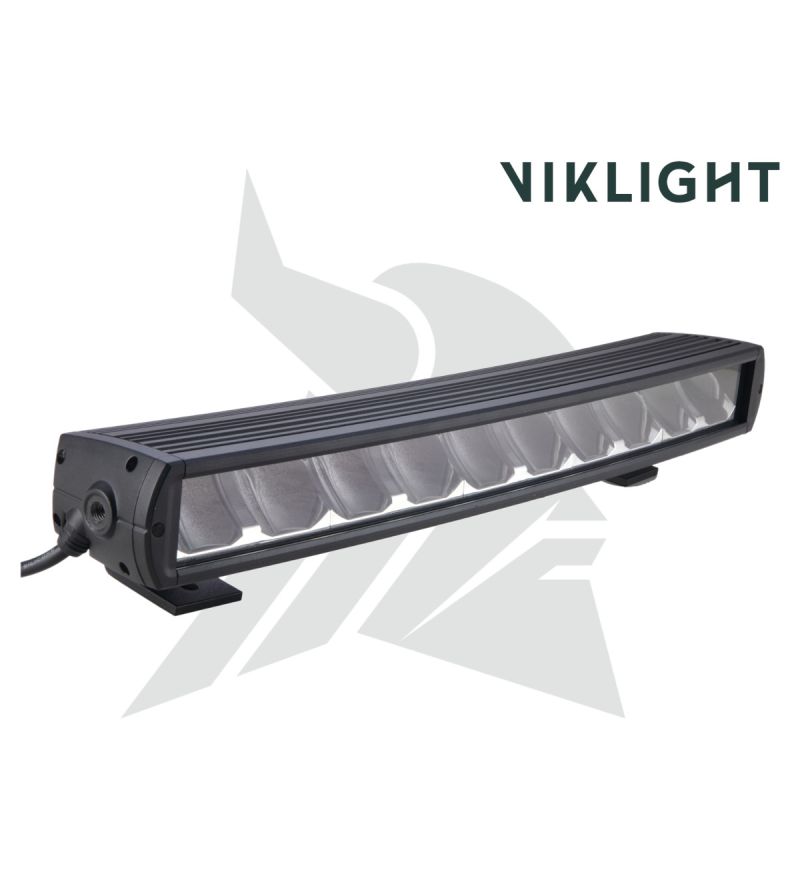

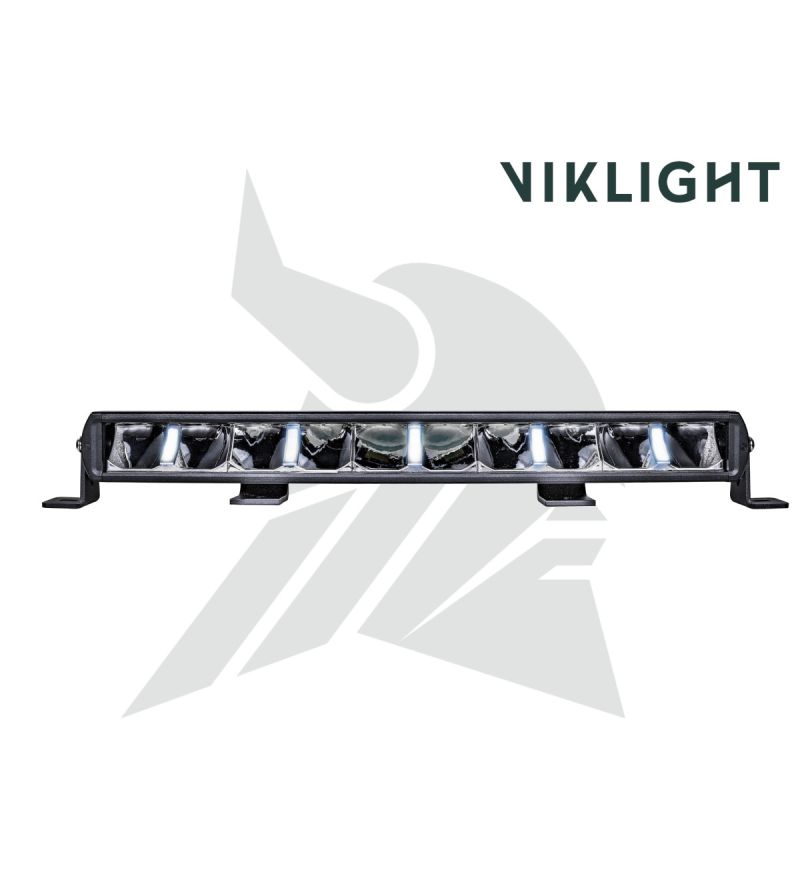

LED Light bar - Viklight - Tellus 20 - 20.6" - 52.3cm - Curved - Position light White - Driving
€359.95(tax incl.)
€297.48 (tax excl.)
- Reference: TEL20EM
- Producttype: LED Light bar
- Dimensions (mm): 523 (w) x 56 (h) x 84 (d)
- E-mark: Yes
- Beam type: Driving
- Sales unit: Single item
- Standard delivery time: 4-7 business days
x
...Continue
Must-have accessoires
Wiring Kit
The Lazer Utility cable set easily connects two lamps with a switch for reliable lighting. Perfect for all your 12V projects and quick to install, so you can get back on the road right away. ...Continue |
Wiring kit - Luminalights - 1 lamp - 3 pins - Deutsch DT - 12V |
Pay in a secure environment
Questions about this product? Our experts are here to help
4.8/5 More than 10,000 customers have already gone before you

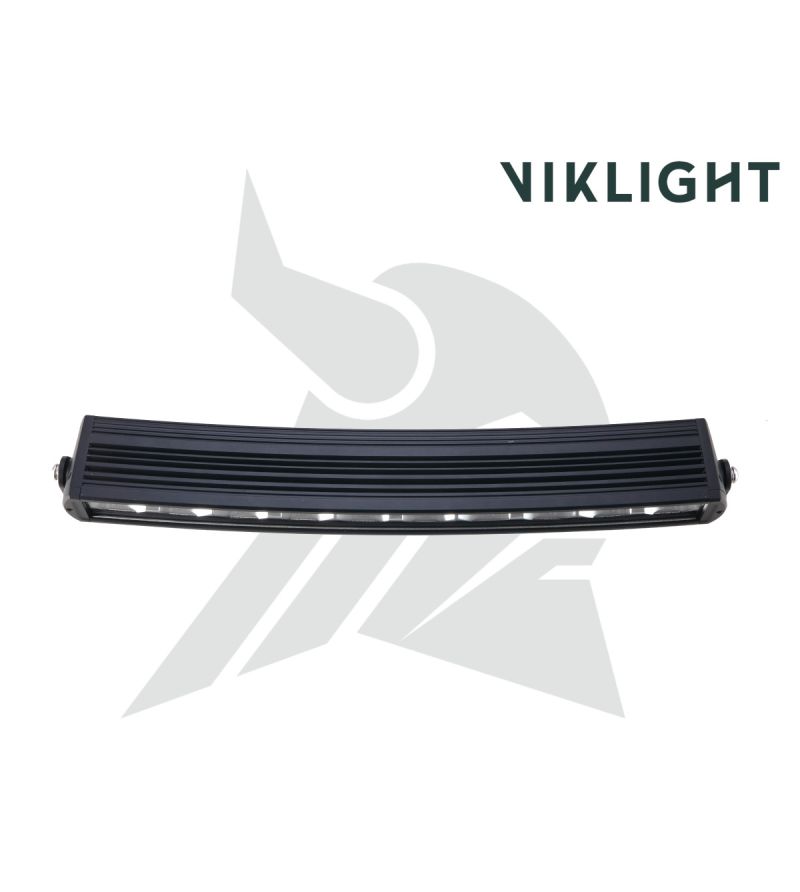

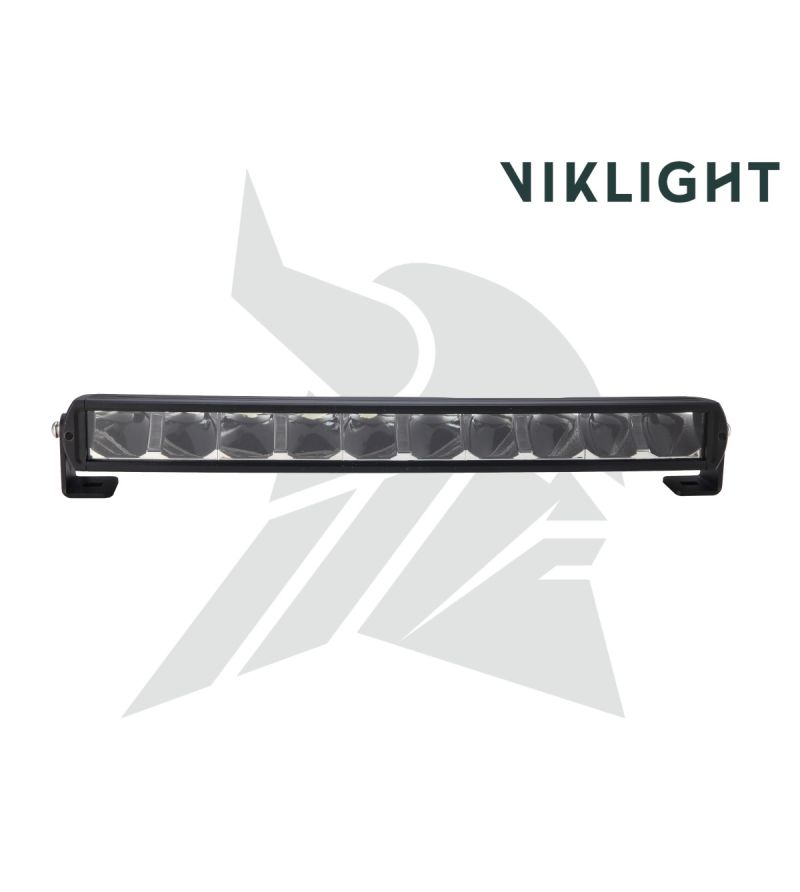

The Viklight Tellus is a curved LED Light bar for situations where a bright LED Light bar with a slightly lower profile is required, for example, compared to the Ramer series. The curvature of the LED Light bar provides a wide, fan-shaped light pattern and has a range of approximately 425 meters (the distance at which the light quantity of 1 lux is measured). The light pattern is suitable for roads and highways.
LED position light
Viklight Tellus has a modern LED position light.
What else do you need?
The light bar is not supplied with its own cable set, but we can supply one.
The Tellus has a three-pin DT connector.
What type of vehicle does this LED light bar fit?
The LED Light bar fits on most cars and vans and can be mounted under the license plate with a license plate holder.
Details LED-ramp Viklight Tellus 20-inch:
Bracket: Stepless rail at the back of the LED Light bar and side-mounted feet with 360 degree adjustability included.
A ventilating membrane based on the Gore-Tex principle allows any condensation to escape.
Number of LEDs: 10 x 10 watt LEDs (100W)
Number of lumens: 9500 theoretical

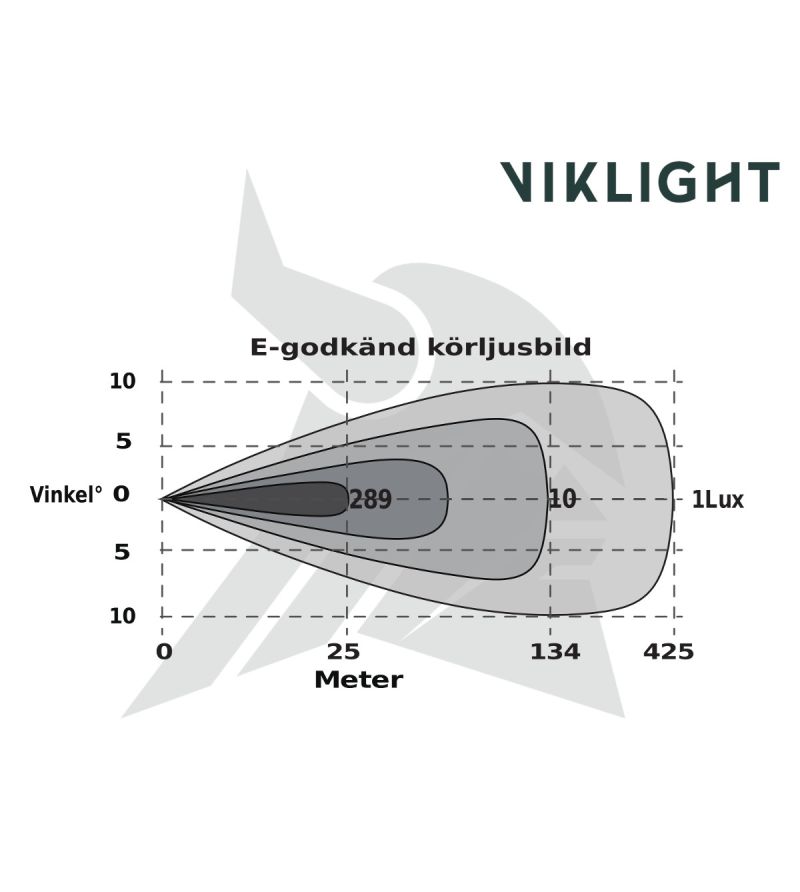

Length of light at 1 lux: 425 meters
E-mark: Yes, according to ECE R7, R10 & R112 (reference number 45)
Voltage: 9-36 volts DC
Light pattern: High beam, extends and widens the main beam
IP class: IP68, weatherproof.

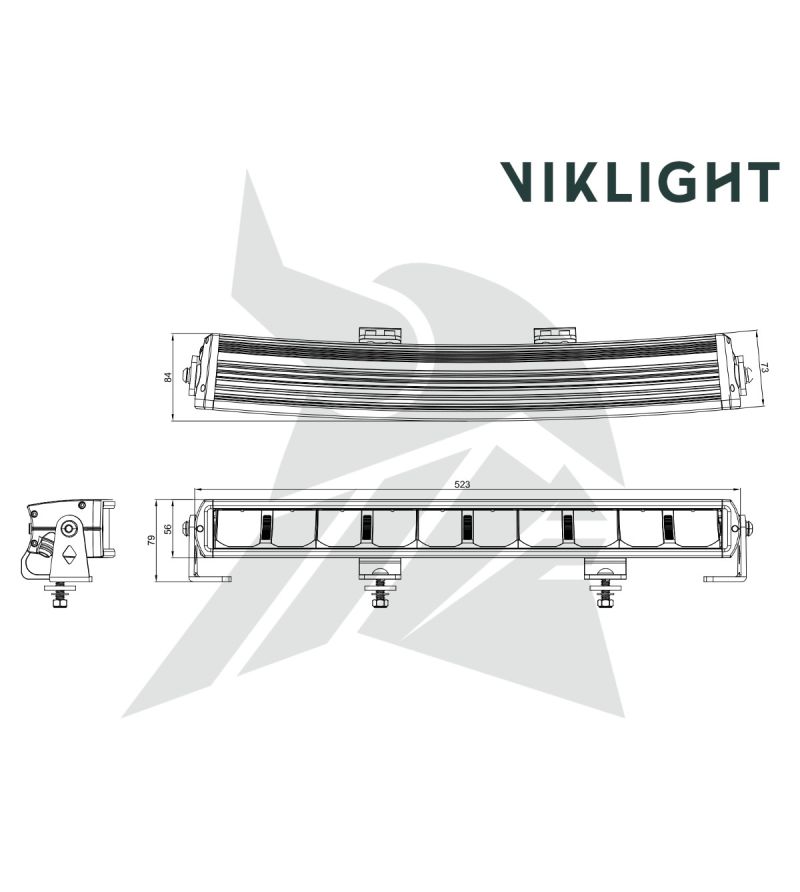

Length: 523 mm
Height excl. mounting bracket: 56 mm
Height incl. mounting bracket: 79 mm
Depth: 84 mm
WLTP information
WLTP weight: 1.8 kg
WLTP front surface: 0.0292 (m2)
This LED Light bar has a 3-year warranty.
TEL20EM
Data sheet
- General: Accessory
- Lighting
- General: Producttype
- LED Light bar
- General: Product serie
- Tellus
- General: Serial model
- 20
- General: Feature
- Curved
- Dimensions and weight: Size ( Ø / ↔ )
- 2) Medium
- General: Shape
- Ledbar
- Dimensions and weight: Width (mm)
- 523
- Dimensions and weight: Height (mm)
- 56
- Dimensions and weight: Depth (mm)
- 84
- Dimensions and weight: Weight (kg)
- 1.8
- Light and vision: Beam type
- Driving
- Light and vision: Light type
- LED
- Light and vision: Lighting - type
- Driving light
- Light and vision: Light color
- White
- Design and material: Glass color
- Clear
- Light and vision: Position light
- Position light
- Light and vision: Color of position light
- White
- Light and vision: Color temperature
- 6000K
- certifications and delivery: Reference number per unit
- 45
- Light and vision: Theoretical Lumens
- 9500
- Light and vision: Light distance (m) at 1 lux
- 425
- certifications and delivery: E-mark
- Yes
- certifications and delivery: Certifications
- R10
R112
R7 - Technical specifications: Voltage
- 12V
18V
24V
30V
36V - Technical specifications: Watts
- 100W
- Technical specifications: LEDs per lamp
- 10
- Technical specifications: Wattage per LED
- 10W
- Technical specifications: Number of pins
- 3 pins
- Technical specifications: Connector
- Deutsch DT
- certifications and delivery: Wiring kit included
- No
- Design and material: Chrome / RVS
- No
- Design and material: Housing color
- Black
- Design and material: Housing material
- Aluminum
- Design and material: Lamp rim color
- Black
- Design and material: Lamp rim material
- Aluminum
- Design and material: Product color
- Black
- certifications and delivery: IP rating
- IP68
- fit and mounting: Mount
- Normal
- certifications and delivery: Sales unit
- Single item
- certifications and delivery: Standard delivery time
- 4-7 business days
- Size in inches
- 20.6
- Size in cm
- 52.3
- Prodcat1
- M
- Shipping Size
- Standard
- certifications and delivery: Warranty
- 5 year
- certifications and delivery: IR-code
- a0..st
