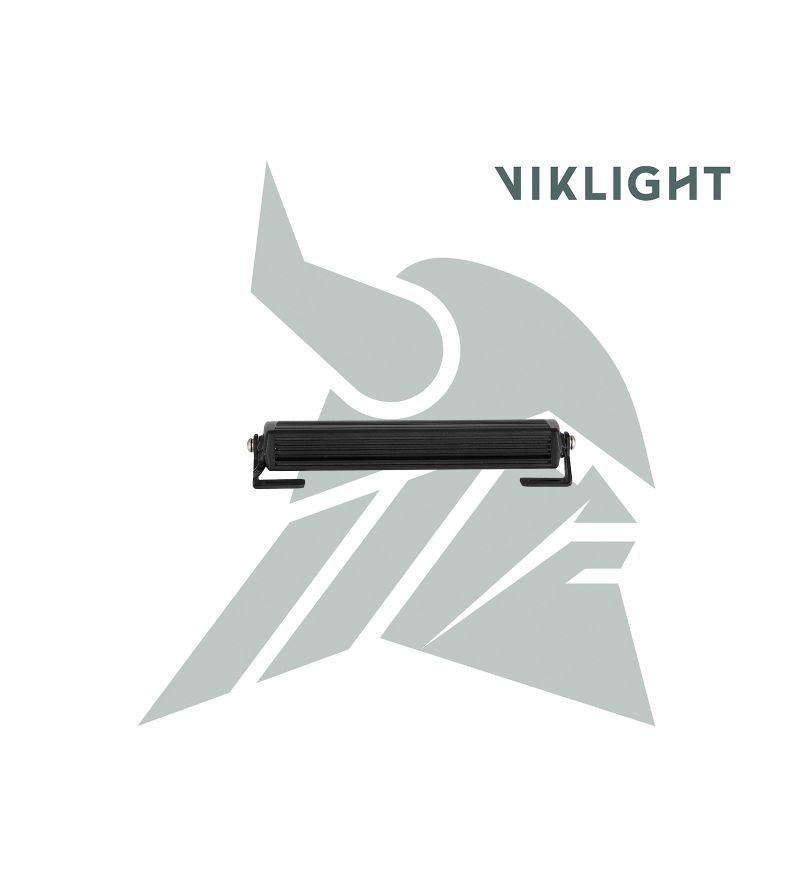

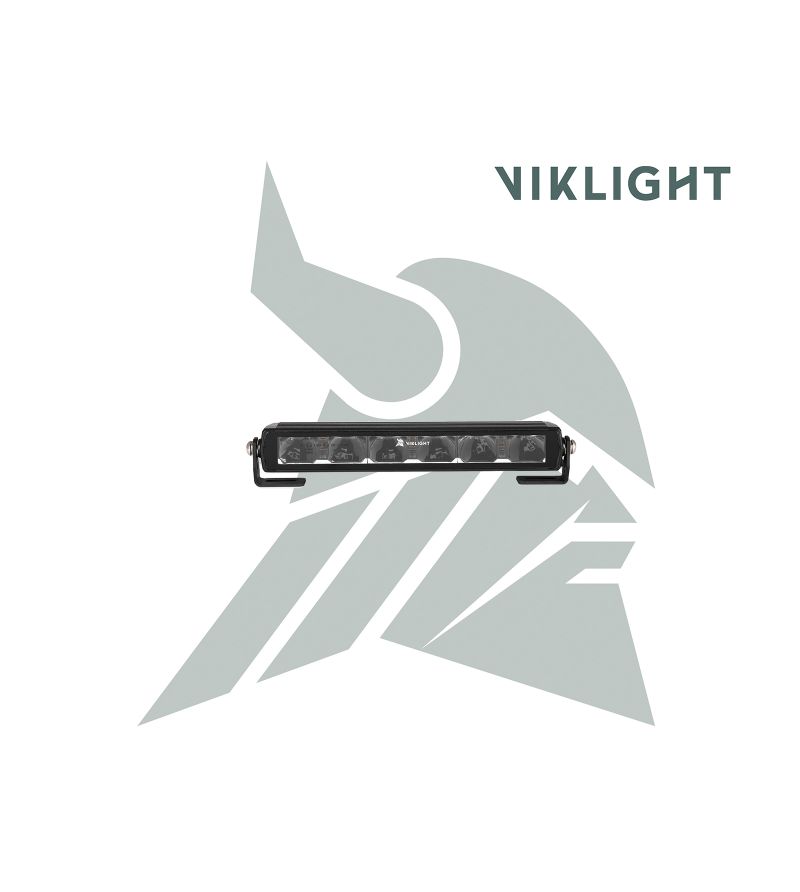

LED Light bar - Viklight - Ymer 10 - 10.9" - 27.7cm - Position light White/Amber - Driving
€179.95(tax incl.)
€148.72 (tax excl.)
- Reference: VLY10EM2
- Producttype: LED Light bar
- Dimensions (mm): 277 (w) x 41 (h) x 53 (d)
- E-mark: Yes
- Beam type: Driving
- Sales unit: Single item
- Standard delivery time: 4-7 business days
x
...Continue
Pay in a secure environment
Questions about this product? Our experts are here to help
4.8/5 More than 10,000 customers have already gone before you

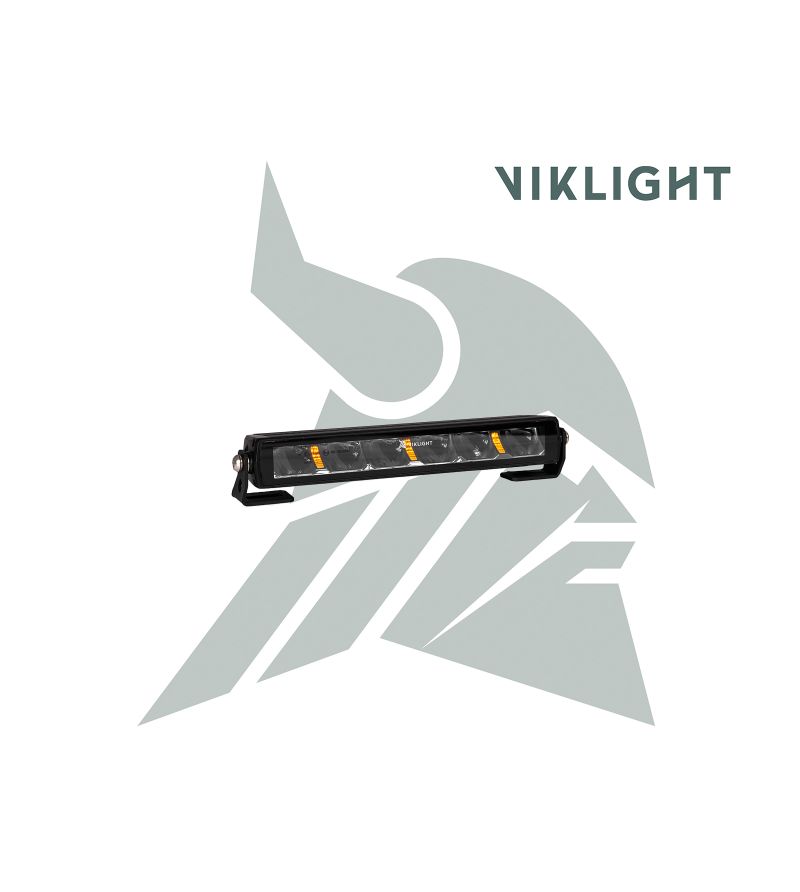

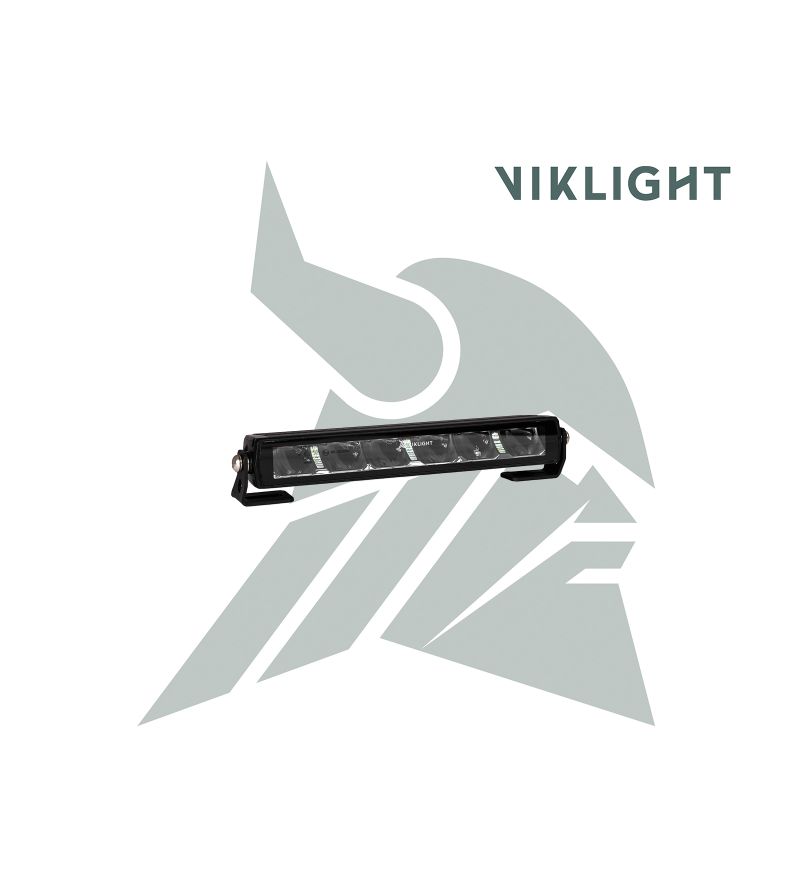

New Viklight Ymer 2.0. The ramp has now been fitted with a modern standing position light in a choice of orange or white.
-E-marked as extra light
-Double fixing system, stepless rail and side feet.
-Only 40.5 mm high, light and easy to install
-Good light output, 1 lux at 480 meters!
-Comprehensive polycarbonate to avoid paint loss due to stone chips
Ymer 2.0 is our thinnest LED ramp to date with only 40.5mm height, which together with the very low weight makes it easy to mount. The ramp can be mounted both standing and hanging.
E-approved for use as an auxiliary light on the road and the reference number of 50 provides good light length, Ymer 10-inch provides a lux of 480 meters!
Ymer has a light pattern that extends the vehicle's regular high beam.
Viklight Ymer has a fully curved polycarbonate lens that protects the paint from stone chips and facilitates water runoff.
This LED lightbar is covered by a full three-year warranty!
What else do I need?
The lightbar does not include its own wiring kit but the DT connector of the lightbar fits with our DT wiring kit.
The cable set includes a fuse, relay and switch.
The LED lightbar has two different mounting systems included to facilitate installation, a stepless rail at the rear of the lightbar and L-shaped metal feet for mounting on the short sides.
Data LED Extra Light Ramp Viklight Ymer 10-inch 2.0:
Lamp body: Aluminum
Mounting: Side-mounted feet with 360-degree adjustability included. Ymer can be mounted hanging and standing.
Ventilating membrane according to the Gore-Tex principle releases any condensation.
Number of LEDs: 6 x 10 watt LG LED (60W)
Number of lumens: 5800 theoretical
Light length with 1 lux: 480 meters
E-marked: Yes, ECE R112, R7
EMC: ECE R10
Voltage: 9-36 volts DC
Power consumption: 5 Amp at 12 v
Color temperature: approx. 6000 K
Light pattern: Spot beam
IP class: IP68, IP69K withstands weather and wind.
Length: 277 mm
Height excl. mounting bracket: 40.5 mm
Height incl. mounting bracket: 55.5 mm
Depth: 52.5 mm
Lens: Polycarbonate
WLTP information
WLTP weight: 1 kg
WLTP frontal area: 0.002 (m2)
3 years warranty.
NOTE: Sold individually.
VLY10EM2
Data sheet
- General: Accessory
- Lighting
- General: Producttype
- LED Light bar
- General: Product serie
- Ymer
- General: Serial model
- 10
- Dimensions and weight: Size ( Ø / ↔ )
- 2) Medium
- General: Shape
- Ledbar
- Dimensions and weight: Width (mm)
- 277
- Dimensions and weight: Height (mm)
- 41
- Dimensions and weight: Depth (mm)
- 53
- Dimensions and weight: Weight (kg)
- 1
- Light and vision: Beam type
- Driving
- Light and vision: Light type
- LED
- Light and vision: Lighting - type
- Driving light
- Light and vision: Light color
- White
- Design and material: Glass color
- Clear
- Light and vision: Position light
- Position light
- Light and vision: Color of position light
- Amber
White - Light and vision: Color temperature
- 6000K
- Light and vision: Theoretical Lumens
- 5800
- Light and vision: Light distance (m) at 1 lux
- 480
- certifications and delivery: E-mark
- Yes
- certifications and delivery: Certifications
- R10
R112
R7 - Technical specifications: Voltage
- 12V
18V
24V
30V
36V - Technical specifications: Watts
- 60W
- Technical specifications: LEDs per lamp
- 6
- Technical specifications: Wattage per LED
- 10W
- Technical specifications: Number of pins
- 4 pins
- Technical specifications: Connector
- Deutsch DT
- certifications and delivery: Wiring kit included
- No
- Design and material: Chrome / RVS
- No
- Design and material: Housing color
- Black
- Design and material: Housing material
- Aluminum
- Design and material: Lamp rim color
- Black
- Design and material: Lamp rim material
- Aluminum
- Design and material: Product color
- Black
- certifications and delivery: IP rating
- IP68
IP69K - fit and mounting: Mount
- Normal
- certifications and delivery: Sales unit
- Single item
- certifications and delivery: Standard delivery time
- 4-7 business days
- Size in inches
- 10.9
- Size in cm
- 27.7
- Prodcat1
- M
- Prodcat2
- AB
- Shipping Size
- Standard
- certifications and delivery: Warranty
- 5 year
- certifications and delivery: IR-code
- a3.D11.st
Specific References
- UPC
- 1
