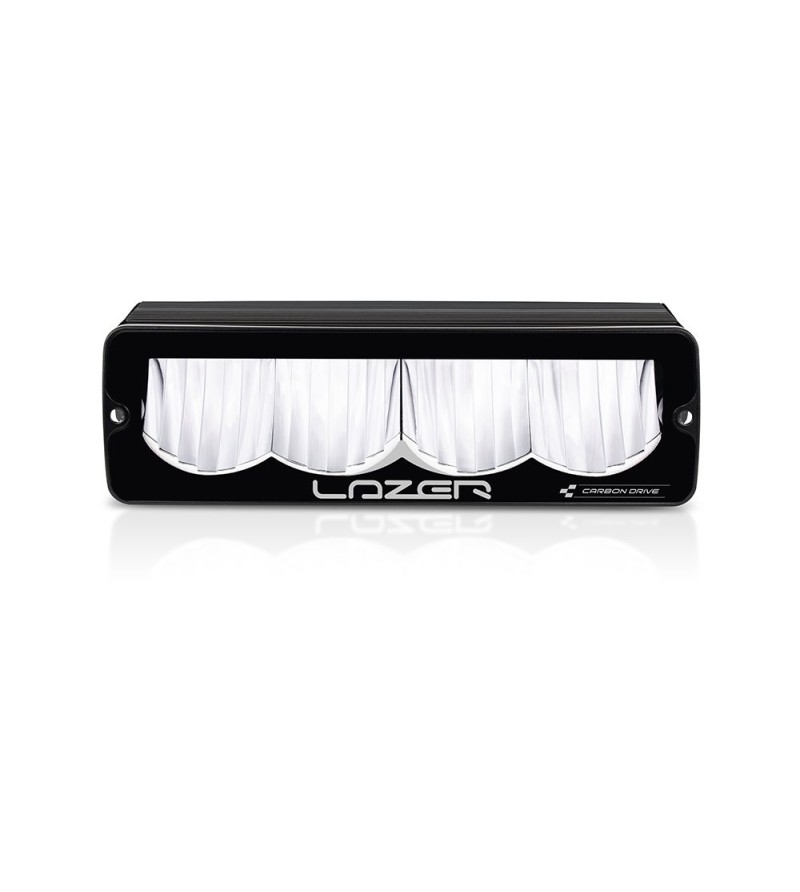

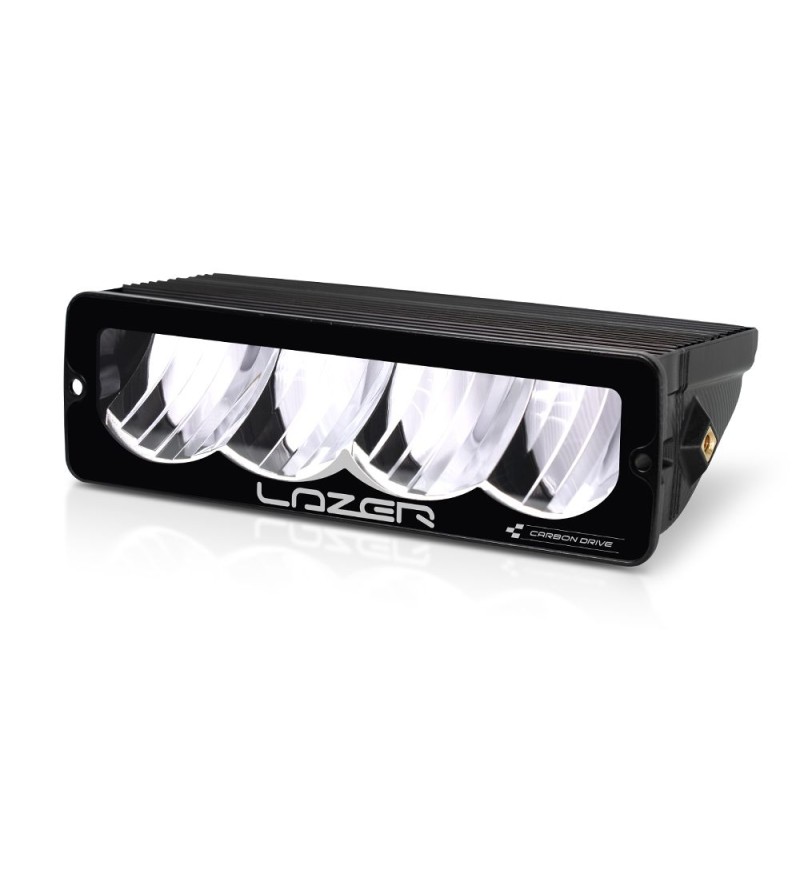

LED Light bar - Lazer - Carbon 4 - 8.1" - 20.6cm - Gen3 - Driving

LED Light bar - Lazer - Carbon 4 - 8.1" - 20.6cm - Gen3 - Driving

€459.95(tax incl.)

€380.12 (tax excl.)

Reference: 00C4-DRIVE-G3-SFIX
Producttype: LED Light bar
Dimensions (mm): 206 (w) x 63 (h) x 100 (d)
E-mark: Yes
Beam type: Driving
Sales unit: Single item
Standard delivery time: 1-3 business days

The Lazer Carbon 4 Drive (Gen 3) is an innovative LED light bar that illuminates every ride. With its futuristic design and powerful brightness, it's perfect for adventure, off-road, and rally

...Continue

Must-have accessoires

Wiring Kit

	Reference: 1L-DT4-200 Producttype: Wiring kit Sales unit: Single item Standard delivery time: 1-3 business days x ...Continue	Wiring kit - Lazer - 1 lamp - Incl. switch - 4 pins - Deutsch DT - 12V €44.95

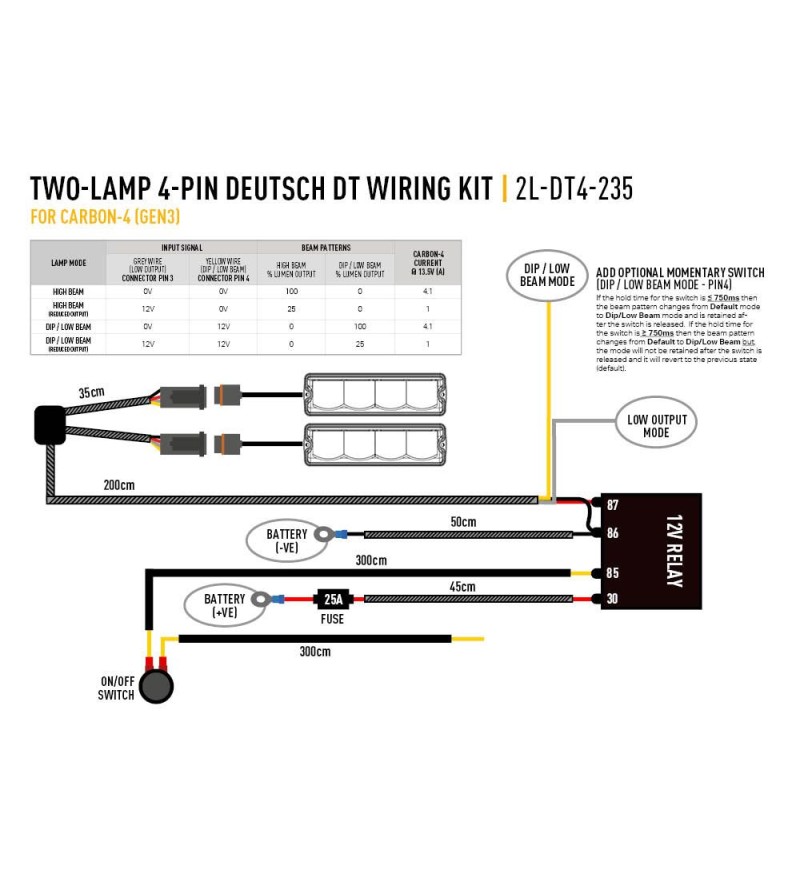

	Reference: 2L-DT4-235 Producttype: Wiring kit Sales unit: Single item Standard delivery time: 1-3 business days The Lazer Cable Set easily connects two lamps and includes a switch for control. This set is perfect for all your 12V projects. Reliable and easy to install, ensuring safe illumination every time. ...Continue	Wiring kit - Lazer - 2 lamps - Incl. switch - 4 pins - Deutsch DT - 12V €89.95

Pay in a secure environment
Questions about this product? Our experts are here to help
4.8/5 More than 10,000 customers have already gone before you

Description
Product Details

Lazer Carbon-4 Drive (Gen3)

What's included:

1x Carbon-4 Drive (Gen3)
1x Installation Manual

Carbon Series

Now in its 3rd generation, the Carbon Series LED driving lights represent years of continued development and testing at the very highest levels of professional rally, track, and off-road motorsport. The re-design and re-engineering of the products deliver more light, less weight, greater functionality, and ease of fitment.

Technical specifications and features:

Voltage Range (DC): 10-32V
LED Life: 50,000 hours
IP Rating: IP68
Weight: 355 g
Total Luminous Flux: 1384 / 6240 Lm
Total Driver 'FOV' Flux †: 918 / 3673 Lm
Color Temperature: 5000K
Number of High Output LEDs: 24 LEDs
Power Consumption: 14 W / 56 W
Peak Current Draw (11V): 1 A / 3.9 A
Current Draw (14.4V): 1.3 A / 5.25 A

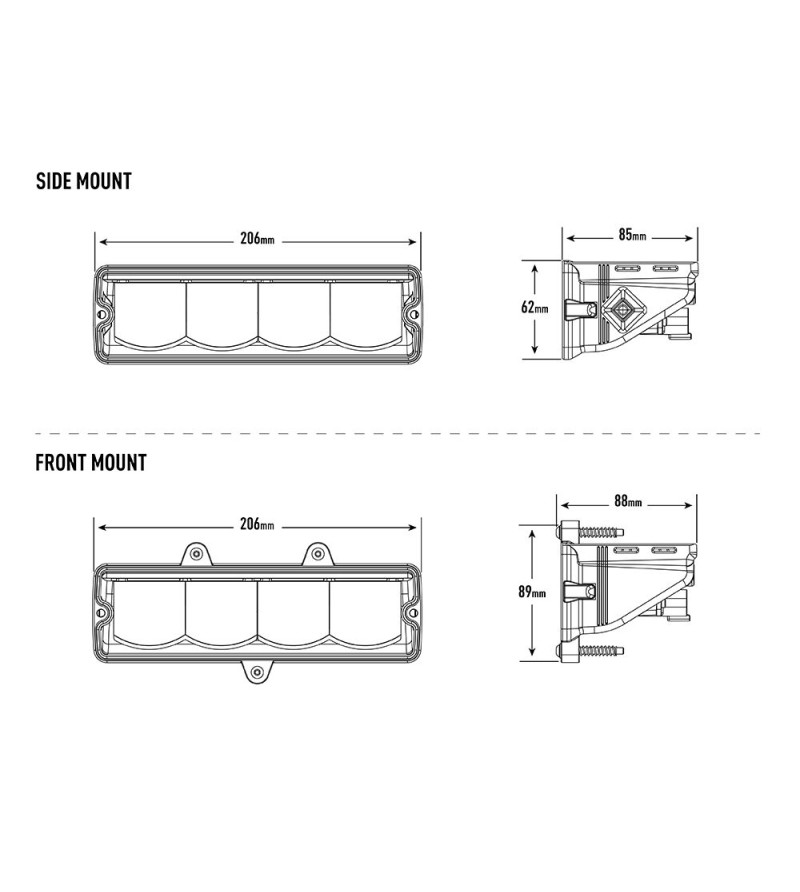

Width: 206 mm
Depth: 85 mm
Height: 62 mm

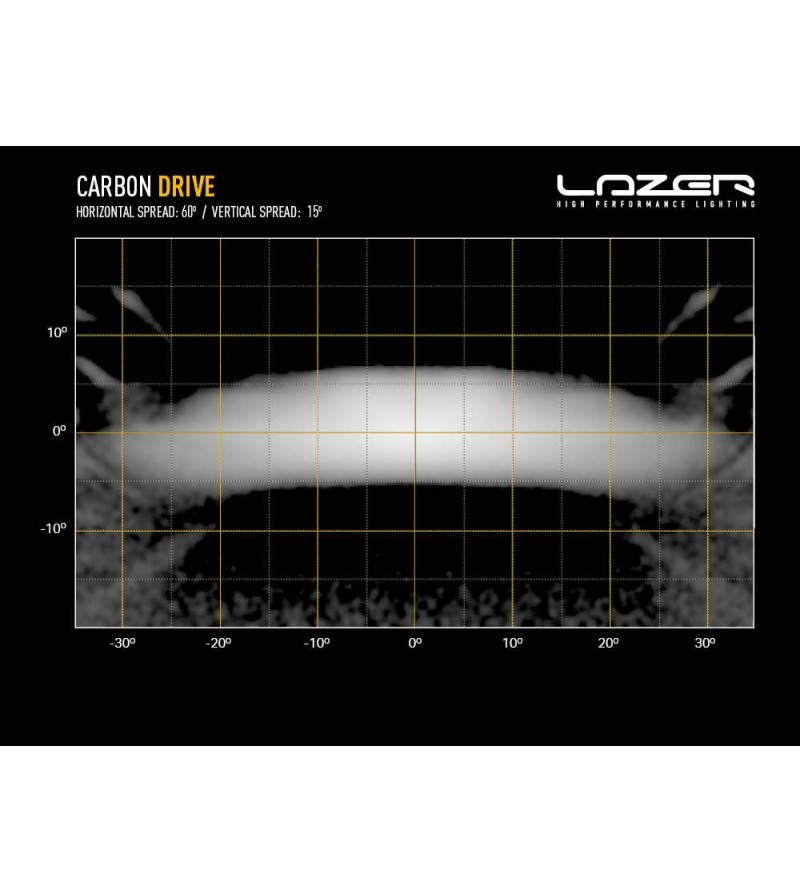

Horizontal Beam Angle: 60°

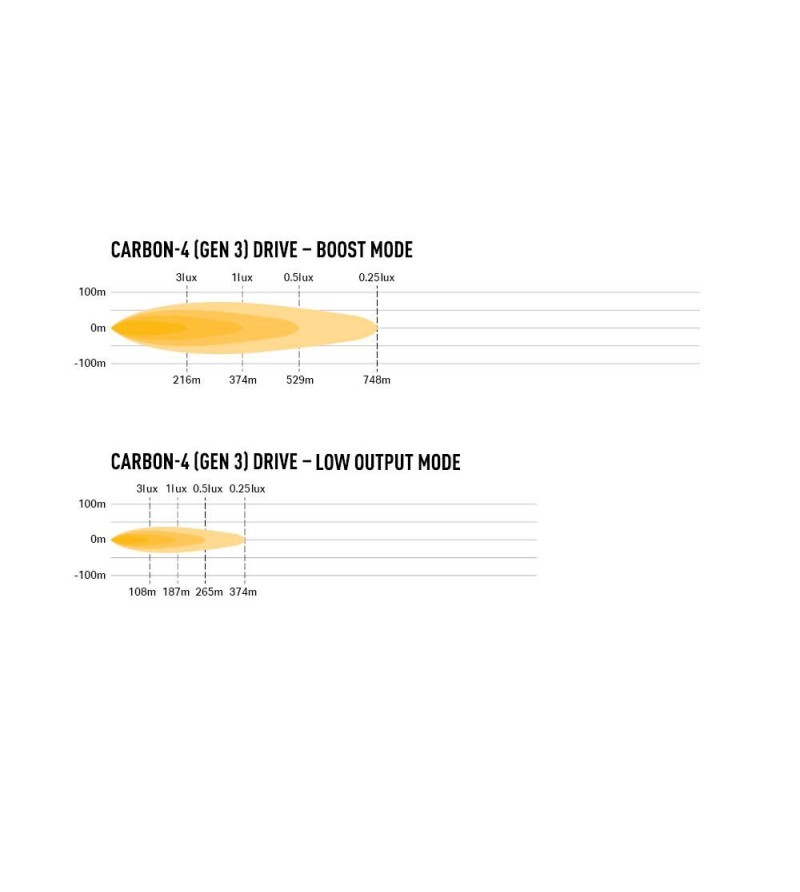

0.25 lux Line: 374 m / 748 m
0.5 lux Line: 265 m / 529 m
1 lux Line: 187 m / 374 m
3 lux Line: 108 m / 216 m

Reference 00C4-DRIVE-G3-SFIX

Data sheet

General: Accessory: Lighting
General: Producttype: LED Light bar
General: Product serie: Carbon
General: Serial model: 4
General: Feature: Gen3
General: Series: Lazer Carbon
General: Shape: Ledbar
Dimensions and weight: Width (mm): 206
Dimensions and weight: Height (mm): 63
Dimensions and weight: Depth (mm): 100
Dimensions and weight: Weight (kg): 0.355
Light and vision: Beam type: Driving
Light and vision: Light type: LED
Light and vision: Lighting - type: Driving light
Light and vision: Light color: White
Design and material: Glass color: Clear
Light and vision: Color temperature: 5000K
Light and vision: Theoretical Lumens: 6240
Light and vision: Light distance (m) at 1 lux: Normal: 187 / Power: 374
Light and vision: Light distance (m) at 0.25 lux: Normal: 374 / Power: 748
certifications and delivery: E-mark: Yes
Technical specifications: Voltage: 12V
18V
24V
30V
Technical specifications: Number of pins: 4 pins
Technical specifications: Connector: Deutsch DT
Design and material: Housing color: Black
Design and material: Housing material: Aluminum
Design and material: Lamp rim color: Black
Design and material: Lamp rim material: Aluminum
certifications and delivery: IP rating: IP68
certifications and delivery: Sales unit: Single item
certifications and delivery: Standard delivery time: 1-3 business days
Size in inches: 8.1
Size in cm: 20.6
Prodcat1: H
Shipping Size: Standard
certifications and delivery: Warranty: 5 year
certifications and delivery: IR-code: a0..st

Specific References

UPC: 1
EAN13: 5061003761447
