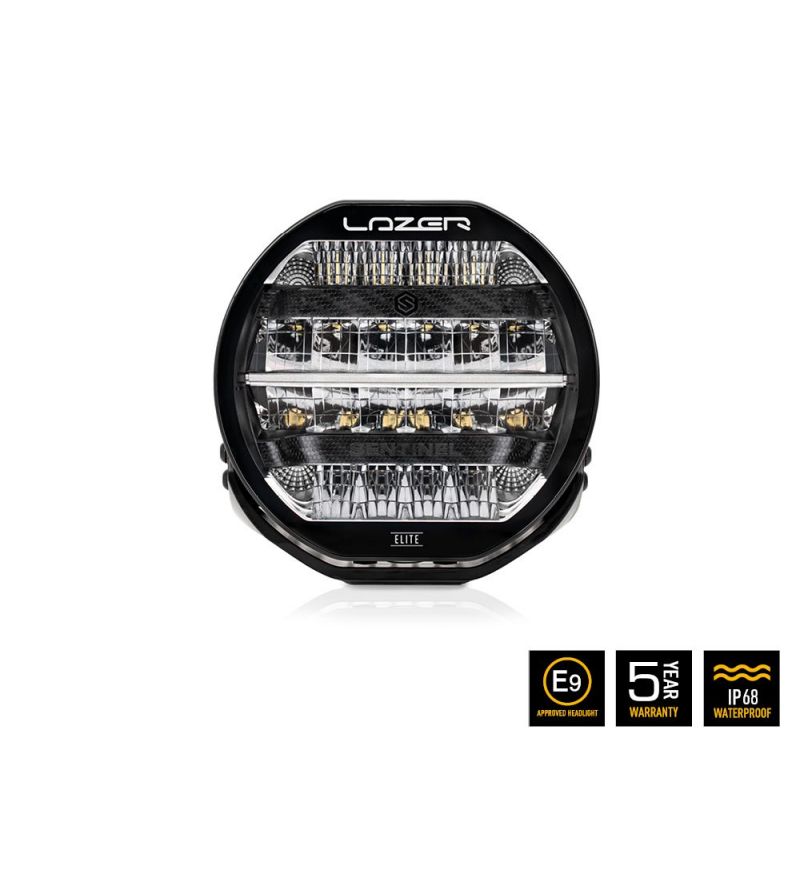

Driving light - Lazer - Sentinel 9 - Elite - 8.9" - 22.5cm - Driving

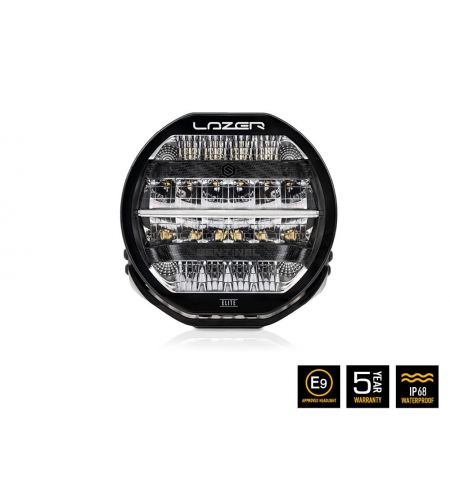

Lazer Sentinel Elite Black - 0S9-ELITE-SM

Driving light - Lazer - Sentinel 9 - Elite - 8.9" - 22.5cm - Driving

€549.95(tax incl.)

€454.50 (tax excl.)

Reference: 0S9-ELITE-SM
Producttype: Driving light
Diameter: 225

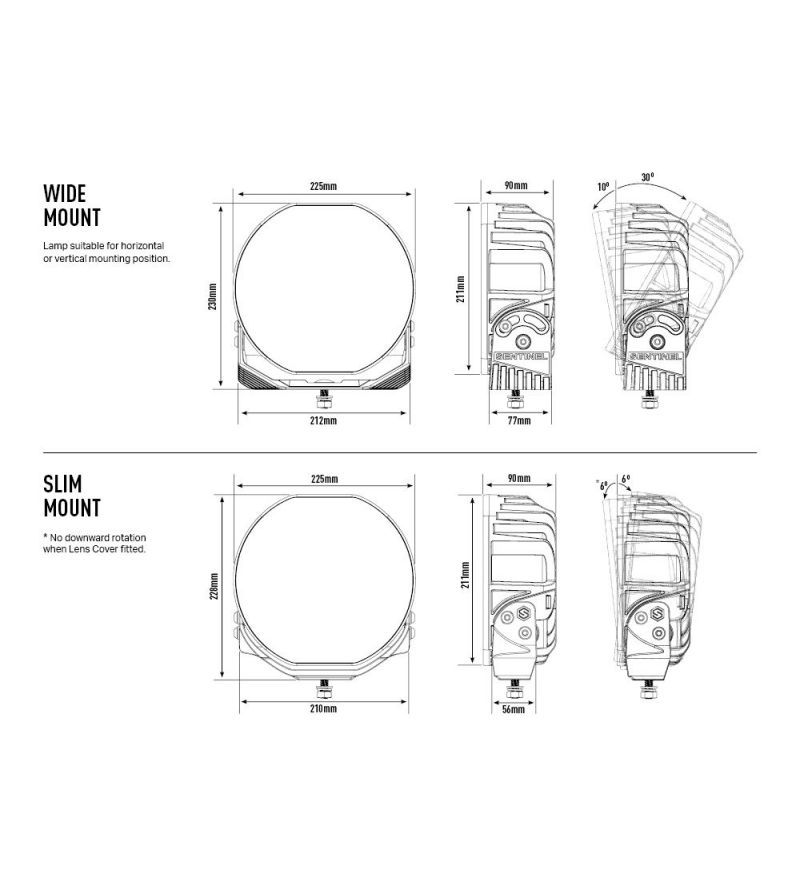

Dimensions (mm): 225 (w) x 211 (h) x 90 (d)
E-mark: Yes
Beam type: Driving
Sales unit: Single item
Standard delivery time: 1-3 business days

The Lazer Sentinel 9 Elite is a powerful 9" driving light with white/amber position lights. It delivers exceptional brightness and a sleek design, making it ideal for safe driving in all conditions.

...Continue

Must-have accessoires

Wiring Kit

	Reference: 1L-LP-120 Producttype: Wiring kit Sales unit: Single item Standard delivery time: 1-3 business days The Lazer Cable Set shines light in the dark. This set with one lamp is perfect for all your 12V projects. Easy to install and reliable, ensuring you can always illuminate your path safely and brightly. ...Continue	Wiring kit - Lazer - 1 lamp - Incl. switch - 2 pins - Superseal - 12V €44.95
	Reference: 1L-LP-300 Producttype: Wiring kit Sales unit: Single item Standard delivery time: 1-3 business days The extra-long Lazer Cable Set provides light where you need it. This set with one lamp is perfect for all your 12V projects. Easy to install and reliable, ensuring safe illumination every time. ...Continue	Wiring kit - Lazer - 1 lamp - Extra long - Incl. switch - 2 pins - Superseal - 12V €59.95
	Reference: 2L-LP-320 Producttype: Wiring kit Sales unit: Single item Standard delivery time: 1-3 business days The Lazer Cable Set easily connects two lamps for extra brightness. This extra-long set is perfect for all your 12V projects. Reliable and easy to install, ensuring safe illumination every time. ...Continue	Wiring kit - Lazer - 2 lamps - Extra long - Incl. switch - 2 pins - Superseal - 12V €59.95

Pay in a secure environment
Questions about this product? Our experts are here to help
4.8/5 More than 10,000 customers have already gone before you

Lazer Sentinel Elite Black

What's included:

x1 Sentinel Elite (Black) LED Lamp
x1 'Slim' Mount Kit (1141k)
x1 'Lazer' Black Lens Cover (LC-BLK-0S9)
Male connector and Installation Instructions

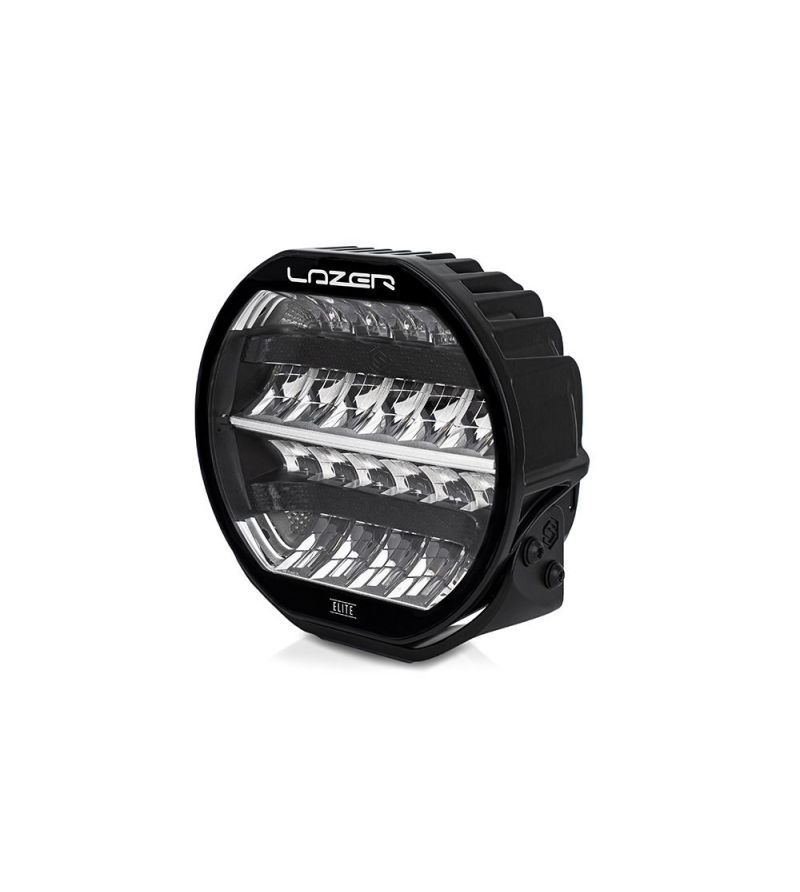

New for 2021, the Sentinel range are 9” round lamps that combine distinctive high-end product design, with superior lighting performance and build quality symbolic of the Lazer Lamps name. The Sentinel Elite product comes available with a sleek black internal appearance, and a combination of 32 high power LEDs, representing the very best lighting performance as expected from a product bearing the ‘Elite’ tag. Lighting performance aside, meticulous product styling ensures this is a product that stands out for all the right reasons.

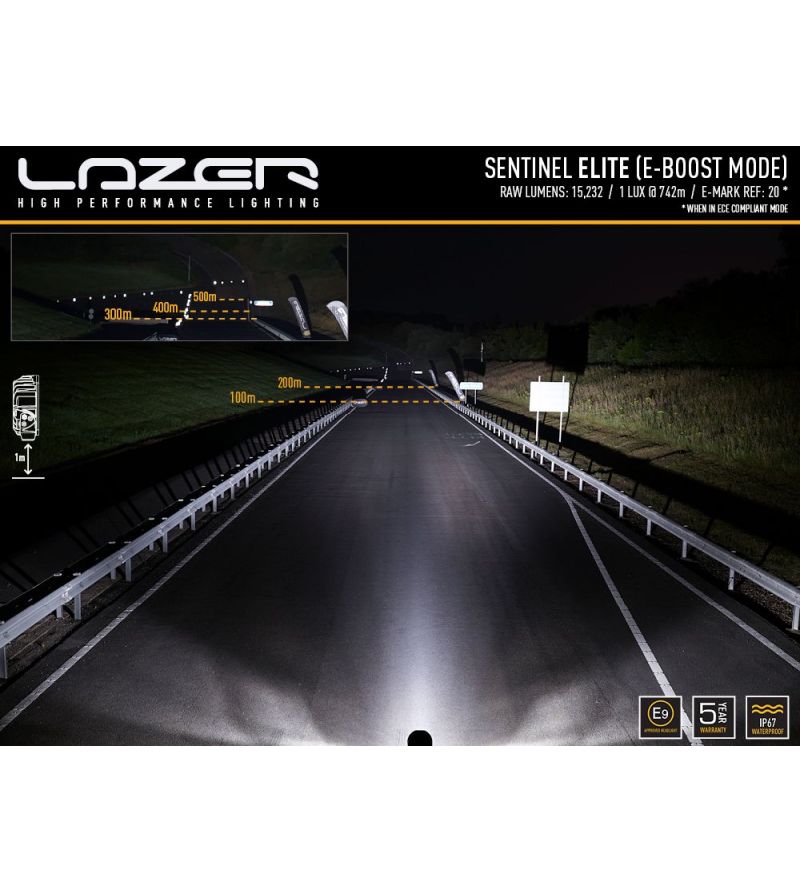

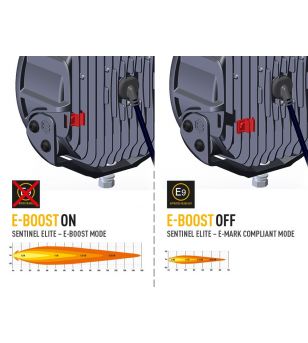

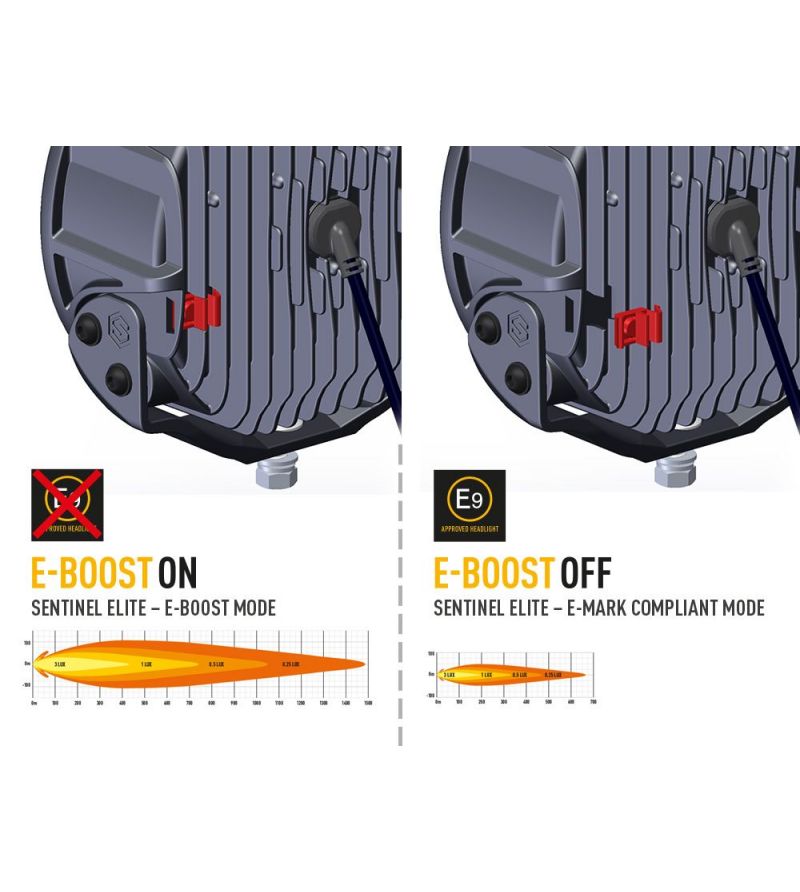

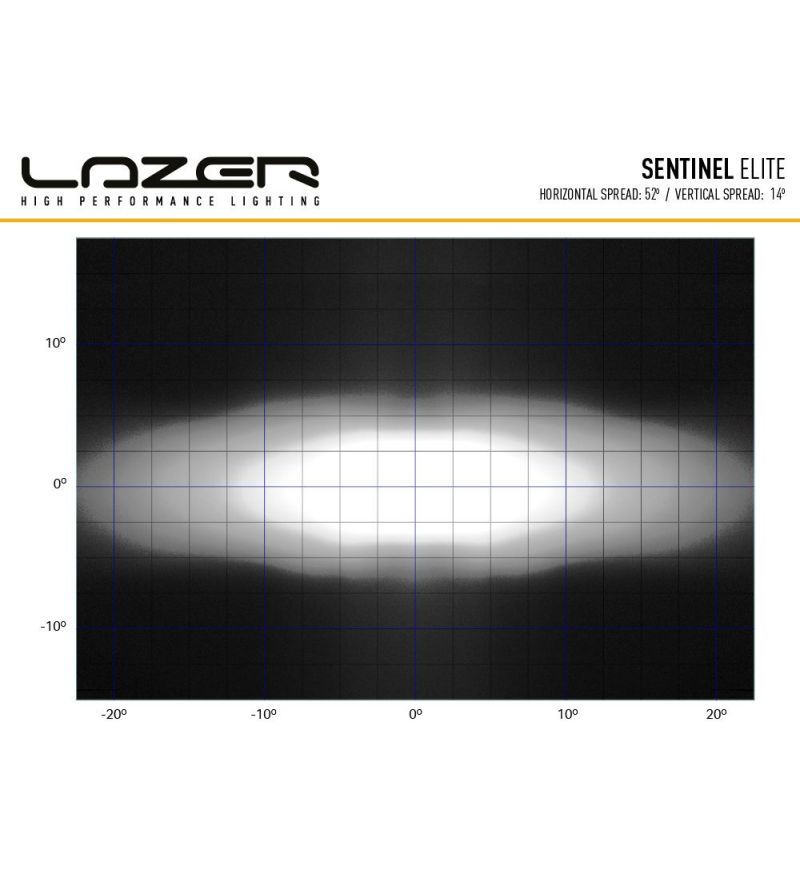

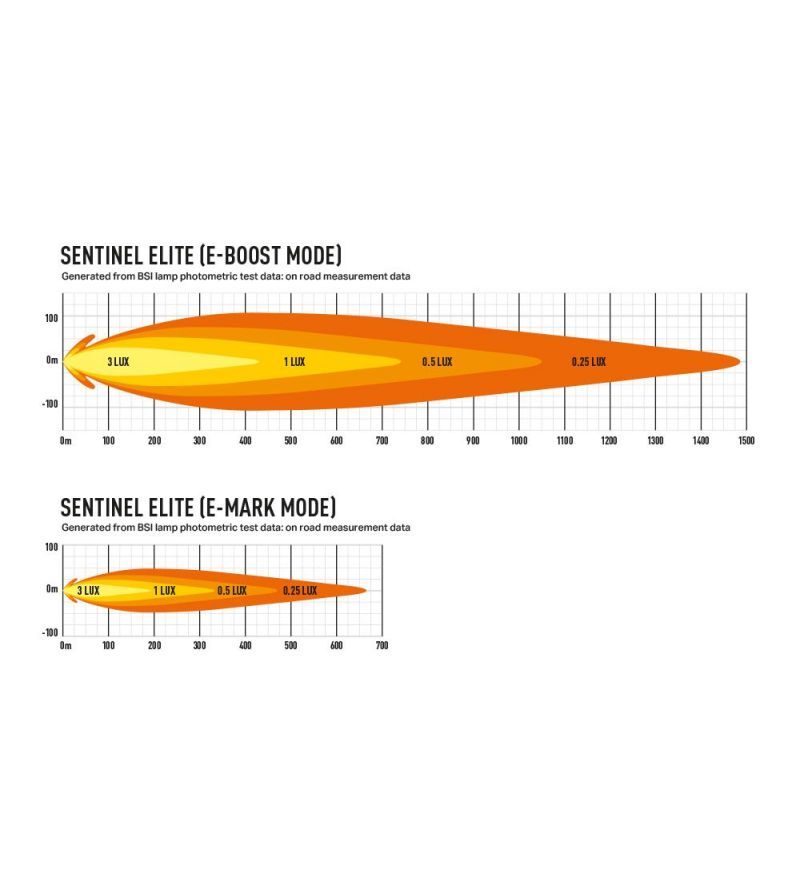

Emitting 15,232 raw lumens, the lamps deliver 1 lux to 742m, but it is in the 52 degree horizontal spread of light, and visibility at the sides of the road or track in the mid to long-range that the Sentinel Elite really comes into its own. For a demonstration of the lighting performance, please click the videos section below. Like all Lazer products, the colour temperature at a pleasant 5000K is easy on the eye, while maximising sharpness and definition of objects ahead. The lamp is UNECE approved to Regulation 112 as a high beam driving light, through adoption of Lazer’s dual output E-Boost technology; operating at 100% the light output is beyond the permissible limit of the ECE regulations, so removing the supplied Boost Cap from the back of the lamp reduces the light output to be within the allowable limit.

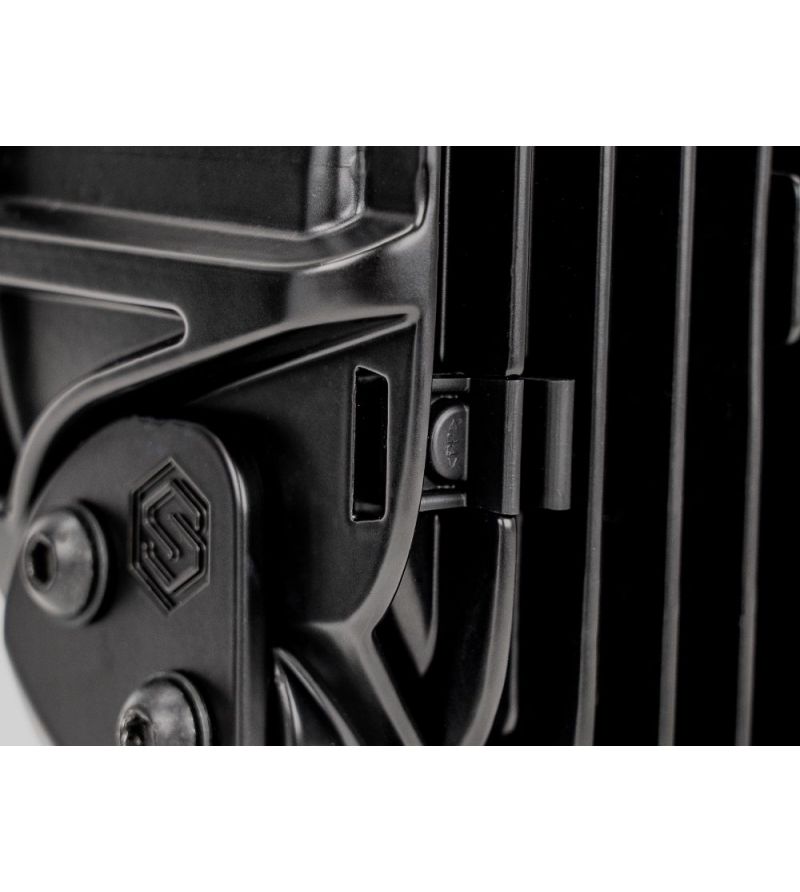

The stealth design of the black variant of the Sentinel lamp is achieved through the adoption of black printed circuit boards, and black bezel feature with intricate hexagonal design detail for a unique, contemporary appearance. The aesthetic appeal of the lamp is furthered through the ‘slim’ diecast aluminium mounting bracket, with Sentinel stamp, which like the lamps themselves has an automotive-grade pre-treatment before being powder coated satin black. The result is a premium finish on the product that is fully protected against aesthetic deterioration or corrosion. An alternative ‘wide’ mounting bracket, along with a range of: lens covers, stay bar kit, and anti-theft fasteners, are available as optional accessories.

As with all Lazer products, the Sentinel lamps have been designed, engineered, and are manufactured in-house, in the UK. There is no compromise in regards component parts, or build processes to achieve a superior product, while simultaneously ensuring that more than ever, environmental stewardship and an ambitious carbon-reduction program have also featured heavily in the Sentinel products design and build.

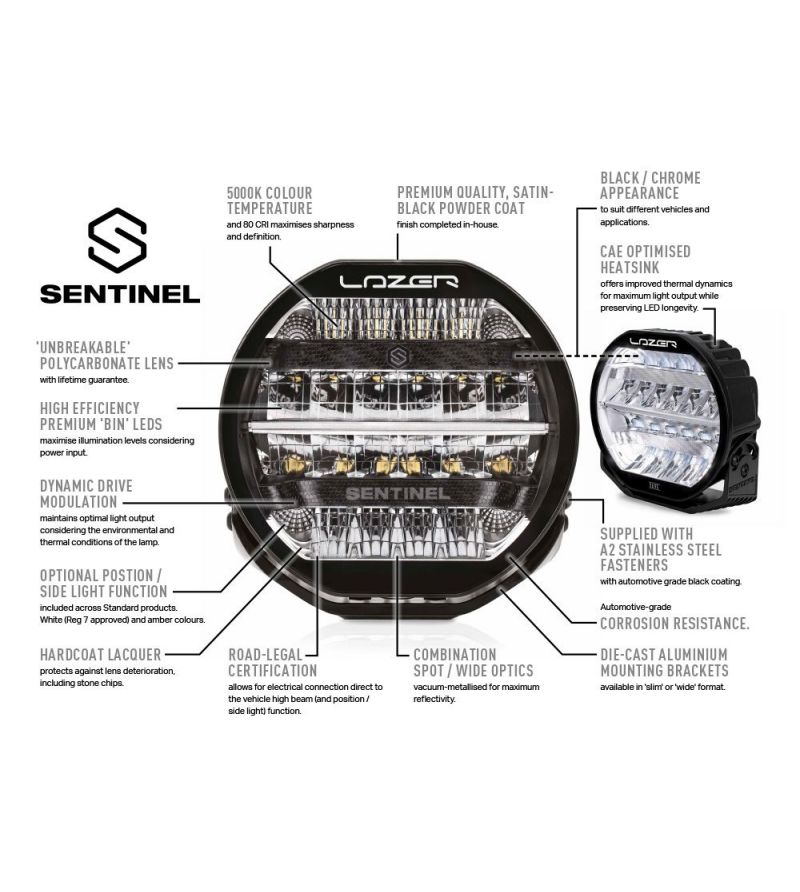

Product features:
Combination of 32 premium ‘bin’ LEDs
Black PCB and bezel detail result in stealth black internal appearance
5000K LED colour temperature and 80CRI maximises sharpness and definition
Ultra-reflective vacuum-metallised spot and wide optics
UNECE Reg 112 Class B Driving Light, approved for on-road high beam (E-Boost technology)
Contemporary lamp design
Supplied with ‘slim’ diecast aluminium mounting bracket featuring Sentinel stamp
Electronic thermal management system optimises light output to preserve longevity of the LEDs
Anodised pre-treatment and automotive grade powder top-coat for ultimate corrosion and chemical protection

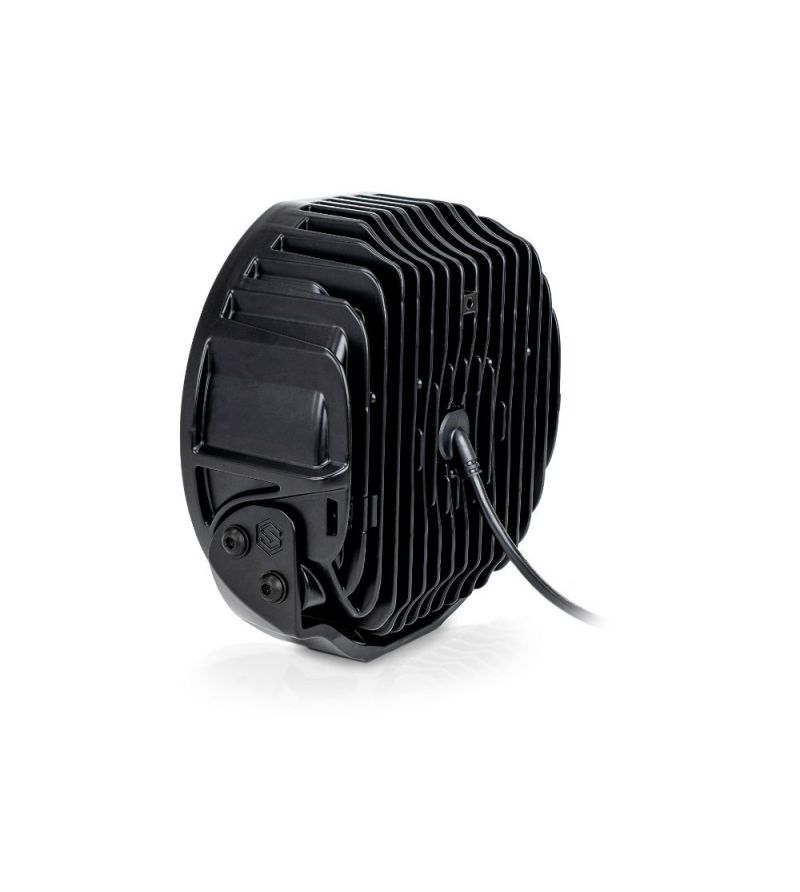

CAE optimised heatsink offers improved thermal dynamics
Over voltage protected
Reverse polarity protected
‘Unbreakable’ polycarbonate lens with hardcoat lacquer
A2 stainless steel fasteners with automotive grade black coating
Supplied with Lazer branded black lens cover
UNECE approved Reg 10
IP68 watertight – 1.5m submersion (30mins)
5-year warranty
Supplied with pre-wired male/female 2-pin Superseal connectors
Designed & manufactured in UK

Reference 0S9-ELITE-SM

Data sheet

General: Accessory: Lighting
General: Producttype: Driving light
General: Product serie: Sentinel
General: Serial model: 9
General: Version: Elite
General: Series: Lazer Sentinel
Dimensions and weight: Size ( Ø / ↔ ): 3) Large
General: Shape: Round
Dimensions and weight: Diameter (mm): 225
Dimensions and weight: Width (mm): 225
Dimensions and weight: Height (mm): 211
Dimensions and weight: Depth (mm): 90
Dimensions and weight: Weight (kg): 2.5
Light and vision: Beam type: Driving
Light and vision: Light type: LED
Light and vision: Lighting - type: Driving light
Light and vision: Light color: White
Design and material: Glass color: Clear
Light and vision: Position light: No position light
Light and vision: Color temperature: 5000K
certifications and delivery: Reference number per unit: 20
Light and vision: Theoretical Lumens: 15232
9500
Light and vision: Light distance (m) at 1 lux: 742
Light and vision: Light distance (m) at 0.25 lux: 1483
certifications and delivery: E-mark: Yes
certifications and delivery: Certifications: R10
R112
Technical specifications: Voltage: 12V
18V
24V
30V
Technical specifications: LEDs per lamp: 32
Technical specifications: Number of pins: 2 pins
Technical specifications: Connector: Superseal
Design and material: Chrome / RVS: No
Design and material: Housing color: Black
Design and material: Housing material: Aluminum
Design and material: Lamp rim color: Black
Design and material: Lamp rim material: Aluminum
certifications and delivery: IP rating: IP67K
certifications and delivery: Sales unit: Single item
certifications and delivery: Standard delivery time: 1-3 business days
Size in inches: 8.9
Size in cm: 22.5
Prodcat1: H
Shipping Size: Standard
certifications and delivery: Warranty: 5 year
certifications and delivery: IR-code: a0.G32.st

Specific References

UPC: 1
EAN13: 5060404996687
MPN: 0005-100-030214
