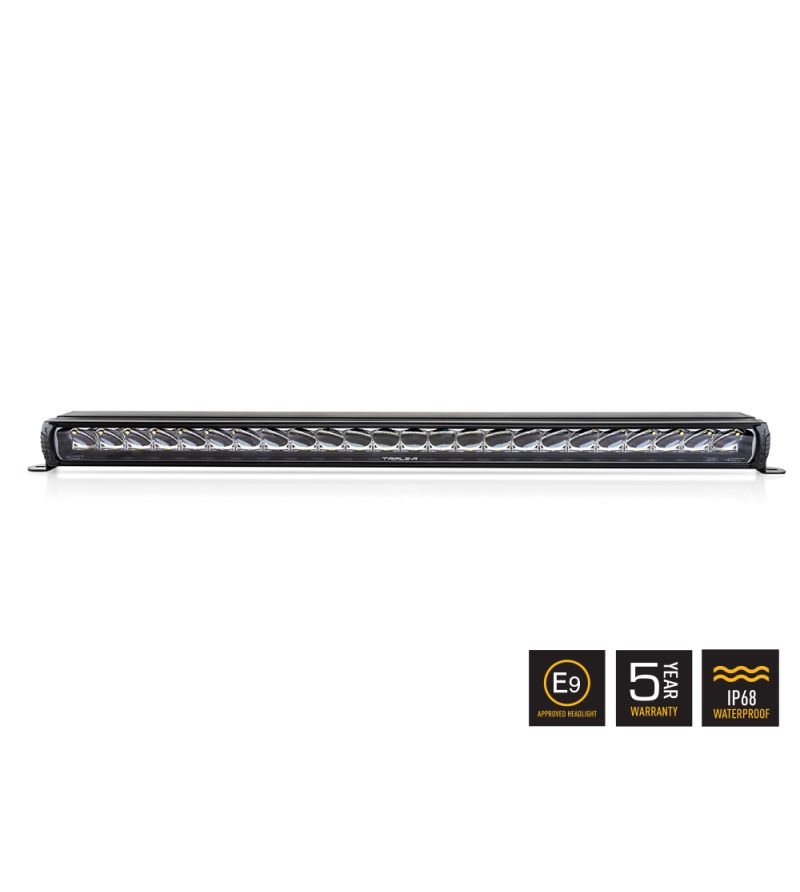

LED Light bar - Lazer - Triple-R 24 - Elite+ - 44.3" - 112.5cm - incl. wiring kit - White/Yellow - Driving Fog Combo
€1,779.95(tax incl.)
€1,471.03 (tax excl.)
- Reference: 00R24-G2-PLUS-B
- Producttype: LED Light bar
- Dimensions (mm): 1125 (w) x 73 (h) x 103 (d)
- E-mark: Yes
- Beam type: Driving Fog Combo
- Sales unit: Single item
- Standard delivery time: 4-7 business days
The Lazer Triple-R 24 Elite+ is a powerful 45" LED light bar with a mist combo. Ideal for off-road driving, this bar provides bright illumination and maximum safety in challenging weather conditions.
...Continue
Pay in a secure environment
Questions about this product? Our experts are here to help
4.8/5 More than 10,000 customers have already gone before you
Lazer Triple-R 24 Elite+
What is included:
- x1 Triple-R 24 Elite+ LED Lightbar
- x3 Centre Mount (1114k)
- x1 Side Mount Kit (1118k)
- x2 Wiring Kits (Econoseal & Superseal connections)
- x1 Installation Instructions

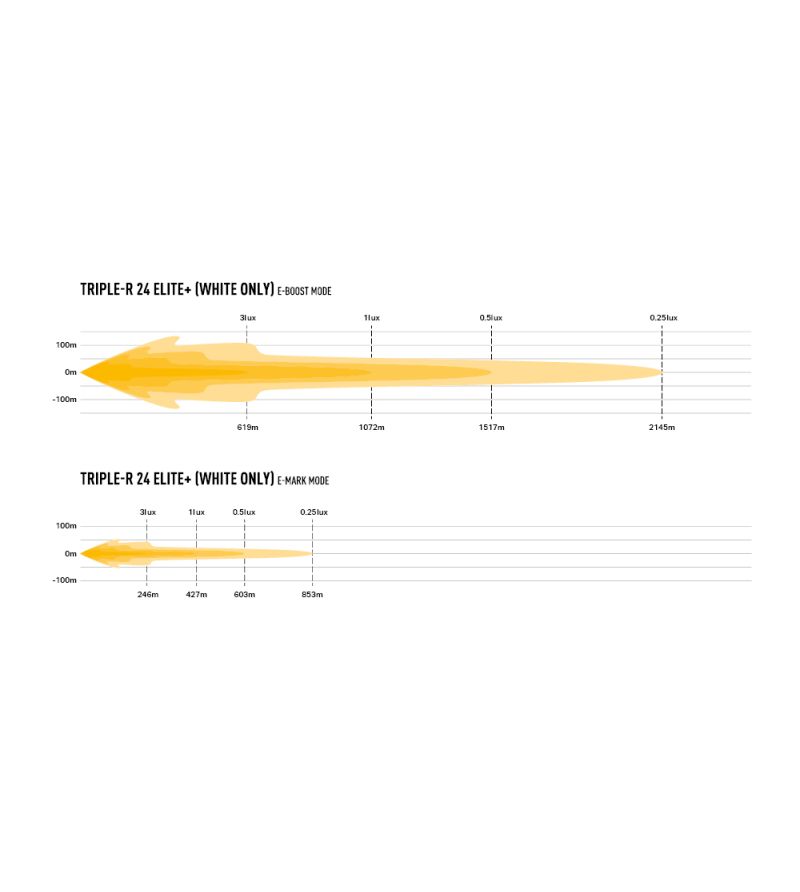

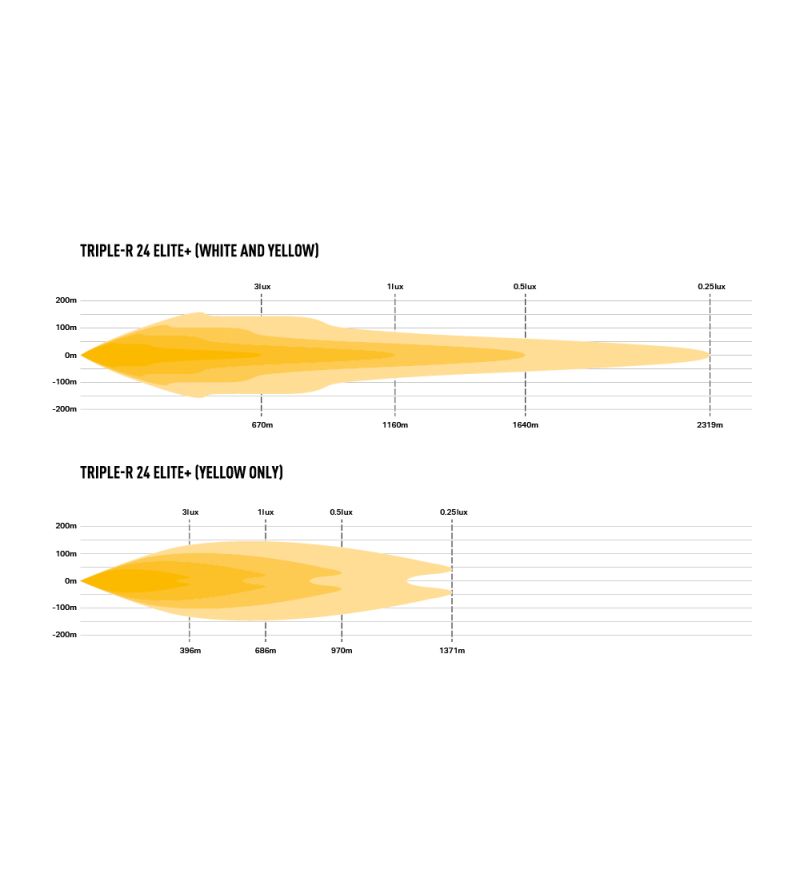

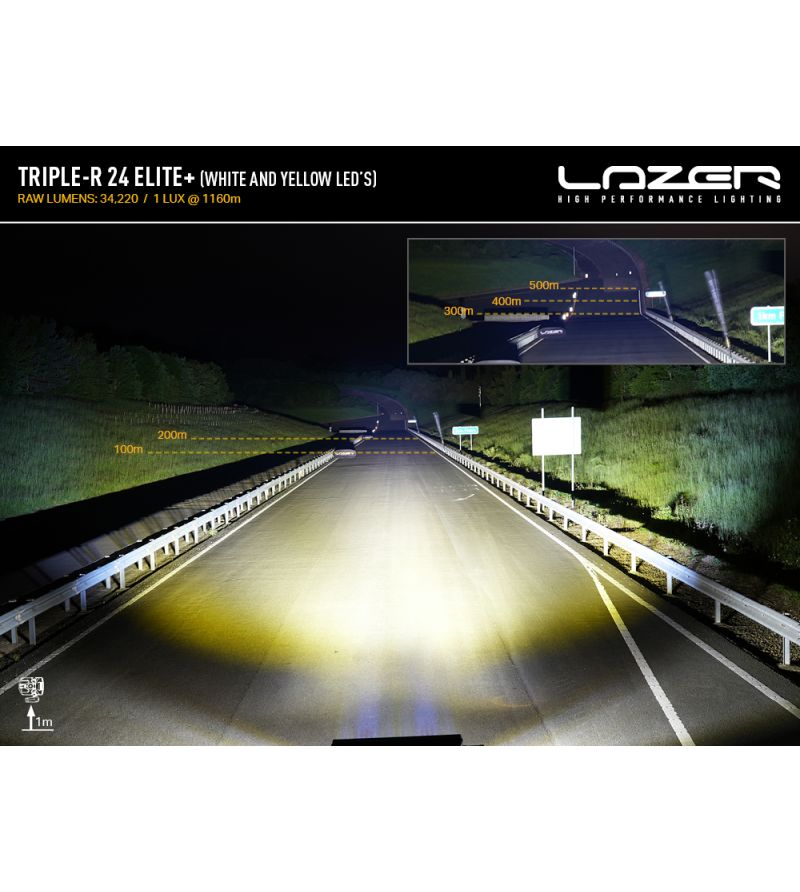

The imposing nature of the Triple-R 24 Elite+ is reflected in the lamp’s performance. Through advanced electronic design the light consists of a combination of 48 white LEDs and 40 yellow LEDs. With the light operating in Boost mode the white LEDs produce 24,056 raw lumen. Switching to ‘Combo’ mode the white and yellow LEDs combine to produce 34,220 raw lumen representing incredible lighting performance for a safer, more enjoyable night driving experience. All LEDs operating in combination results in 340W power consumption and 26.1Amps current draw (at 14V). To support operation of the lamp and electrical installation, the lamp features both a high power 2-pin Aptiv, and 3-pin Superseal connector. Additionally, included with each lamp are corresponding vehicle side wiring kits. The Aptiv connection is responsible for the high beam operation of the light, while the Superseal connections relate to the: function select, white and amber position light/backlight selection.
00R24-G2-PLUS-B
Data sheet
- General: Accessory
- Lighting
- General: Producttype
- LED Light bar
- General: Product serie
- Triple-R
- General: Serial model
- 24
- General: Version
- Elite+
- General: Feature
- incl. wiring kit
- General: Series
- Lazer Elite+
Lazer Triple-R - Dimensions and weight: Size ( Ø / ↔ )
- 3) Large
- General: Shape
- Ledbar
- Dimensions and weight: Width (mm)
- 1125
- Dimensions and weight: Height (mm)
- 73
- Dimensions and weight: Depth (mm)
- 103
- Dimensions and weight: Weight (kg)
- 200
- Light and vision: Beam type
- Driving Fog Combo
- Light and vision: Light type
- LED
- Light and vision: Lighting - type
- Driving light
Fog light - Light and vision: Light color
- White
Yellow - Design and material: Glass color
- Clear
- Light and vision: Position light
- No position light
- Light and vision: Color temperature
- 5000K
- Light and vision: Theoretical Lumens
- 24600
- Light and vision: Light distance (m) at 1 lux
- 1100
- Light and vision: Light distance (m) at 0.25 lux
- 2200
- certifications and delivery: E-mark
- Yes
- Technical specifications: Voltage
- 12V
18V
24V
30V - Technical specifications: Watts
- 270W
- Technical specifications: LEDs per lamp
- 24
- Technical specifications: Wattage per LED
- 11W
- Technical specifications: Number of pins
- 2 pins
- Technical specifications: Connector
- Econoseal
Superseal - certifications and delivery: Wiring kit included
- Yes
- Design and material: Chrome / RVS
- No
- Design and material: Housing color
- Black
- Design and material: Housing material
- Aluminum
- Design and material: Lamp rim color
- Black
- Design and material: Lamp rim material
- Aluminum
- certifications and delivery: IP rating
- IP67K
- certifications and delivery: Sales unit
- Single item
- certifications and delivery: Standard delivery time
- 4-7 business days
- Size in inches
- 44.3
- Size in cm
- 112.5
- Prodcat1
- H
- Prodcat2
- AB
- Shipping Size
- Large
- certifications and delivery: Warranty
- 5 year
- certifications and delivery: IR-code
- a0.L-D34.st
Specific References
- UPC
- 1
- EAN13
- 5061003760167
Download
Introducing the Elite+ series
