Driving light - KC Hilites - Gravity Pro6 - 6.1" - 15.5cm - Spot - Set
€854.95(tax incl.)
€706.57 (tax excl.)
- Reference: 91301
- Producttype: Driving light
- Diameter: 155
- Dimensions (mm): 155 (w) x 180 (h) x 80 (d)
- E-mark: No
- Beam type: Spot
- Sales unit: Set
- Standard delivery time: 1-3 business days
The KC Hilites Gravity Pro6 6" spot lights are designed for maximum brightness and visibility. With a powerful spot beam, they are perfect for off-road use. Easy to install and rugged for any challenge.
...Continue
Pay in a secure environment
Questions about this product? Our experts are here to help
4.8/5 More than 10,000 customers have already gone before you

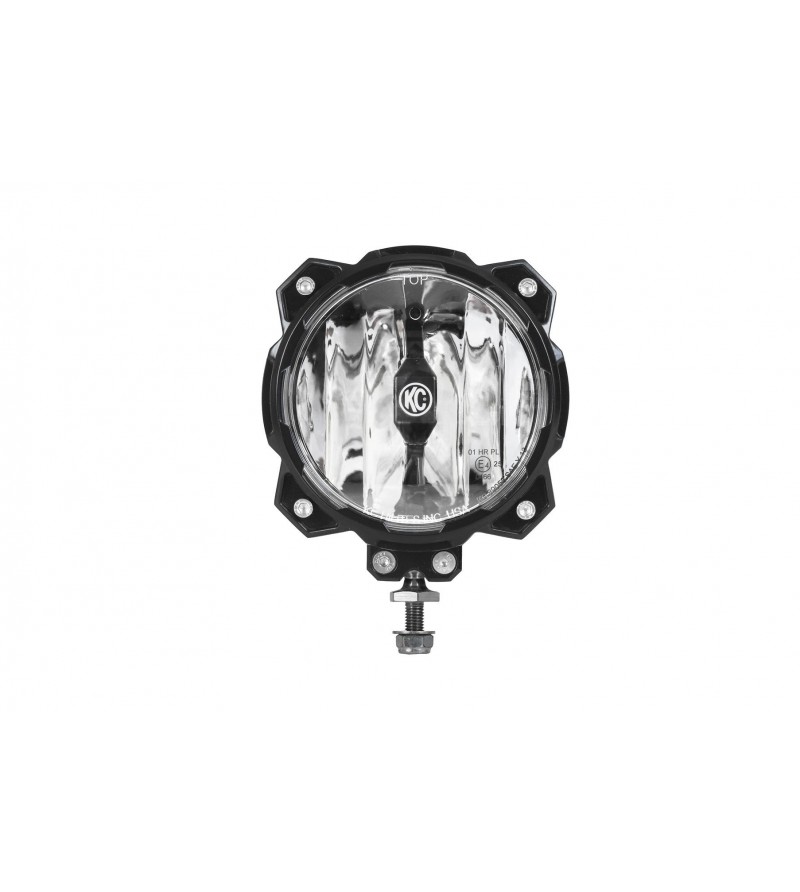

KC Hilites GRAVITY PRO6 Spot LED Set
The Gravity® LED Pro6 Single uses a durable, UV-treated composite housing powered by proprietary 20W Gravity® LED G6 optical inserts available in Spot, SAE/ECE Driving and Wide-40 Beam patterns. Each Pro6 LED single lamp utilizes a unique ball mounting system that provides easy installation and customizable light objective to meet your exact lighting needs. Gravity LED Pro6 Singles are perfect for front bumpers, light bars and A-pillar applications. Each Gravity LED Pro6 pair pack system comes complete with a high quality wiring harness and illuminated LED light switch.
CHARACTERISTICS
-2 x 20W 6" Gravity® LED Pro6 single lamps -Each Pro6
is powered by KC patented Gravity® Reflective Diode (GRD) technology for unrivaled

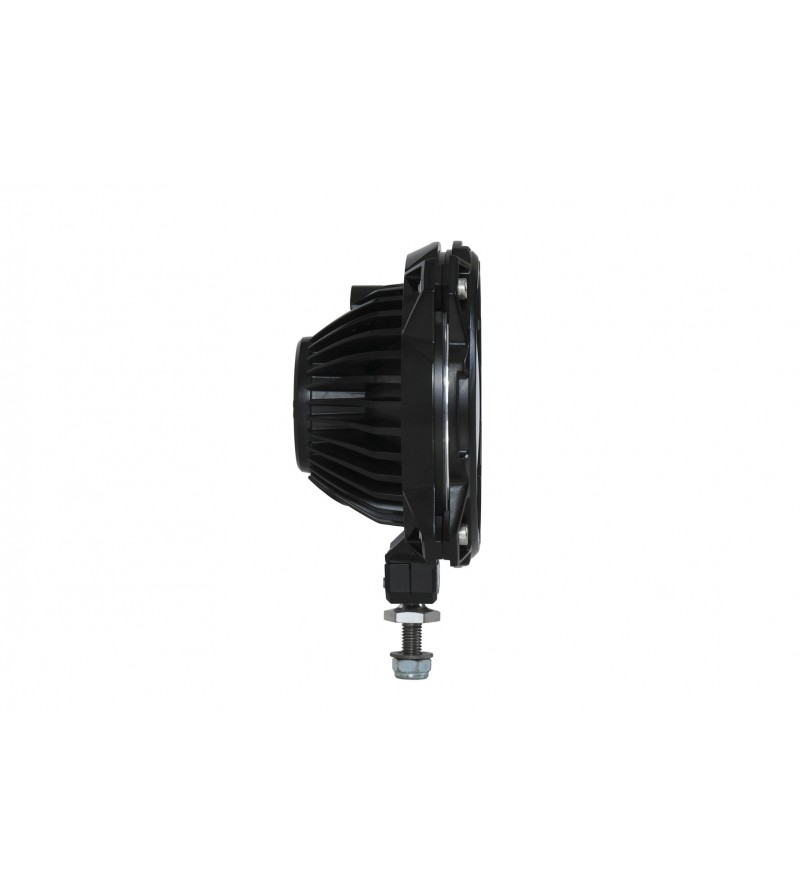

beam shape, light performance, and brightness - KC signature aluminum turbine fin heat sink design for maximum thermal efficiency and long lasting LED performance -
Shatter-resistant polycarbonate lens -
Multiple beam patterns available: Spot, SAE/ECE Driving Beam, Wide-
40 LIGHTING PERFORMANCE
(PER LIGHT)
-Raw Lumens: Driving SAE / ECE- 2,300 lm, Spot- 2,300 lm, Wide-
40-2,300lm-Lux @ 10 meters: Driving SAE / ECE- 1,310 lx, Spot- 2,150 lx, Wide-
40-390lx-Candela: Driving SAE/ECE- 131,000 cd, Spot- 215,000 cd, Wide- 40-39,000 cd
- Beam distance (meter): Driving SAE/ECE- 724m, Spot- 972m, Wide-40-395m
SPECIFICATIONS
-Wattage: 20W
-LED Source: CREE XPL HD
-LED Color: 5000K
-Amp draw: 1.63A
-Voltage: 9 -32V
-IP rating: IP68
-Dimensions: W - 6.00" x H - 7.00" x D - 3.125"

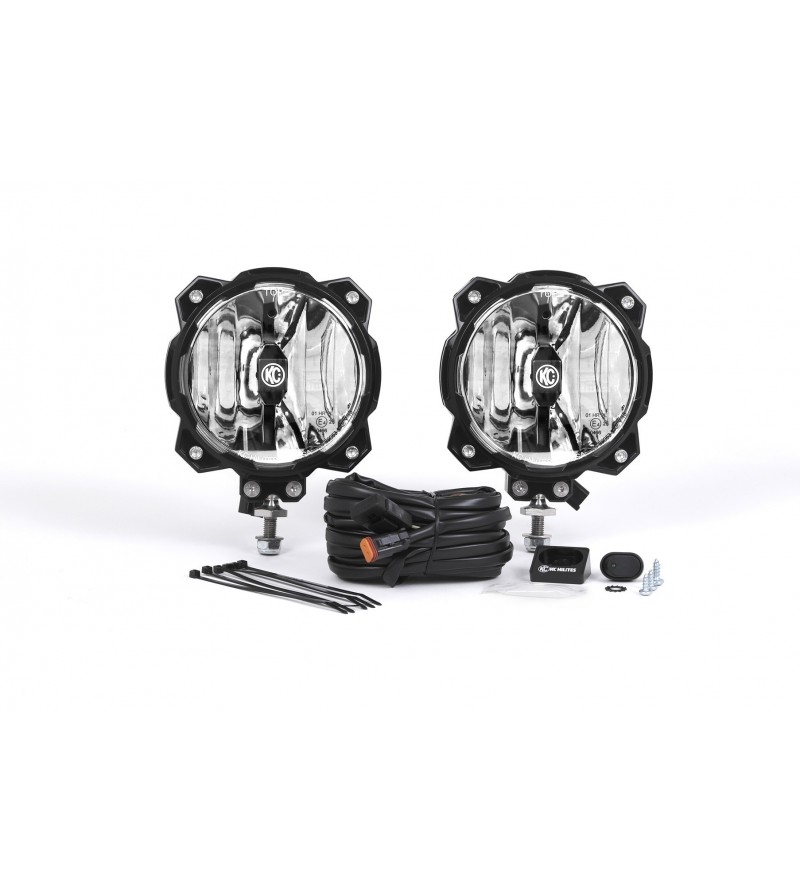

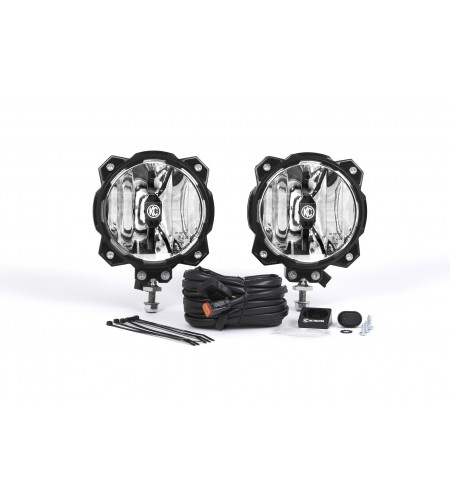

PARTS INCLUDED
- (2) Gravity® LED Pro6 Single Lights
- (2) Light Covers - Black with yellow KC logo
-Mounting Hardware-
Performance wiring harness with 2-pin waterproof connectors and illuminated LED light switch
Patented Gravity reflective diode technology
Each Gravity® LED Pro6 lamp is powered by KC's G6 LED optical insert, featuring patented Gravity® Reflective Diode (GRD) technology. This unique, industry-leading technology and reflector design ensures that the actual emitted light output of each LED is maximized to create powerful, usable light for everyday on- and off-road use. Unlike traditional forward-facing reflector designs commonly found in LED lamps today, KC GRD technology strategically positions the LEDs within the reflector so that all light output is carefully directed and focused to provide usable light. What you get is highly focused light distribution, providing unparalleled brightness, performance and beam shape.
Various beam patterns for all lighting needs
SAE/ECE Driving Beam - Provides a wide, evenly distributed rectangular beam shape to significantly improve the lighting distance directly in front of your vehicle, while creating ample visibility along the side of roads with a wider beam angle than standard driving lights and OEM headlights. This beam pattern also complies with street legislation, making them ideal for everyday use on and off the road. Driving Beam lights are best used on front bumpers, A-pillars and overhead parts of your vehicle for better lighting directly in front of your vehicle.
Spot Beam-Lights produce a tight, focused circular beam pattern (often referred to as a pencil beam) that provides maximum forward distance for off-road use. Because the light pattern is generally very narrow, there is minimal edge lighting or side-by-side lighting. For this reason, spot beam lights are best used in combination with other beam patterns to provide additional width and illuminate areas closer to the vehicle for more complete beam coverage.
Wide-40 Beam: Provides an extremely wide beam pattern, providing a larger coverage area to improve side visibility and areas closer to your vehicle. Although not street legal, these are best used on A-pillars, as well as on the outer portions of front bumpers and overhead applications to provide adequate peripheral vision when used in conjunction with driving, spot or fog lights.
UNIVERSAL BALL MOUNTING
The Pro6 Single is ready to mount on any flat mounting surface with a highly adjustable ball mount. This universal ball mount easily attaches to your Jeep, Truck or UTV and quickly adjusts for easy light aiming.
RACE PROVEN STRENGTH AND DURABILITY
Inspired by endurance racing and tested by KC athletes around the world, the Pro6 breaks all performance benchmarks while offering the most durable and performance-oriented lighting design available today
Specifications:
SKU: 91301
Weight: 7,000000
Colour black
Beam Pattern: Spot
DOT Compliant: No
Prop 65: No
SAE/ECE: No
91301
Data sheet
- General: Accessory
- Lighting
- General: Producttype
- Driving light
- General: Product serie
- Gravity
- General: Serial model
- Pro6
- General: Series
- KC Pro6
- Dimensions and weight: Size ( Ø / ↔ )
- 2) Medium
- General: Shape
- Round
- Dimensions and weight: Diameter (mm)
- 155
- Dimensions and weight: Width (mm)
- 155
- Dimensions and weight: Height (mm)
- 180
- Dimensions and weight: Depth (mm)
- 80
- Light and vision: Beam type
- Spot
- Light and vision: Light type
- LED
- Light and vision: Lighting - type
- Driving light
- Light and vision: Light color
- White
- Design and material: Glass color
- Clear
- Light and vision: Position light
- No position light
- Light and vision: Theoretical Lumens
- 2300
- Light and vision: Candela
- 215000
- certifications and delivery: E-mark
- No
- Technical specifications: Voltage
- 12V
18V
24V
30V - certifications and delivery: Wiring kit included
- Yes
- Technical specifications: Switch
- Incl. switch
- Design and material: Chrome / RVS
- No
- Design and material: Housing color
- Black
- Design and material: Product color
- Black
- certifications and delivery: IP rating
- IP68
- fit and mounting: Mount
- Normal
- certifications and delivery: Sales unit
- Set
- certifications and delivery: Standard delivery time
- 1-3 business days
- Size in inches
- 6.1
- Size in cm
- 15.5
- Prodcat1
- H
- Shipping Size
- Standard
- certifications and delivery: IR-code
- a1.G33.st
Specific References
- UPC
- 1
- EAN13
- 84709913014
- MPN
- 0001-000-026840
