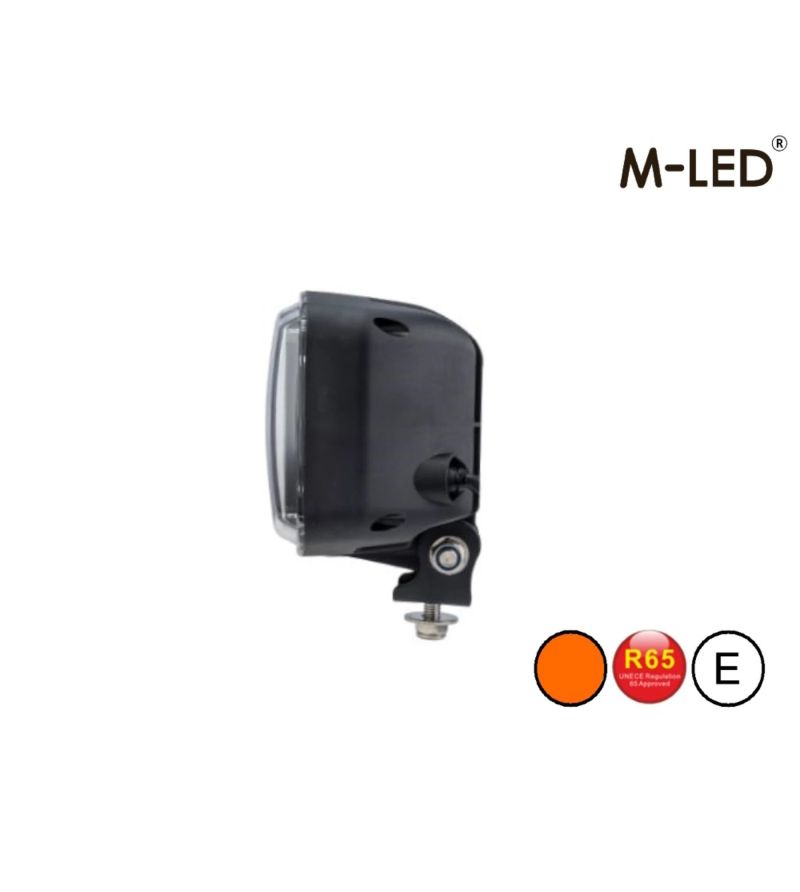

Driving light - M-Led - Saturn - 9.6" - 24.4cm - Oval - Position light White/Amber - 1 flash pattern - Spot
€149.50(tax incl.)
€123.55 (tax excl.)
- Reference: VS138
- Producttype: Driving light

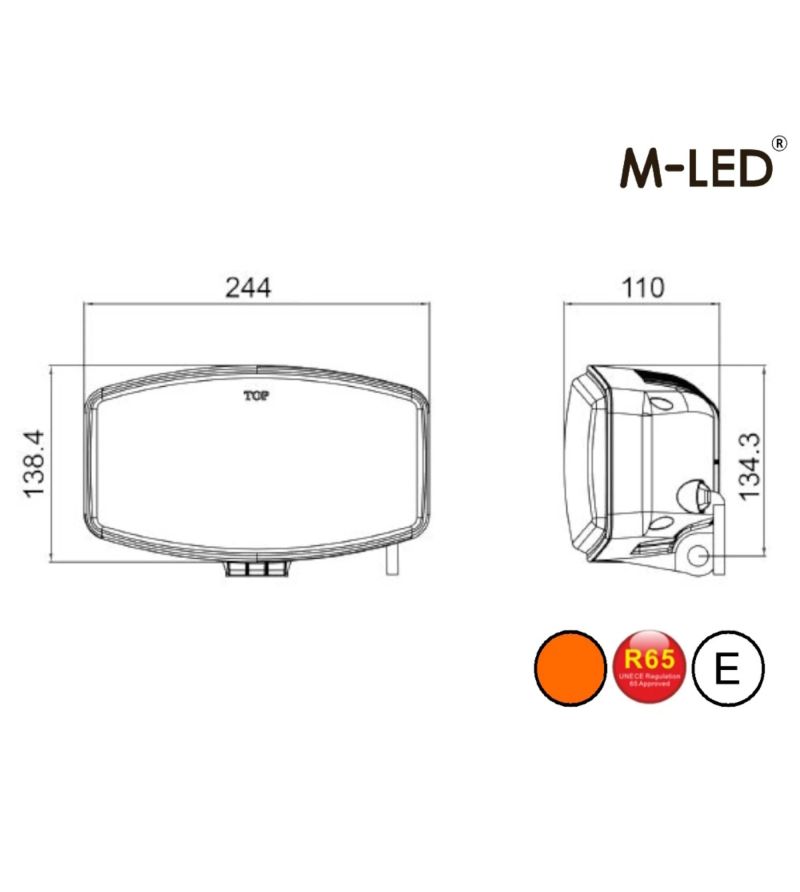

- Dimensions (mm): 244 (w) x 138.4 (h) x 110 (d)
- E-mark: Yes
- Strobe function: 1 flash pattern
- Beam type: Spot
- Sales unit: Single item
- Standard delivery time: 1-3 business days
An iconic oval spotlight blending timeless style with a powerful strobe function and a revolutionary graphene chassis
...Continue
Pay in a secure environment
Questions about this product? Our experts are here to help
4.8/5 More than 10,000 customers have already gone before you

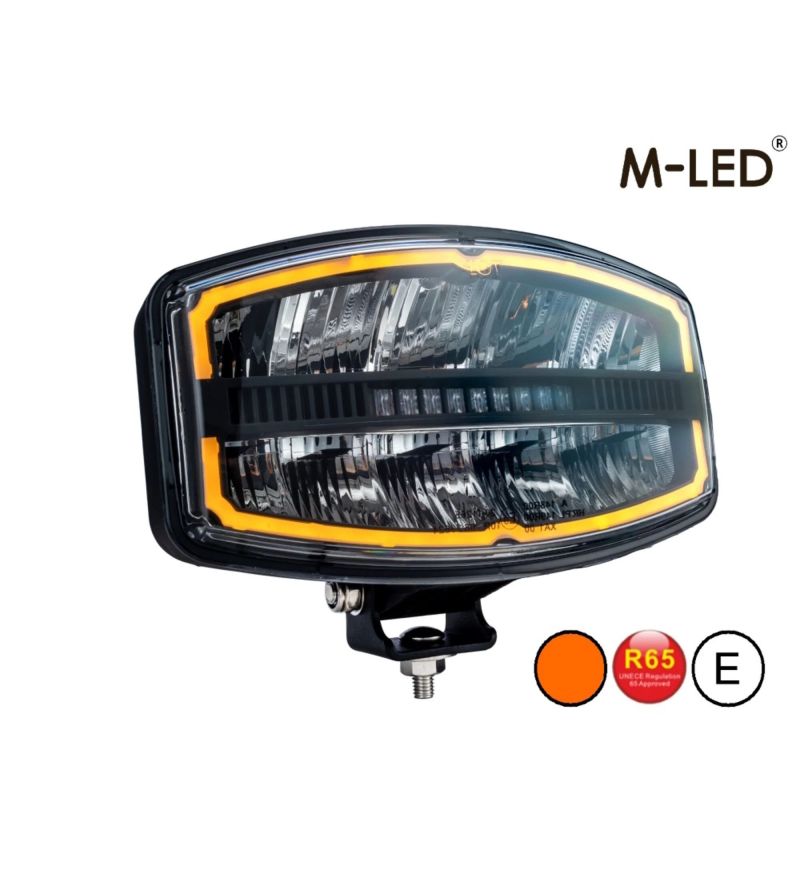

M-LED Saturn Oval: The New Dimension in Professional Lighting
The perfect fusion of form and function has arrived: the M-LED Saturn Oval Spotlight. This masterpiece features the trusted oval jumbo shape but is packed with the latest lighting innovations. The state-of-the-art directional reflector offers exceptional efficiency, resulting in maximum light output with a modern "dark look" aesthetic.
What truly sets the Saturn apart is its striking oval ring, a unique position light design that lets you choose between a crisp white or a classic amber glow. For professional safety, it includes a certified R65 amber strobe that can be synchronized with up to 6 lamps. The housing is crafted from Graphene, providing superior thermal conductivity and corrosion resistance.
An iconic oval spotlight blending timeless style with a powerful strobe function and a revolutionary graphene chassis.
- ✓ Powerful LED Lighting: 12 high-intensity 5W LEDs delivering robust illumination.

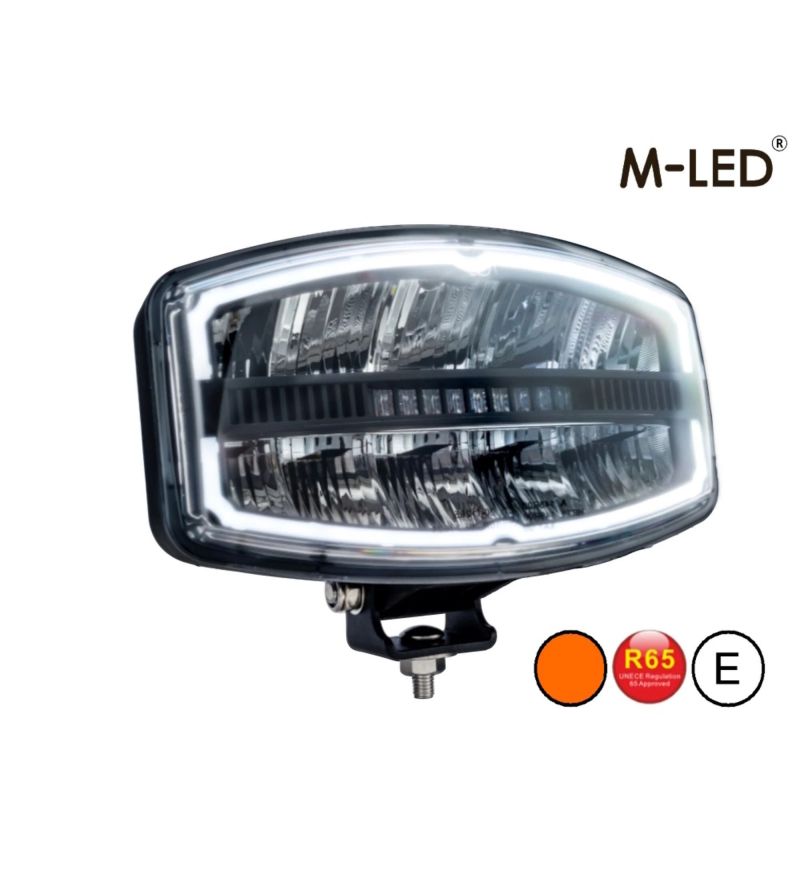

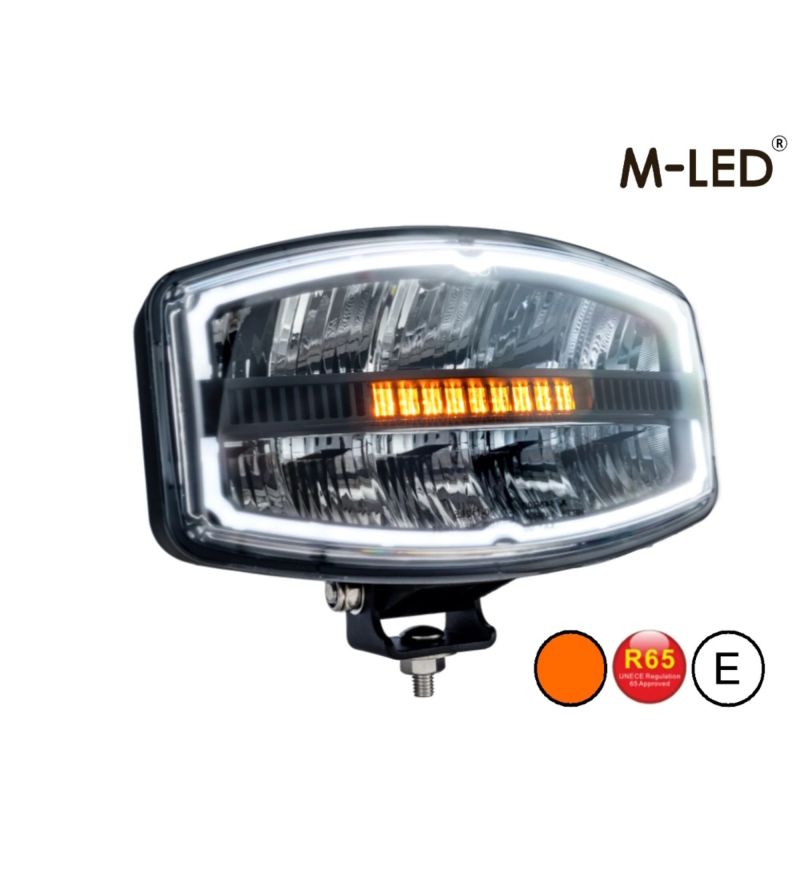

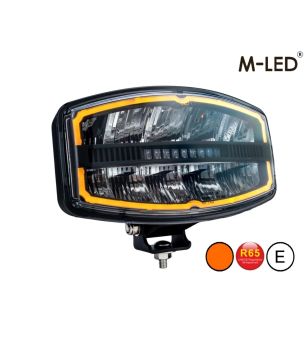

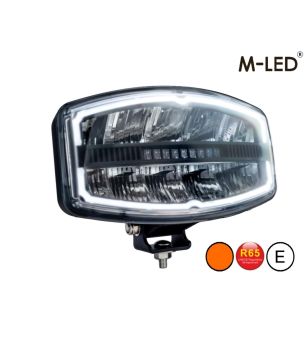

- ✓ Dual-Color Oval Ring: Uniquely designed lighting type for position light in white or amber.

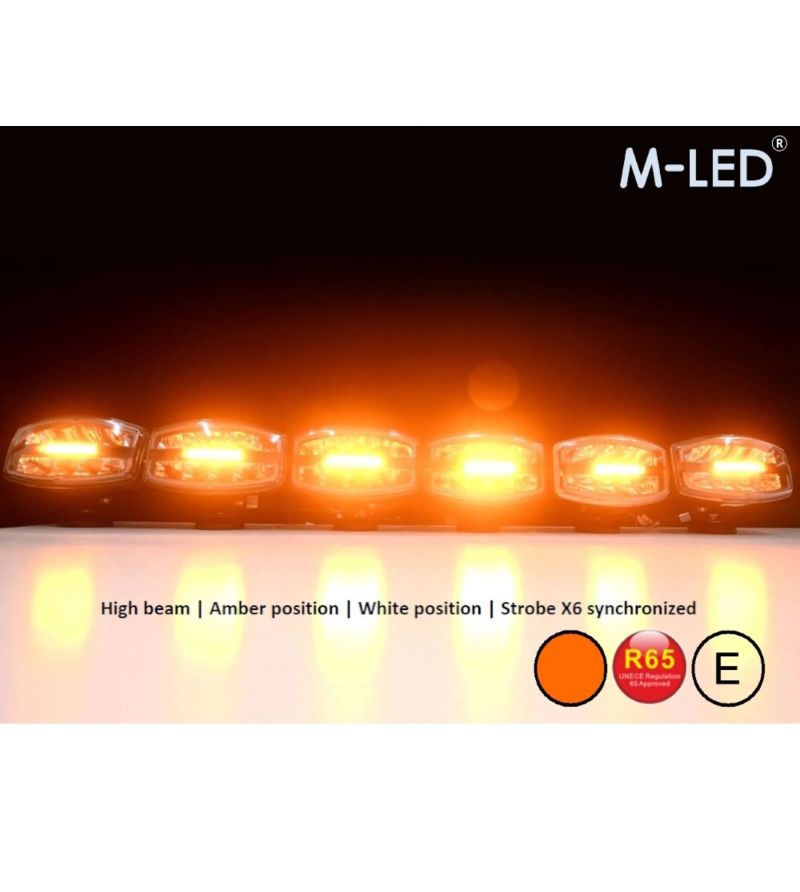

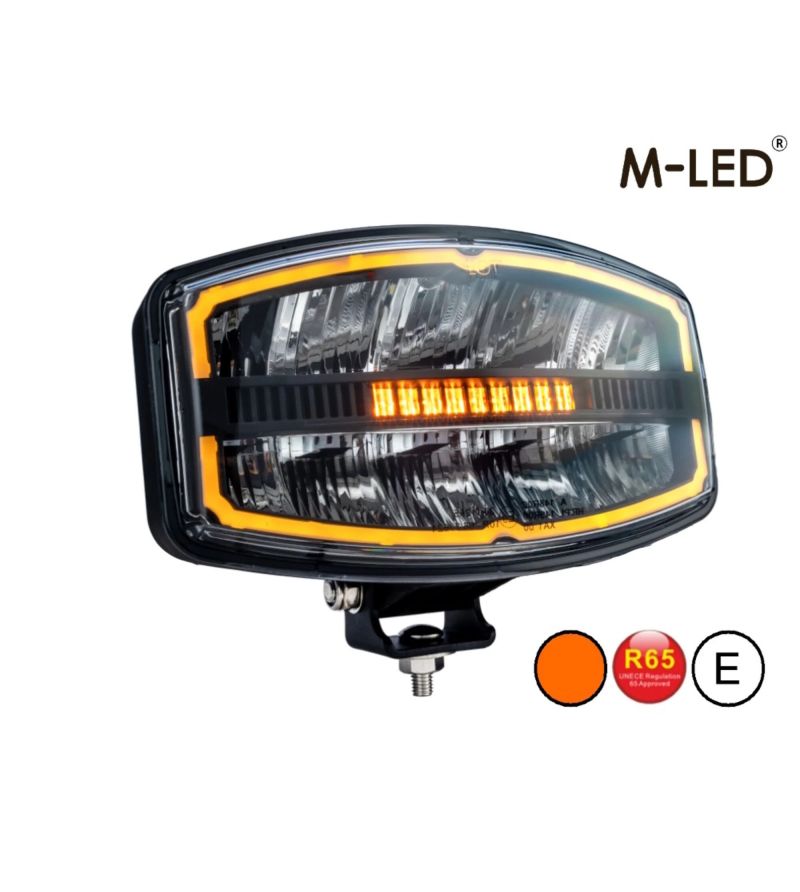

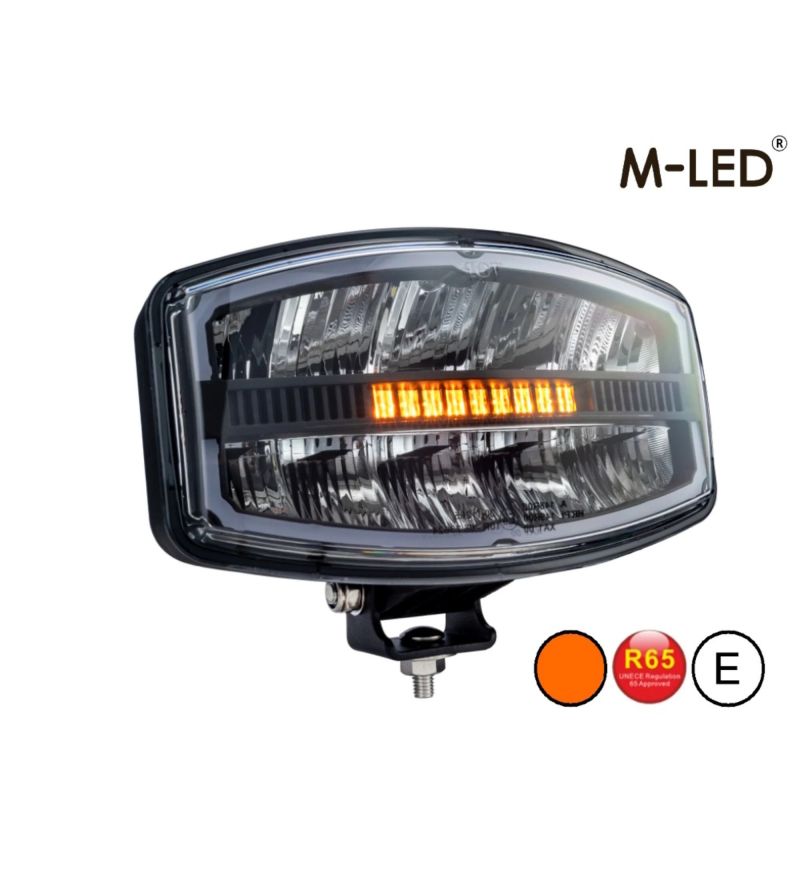

- ✓ Integrated R65 Strobe: Certified amber strobe lighting type, synchronizable for maximum safety.

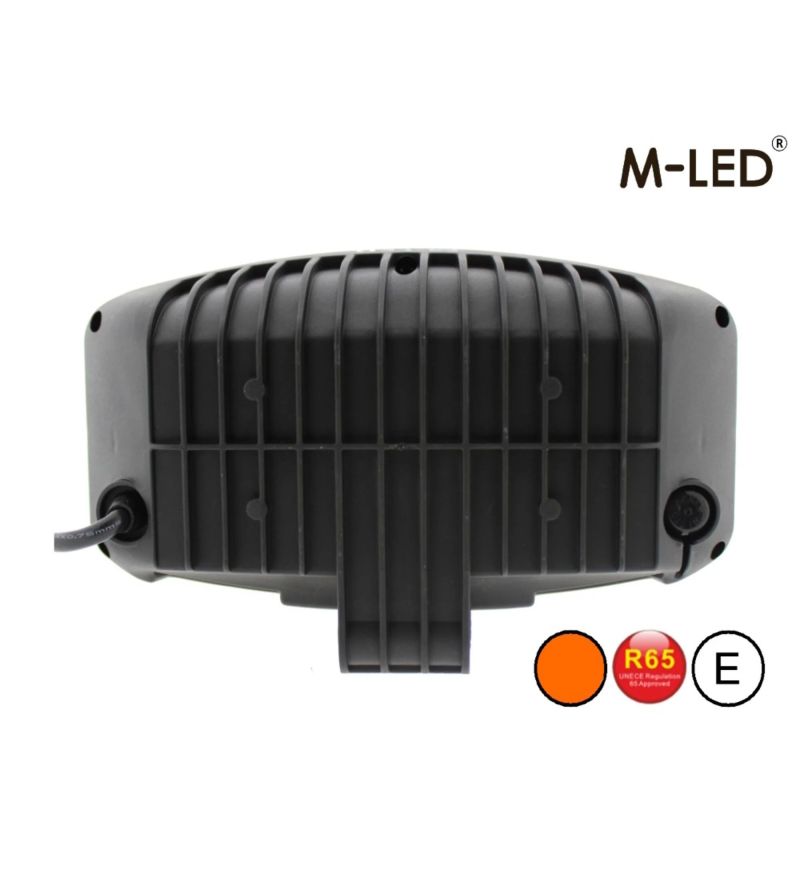

- ✓ Graphene Housing: Advanced material for excellent heat dissipation and durability.
- ✓ CISPR 25 Class 5: Highest level of EMC suppression for interference-free operation.
- ✓ Multi-Certified: Fully compliant with ECE R10, R149 (Ref 20), R148, and R65 standards.
- ! Oval Jumbo Size: The classic large footprint requires more mounting surface area than round alternatives.
- ! Sync Wiring: Requires an additional signal wire between lamps to synchronize the strobe patterns.
VS138
Data sheet
- General: Accessory
- Lighting
- General: Producttype
- Driving light
- General: Product serie
- Saturn
- General: Feature
- Oval
- Dimensions and weight: Size ( Ø / ↔ )
- 3) Large
- General: Shape
- Rectangular / Oval
- Dimensions and weight: Width (mm)
- 244
- Dimensions and weight: Height (mm)
- 138.4
- Dimensions and weight: Depth (mm)
- 110
- Light and vision: Beam type
- Spot
- Light and vision: Light type
- LED
- Light and vision: Lighting - type
- Driving light
Signal light - Light and vision: Light color
- White
- Design and material: Glass color
- Clear
- Light and vision: Position light
- Position light
- Light and vision: Color of position light
- Amber
White - Light and vision: Signal lights
- Flash light
- Light and vision: Strobe function
- 1 flash pattern
- Light and vision: Flash color
- Amber
- Light and vision: Color temperature
- 5700-6500K
- Light and vision: Theoretical Lumens
- 6000

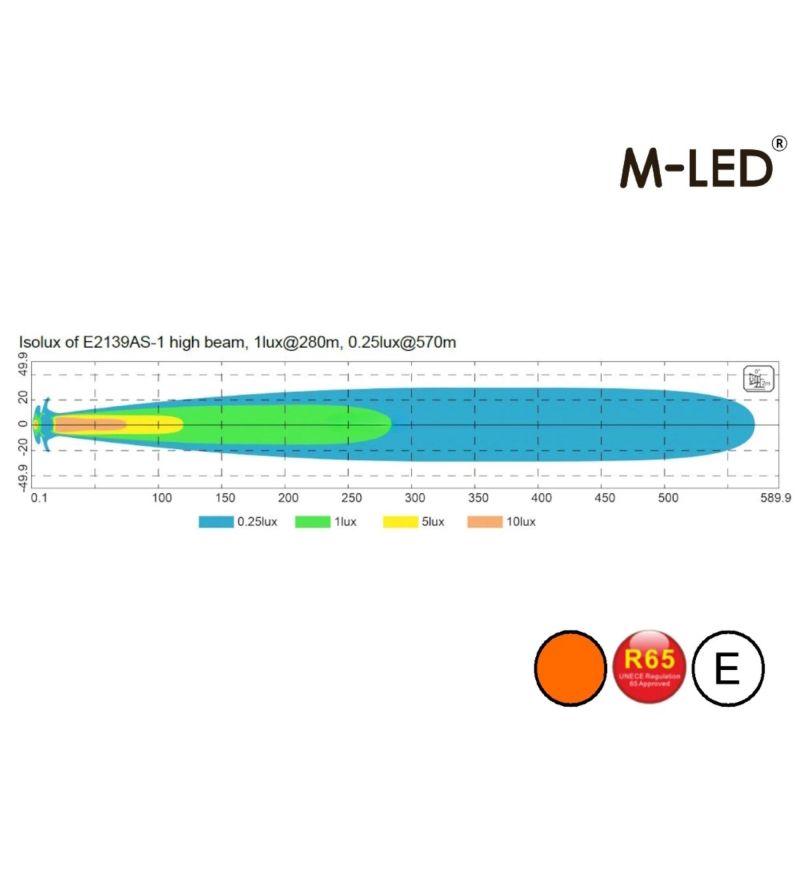

- Light and vision: Light distance (m) at 1 lux
- 275
- Light and vision: Light distance (m) at 0.25 lux
- 570
- certifications and delivery: E-mark
- Yes
- certifications and delivery: Certifications
- R10
R148
R149
R65 - Technical specifications: Voltage
- 12V
18V
24V
30V - Technical specifications: Watts
- 60W
- Technical specifications: LEDs per lamp
- 12
- Technical specifications: Number of pins
- 6 pins
- Technical specifications: Cable Length (cm)
- 200
- Design and material: Housing color
- Black
- Design and material: Material
- Graphene
- certifications and delivery: IP rating
- IP66
IP6K9K - fit and mounting: Mount
- Normal
- certifications and delivery: Sales unit
- Single item
- certifications and delivery: Standard delivery time
- 1-3 business days
- Size in inches
- 9.6
- Size in cm
- 24.4
- fit and mounting: Note!
- Also fits in the housing of the Hella Jumbo 220
- Prodcat1
- L
- Shipping Size
- Standard
- certifications and delivery: IR-code
- a0..st
Specific References
- UPC
- 1
- EAN13
- 8721302890046
