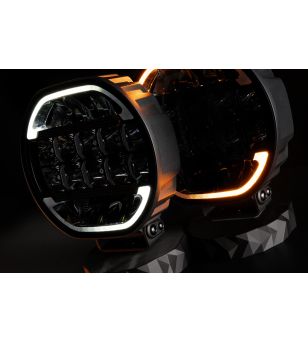

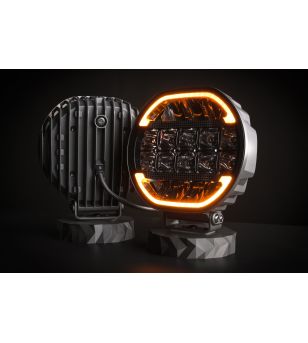

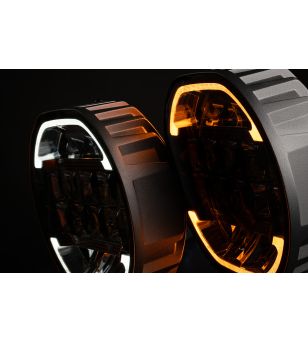

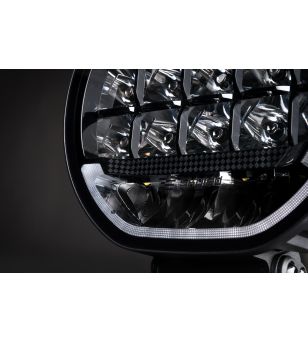

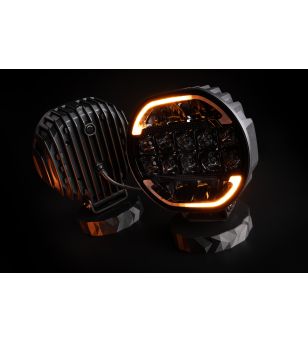

Driving light - Skyled - Scallop 9X - 8.7" - 22cm - Smoke - Position light White/Amber - Driving
€204.95(tax incl.)
€169.38 (tax excl.)
- Reference: 13300066
- Producttype: Driving light
- Diameter: 220
- Dimensions (mm): 220 (w) x 205 (h) x 80 (d)
- E-mark: Yes
- Beam type: Driving
- Sales unit: Single item
- Standard delivery time: 1-3 business days
Dominate the darkness with the SKYLED SCALLOP 9X: 180W of pure lighting power combined with a spectacular dynamic startup animation.
...Continue
Pay in a secure environment
Questions about this product? Our experts are here to help
4.8/5 More than 10,000 customers have already gone before you
SKYLED SCALLOP 9X: The Ultimate 9-inch LED Cannon with Dynamic Animation

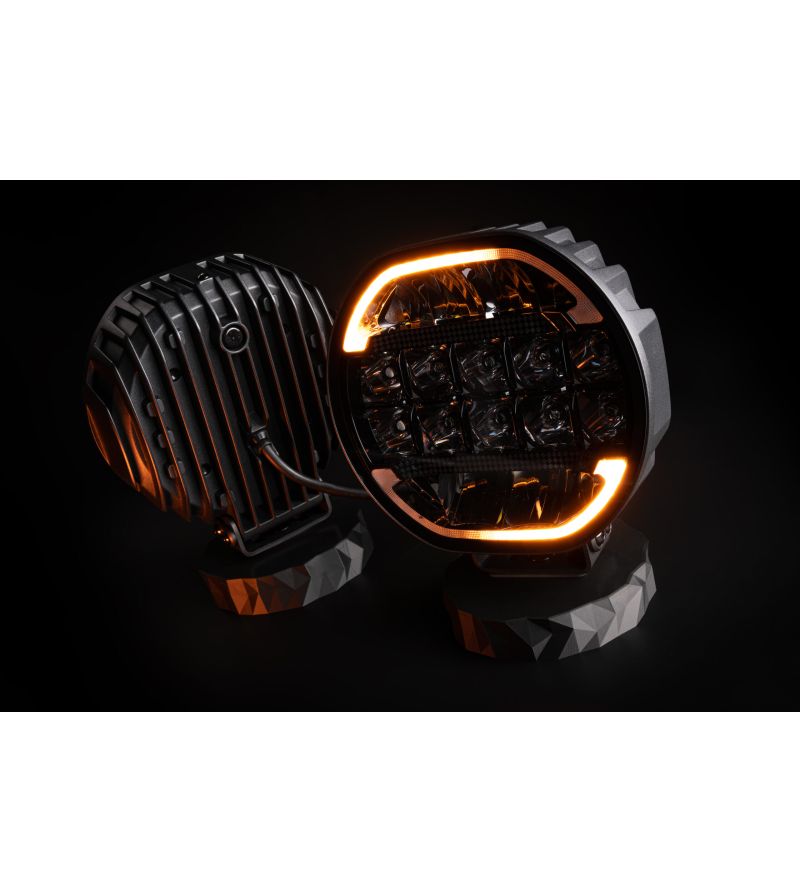

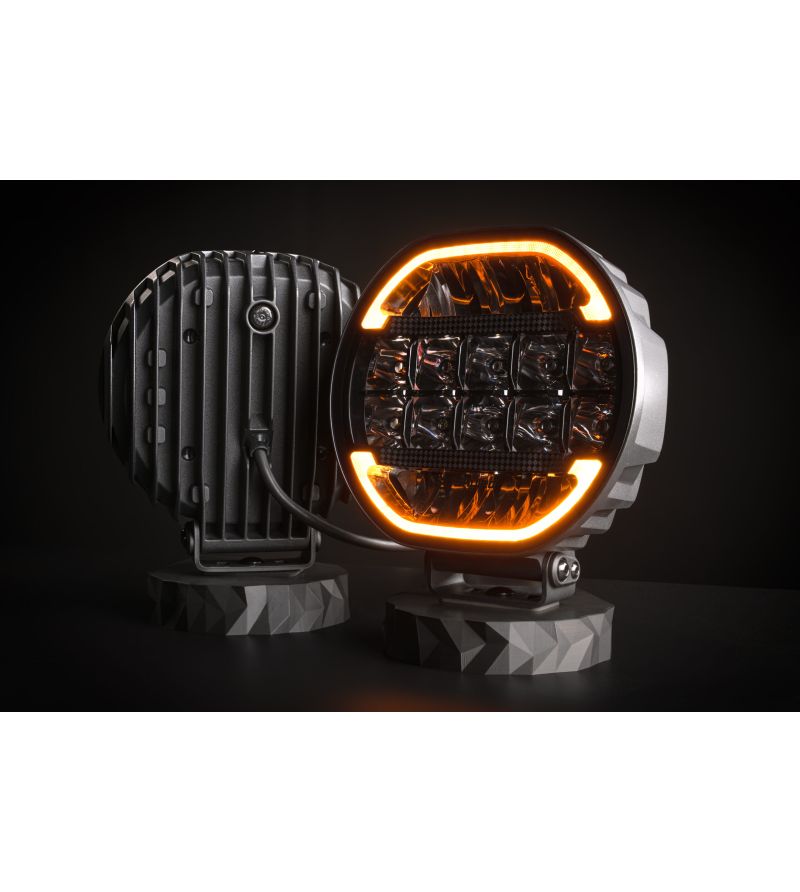

Are you looking for maximum performance and an unforgettable look? The SKYLED SCALLOP 9X (FI220) is the bigger, more powerful brother in the Scallop series. This 9-inch spotlight delivers a stunning 180W of power and is designed for drivers who refuse to compromise. The showpiece of this lamp is the dynamic position light (selectable in white and amber). Upon startup, the lamp displays a unique light animation, instantly giving your truck or 4x4 a high-tech, custom-tuned appearance.
The SCALLOP 9X is a beast on the road. Beneath its modern lens lies advanced FULL LED technology with dual functionality. On public roads, drive safely and legally with the fully ECE-approved mode. Once you leave the asphalt, switch to OFFROAD mode. This boosts the light output to an actual 10,600 lumens and achieves a beam range of up to 680 meters. The extremely robust housing (IP69K) guarantees that this lamp keeps performing, regardless of mud, water, or heavy vibrations.
Key Features
- ✅ Extreme Power: 180W output (18 x 10W LEDs) for unprecedented brightness.

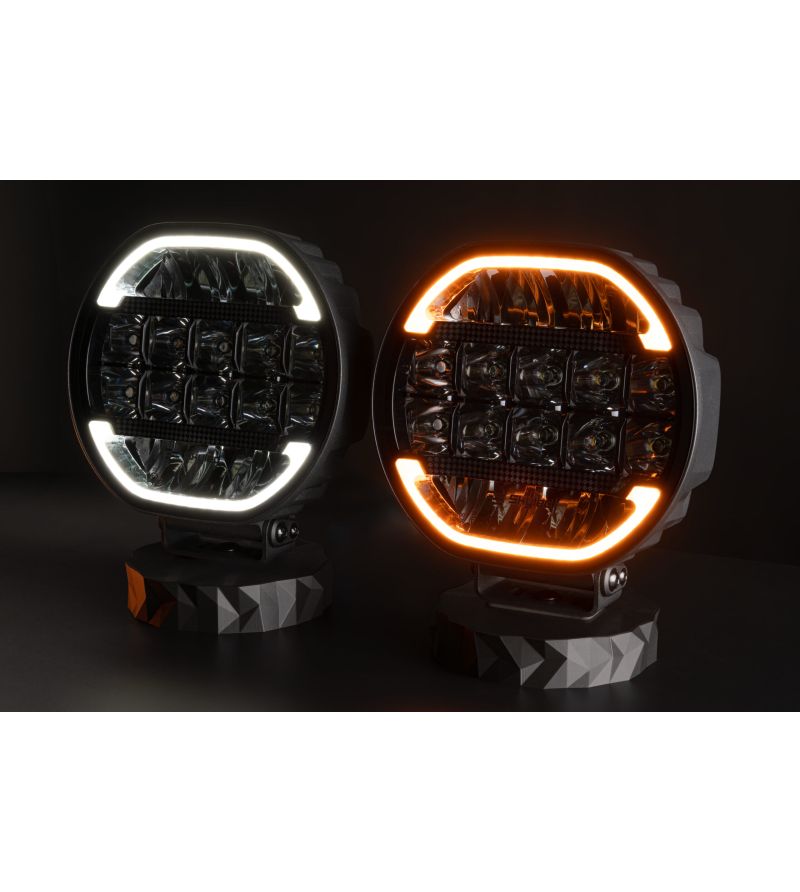

- ✅ Dynamic Styling: Features white and amber position lights with a striking startup animation.
- ✅ Massive Range: Illuminates up to 680 meters (1 lux) in OFFROAD boost mode.
- ✅ Dual Mode: Switchable between legal ECE driving beam and maximum off-road performance.
- ✅ Heavy Duty: IP69K protection class makes the lamp resistant to high-pressure washing and severe weather.
- ✅ Size: Large 9-inch (220mm) diameter for an imposing presence on your vehicle.
- ❗ Regulations: The powerful OFFROAD mode is not ECE homologated and is intended for off-road use only.
Specifications
- Brand: SKYLED
- Model: SCALLOP 9X (Ref. 133000668)
- Lamp Type: FULL LED Driving Beam (180W)
- Position Light: Dynamic White & Amber
- Light Output (Real): 10,600 lm (Offroad) / 7,010 lm (ECE)

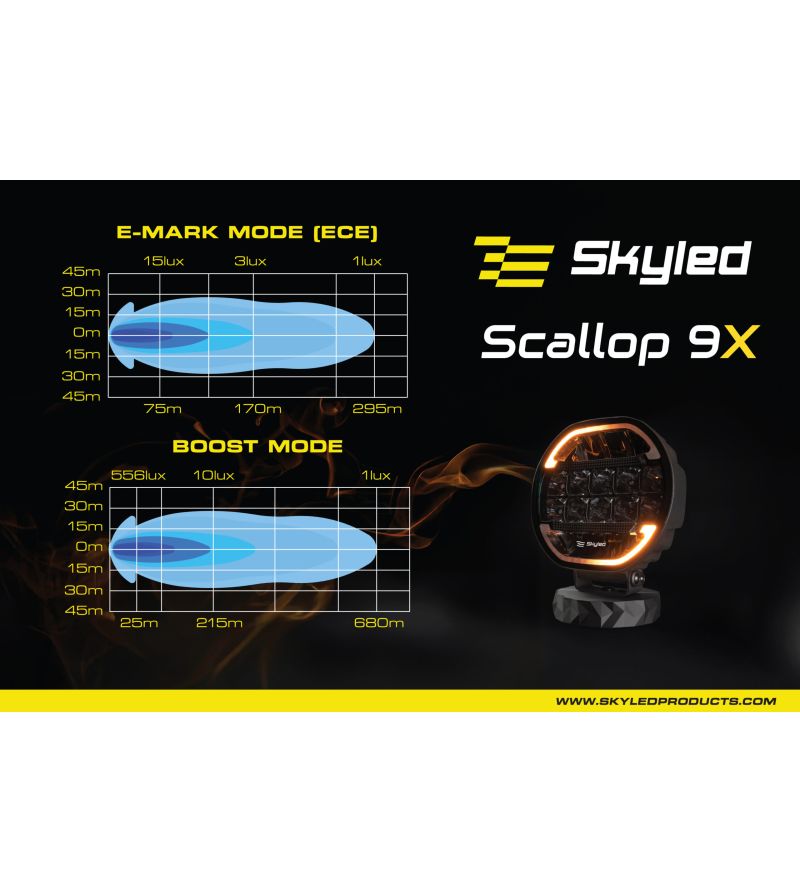

- Range (1 lux): 680 m (Offroad) / 295 m (ECE)
- Color Temperature: 5700K (Cool White)
- Voltage: 10–32V DC

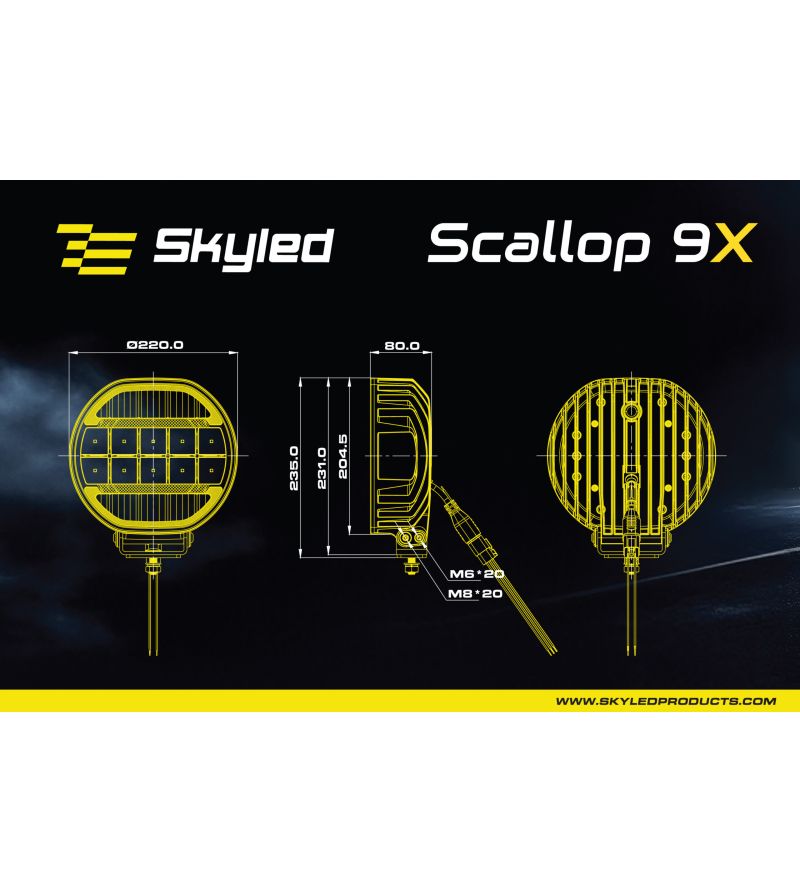

- Dimensions: Ø 220 mm x 80 mm (D) x 235 mm (H incl. bracket)
- Certification: ECE R10, R148, R149 (Ref. 20)
13300066
Data sheet
- General: Accessory
- Lighting
- General: Producttype
- Driving light
- General: Product serie
- Scallop
- General: Serial model
- 9X
- Dimensions and weight: Size ( Ø / ↔ )
- 3) Large
- General: Shape
- Round
- Dimensions and weight: Diameter (mm)
- 220
- Dimensions and weight: Width (mm)
- 220
- Dimensions and weight: Height (mm)
- 205
- Dimensions and weight: Height incl. bracket (mm)
- 231
- Dimensions and weight: Depth (mm)
- 80
- Light and vision: Beam type
- Driving
- Light and vision: Light type
- LED
- Light and vision: Lighting - type
- Driving light
- Light and vision: Light color
- White
- Design and material: Glass color
- Smoke
- Light and vision: Position light
- Position light
- Light and vision: Color of position light
- Amber
White - Light and vision: Color temperature
- 5700K
- certifications and delivery: Reference number per unit
- 20
- Light and vision: Theoretical Lumens
- 15000
- Light and vision: Effective Lumens
- 10600
- Light and vision: Light distance (m) at 1 lux
- 680
- certifications and delivery: E-mark
- Yes
- certifications and delivery: Certifications
- R10
R148
R149 - Technical specifications: Voltage
- 12V
18V
24V
30V - Technical specifications: Watts
- 180W
- Technical specifications: LEDs per lamp
- 18
- Technical specifications: Wattage per LED
- 10W
- Technical specifications: Number of pins
- 4 pins
- Technical specifications: Connector
- Deutsch DT
- Design and material: Chrome / RVS
- No
- Design and material: Housing color
- Black
- Design and material: Housing material
- Aluminum
- certifications and delivery: IP rating
- IP67
IP69K - fit and mounting: Mount
- Normal
- certifications and delivery: Sales unit
- Single item
- certifications and delivery: Standard delivery time
- 1-3 business days
- Size in inches
- 8.7
- Size in cm
- 22
- Stock item
- Yes
- Vehicle type
- Van
- Prodcat1
- M
- Prodcat2
- AB
- Shipping Size
- Standard
- certifications and delivery: Warranty
- 1 year
- certifications and delivery: IR-code
- a0..st
Specific References
- UPC
- 1
