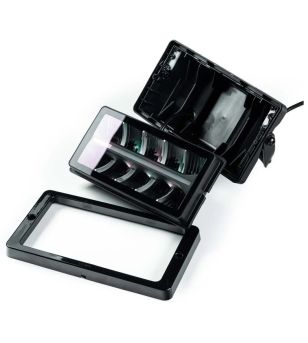

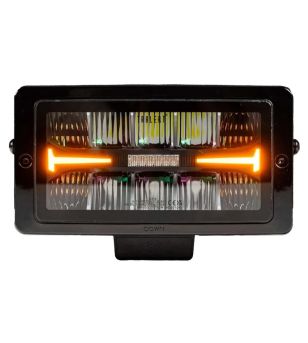

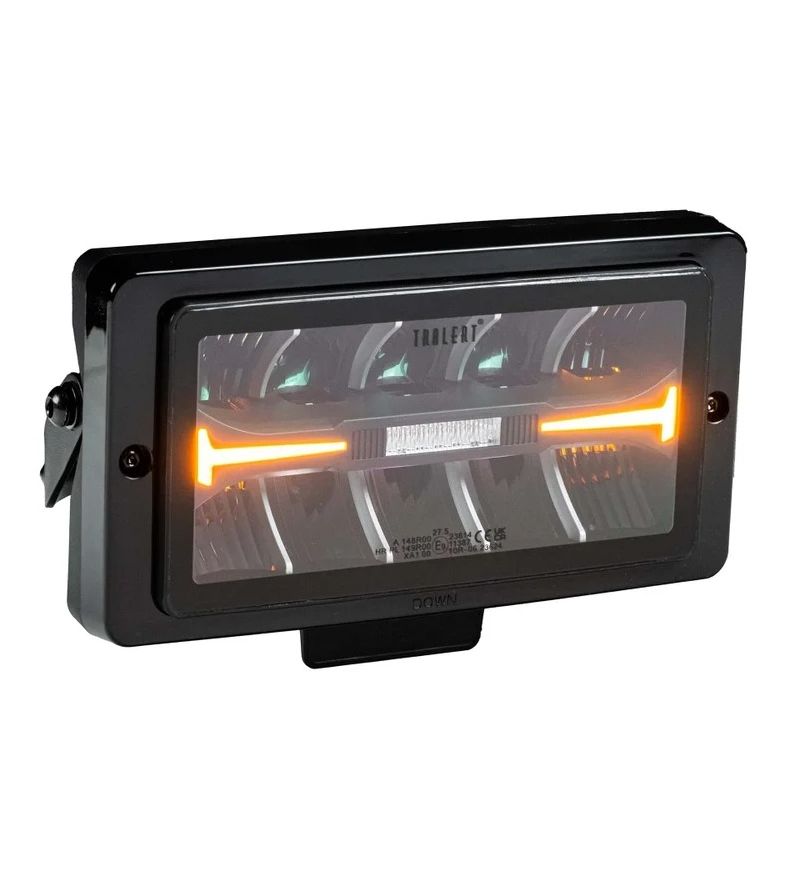

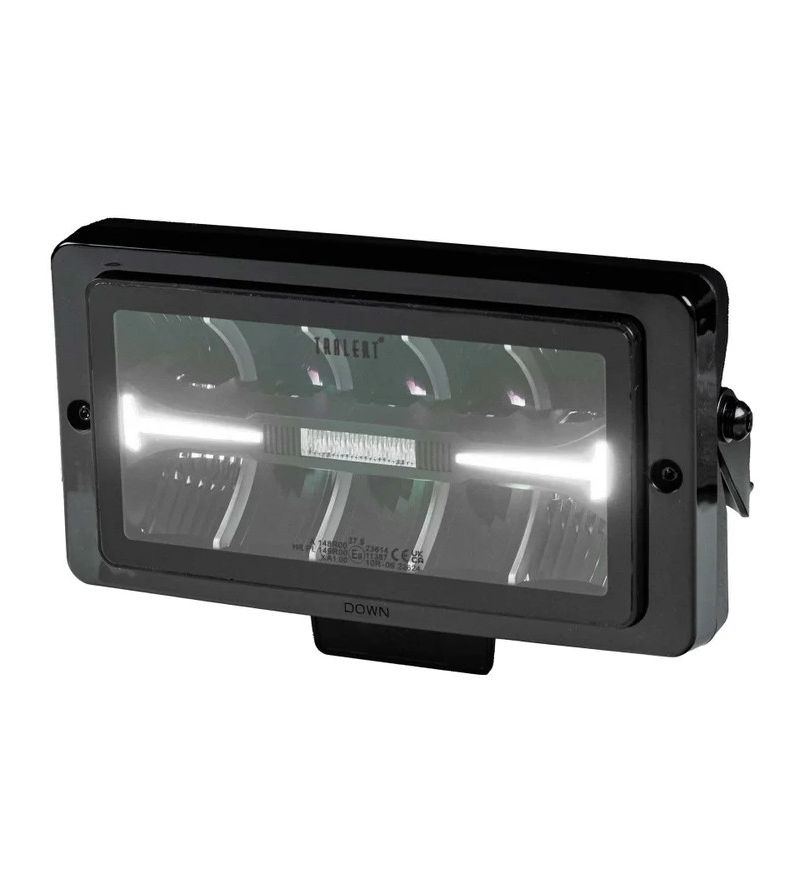

Driving light - Tralert - Atlas 220+ - 9.5" - 24.2cm - Smoke - Position light White/Amber - 1 flash pattern - Driving
€174.95(tax incl.)
€144.59 (tax excl.)
- Reference: WD-5860A
- Producttype: Driving light
- Dimensions (mm): 242 (w) x 132 (h) x 89 (d)
- E-mark: Yes
- Strobe function: 1 flash pattern
- Beam type: Driving
- Sales unit: Single item
- Standard delivery time: 1-3 business days
🚛 Classic shape, modern power: Atlas 220+ LED spotlight with strobe!
...Continue
🚛 Classic shape, modern power: Atlas 220+ LED spotlight with strobe!

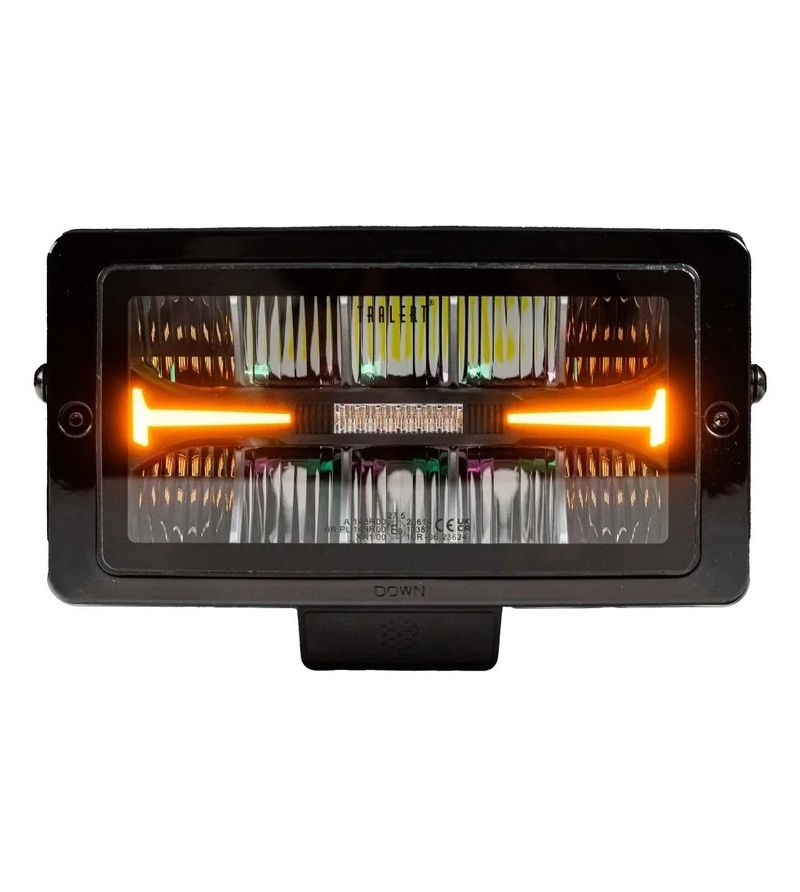

Upgrade your truck’s look and safety with the TRALERT® Atlas 220+ – a tough, rectangular LED spotlight with dual-color DRL (white/amber) and a built-in R65 certified LED strobe. The perfect blend of performance and style!
- 💡 6,000 lumen output – powerful and clear
- ⚡ 58W power – ideal for professional use
- 🌧️ IP69K-rated – pressure-washer resistant

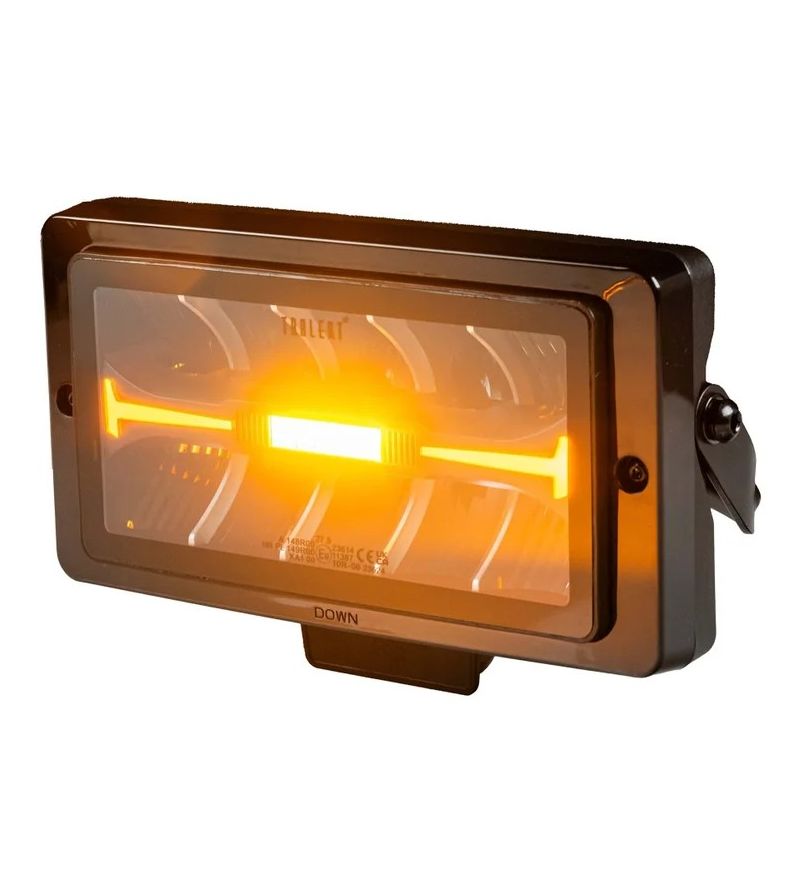

- 🚨 Built-in strobe – R65 Class 1 certified

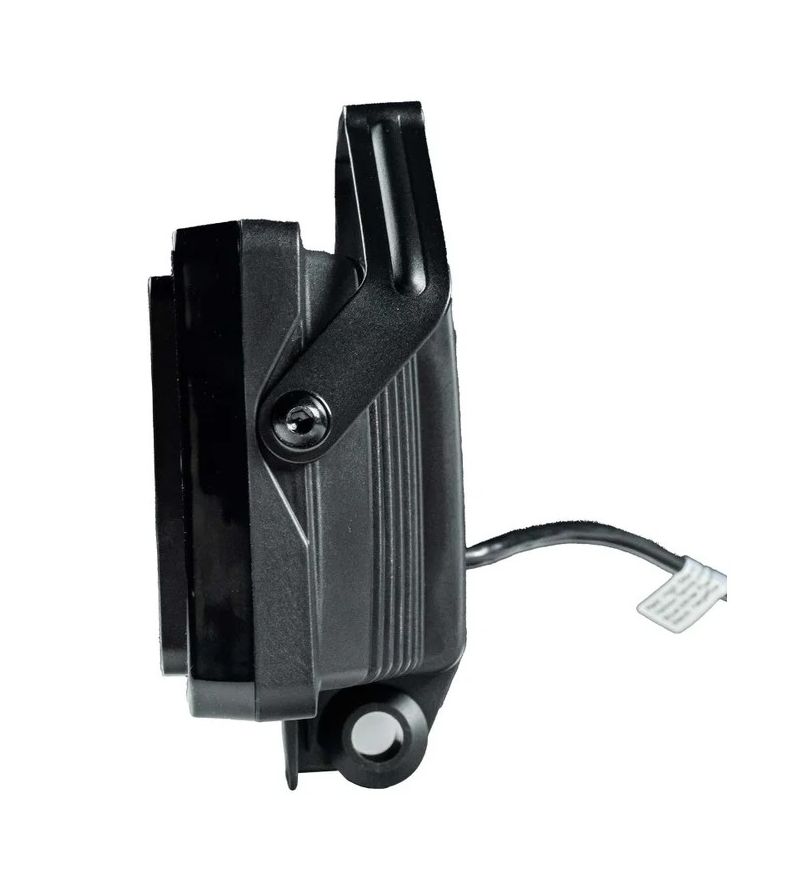

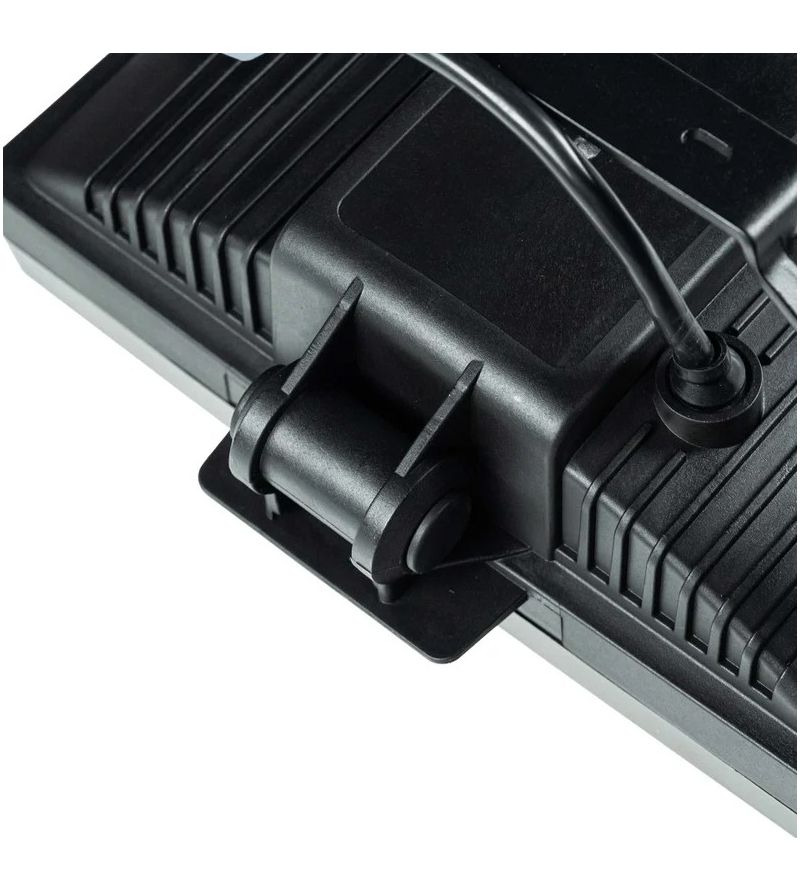

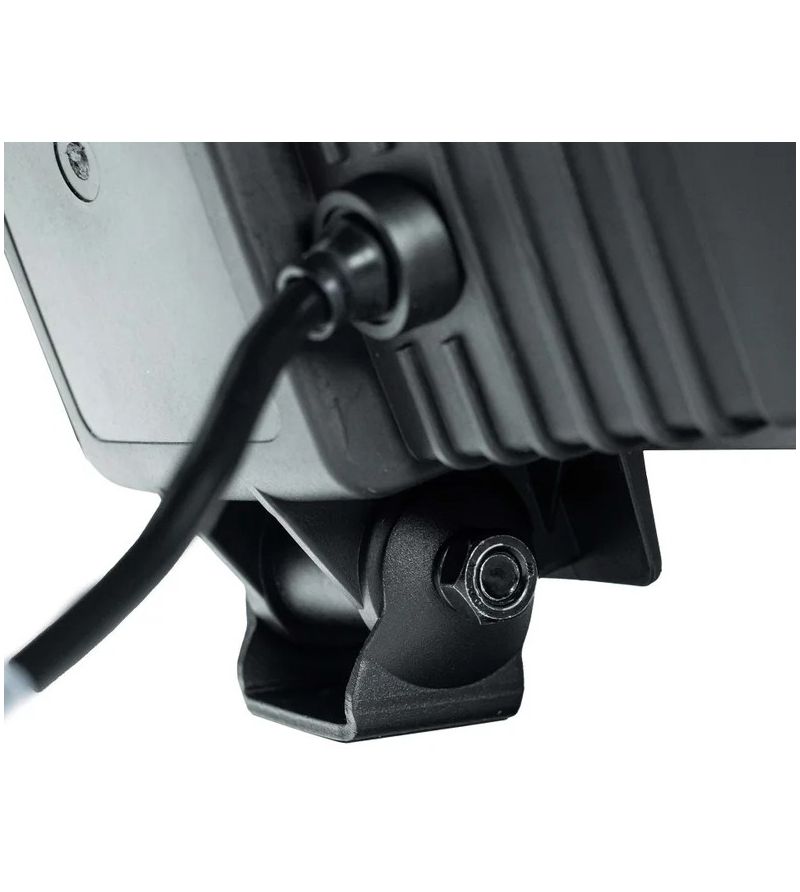

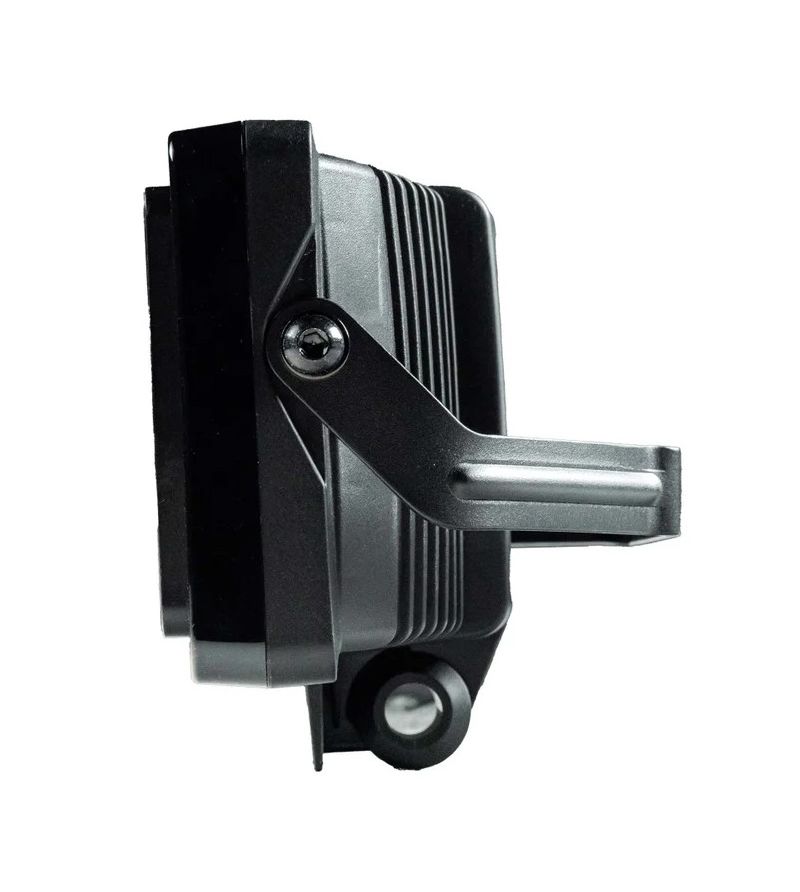

- 🔧 Flexible mounting – upright or hanging with rotatable unit
✅ Fully certified
Approved under ECE R10, R148, R149, and R65 Class 1, the Atlas 220+ is ready for road use across Europe. Comes with 300cm cable and open wire ends for easy connection and syncing up to 6 strobes.
🔍 Technical details

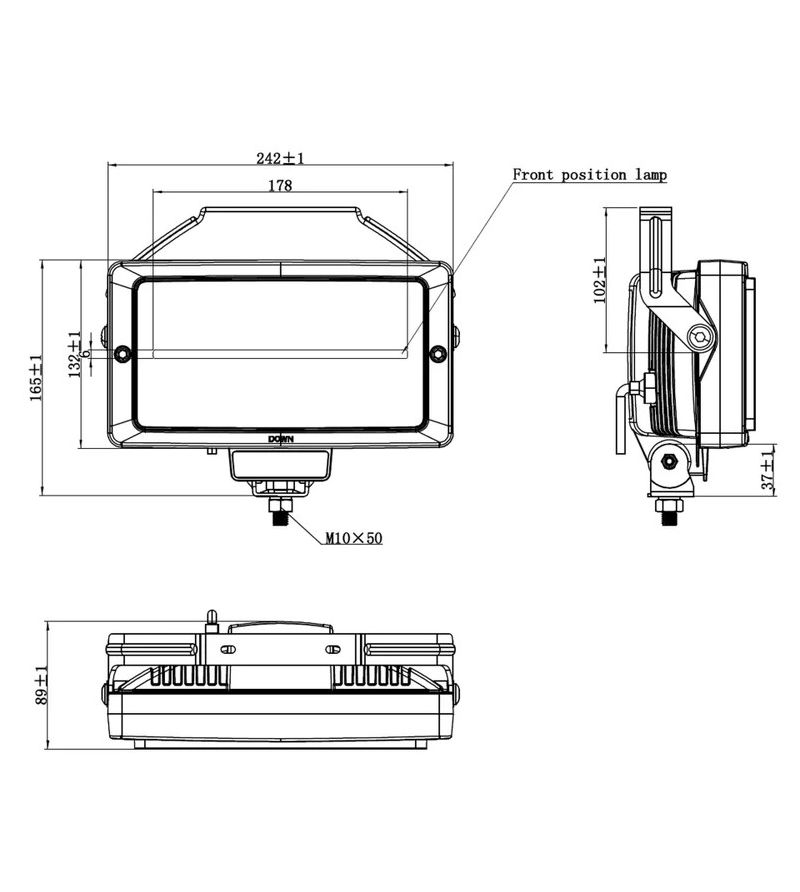

- Dimensions: 242 x 132 x 89.2 mm
- Voltage: 12–24V
- Current draw: 12V: 2.85A / 24V: 1.38A
- Beam pattern: Driving Beam
- Beam range: 1 lux @ 280 m
- DRL colors: Amber & White
🛡️ Rugged & reliable

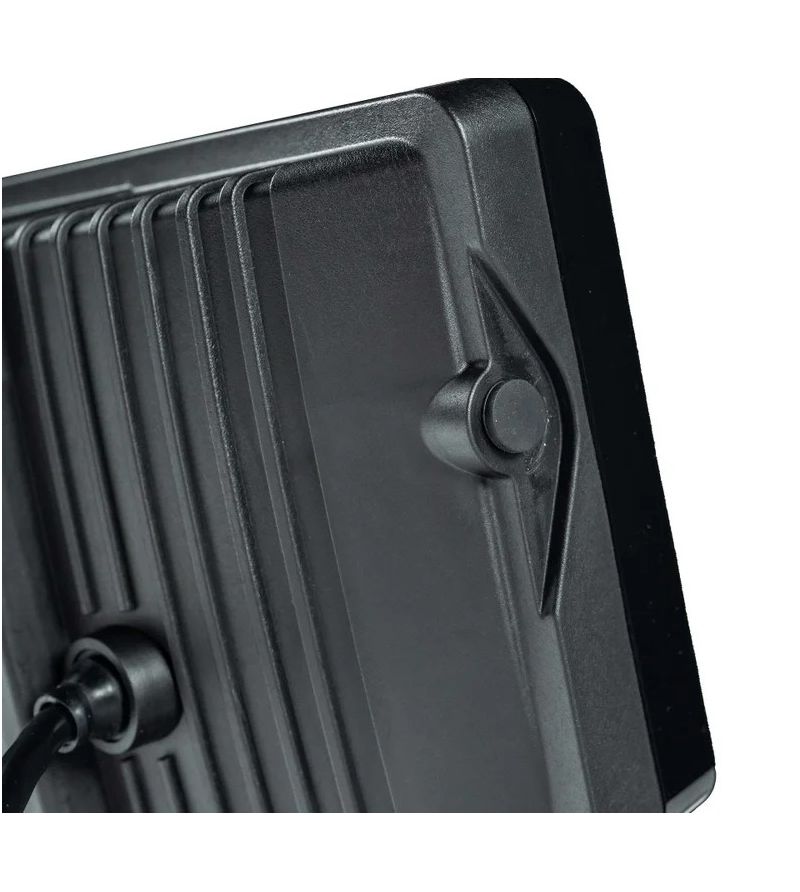

The polycarbonate housing and IP69K rating ensure long-lasting performance in all conditions. Backed by a 3-year TRALERT® warranty for complete peace of mind.
Choose the Atlas 220+ for next-level visibility, safety, and style!
WD-5860A
Data sheet
- General: Accessory
- Lighting
- General: Producttype
- Driving light
- General: Product serie
- Atlas
- General: Serial model
- 220+
- Dimensions and weight: Size ( Ø / ↔ )
- 3) Large
- General: Shape
- Rectangular / Oval
- Dimensions and weight: Width (mm)
- 242
- Dimensions and weight: Height (mm)
- 132
- Dimensions and weight: Depth (mm)
- 89
- Light and vision: Beam type
- Driving
- Light and vision: Light type
- LED
- Light and vision: Lighting - type
- Driving light
- Light and vision: Light color
- White
- design and material: Glass color
- Smoke
- Light and vision: Position light
- Position light
- Light and vision: Color of position light
- Amber
White - Lights and vision: Signal lights
- Flash light
- Light and vision: Strobe function
- 1 flash pattern
- Light and vision: Lumen
- 6000
- Lights and vision: Light distance (m) at 1 lux
- 280
- certifications and delivery: E-mark
- Yes
- certifications and delivery: Certifications
- R10
R148
R149
R65 - Technical specifications: Voltage
- 12V
18V
24V - Technical specifications: Watts
- 58W
- Technical specifications: Number of pins
- 6 pins
- Technical specifications: Connector
- Cable
- Technical specifications: Cable Length (cm)
- 300
- design and material: Housing color
- Black
- certifications and delivery: IP rating
- IP69K
- certifications and delivery: What is delivered
- 1 light
General manual

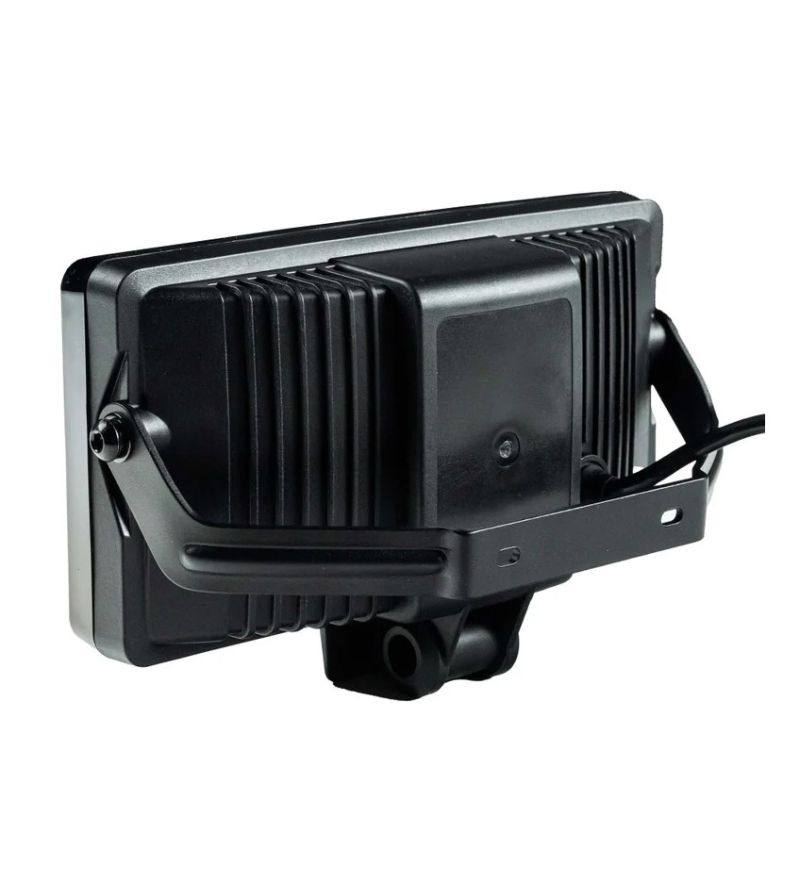

Mounting bracket

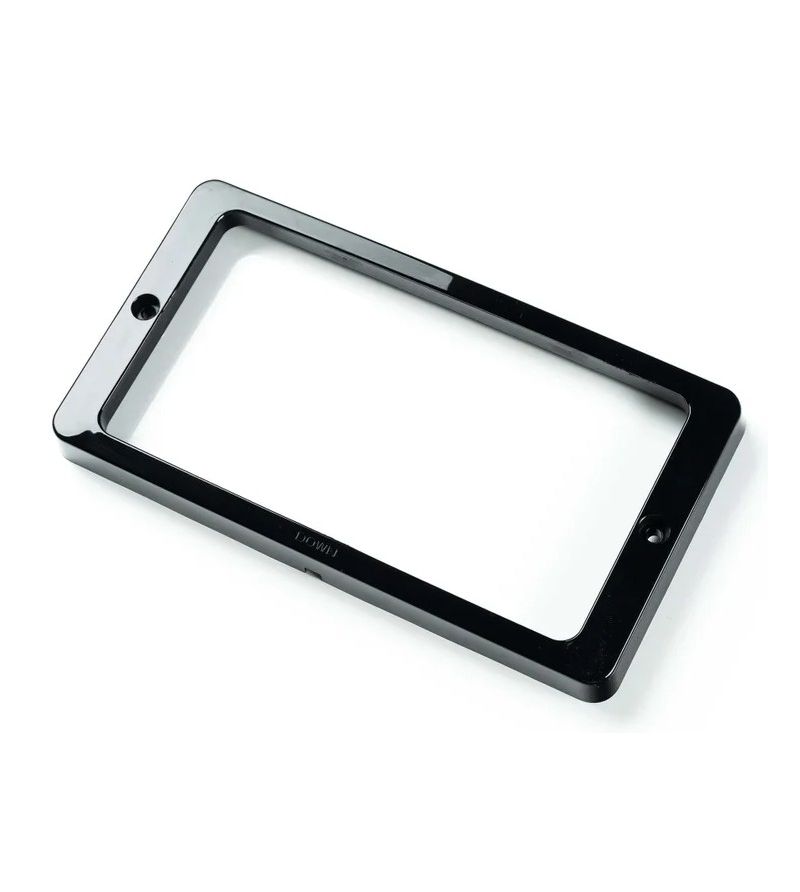

Mounting frame - fit and mounting: Mount
- Normal
- certifications and delivery: Sales unit
- Single item
- certifications and delivery: Standard delivery time
- 1-3 business days
- Size in inches
- 9.5
- Size in cm
- 24.2
- fit and mounting: Note!
- Also fits in the housing of the Hella Jumbo 220
- Prodcat1
- M
- Shipping Size
- Standard
- certifications and delivery: Warranty
- 3 year
- certifications and delivery: IR-code
- a0..st
Specific References
- UPC
- 1
- EAN13
- 8720364584153
