Work light - Ledson - Helix - Work Strobe - 1 flash pattern - Work / Scene

€99.50 (tax incl.)

€82.23 (tax excl.)

  • Reference: 33492418
  • Producttype: Work light
  • Dimensions (mm): 164 (w) x 41 (h) x 61 (d)
  • E-mark: yes
  • Strobe function: 1 flash pattern
  • Strobe Approval: R65
  • Beam type: Work / Scene
  • Sales unit: Single item
  • Standard Delivery time: 1-3 business days
x
...Continue

Work-Scene Beam Pattern

Quantity

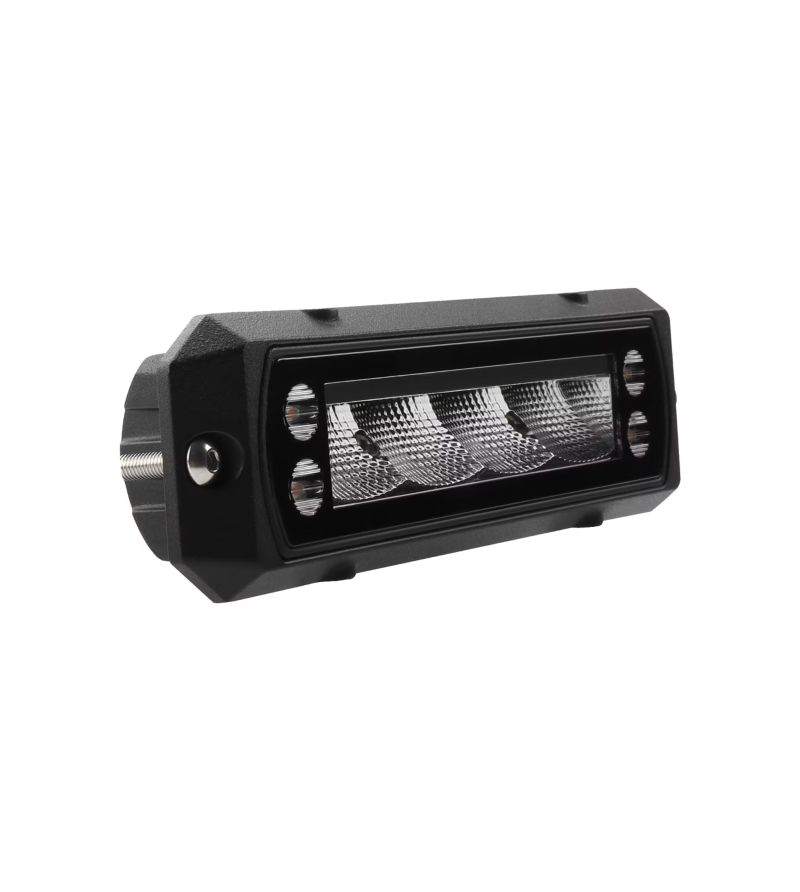

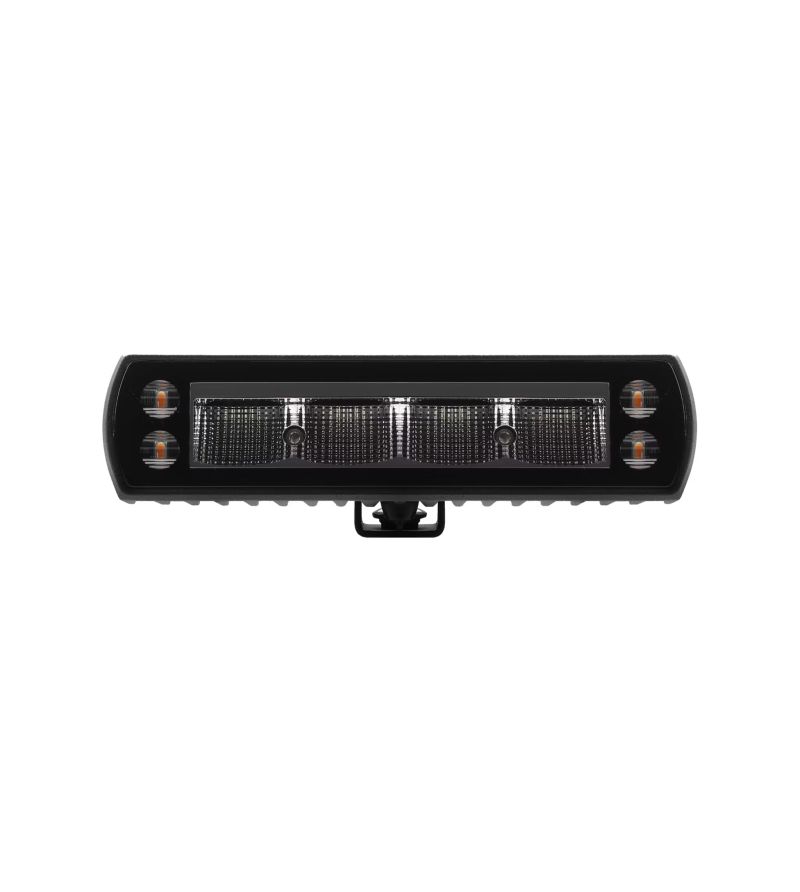

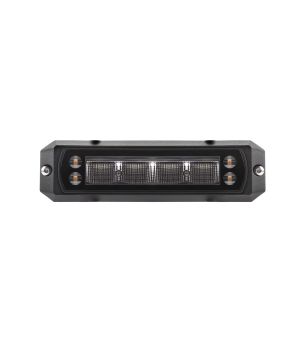

Ledson Helix Reversing lamp / Work lamp with strobe flash

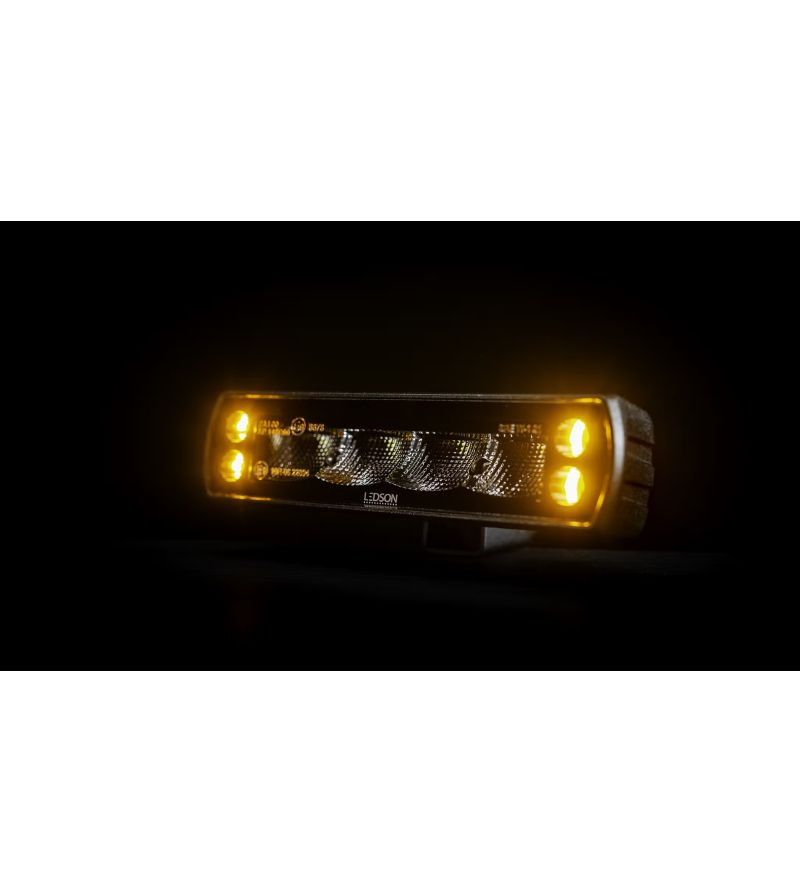

✓ Helix reversing light with flash light
✓ A multifunctional lamp that makes it all easier!
✓ E-marked ECE R23 and R65

The Ledson Helix is an E-marked reversing light that, in addition to lighting up well behind you, also has an approved flash light. With two functions in one product, you save space on the vehicle and simplify your installation!

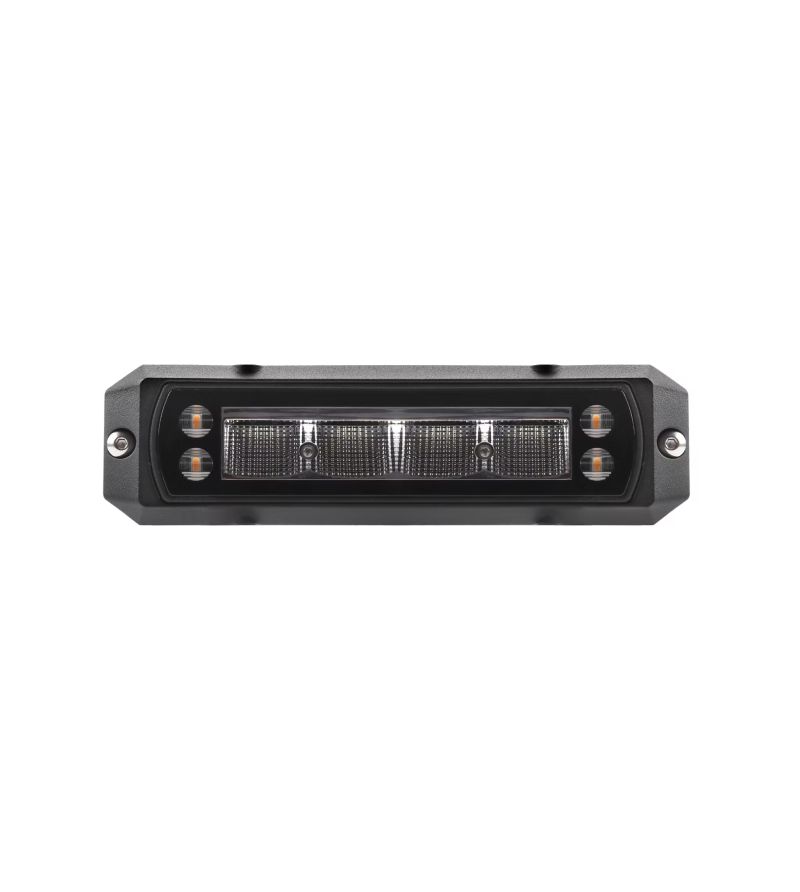

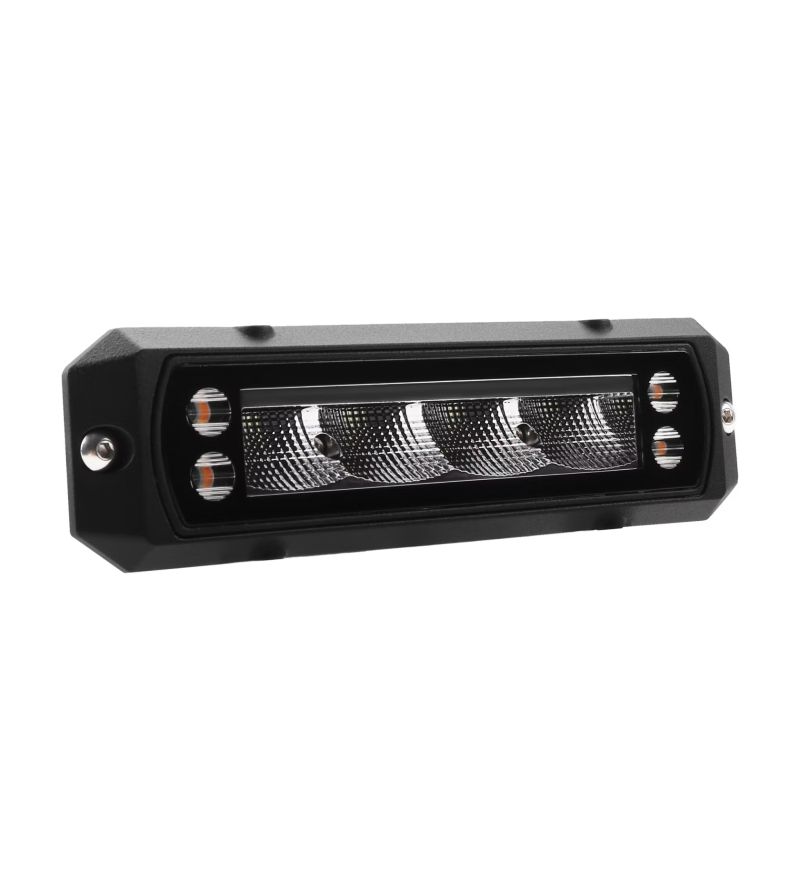

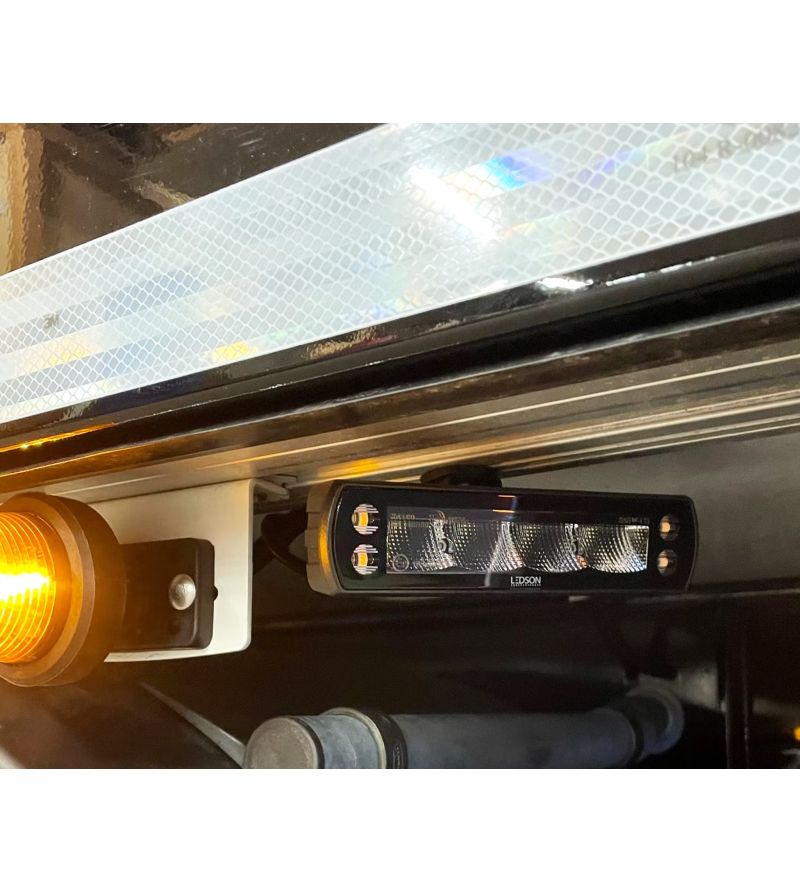

Helix can be mounted upright, hanging or flush-mounted.

Characteristics:

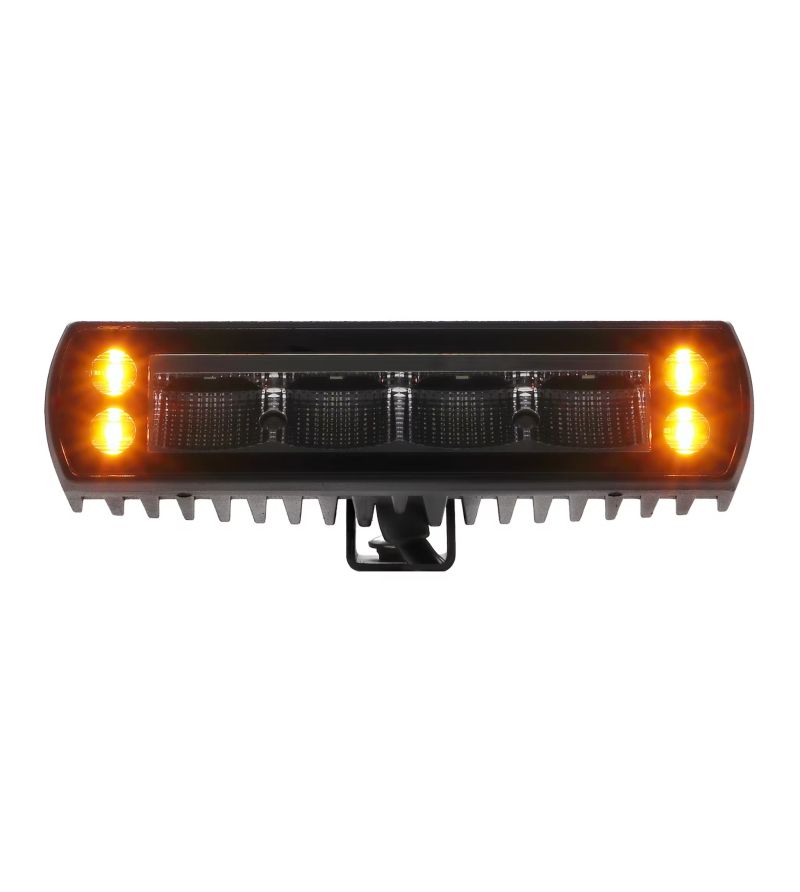

E-marked reversing light equipped with approved flash light
ECE R23, R65, R10, CISPR25 class 3

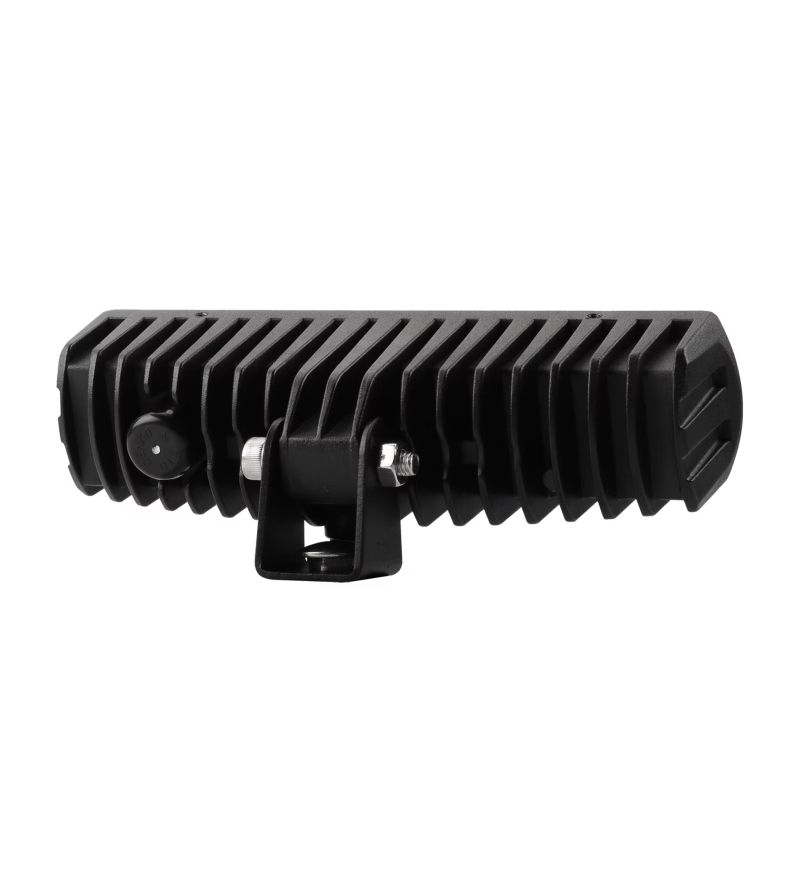

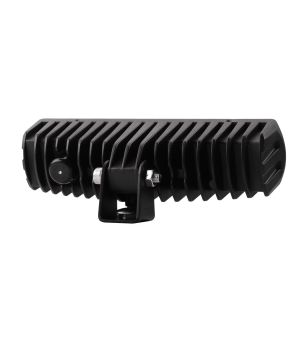

Includes bracket for upright/hanging & recessed mounting
River light image (wide light)
Lumens: 3200 (theoretical), 2700 (actual)
Side-reflecting optical system

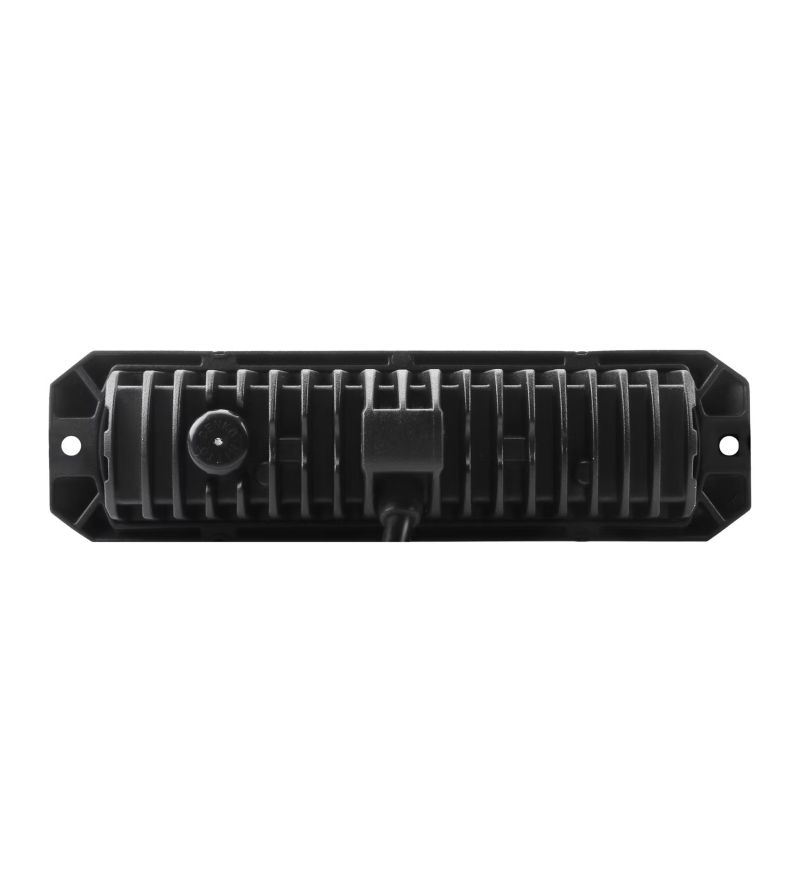

Electronic heat management
Cool white light (6000K)

Technical data:
4 x 8 W LED (reversing light) + 4 x 3 W LED (flash light)
Load 1.9 A at 12 V and 1 A at 24 V
IP69K (water/dustproof)
Voltage 9-36 V
Mounted 4-pin DT connector on the cable to prevent moisture ingress
Including DT female

Measuring unit:
Width: 164mm
Height: 41 mm excluding bracket
Depth: 61mm
Cable length: 30 cm

Cable installation instructions (detailed installation instructions included)

Red: Reversing light (+)
Black: Reversing light (- ground)
Yellow: Warning/flash light (+)
Green: Sync (+) Connection when using multiple lamps at the same time

NOTE: The DT connector must not be cut as this increases the risk of moisture damage and will void the warranty. DT connector (male) with hinge supplied with the product.

More information
Attribute  Value
Color  Xenon white
Voltage  9-36 V
Ignition time, cold to full power  Instant
Manufacturer  Ledson
Scope of application  Outdoor use
Number of diodes  8 pieces
Warranty  24 months
Light source  LEDs
Delivered  part
E-marking  ECE R23, ECE R65
Equipped with  Reversing light, flash light
Number of contacts  1 x DT connector
Type of light image  Flood

33492418 7323230037442

Data sheet

Accessory
Lighting
Producttype
Work light
Product serie
Helix
Version
Work Strobe
Series
Lights & Styling
Size ( Ø / ↔ )
2) Medium
Shape
Ledbar
Width (mm)
164
Height (mm)
41
Depth (mm)
61
Beam type
Work / Scene
Light type
LED
Lighting - Type
Reverse light
Signal light
Work light
Light color
White
Position light
No position light
Signal lights
Flash light
Strobe function
1 flash pattern
E-mark
yes
ECE approval
R23
R65
Glass color
Clear
Chrome / RVS
no
Housing color
black
Housing material
Aluminum
Lamp rim color
black
Lamp rim material
Aluminum
IP rating
IP69K

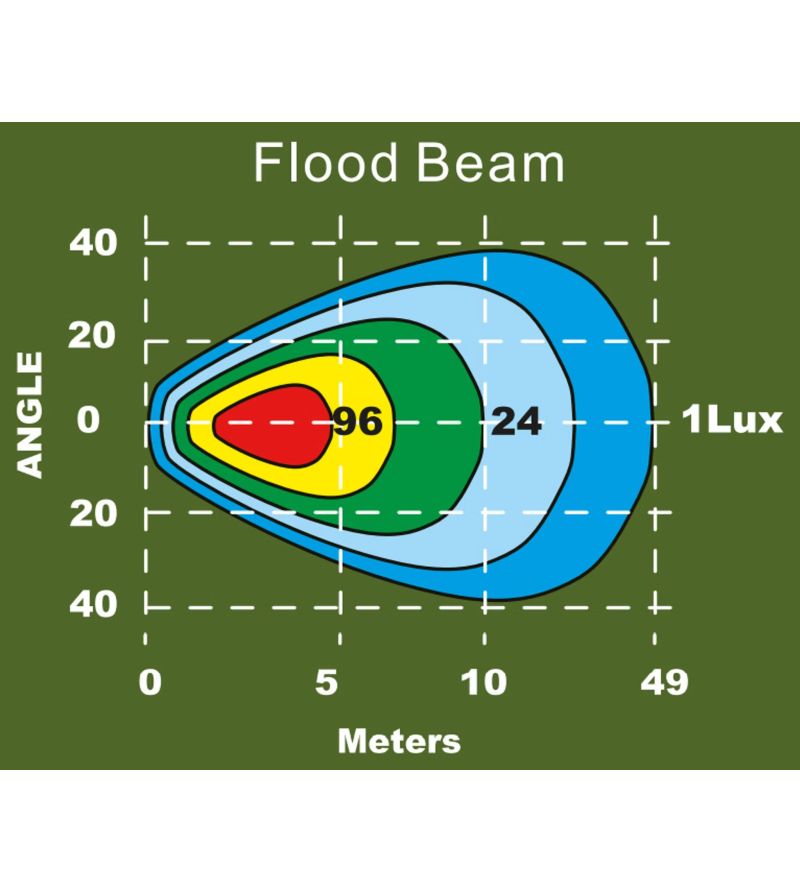

Light distance (m) at 1 lux
49
Voltage
12V
18V
24V
30V
36V
LEDs per lamp
4
Wattage per LED
8W
number of pins
4 pins
Connector
Deutsch DT
Cable Length (cm)
30
Vehicle brand
Universal
Sales unit
Single item
Standard Delivery time
1-3 business days
prodcat1
M
Shipping Size
S

Specific References
