Work light - Lazer - Utility 25 - Maxx - 3'' - Work / Scene Work light - Lazer - Utility 25 - Maxx - 3'' - Work / Scene
Work light - Lazer - Utility 25 - Maxx - 3'' - Work / Scene

Work light - Lazer - Utility 25 - Maxx - 3'' - Work / Scene

€139.95 (tax incl.)

€115.66 (tax excl.)

  • Reference: 00U25-MAXX-B
  • Producttype: Work light

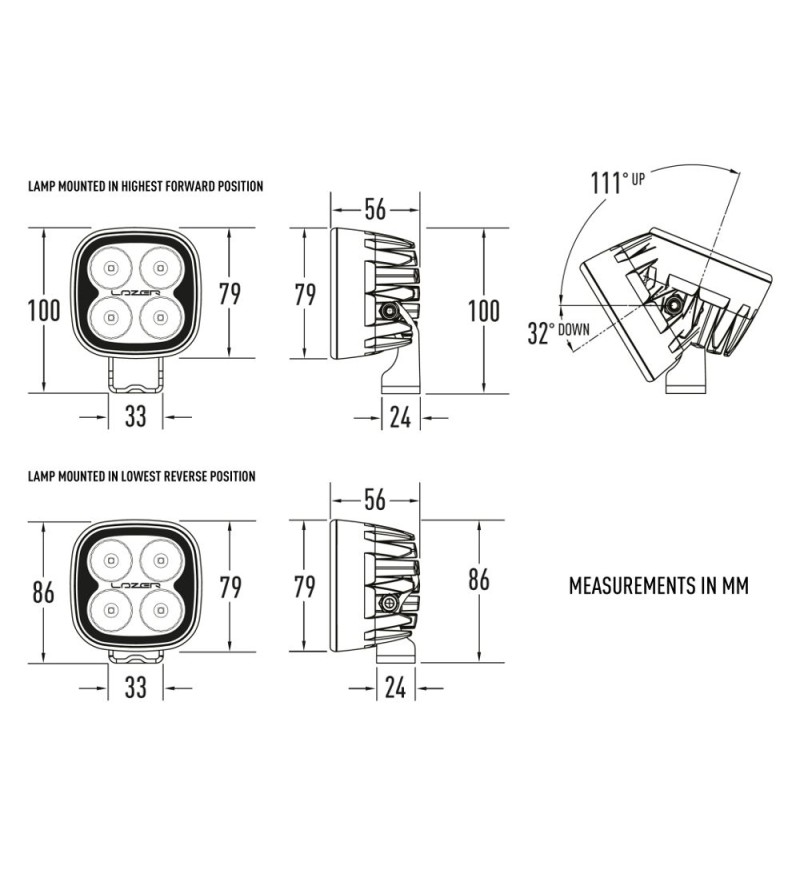

  • Dimensions (mm): 79 (w) x 79 (h) x 56 (d)
  • E-mark: yes
  • Beam type: Work / Scene
  • Sales unit: Single item
  • Standard Delivery time: 1-3 business days
The Utility-25 MAXX is a powerful LED work light that sets new standards. With a compact 80x80mm housing and 11W LEDs, this lamp delivers exceptional performance. Robust and versatile, it's perfect for demanding applications.
...Continue

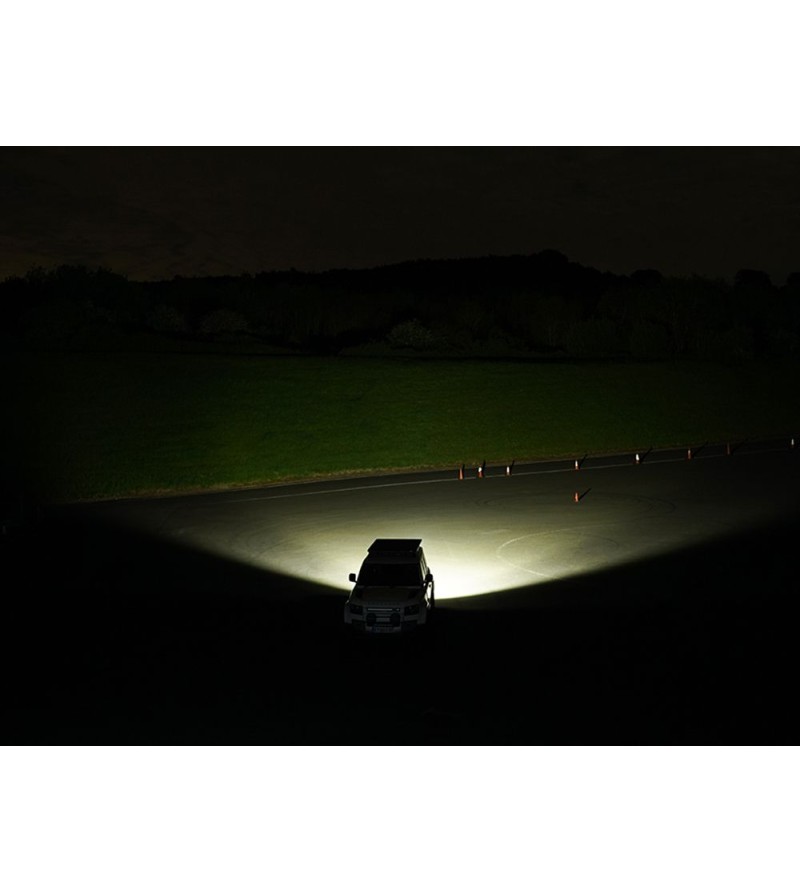

Work-Scene Beam Pattern

Quantity

Lazer Utility 25 MAXX

What's Included:

  • 1x Utility-25 MAXX Work Lamp
  • 1x Utility-25 Centre Mount

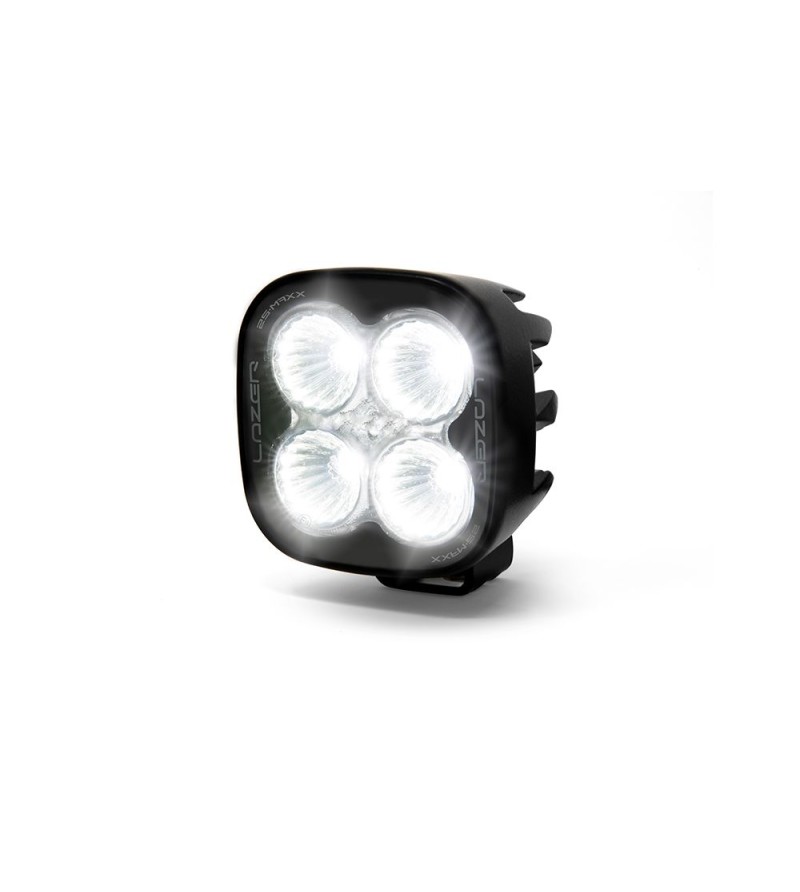

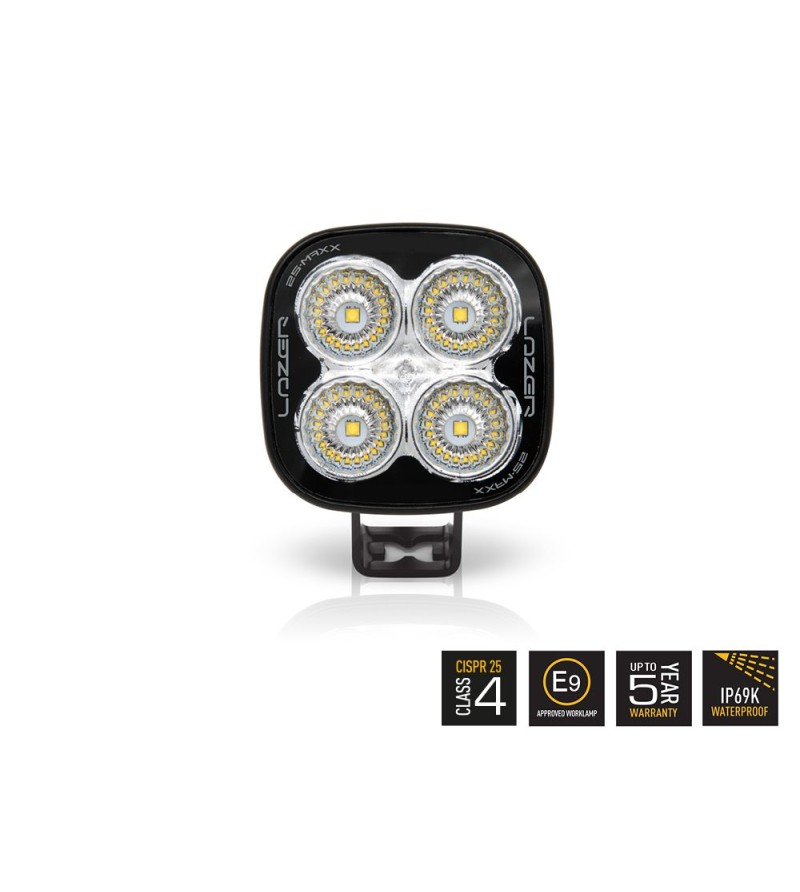

Utility 25 MAXX

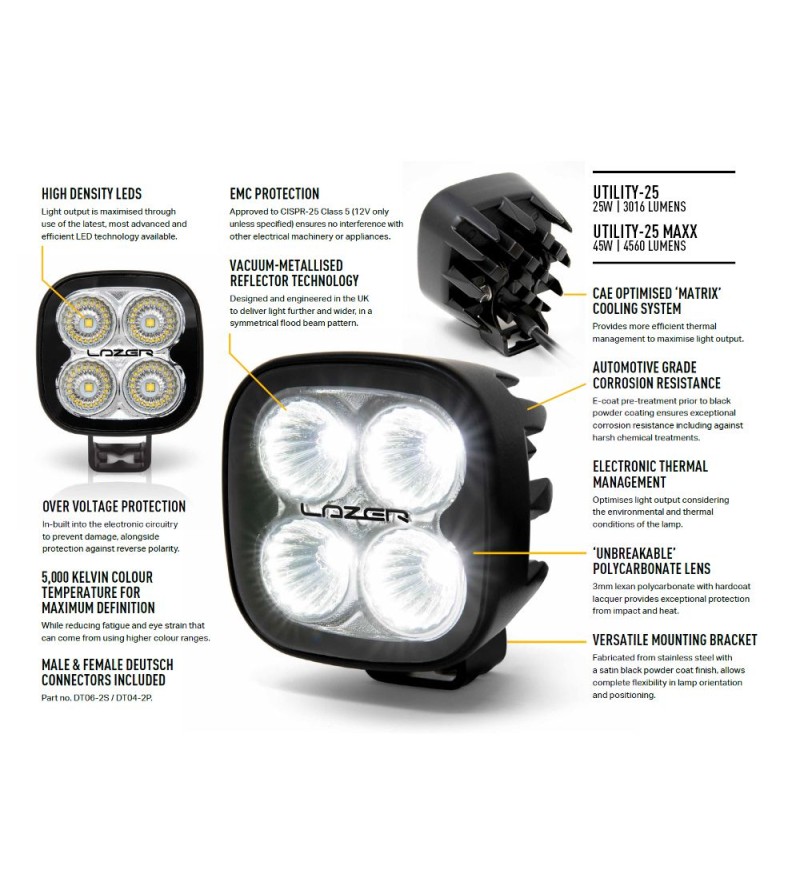

The latest LED work light from Lazer Lamps, the Utility-25 MAXX, is a versatile medium-duty work light. With powerful 11W LEDs, this lamp provides impressive illumination despite its compact size. This is made possible by advanced LED technology and a robust design. The Utility-25 MAXX shares the durable features of the larger Utility-45 and Utility-80, delivering constant, reliable lighting for a variety of applications and vehicles.

General Features

  • Voltage Range (DC): 10-32V
  • LED Lifespan: 50,000 hours
  • Weight: 360 grams

High Beam Function

  • Total Light Output: 4560 lumens
  • Color Temperature: 5000K
  • Power: 45 Watts
  • Current Draw (at 14.4V): 3.1 Amperes
  • Connector: 2-Pin Deutsch DT (+28 cm cable)

Certifications

  • IP Rating: IP68 / IP69K
  • EMC Standard: ECE R10
  • EMC Protection: CISPR-25 (Class 4)
  • Salt Spray Test: ISO 9227
  • Dump Load Protection: ISO 7637-2

Operating Conditions

  • Operating Temperature: -40°C to +90°C
  • Vibration (BS EN 60068-2-64): 10Hz > 1000Hz, 0.14 > 20 (m/s²)²/Hz

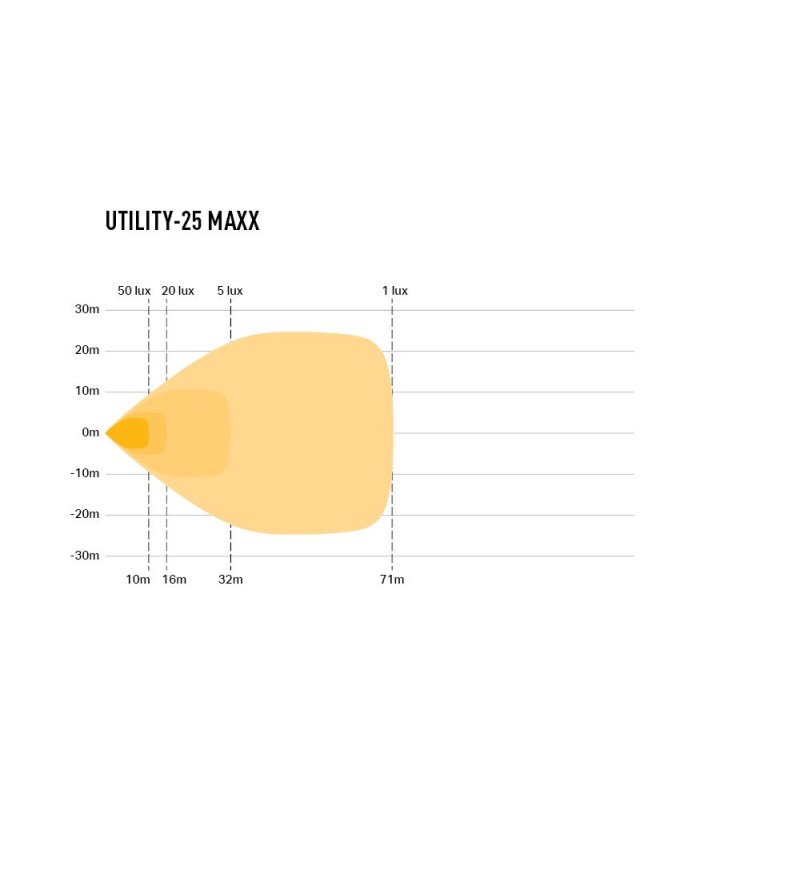

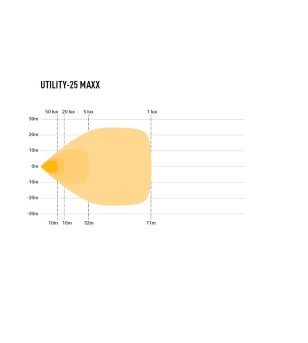

Photometric Data

  • Horizontal / Vertical Beam Angle: 78° / 78°
  • 1 Lux Range: 71 meters
  • 5 Lux Range: 32 meters
  • 20 Lux Range: 16 meters
  • 50 Lux Range: 10 meters
00U25-MAXX-B 5060404996540

Data sheet

Accessory
Lighting
Producttype
Work light
Product serie
Utility
Serial model
25
Version
Maxx
Series
Lazer Utility
Size ( Ø / ↔ )
1) Compact
Shape
Led Pod
Width (mm)
79
Height (mm)
79
Depth (mm)
56
Beam type
Work / Scene
Light type
LED
Lighting - Type
Work light
Light color
White
Position light
No position light
Color temperature
5000K
E-mark
yes
ECE approval
R10
Glass color
Clear
Chrome / RVS
no
Housing color
black
Housing material
Aluminum
Lamp rim color
black
Lamp rim material
Aluminum
IP rating
IP68
IP69K
Lumen
4500
Light distance (m) at 1 lux
71
Voltage
12V
18V
24V
30V
LEDs per lamp
4
Wattage per LED
11W
number of pins
2 pins
Connector
Deutsch DT
Sales unit
Single item
Standard Delivery time
1-3 business days
prodcat1
H
Shipping Size
S
