Grille kit - Lazer - Linear 18 - Land Rover - Defender - 2020+

Land Rover Defender 2020+ Lazer Grille Mount Kit

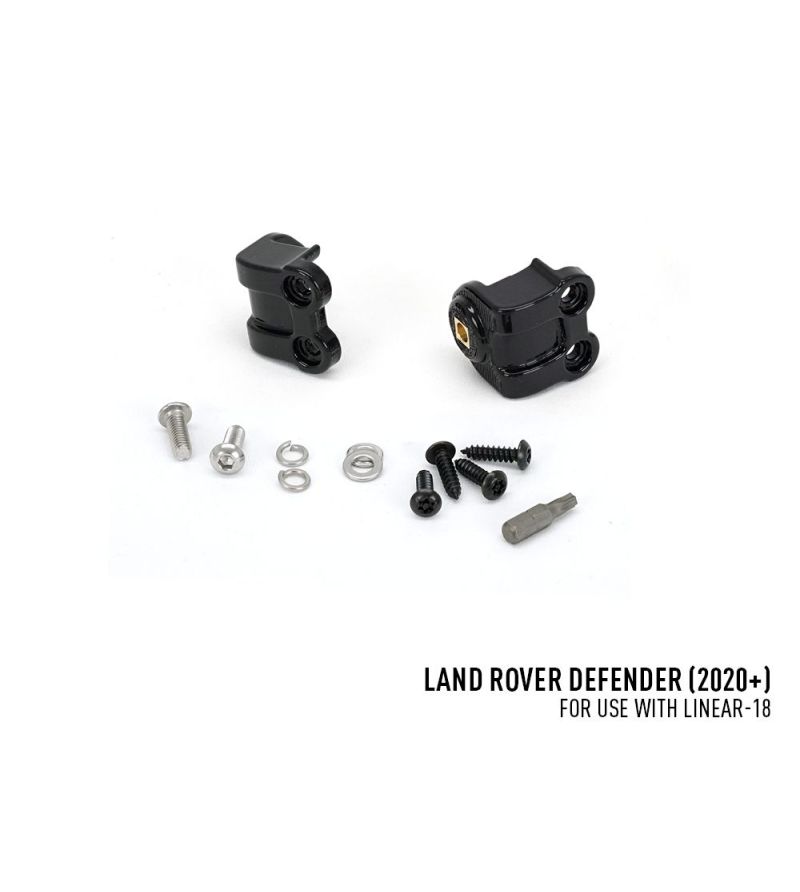

What is supplied:

• 1x Grille Mounting Kit (Including cutting guides)
• 1x Linear-18 or 1x Linear-18 Elite
• 1x wiring kit for one lamp
• 1x Installation instructions

For an OE quality, additional LED spotlight installation, the Lazer Grille Integration Kits include custom mounting brackets that allow Lazer High Performance LED Spotlights to be quickly and easily mounted in the front grille of the most popular road cars, pickup trucks and light commercial vehicles . Designed to blend seamlessly into each vehicle's original styling, the resulting lighting setup remains fully robust and secure, with added protection against theft.

The Land Rover Defender kit, designed for MY20 vehicles and later, includes either a pair of Triple-R 750 (Standard or Elite) or a single Linear-18 (Standard, Elite and Elite with I-LBA) High Performance LED Driving Lights , plus wiring kit, along with 4x brackets precision engineered to fit perfectly into the vehicle's standard lower grille, with added strength and security provided by the included self-tapping, anti-theft screws. Made from a composite material, known for its excellent strength and UV stability, the brackets are completely weather and chemical resistant to ensure that your installation remains in good condition year after year.

Supplied along with the mounting brackets is a set of cutting guides designed to ease installation and ensure a perfect fit every time.

The Land Rover Defender (2020+) Grille Integration Kit is optimized for use with Triple-R 750 or Linear-18 High Performance LED driving lights. Our warranty does not cover grille mounts fitted to non-Lazer Lamps products.

Product Features
Custom vehicle integration kit for installation of Lazer LED Spotlight
Tailored for Land Rover Defender (2020+)
Designed for use with Triple-R 750 or Linear-18 High Performance LED spots
Added option for white or amber position/sidelight function (standard model only)
The kit also includes custom mounting brackets and a wiring kit for two lights
Brackets made of high-strength, UV-stable composite material
Fully street legal
5 years warranty
Made in Great Britain


PAY ATTENTION! The Land Rover Defender (2020+) Grille Kit can be ordered with the Linear-18 and the Linear-18 Elite version.
Below are the technical specifications of the (1) Standard version and the (2) Elite version.

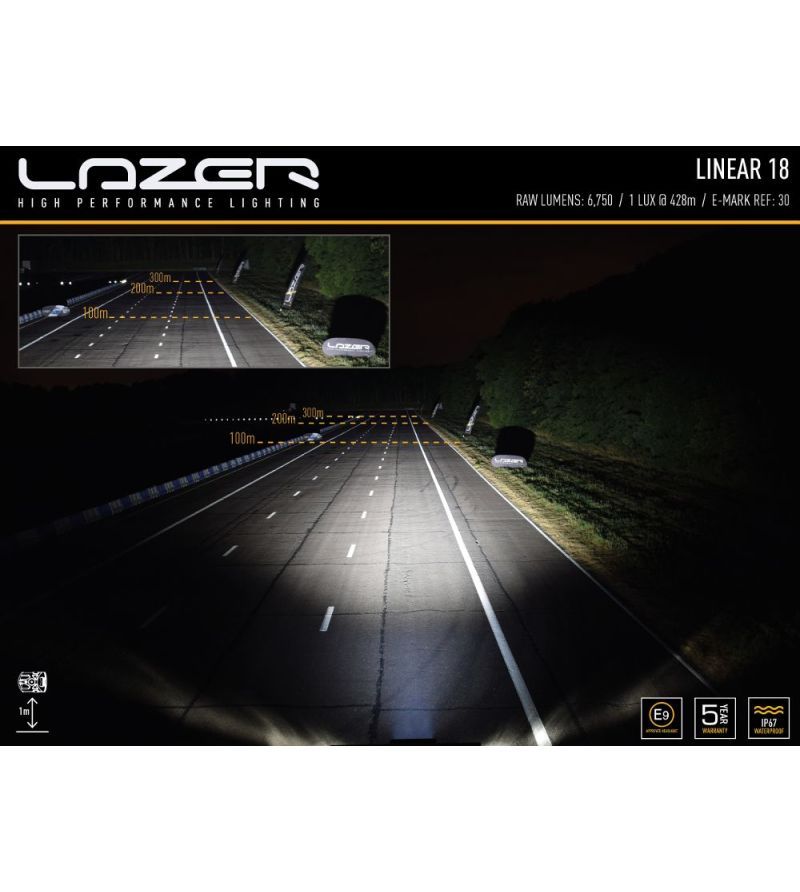

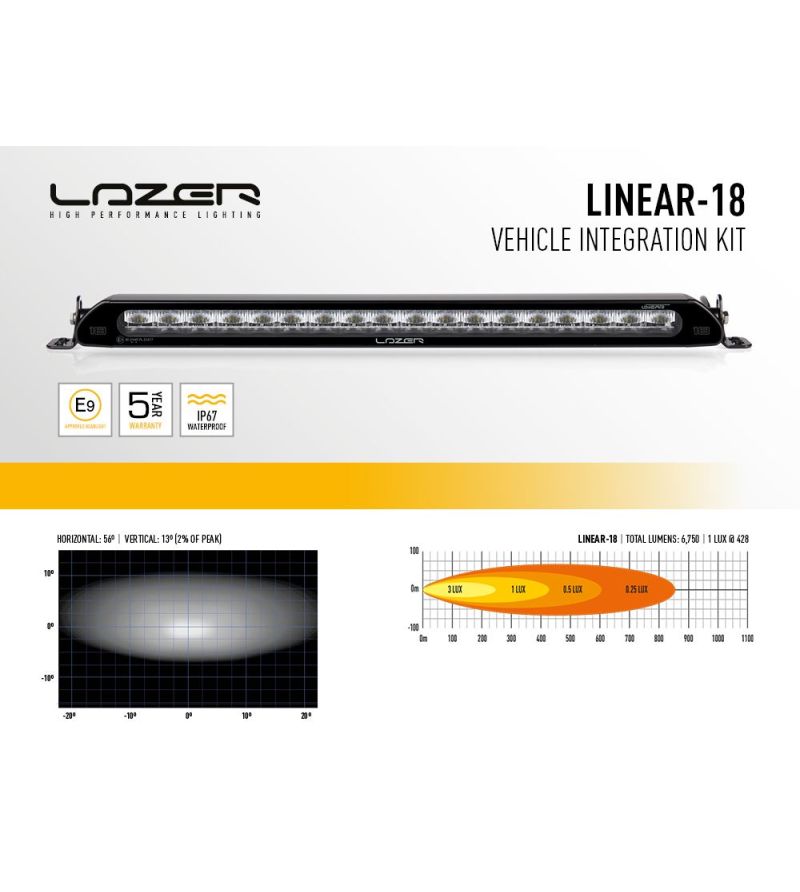

1. Technical Specifications of the Lazer Linear-18 Standard
Voltage range (DC): 10-32V
LED lifespan: 50,000 hours
Weight: 1 kilogram

High beam function
Total luminous flux: 6750 Lm
Total Driver 'FOV' Flux†: 4806 Lm
Color Temperature: 5000K
Number of LEDs: 18
Power consumption: 63 watts
Power consumption: 4.4 Amps

Certification
Main beam: ECE R112
ECE Reference: 30
Position light (white only): N/A

Photometric data
Horizontal beam angle: 56°
0.25 lx Line: 855 meters
0.5 lx Line: 605 meters
1 lx Line: 428 meters
3 lx Line: 247 meters

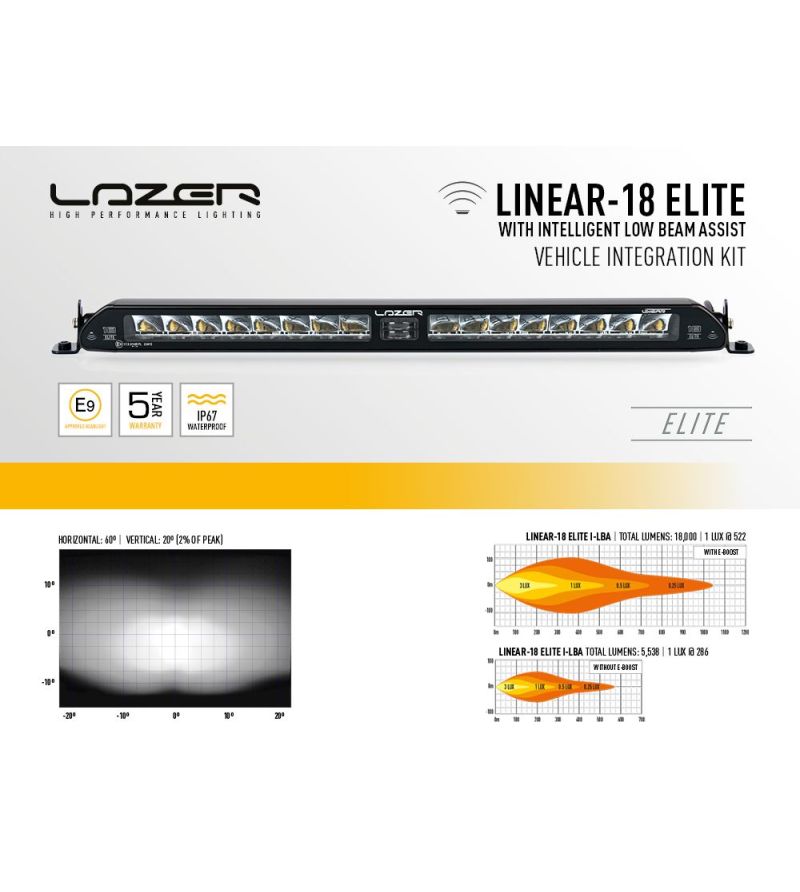

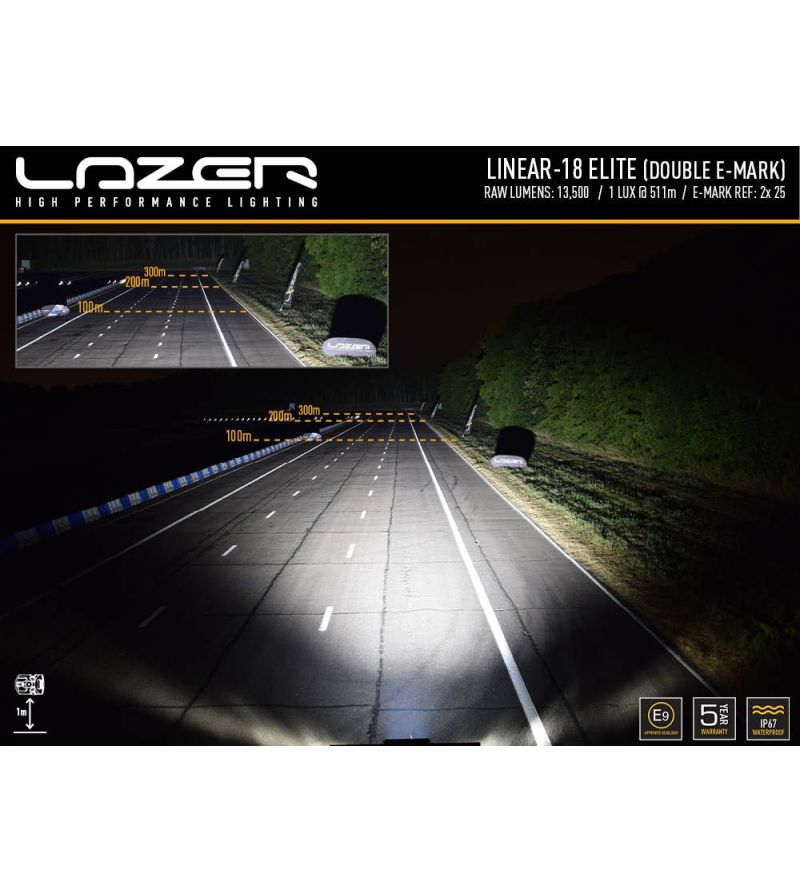

2. Technical specifications of the Lazer Linear-18 Elite (Dual E-mark)
Voltage range (DC): 10-32V
LED lifespan: 50,000 hours
Weight: 1 kilogram

High beam function
Total luminous flux: 13500 Lm
Total Driver 'FOV' Flux†: 9612 Lm
Color Temperature: 5000K
Number of LEDs: 36
Energy consumption: 130 watts
Power consumption: 9 amps

Certification
Main beam: ECE R112
ECE Reference: 25 x2
Position light (white only): ECE R7

Photometric data
Horizontal beam angle: 64°
0.25 lx Line: 1023 meters
0.5 lx Line: 723 meters
1 lx Line: 511 meters
3 lx Line: 295 meters

† Driver FOV flux is a measure of effective lumens considering the amount of light in a driver's 'field of view', defined as an area +/- 45o left/right and +/- 10o up/down.
