Grille kit - Lazer - Triple-R 750 - Isuzu - D-Max - 2020-2023

Isuzu D-Max (2021-2022) Grille Mount Kit

What is supplied:

• 1x Grille Mounting Kit (Including cutting guides)
• 2x Triple-R 750 LED lamps
• 1x wiring kit for two lamps
• 1x Installation instructions

For an additional OE quality floodlight fitment, the Lazer Grille Integration Kits include custom mounting brackets that allow Lazer High Performance LED Spotlights to be quickly and easily mounted in the front grille of the most popular road cars, pickup trucks and light commercial vehicles . vehicles. Designed to blend seamlessly into each vehicle's original styling, the resulting lighting setup remains fully robust and secure, with added protection against theft.

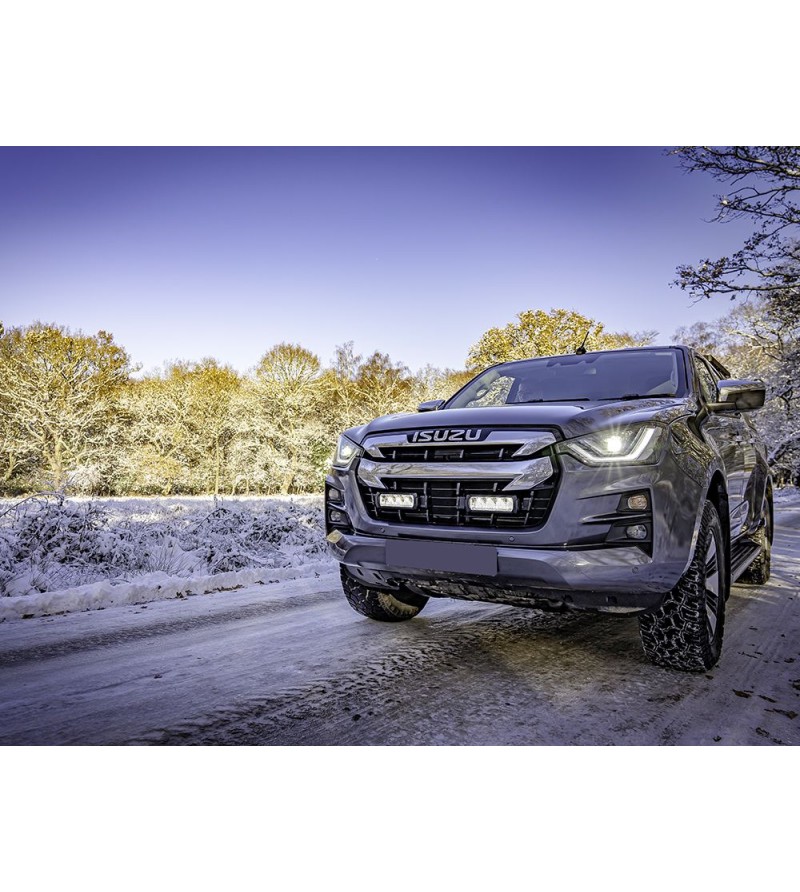

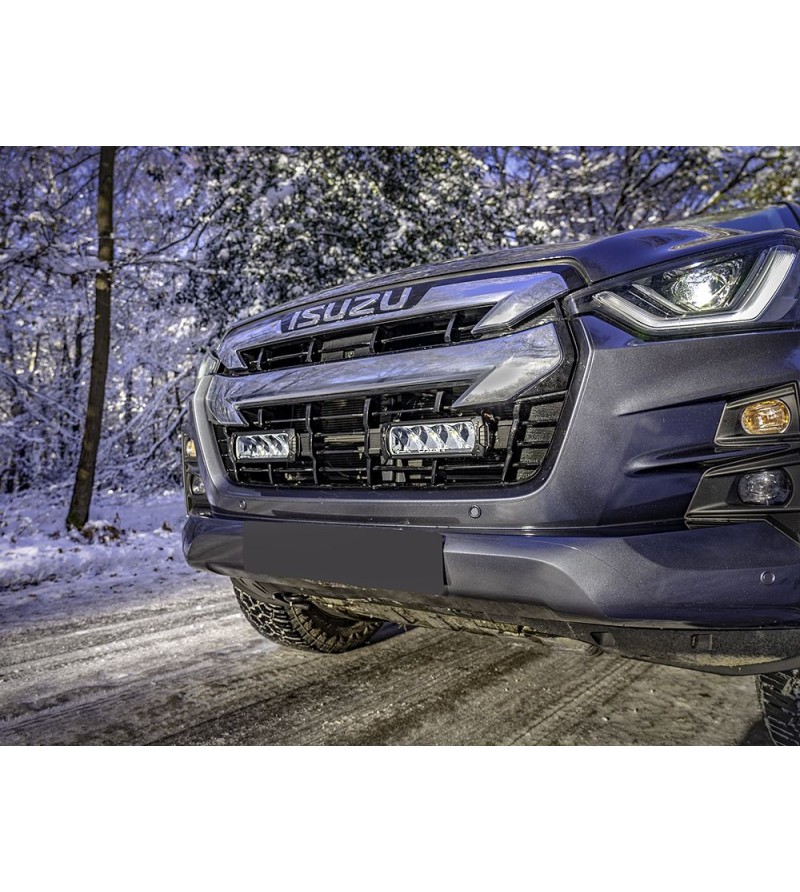

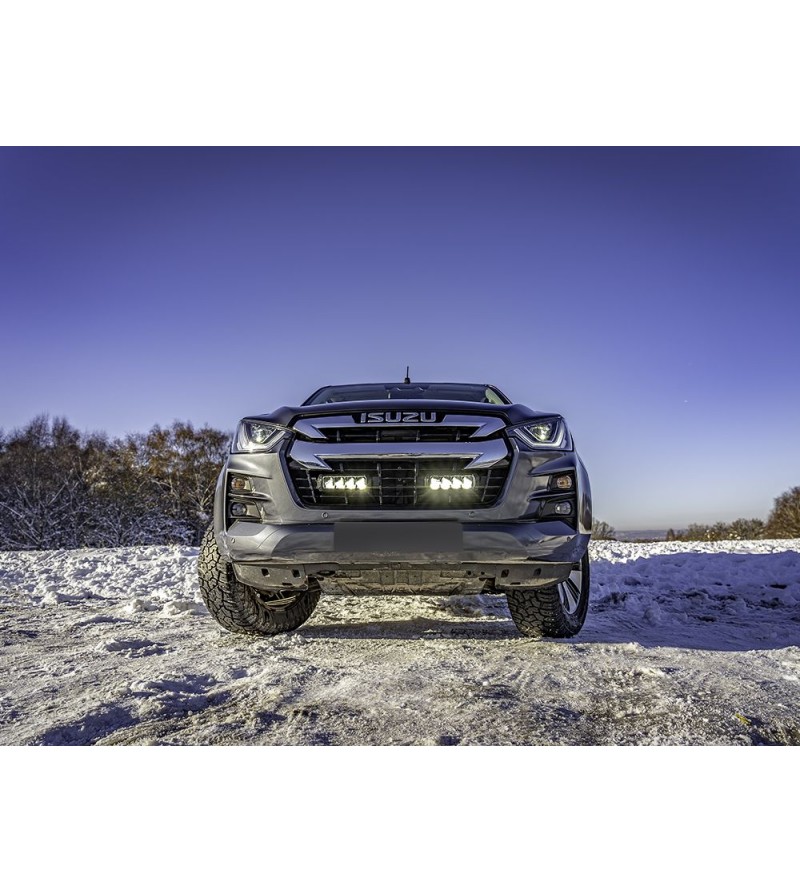

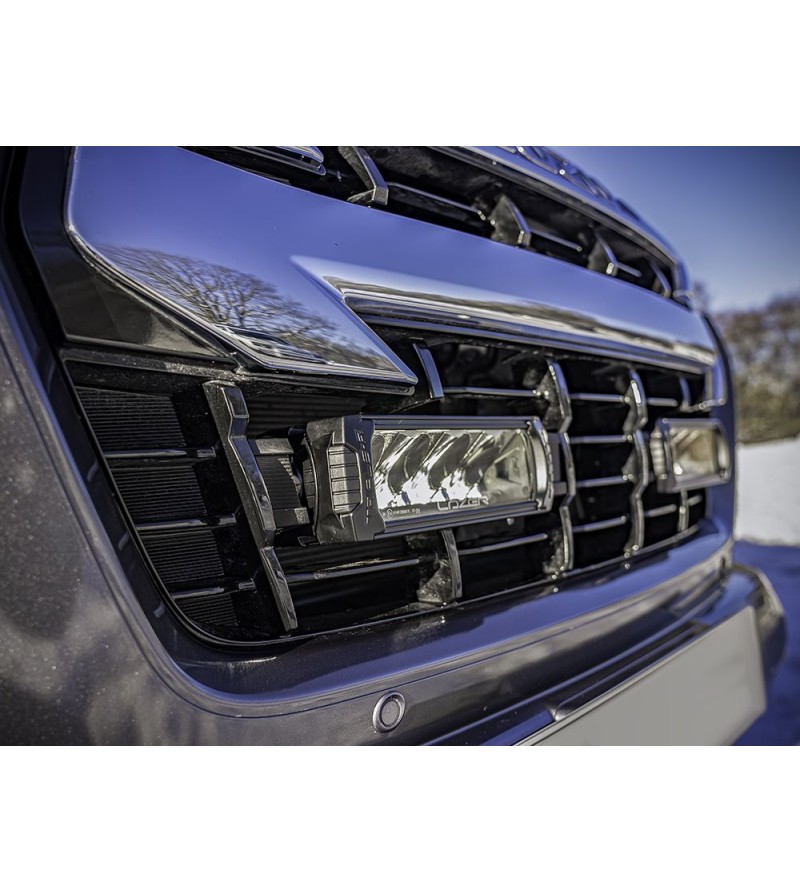

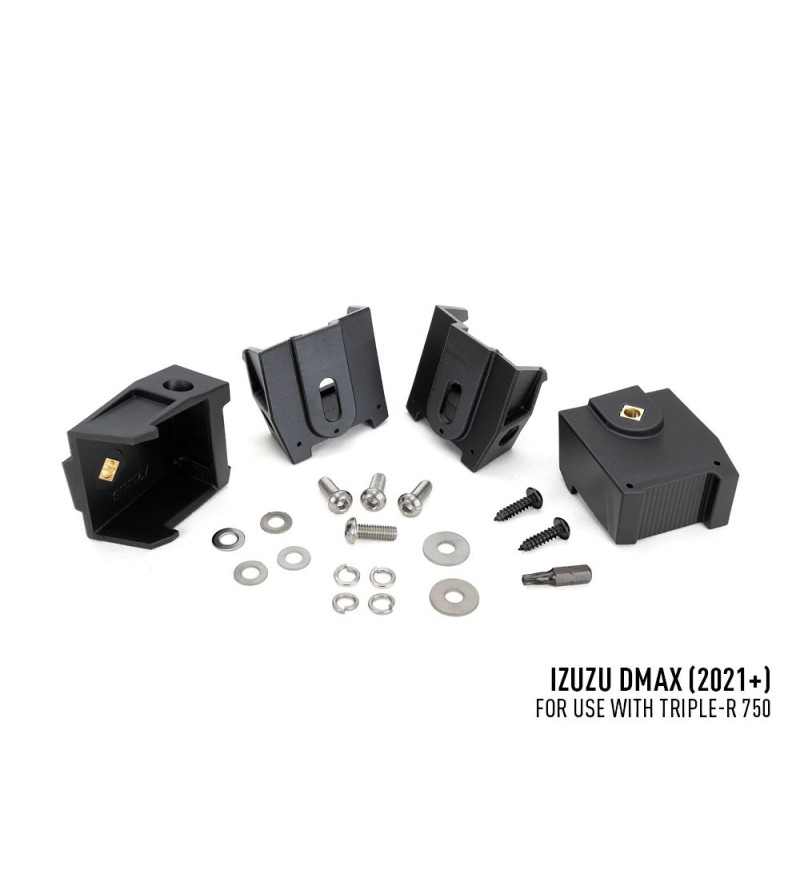

For vehicles manufactured since 2021-2022, the Isuzu D-Max includes a pair of Triple-R 750 High Performance LED driving lights, plus a wiring harness, in addition to a pair of brackets precision-engineered to fit perfectly into the standard center grille on the vehicle, with extra strength and security due to the supplied self-tapping (plastic) screws. Made from high strength composite material, known for being exceptionally robust and UV stable. The brackets are completely weather and chemical resistant to ensure that your installation remains in good condition year after year.

Supplied along with the mounting brackets is a set of cutting guides designed to ease installation and ensure a perfect fit every time, without removing the grille or bumper sections from the vehicle.

Please note: The Isuzu D-Max (2021-2022) Grille Integration Kit has been carefully designed and optimized for use with our Triple-R 750 (Standard or Elite) High Performance LED spotlights. Our warranty does not cover grille mounts fitted to non-Lazerlamps products.

Product Features:

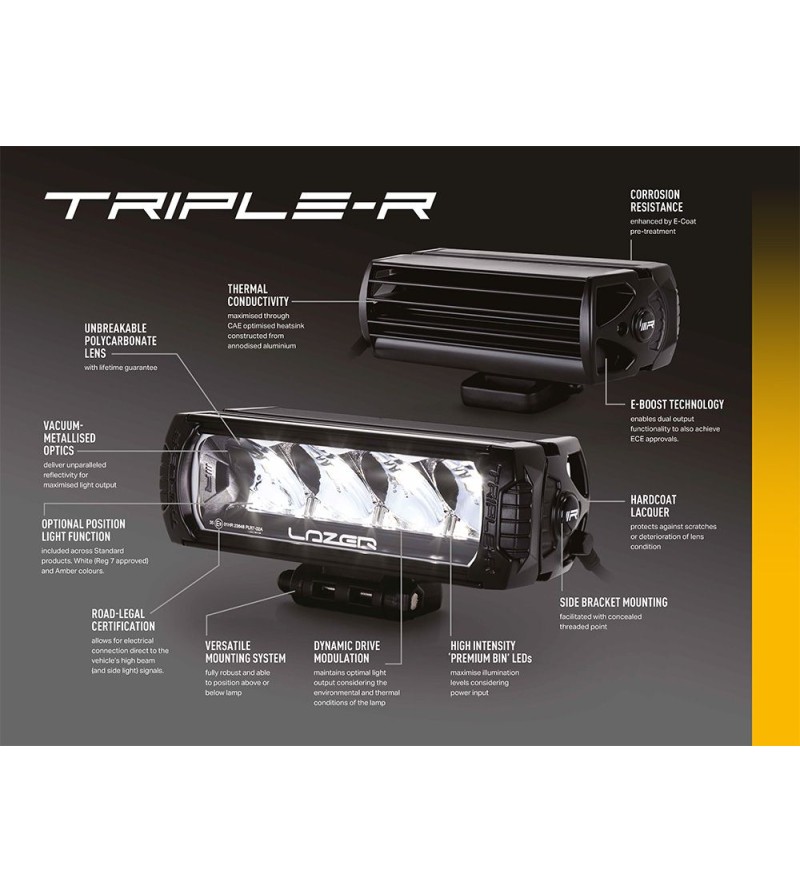

Custom vehicle integration kit for installation of Lazer LED Spotlight
Custom made for Isuzu D-Max (2021-2022)
Compatible with Triple-R 750 LED spots
Kit also includes custom mounting brackets and wiring kit
Includes cutting guides
Brackets made of high-strength, UV-stable composite material
Fully street legal
5 years warranty
Made in Great Britain

Pay attention! The Isuzu D-Max (2021-2022) Grille Integration Kit can be ordered in the Triple-R 750 Elite version and the Triple-R 750 Standard version.
Below are the technical specifications of the (1) Elite version and the (2) Standard version.

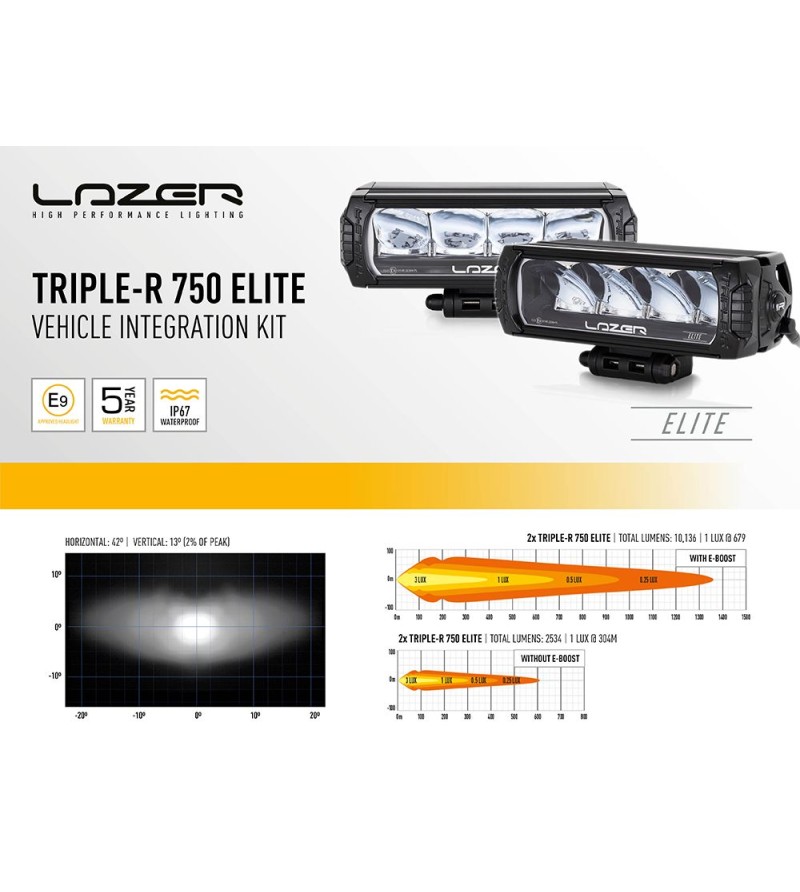

1. Technical specifications for the 2x Triple-R 750 Elite (E-Boost Mode)
Voltage range (DC): 10-32V
LED lifespan: 50,000 hours
Weight: 2 kilograms

High beam function
Total luminous flux: 10136 Lm
Total Driver 'FOV' Flux†: 6680 Lm
Color Temperature: 5000K
Number of LEDs: 2 x 4
Power consumption: 104 watts
Power Consumption: 7.2 Amps

Certification
Main beam: ECE R112
ECE Reference: N/A

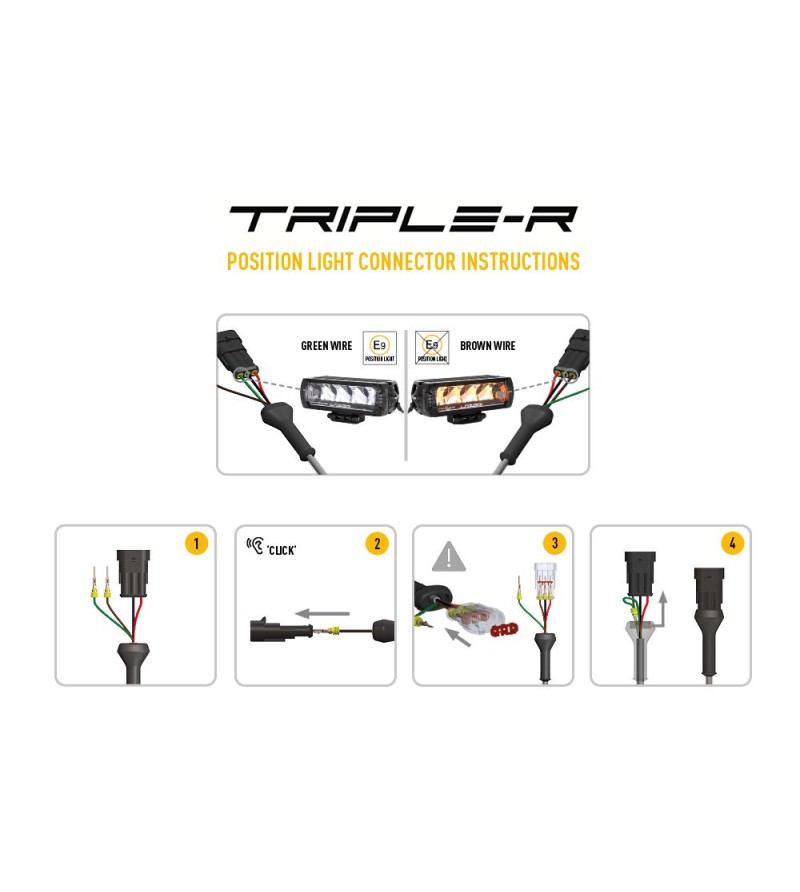

Position light (white only): N/A

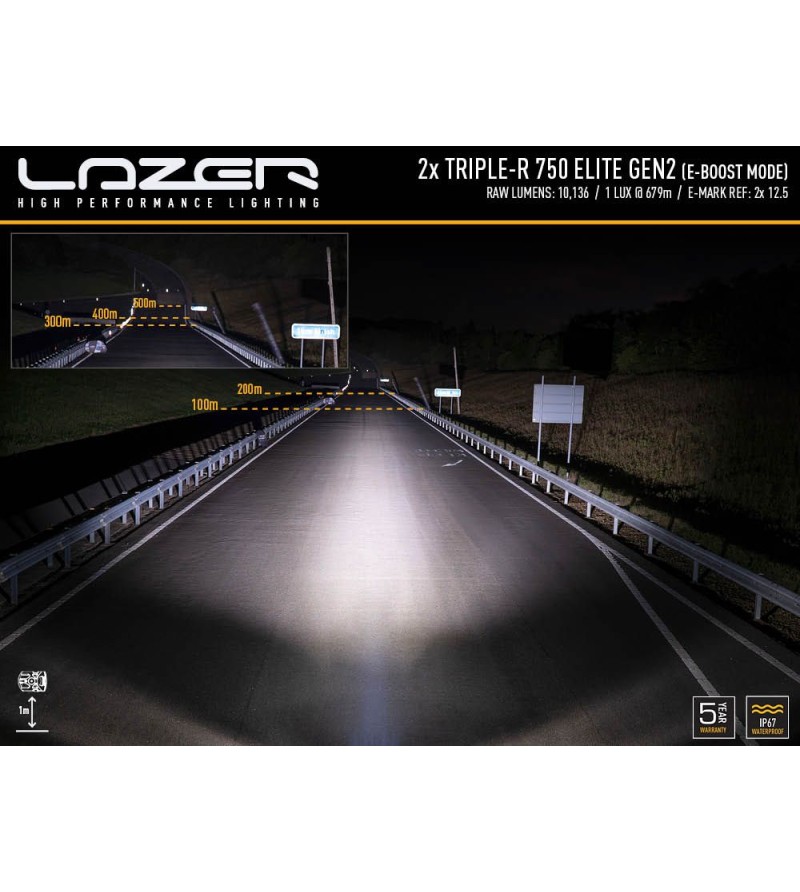

Photometric data
Horizontal beam angle: 42°
0.25 lx Line: 1358 meters
0.5 lx Line: 960 meters
1 lx Line: 679 meters
3 lx Line: 392 meters


2. Technical specifications for the 2x Triple-R 750
Voltage range (DC): 10-32V
LED lifespan: 50,000 hours
Weight: 2 kilograms

High beam function
Total luminous flux: 9240 Lm
Total Driver 'FOV' Flux†: 5572 Lm
Color Temperature: 5000K
Number of LEDs: 2 x 4
Power consumption: 88 Watts
Power Consumption: 6.2 Amps

Certification
Main beam: ECE R112
ECE Reference: 35 x2
Position light (white only): ECE R7

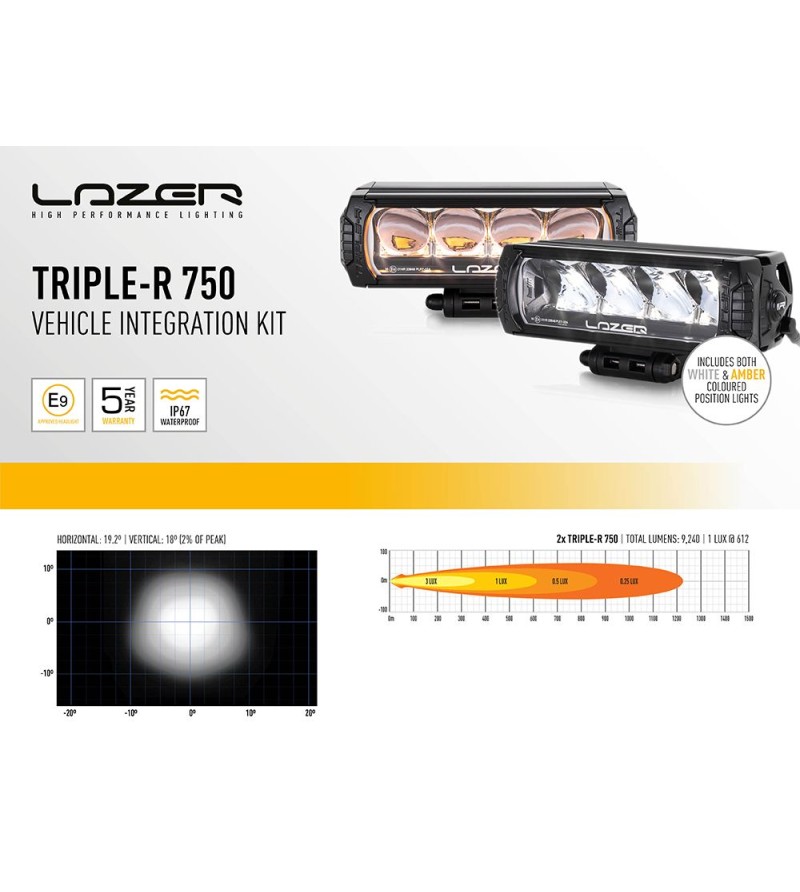

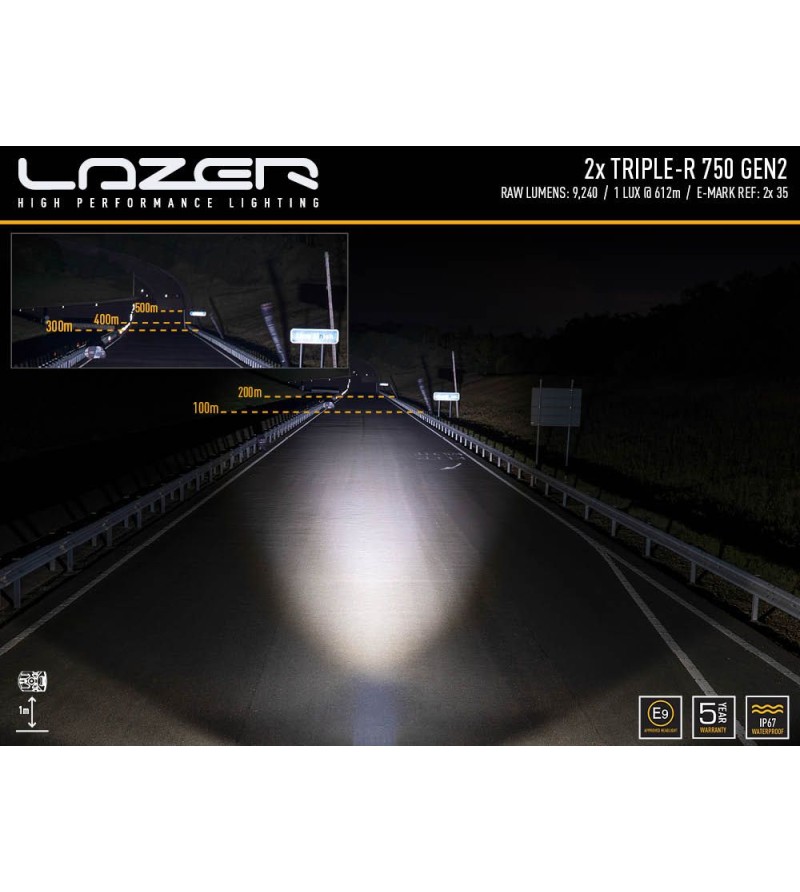

Photometric data
Horizontal beam angle: 19°
0.25 lx Line: 1225 meters
0.5 lx Line: 866 meters
1 lx Line: 612 meters
3 lx Line: 354 meters

† Driver FOV flux is a measure of effective lumens, taking into account the amount of light in a driver's 'field of view', defined as an area +/- 45° left/right and +/- 10° up /down.
