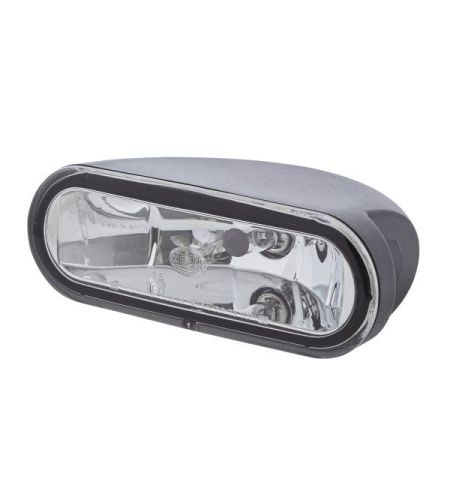

Hella FF75

Driving light - Hella - FF 75 - 6'' - Driving

€58.95 (tax incl.)

€48.72 (tax excl.)

  • Reference: 1FA 008 284-011
  • Producttype: Driving light
  • Diameter (mm): 155
  • Dimensions (mm): 155 (w) x 53 (h) x 98 (d)
  • E-mark: yes
  • Beam type: Driving
  • Sales unit: Single item
  • Standard Delivery time: 1-3 business days
x
...Continue

Driving Beam Pattern

Quantity

Hella FF75 Blank

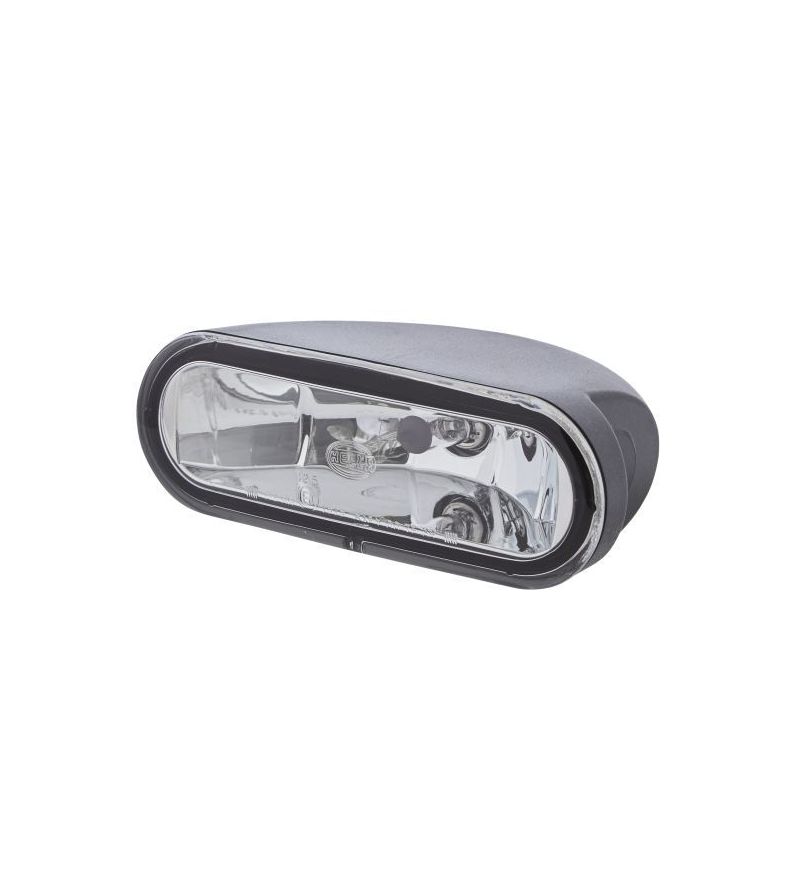

Additional lighting FF 50 and FF 75. In some vehicles, conventional additional lighting can only be used with difficulty due to the small dimensions of these vehicles or the lack of mounting options. For these situations, HELLA engineers have expanded the FF series with several powerful compact models. So you always have your light exactly where you need it. The FF series offers 2 model variants: FF 50 with oval design and FF 75 with flat design. Both variants are available as spotlight and fog lamp. With the metal bracket, the lamps can be mounted both standing and hanging.



Description:

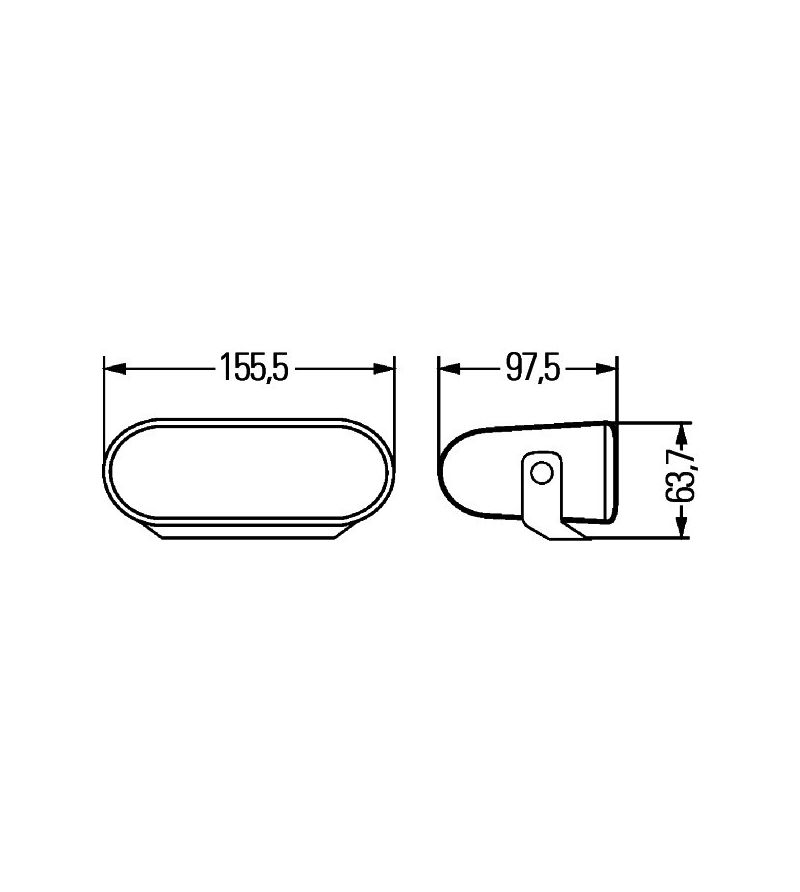

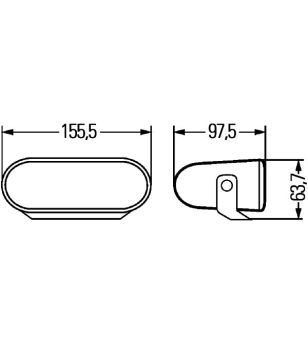

Width 2 [mm]: 155.5/156mm - Height: 63.7mm - Depth: 97.5mm - Construction height: 63.7mm - Bulb type: H7 - With bulb/With holder
Light functions: 1 - With high beam
Test mark: ECE/CCC
Material: Plastic - Housing colour: Black
Mounting method: Hanging/Upright


The compact design of the lamp allows the installation of the spotlight even in confined spaces
The reflector with free-form lighting technology ensures optimum light distribution on the road

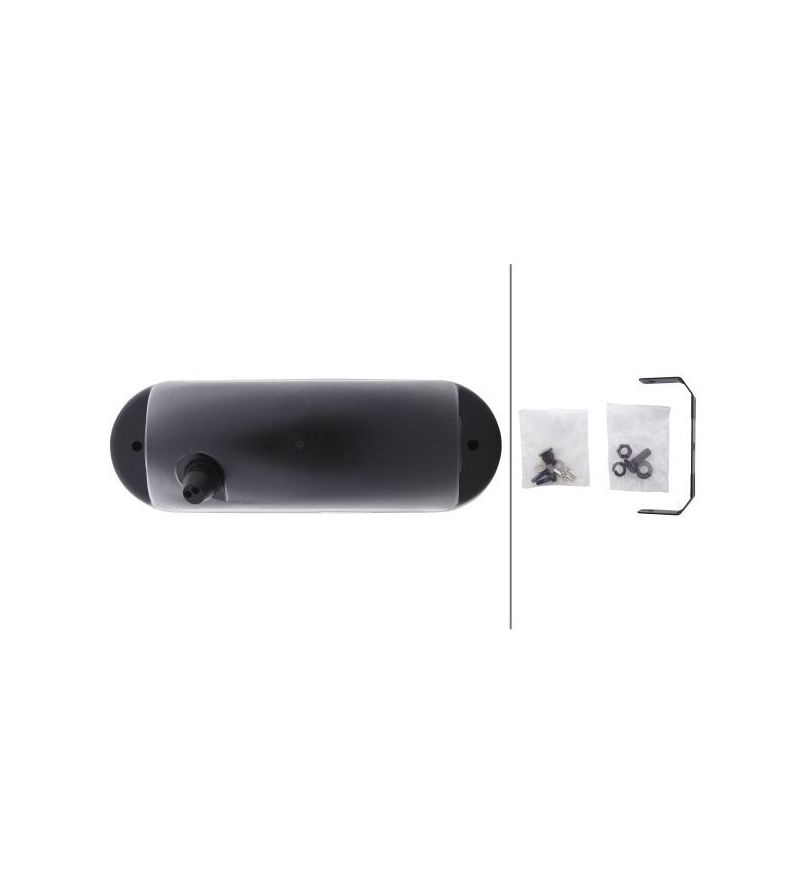

Thanks to the metal bracket holder, universal mounting is possible both upright and suspended
The lamp has a very light reflector material with a high inherent strength
Resistant to high-pressure cleaners and protection against water during high-pressure/steam jet cleaning due to IP protection classes 5K4K and IP X9K

1FA 008 284-011

Data sheet

Accessory
Lighting
Producttype
Driving light
Product serie
FF
Serial model
75
Series
Hella FF
Size ( Ø / ↔ )
2) Medium
Shape
Rectangular / Oval
Diameter (mm)
155
Width (mm)
155
Height (mm)
53
Depth (mm)
98
Beam type
Driving
Light type
Halogen
Lighting - Type
Driving Light
Light color
Halogen white
Position light
No position light
Bulb type
H7
Reference number per unit
12.5
E-mark
yes
Glass color
Clear
Chrome / RVS
no
Housing color
black
Housing material
Plastic
Mount
Normal
Voltage
12V
Watts
55W
Bulbs included
Yes
Wiring included
No
Switch
without switch

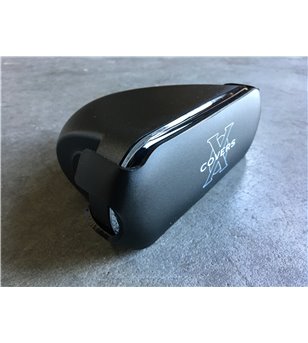

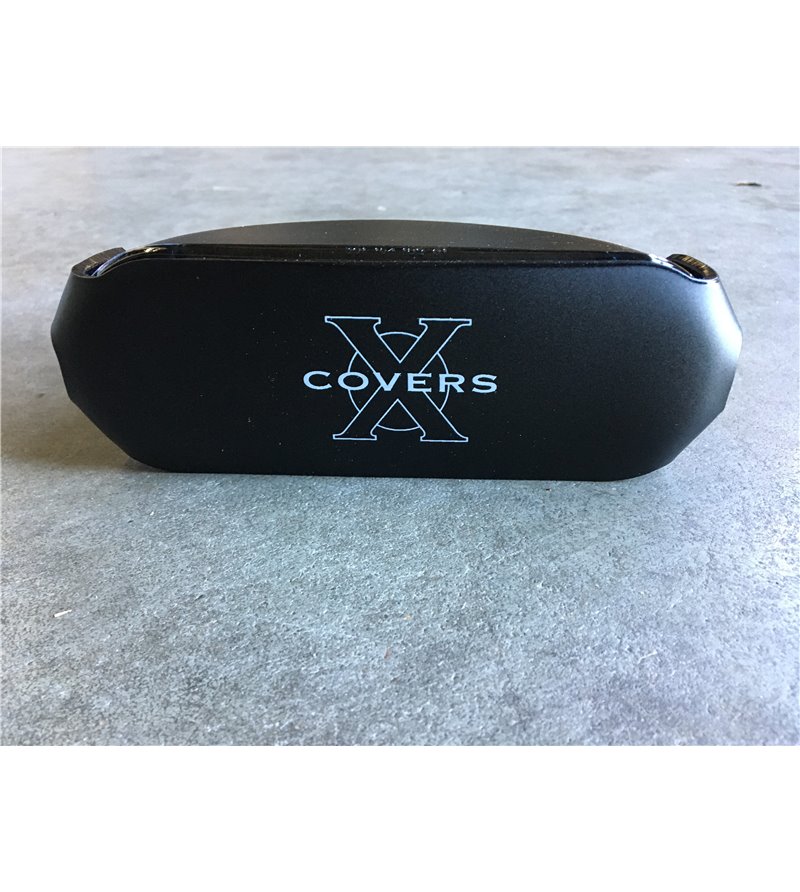

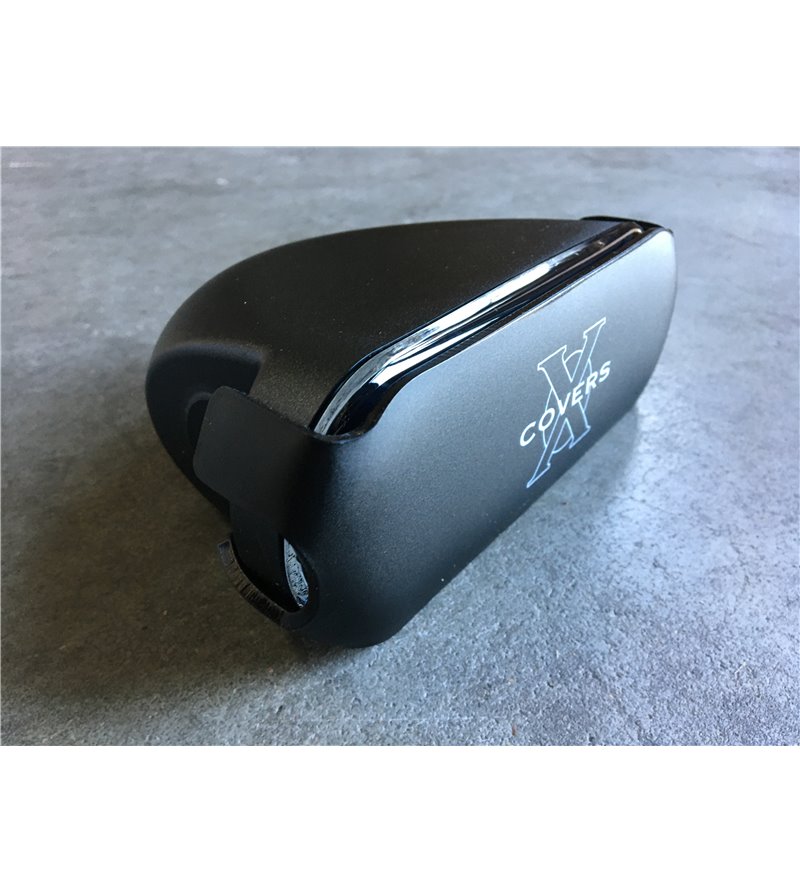

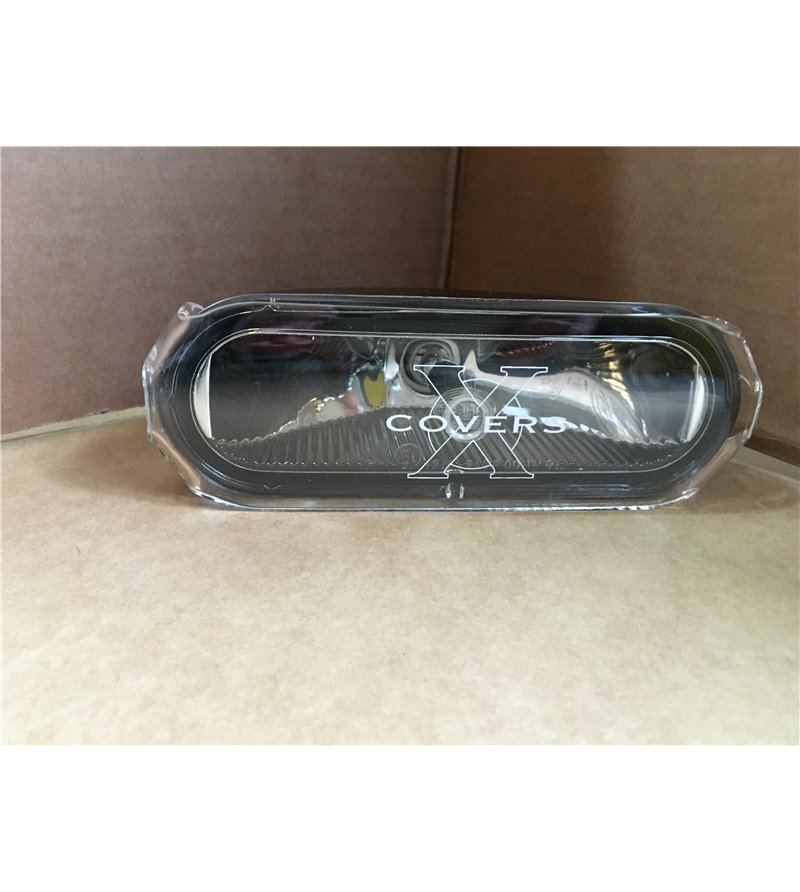

Cover included
Seperately available
Sales unit
Single item
Standard Delivery time
1-3 business days
