LED Light bar - Ledson - Epix 20+ - Strobe - 20'' - Position light White/Amber - 10 Flash patterns - Driving

€364.95 (tax incl.)

€301.61 (tax excl.)

  • Reference: 334915129
  • Producttype: LED Light bar
  • Diameter (mm): 218
  • Dimensions (mm): 510 (w) x 43 (h) x 61 (d)
  • E-mark: yes
  • Position Light Color: White/Amber
  • Strobe function: 10 Flash patterns
  • Beam type: Driving
  • Sales unit: Single item
  • Standard Delivery time: 1-3 business days
x
...Continue

Driving Beam Pattern

Must-have accessories

Wiring Kit

Wiring kit - Ledson - 1 lamp - 6 pins - Deutsch DT - 12V

Wiring kit - Ledson - 1 lamp - 6 pins - Deutsch DT - 12V

€47.95
Quantity

Ledson Epix 20+ Strobe with dynamic DRL

Treat yourself to the best. Epix+ stands out with a proprietary sporty design, created with today's modern cars in mind. Approved R65 warning lights ensure your visibility, and the globally unique position light is fully integrated into the reflector.

The dynamic start of the position lighting gives the bar an effective start. Everything you need and want in an LED bar can be found at Epix+. We've maximized performance in an E-approved mode, with the option for Powerboost when you choose to go "off-road". Approved R65 strobe lights ensure your visibility when working on the road and keep you safe in all weather conditions and times of day. Self-developed smart mountings allow for easy installation almost anywhere on the vehicle, as you prefer.

Uniquely developed by Ledson, the bar design harmonizes with today's most modern cars, taking your vehicle to the next level. The dynamic position light comes on with a powerful movement that neatly guides the light from one side of the bar to the other before fully lighting up. The position light is integrated into the reflector, a completely unique feature that makes you stand out just a little bit more.

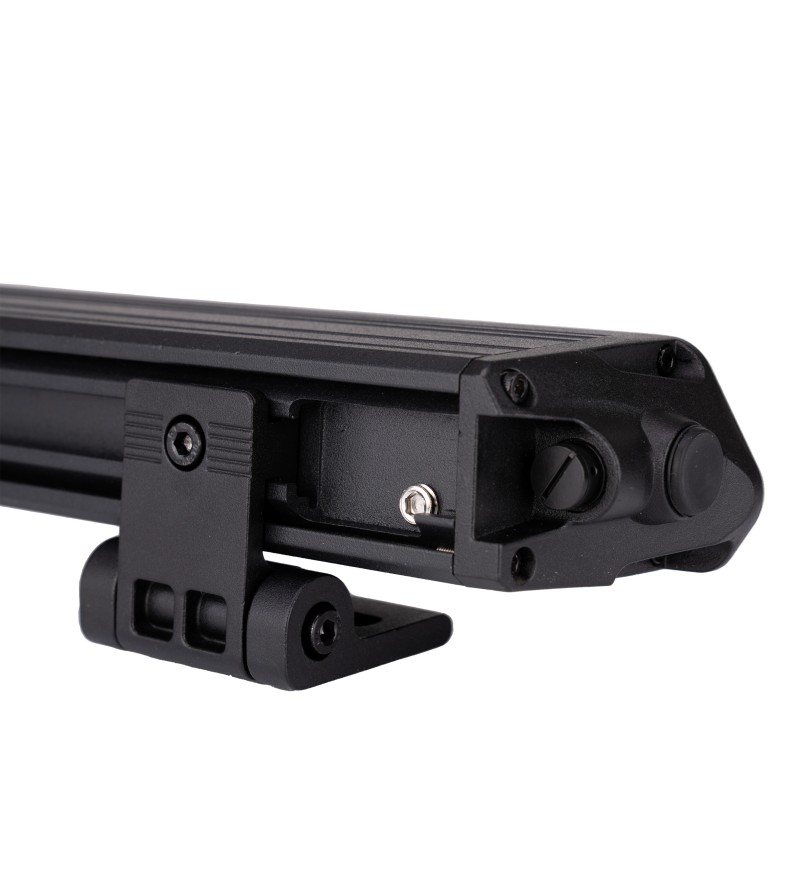

As if this isn't enough to look forward to, you also have the option of using Powerboost. Simply tighten or loosen the screw on the back of the LED bar to switch between E-approved mode or "off-road" Powerboost mode, for times when you need maximum brightness on the road.

The driving light reflectors are all computer controlled and manufactured to provide a similar light image as a combo. It mimics and enhances the car's existing headlight and light pattern.

Features and technical data:
R65 approved strobe lights with 10 different strobe patterns

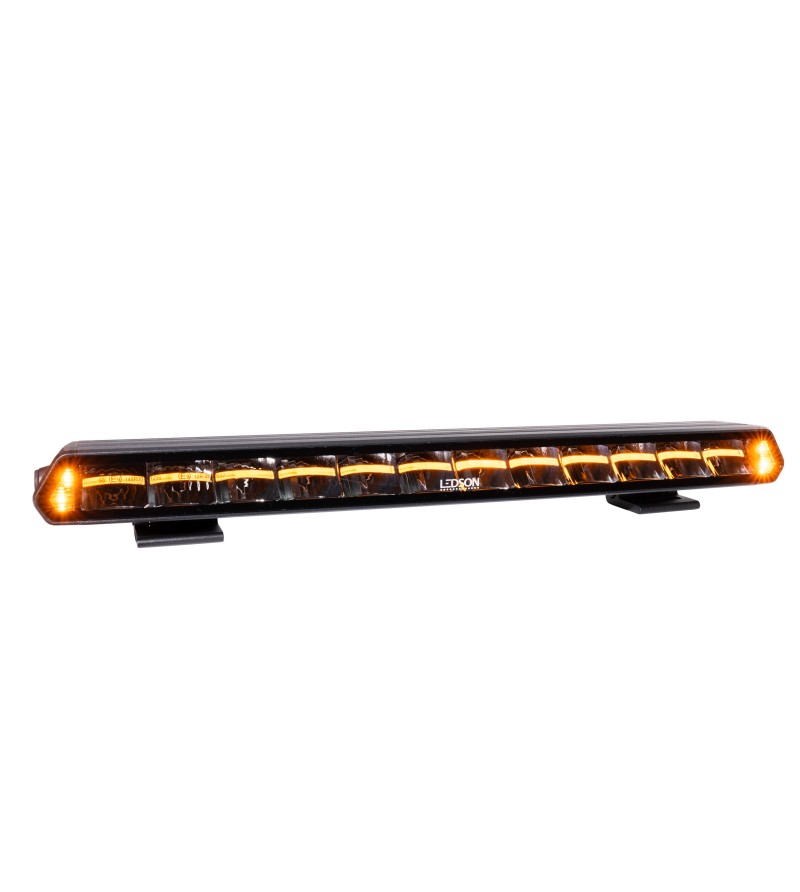

Position light with unique dynamic ignition, integrated in the reflector

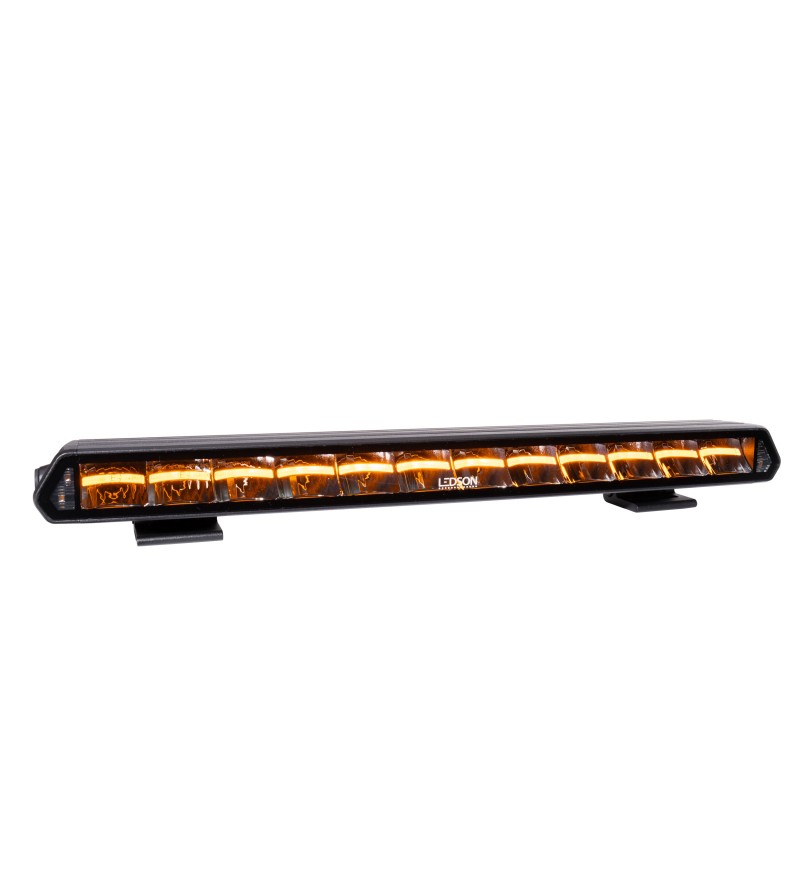

Selectable position light in xenon white or yellow/orange
Driving light pattern (wide and elongated)
E-marking R112, R7, R65, R10 (EMC-rated)

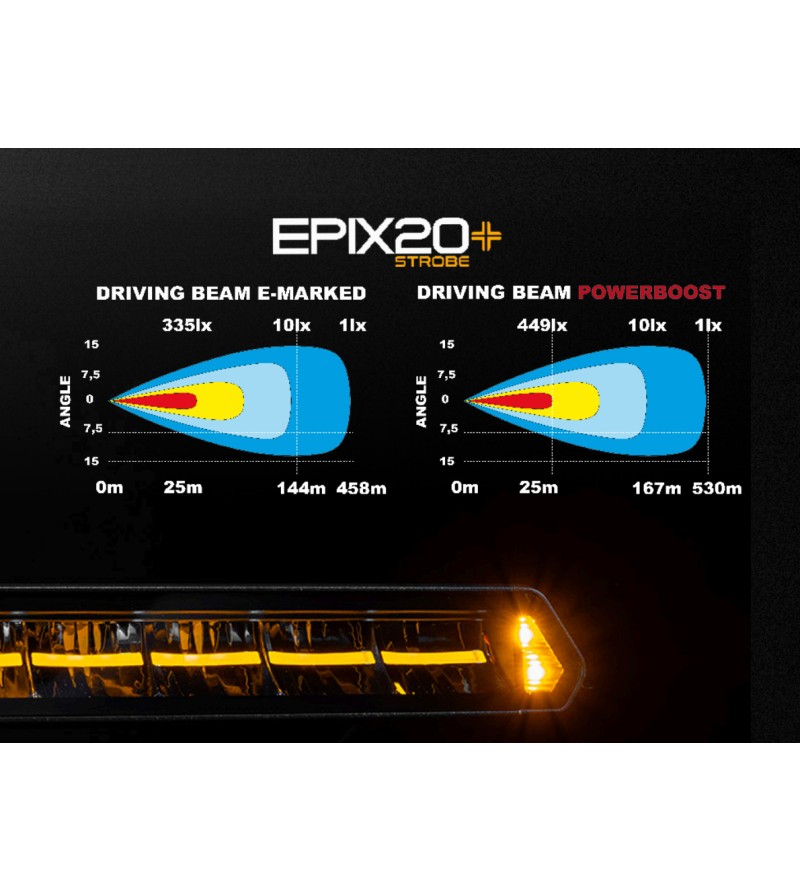

Range: 328 m (1 lux), Power boost: 459 m (1 lux)
9,800 lumens (theoretical), 7,300 lumens (actual)
Color temperature 5000K (xenon white)
120 W (8 x 15 W LEDs)
Voltage: 9-36V
IP69K (water/dustproof)
Aluminum housing and polycarbonate lens
Lateral reflective optics
Pressure compensation membrane
Electronic heat management
DT connector (included)

Delivered:
Epix14+ Strobe 14" LED bar with Powerboost
Bolts and screws to secure the beam to the appropriate surface

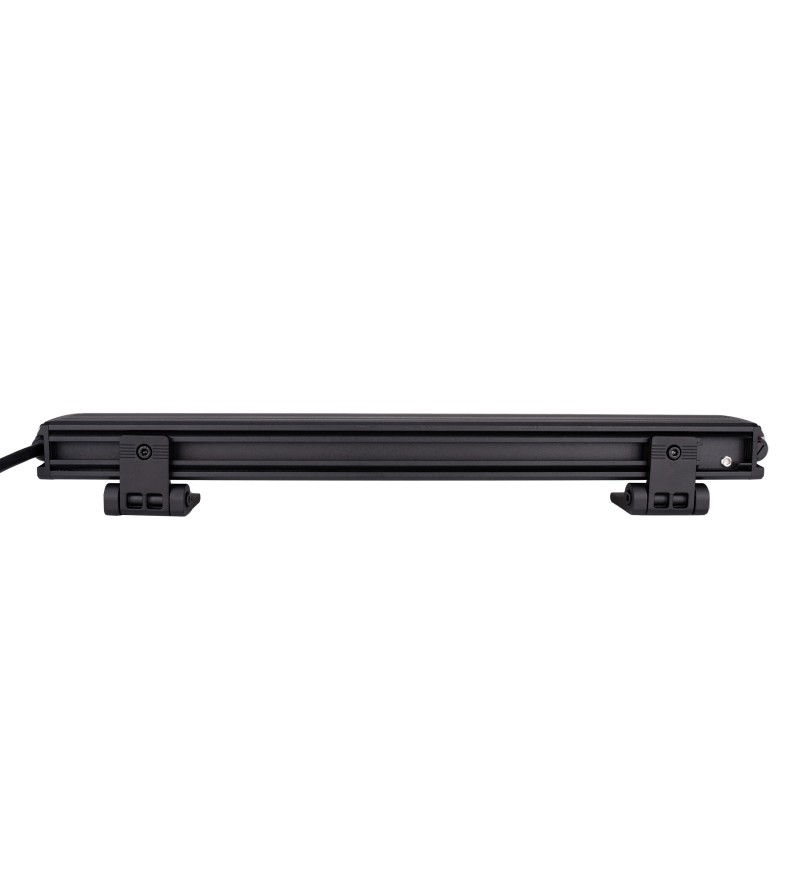

Smart mounting details
DT cable 6 pin (you will also need a DT harness, found here)
Installation instructions

Dimensions & weight (excluding mounting):
Width: 357mm
Height: 43mm
Depth: 61mm
Weight: 1.2kg

Flash Patterns:
Single flash sync: 2.2 Hz
Single flash asynchronization: 2.2 Hz
Triple flash sync: 1.1 Hz
Triple flash asynchronization: 1.1 Hz
Quad flash sync: 1.25 Hz
Quad flash asynchronization: 1.25 Hz
Combination of one long and five short synchronization: 0.83 Hz
Combination of one long and five short asynchronization: 0.83 Hz
Burst flash sync: 10 Hz
Burst flash sync: 10 Hz

NOTE: The DT connector must not be cut as this increases the risk of moisture damage and will void the warranty.

334915129 7323230047403

Data sheet

Accessory
Lighting
Producttype
LED Light bar
Product serie
Epix
Serial model
20+
Version
Strobe
Series
Lights & Styling
Size ( Ø / ↔ )
2) Medium
Shape
Ledbar
Diameter (mm)
218
Width (mm)
510
Height (mm)
43
Depth (mm)
61
Beam type
Driving
Light type
LED
Lighting - Type
Driving Light
Signal light
Light color
White
Position light
Position light
Color of position light
Amber
White
Signal lights
Flash light
Strobe function
10 Flash patterns
E-mark
yes
ECE approval
R10
R112
Chrome / RVS
no
Housing color
black
Housing material
Aluminum
IP rating
IP68
Mount
Normal
Lumen
9600
12000
Light distance (m) at 1 lux
425
Light distance (m) at 0.25 lux
850
Voltage
12V
18V
24V
30V
36V
LEDs per lamp
12
Wattage per LED
10W
number of pins
6 pins
Connector
Deutsch DT
Sales unit
Single item
Standard Delivery time
1-3 business days
prodcat1
M
Prodcat2
AB
Shipping Size
S

Specific References
