LED Light bar - Lazer - Carbon 2 - 5'' - Gen3 - Driving
  • LED Light bar - Lazer - Carbon 2 - 5'' - Gen3 - Driving
  • LED Light bar - Lazer - Carbon 2 - 5'' - Gen3 - Driving
  • LED Light bar - Lazer - Carbon 2 - 5'' - Gen3 - Driving
  • LED Light bar - Lazer - Carbon 2 - 5'' - Gen3 - Driving
  • LED Light bar - Lazer - Carbon 2 - 5'' - Gen3 - Driving
  • LED Light bar - Lazer - Carbon 2 - 5'' - Gen3 - Driving
  • LED Light bar - Lazer - Carbon 2 - 5'' - Gen3 - Driving
  • LED Light bar - Lazer - Carbon 2 - 5'' - Gen3 - Driving
LED Light bar - Lazer - Carbon 2 - 5'' - Gen3 - Driving

LED Light bar - Lazer - Carbon 2 - 5'' - Gen3 - Driving

€344.95 (tax incl.)

€285.08 (tax excl.)

  • Reference: 00C2-DRIVE-G3-SFIX
  • Producttype: LED Light bar
  • Dimensions (mm): 116 (w) x 63 (h) x 100 (d)
  • E-mark: yes
  • Beam type: Driving
  • Sales unit: Single item
  • Standard Delivery time: 1-3 business days
x
...Continue

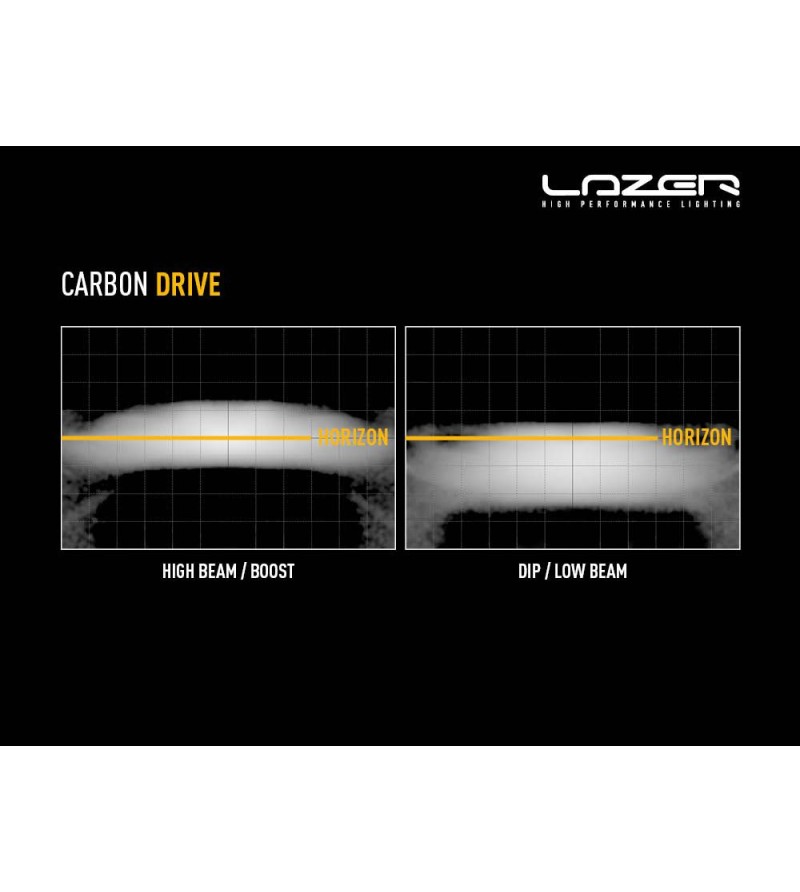

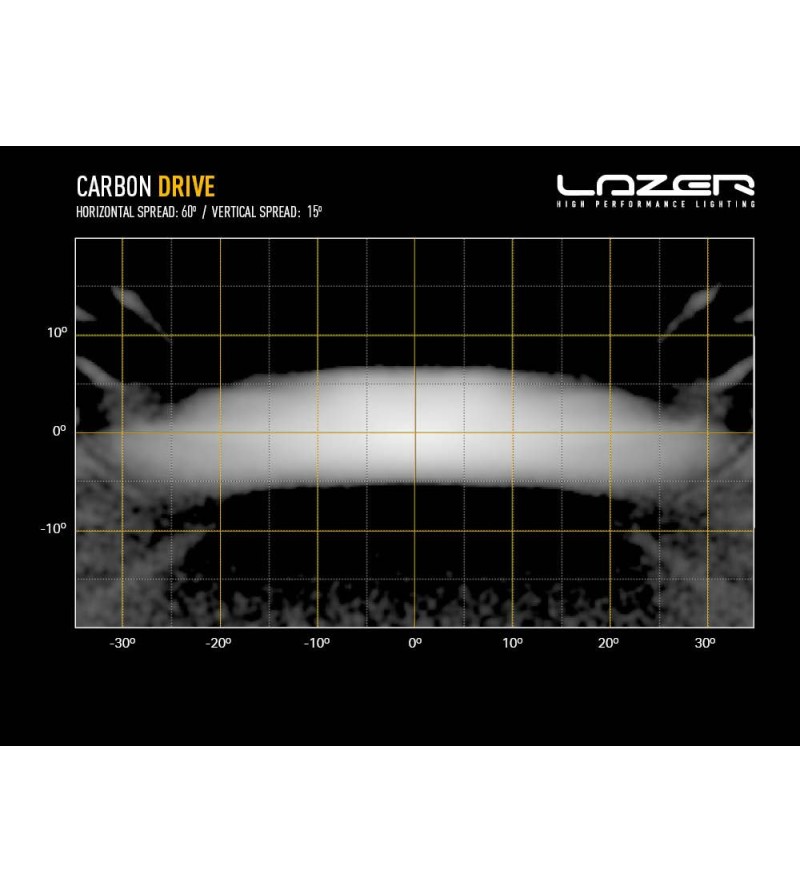

Driving Beam Pattern

Quantity

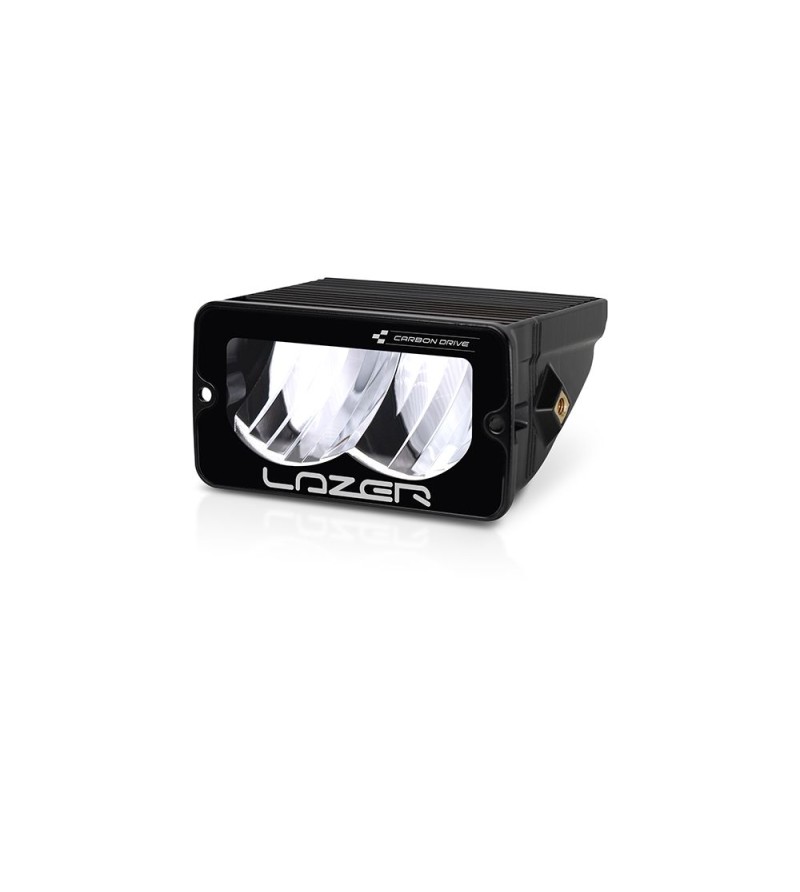

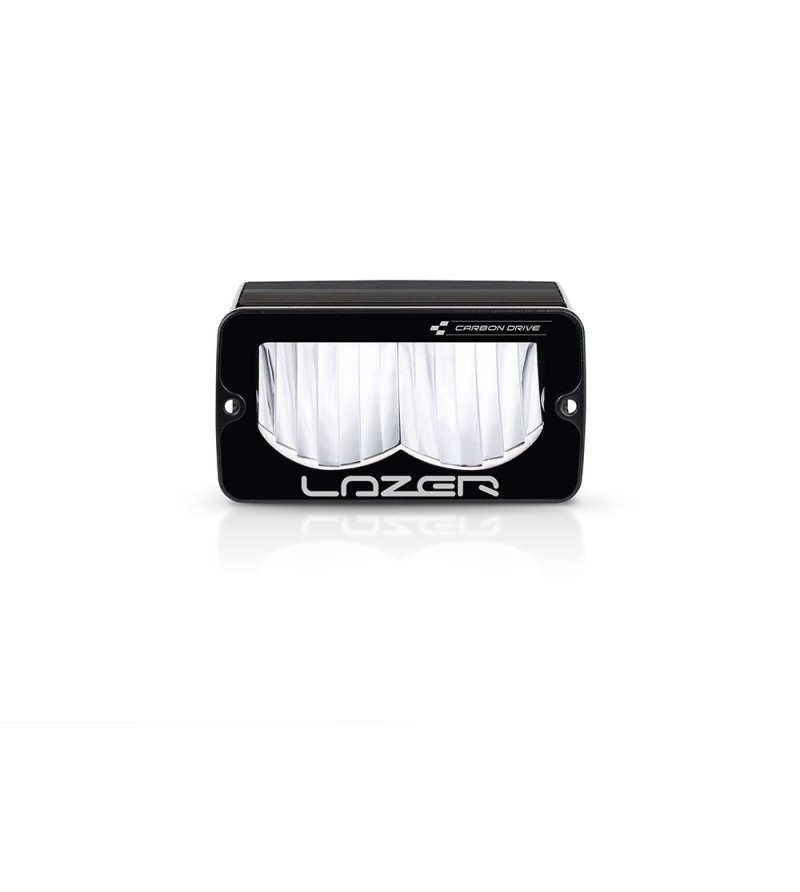

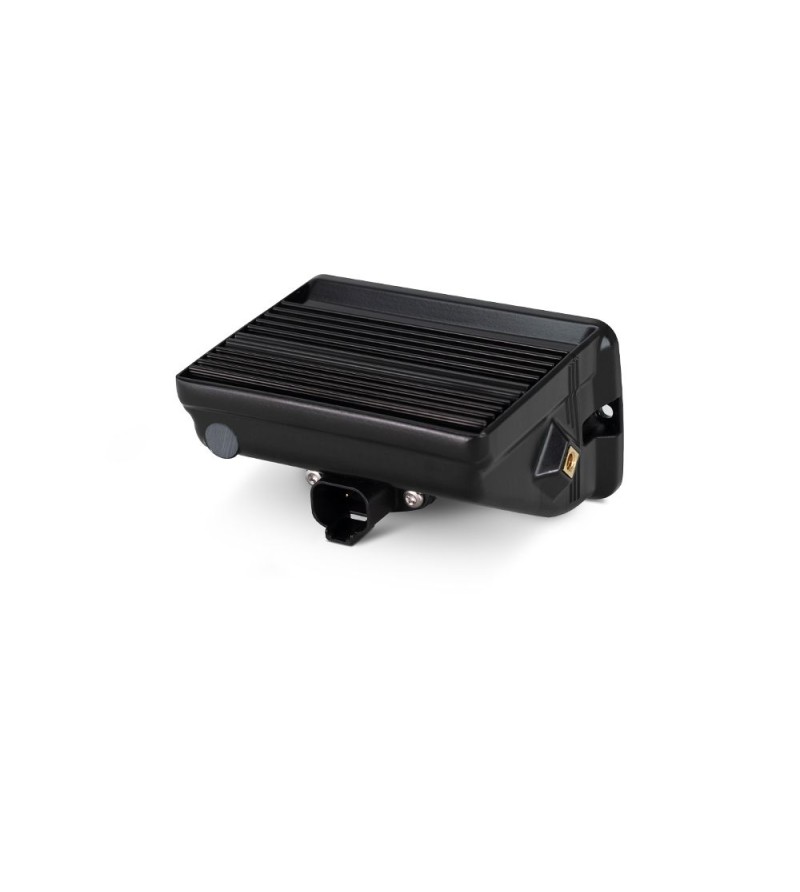

Lazer Carbon-2 Drive (Gen3)

What is included:

  • 1x Carbon-2 Spot (Gen3)
  • 1x Installation Manual

Carbon Series

Now in its 3rd generation, the Carbon Series LED driving lights represent years of continued development and testing at the very highest levels of professional rally, track, and off-road motorsport. The re-design and re-engineering of the products deliver more light, less weight, greater functionality, and ease of fitment.

Technical specifications and features:

  • Voltage Range (DC): 10-32V
  • LED Life: 50,000 hours
  • IP Rating: IP68
  • Weight: 232 g
  • Total Luminous Flux: 3120 Lm
  • Total Driver 'FOV' Flux †: 1839 Lm
  • Color Temperature: 5000K
  • Number of High Output LEDs: 12
  • Power Consumption: 29 W
  • Peak Current Draw (11V): 2.6 A
  • Current Draw (14.4V): 2.1 A
  • Horizontal Beam Angle: 60°

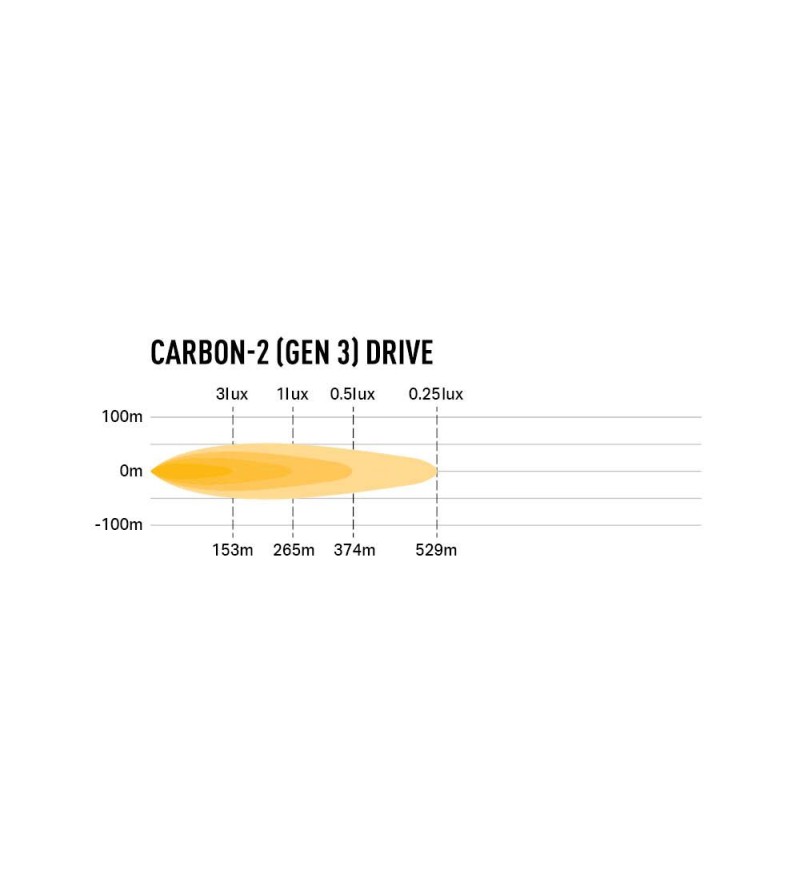

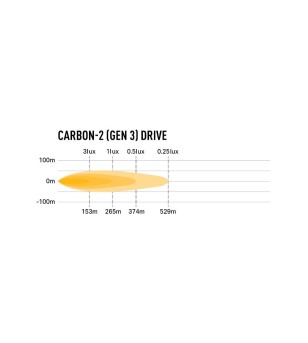

  • 0.25 lux Line: 529 m
  • 0.5 lux Line: 374 m
  • 1 lux Line: 265 m
  • 3 lux Line: 153 m

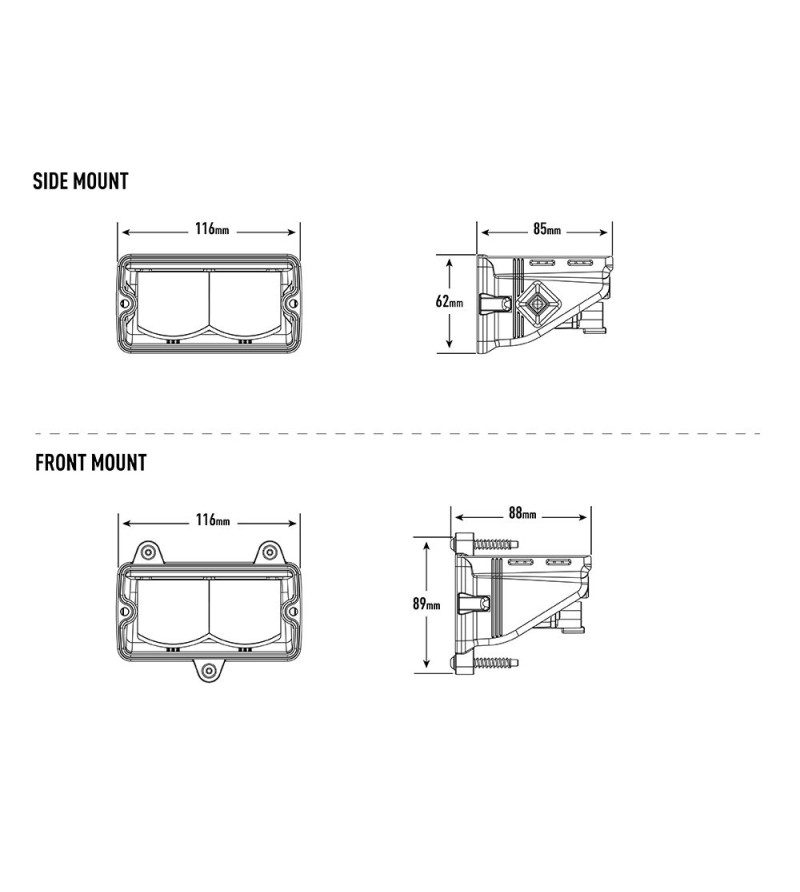

  • Width: 116 mm
  • Depth: 85 mm
  • Height: 62 mm
00C2-DRIVE-G3-SFIX 5061003761393

Data sheet

Accessory
Lighting
Producttype
LED Light bar
Product serie
Carbon
Serial model
2
Feature
Gen3
Series
Lazer Carbon
Shape
Ledbar
Width (mm)
116
Height (mm)
63
Depth (mm)
100
Weight (kg)
0.232
Beam type
Driving
Light type
LED
Lighting - Type
Driving Light
Light color
White
Color temperature
5000K
E-mark
yes
Glass color
Clear
Housing color
black
Housing material
Aluminum
Lamp rim color
black
Lamp rim material
Aluminum
IP rating
IP68
Lumen
3120
Light distance (m) at 1 lux
265
Light distance (m) at 0.25 lux
529
Voltage
12V
18V
24V
30V
Watts
29W
number of pins
4 pins
Connector
Deutsch DT
Sales unit
Single item
Standard Delivery time
1-3 business days
prodcat1
H
Shipping Size
S

Specific References
