Controller - Ledson - Commander - Bluetooth - Bedieningspaneel - 12V-24V

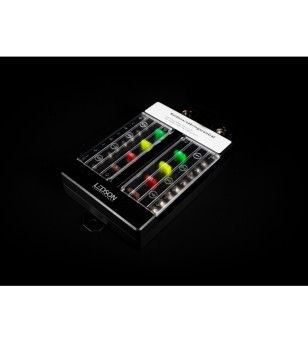

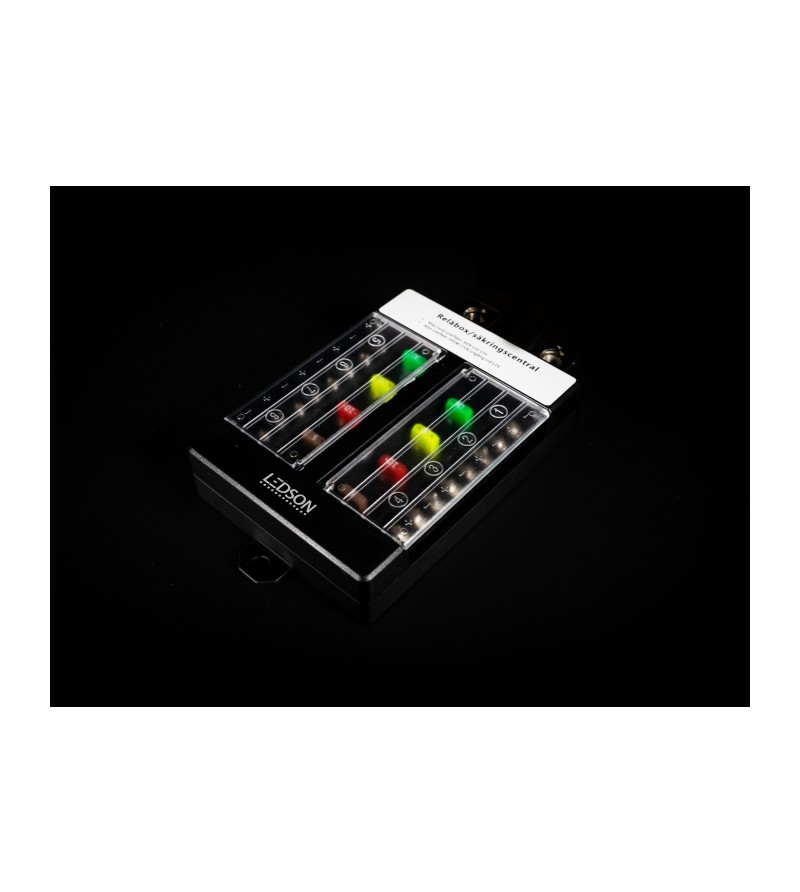

Bedieningspaneel met relaisbox

Moeilijkheidsgraad installatie: voor gevorderden.

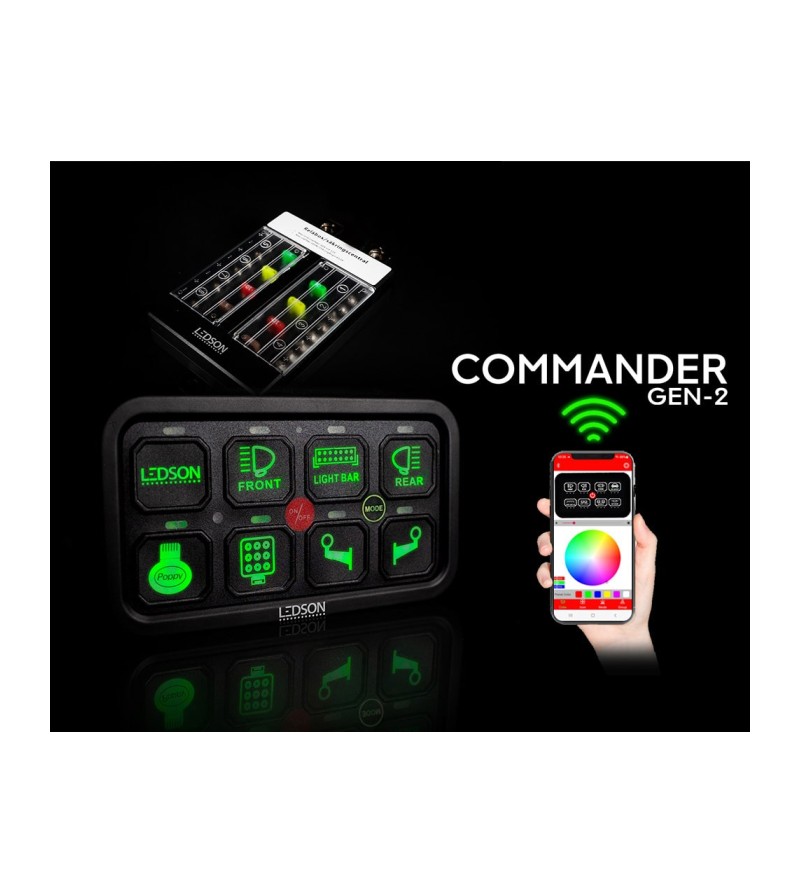

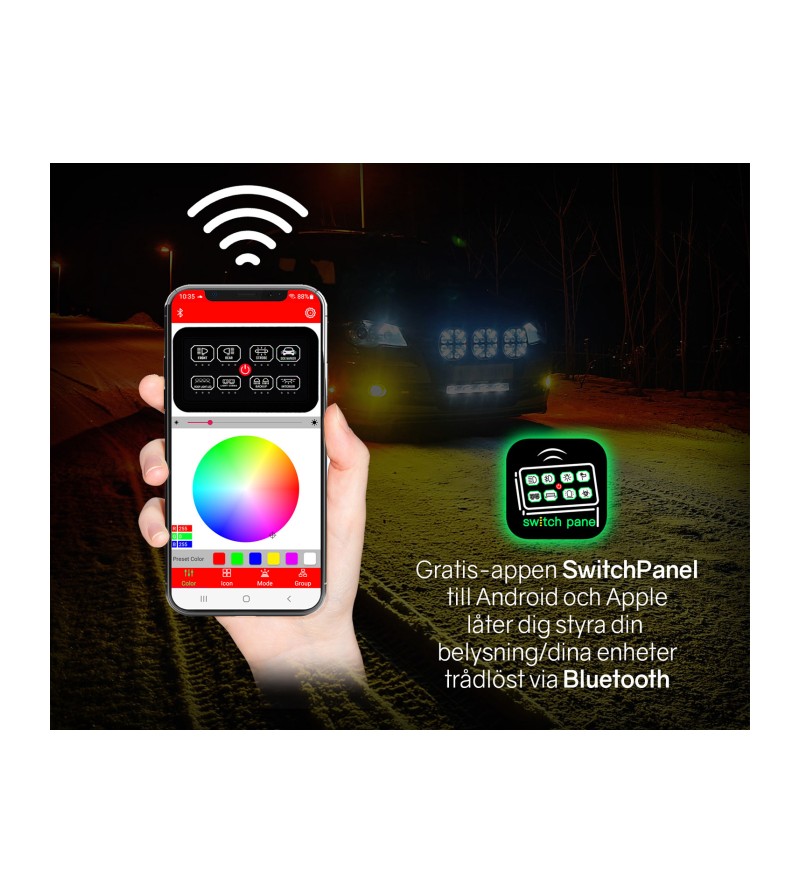

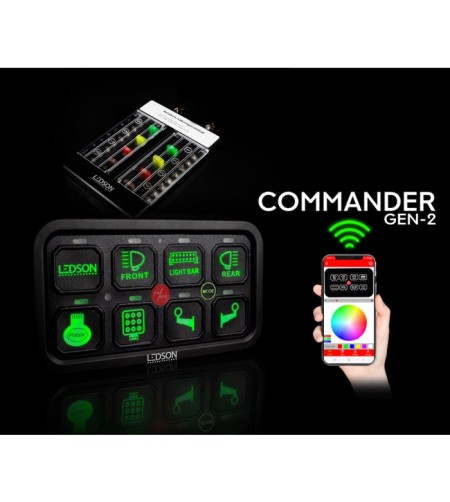

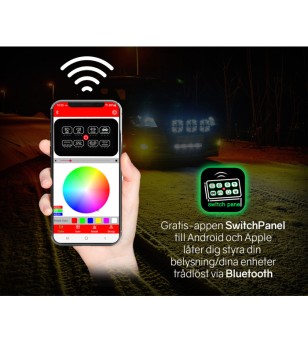

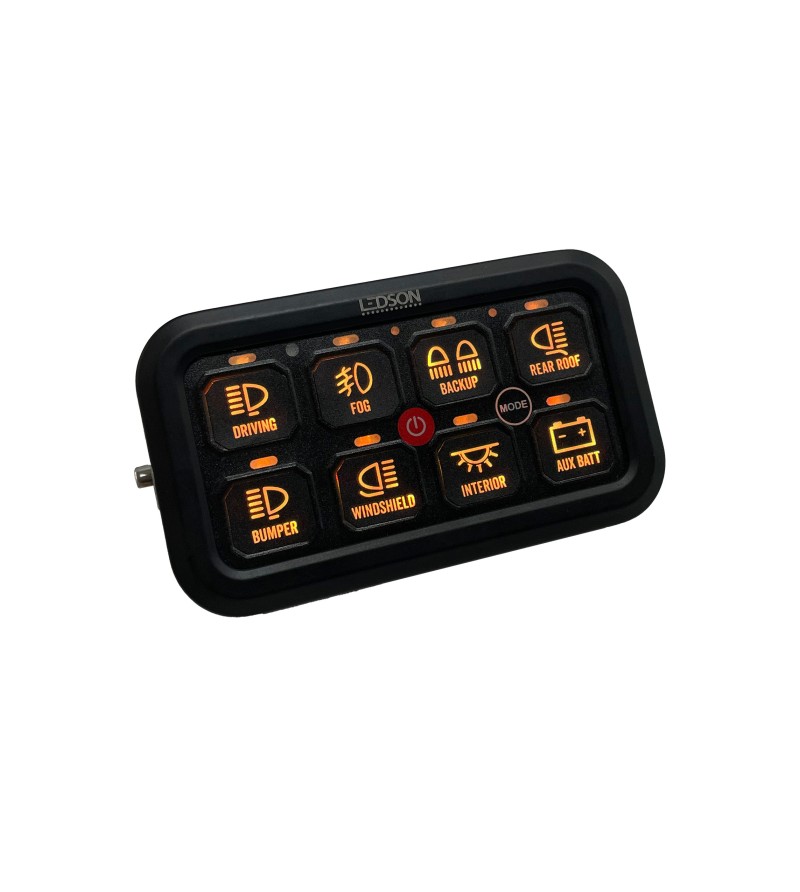

Programmable control panel with 8 individual outputs, controls up to 8 units separately or together. A control with RGB selectable backlight included (with 2.5 meter cable) but you can also use a free app for Android or Apple.

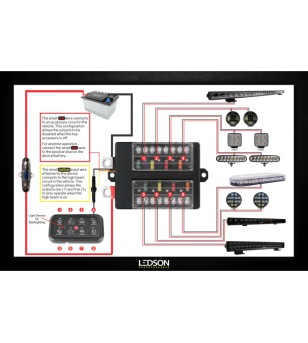

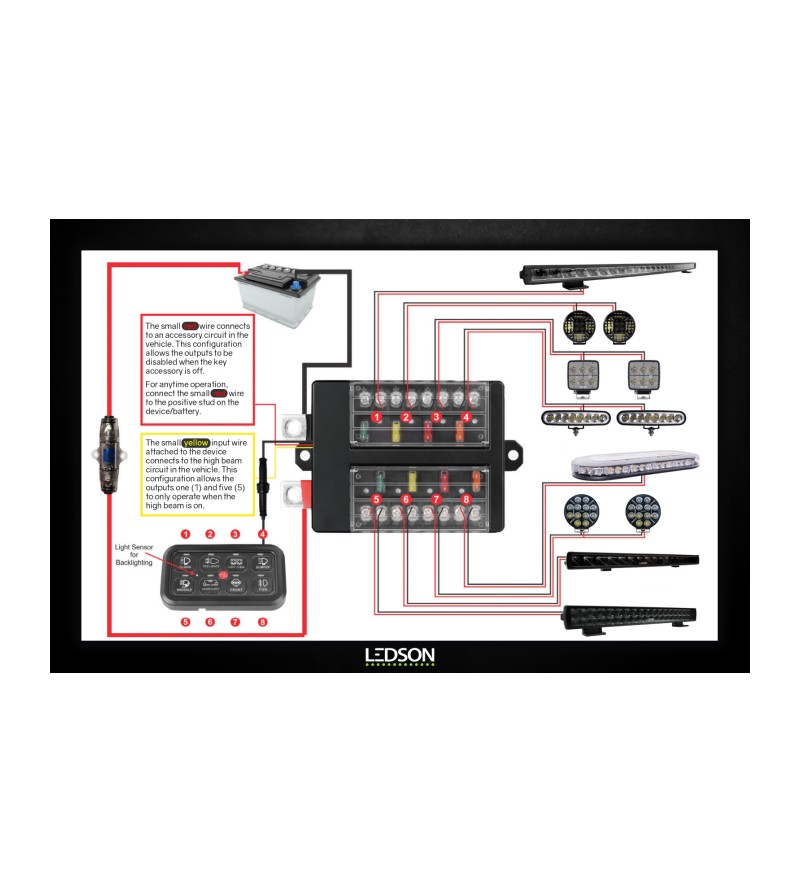

Ledson Commander has a direct input (yellow cable) to be able to control the LED bar/auxiliary lights etc via the vehicle's analogue high beam signal/high beam bulb. Works with 12V / 24V with MosFet / electronic relays, app support for control via Bluetooth, protection against overheating, overload, short circuit and polarity protection.

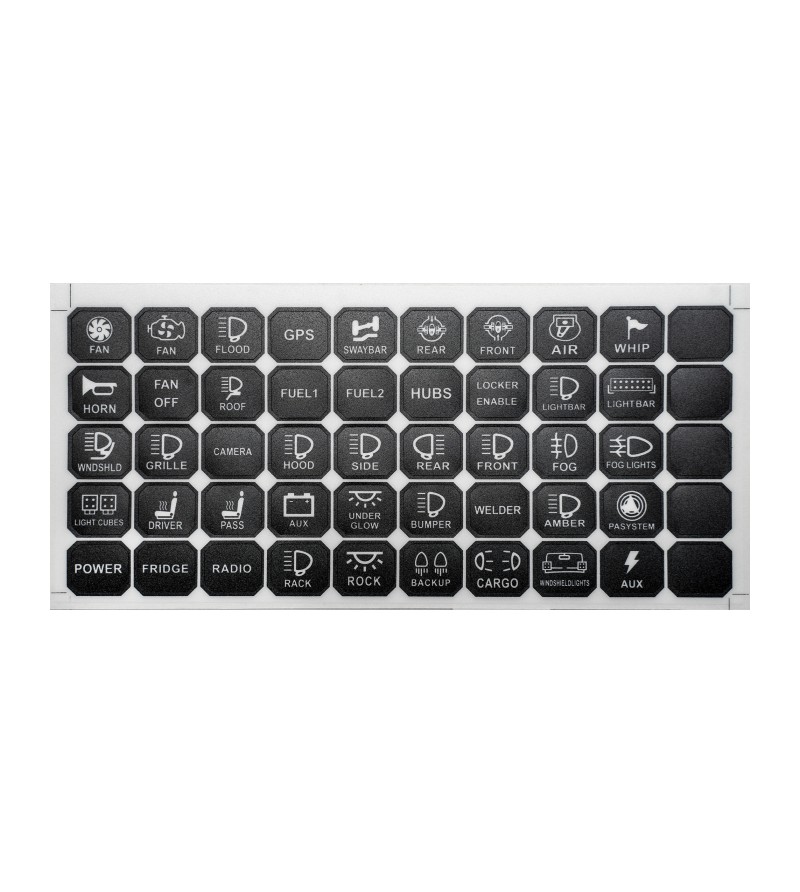

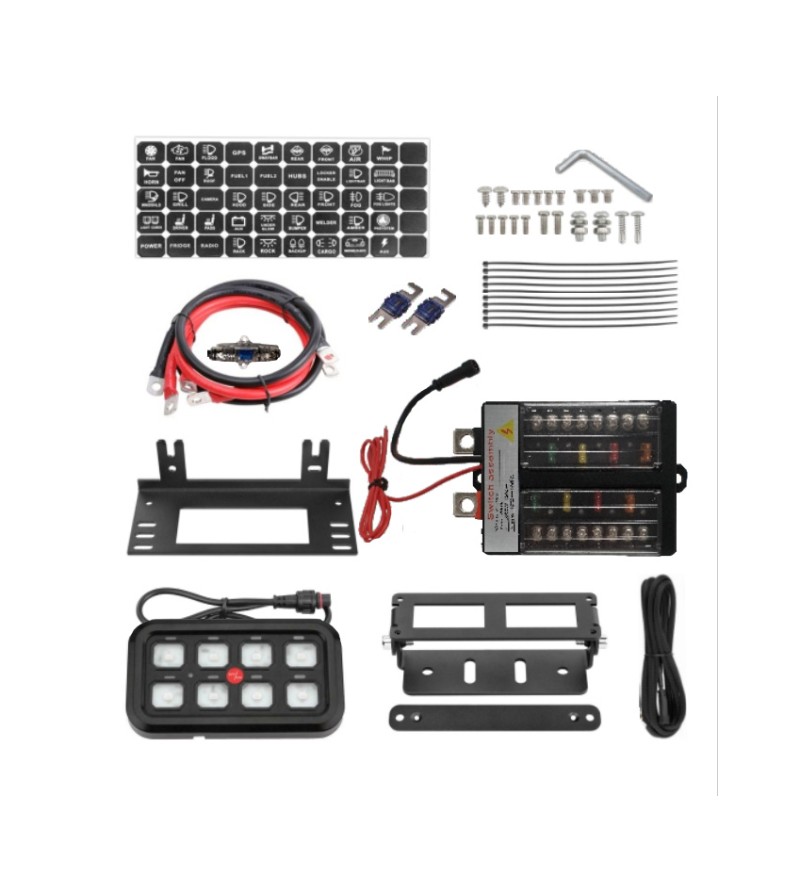

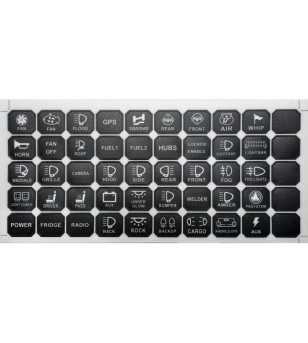

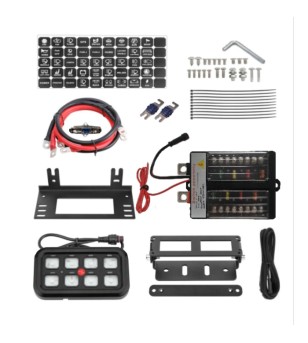

Included: Relay box with remote control, battery wiring, fuses, 50 different symbols / stickers to attach to the remote control, bracket with screws for relay box and remote control, assembly instructions.

More information:
1. Max total current: 60A (720W at 12V, 1440W at 24V).
2. 8 individually programmable switches.
3. The maximum total current of this device is 60A.
4. Maximum current per output at 12V:

- Output fuses 1 and 5 is 30A - activated when yellow cable receives power
- Output fuses 2 and 6 is 20A
- Output fuses 3 and 7 is 10A
- Output fuses 4 and 8 is 5A
- If the output has been overloaded, a red LED will indicate next to the blown fuse

5. The maximum power of an output should not be more than 300W (25A @ 12V)
6. Built-in Bluetooth for app control.
7. Protection against overheating, overload, short circuit, polarity protection.
8. Direct high beam control to circuit 1 and circuit 5.
9. Programmable icons.
10. Backlit switches with selectable backlight color.
11. LED indication for overload/broken fuse.
12. Each switch can be programmed for three different functions:

- Switch between On/Off
- Switch between On/Off as long as the button is pressed
- Strobe function
