Grille Kit - Lazer - Triple-R 750 - Mercedes - Vito - 2024+

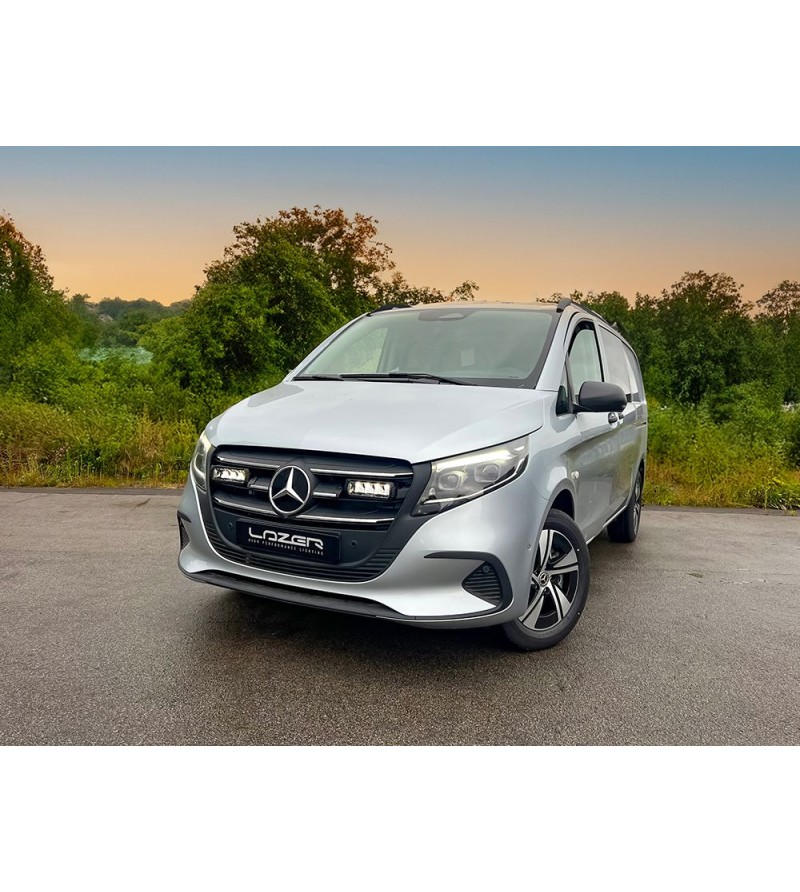

Mercedes Vito - Grille Kit (2024+)

Wat word er geleverd:

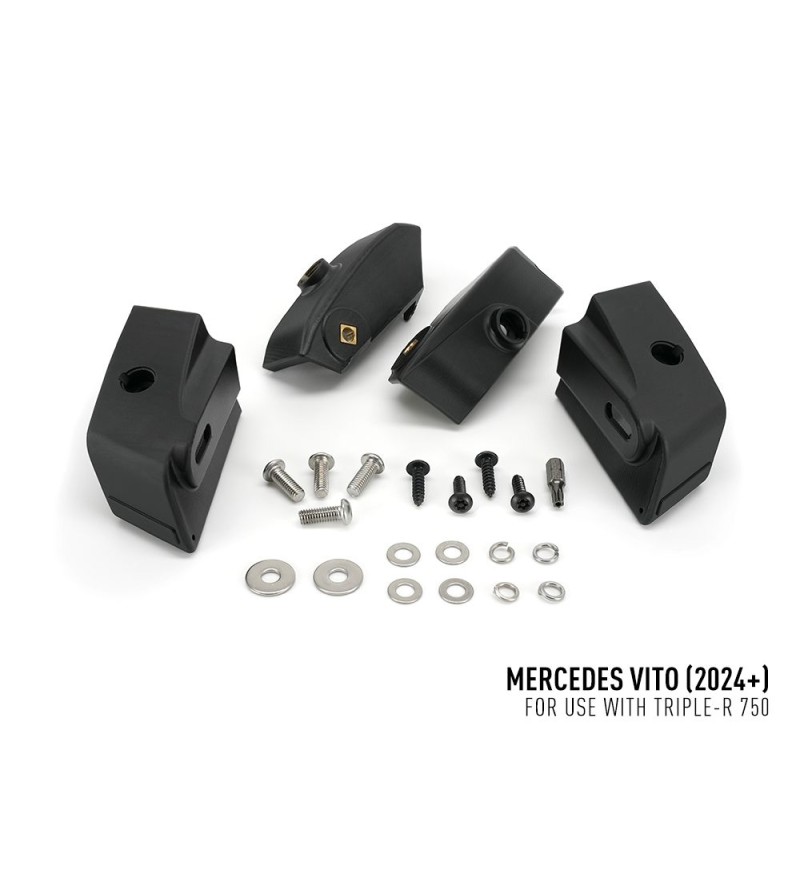

• 1x Grille Montagekit (Inclusief snijgidsen)
• 2x Triple-R 750 LED Lampen

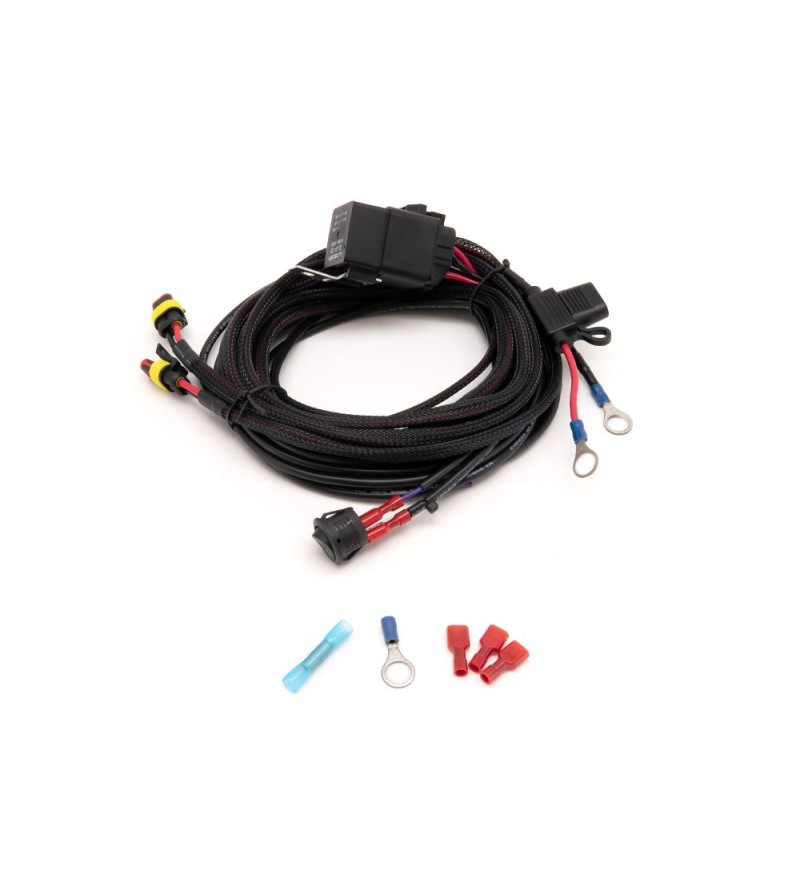

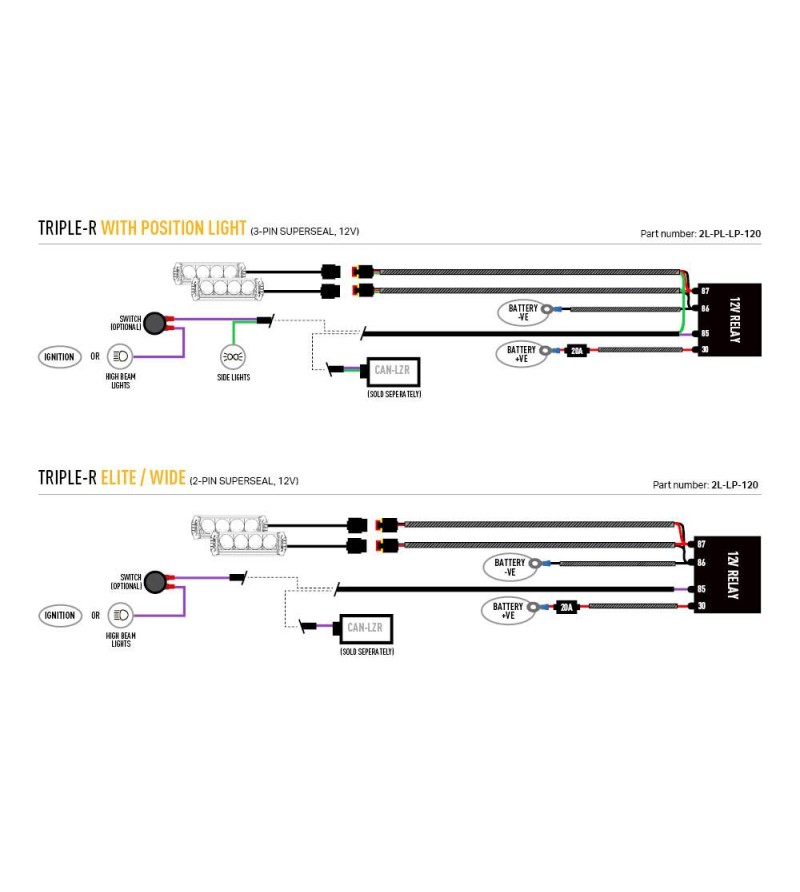

• 1x Twee-Lampen Bekabelingskit
• Installatie-instructies

Specificaties:

• Voltage Range (DC): 10-32V
• LED Life: 50.000 Hours
• Weight: 2.5kg

High Beam Function

• Total Luminous Flux: 9240 Lumen / (Boost) 10136 Lumen
• Total Driver 'FOV' Flux †: 5572 Lumen / (Boost) 6680 Lumen
• Colour Temperature: 5000K
• Power Consumption: 88 Watts / (Boost) 104 Watts
• Current Draw (14.4V): 6.2 Amps / 7.2 Amps

Certification

• IP Rating: IP68
• High Beam (E9 approval): ECE R112 - Ref: 2x 35 / (Boost) ECE R112 - Ref: 2x 12.5 (Low Output Mode)</li style="list-style-type: disc; margin-left: 20px;">
• Position Light (White): ECE R148 / (Boost) N/A
• EMC Certification: ECE R10
• Salt Spray Test: ISO 9227
• Dump Load Protection: ISO 7637-2

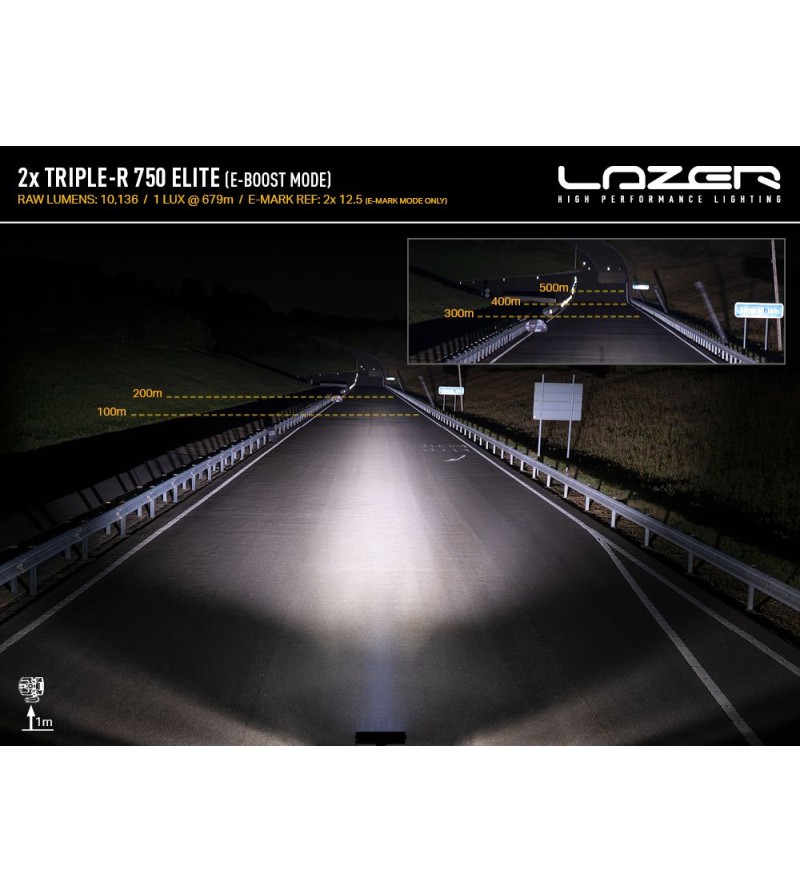

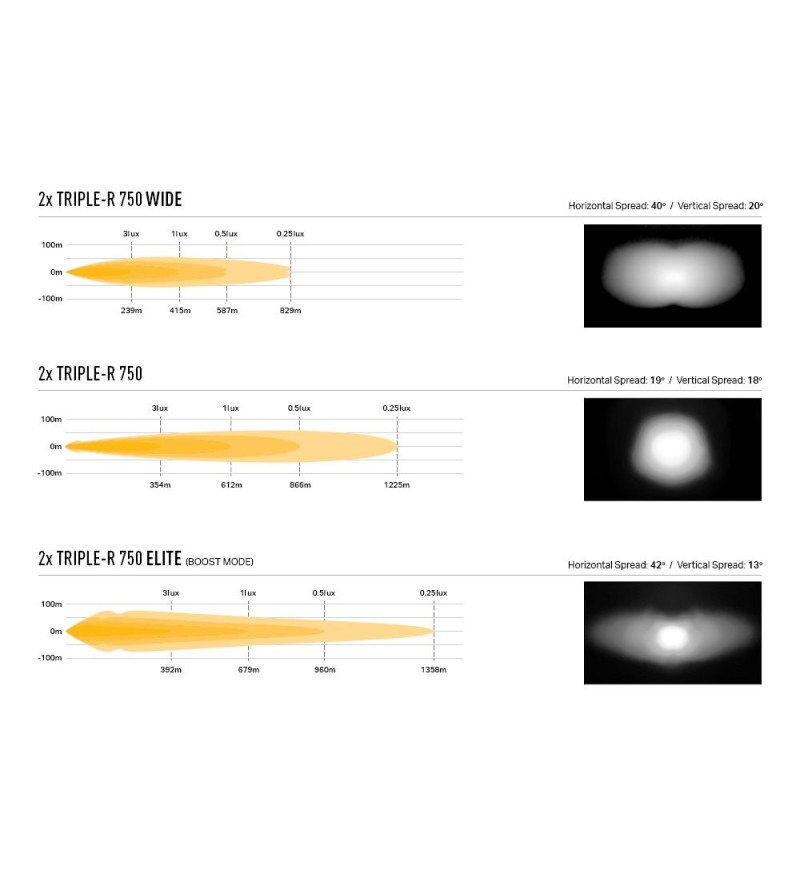

Photometric Data

• Horizontal / Vertical Beam Angle: 19° / 18° - (Boost) 42° / 13°
• 0.25 Lux: 1225m / (Boost) 1358m
• 0.5 Lux: 866m / (Boost) 960m
• 1 Lux: 612m / (Boost) 679m
• 3 Lux: 354m / (Boost) 392m
