€139,95 (inkl. MwSt.)

€115,66 MwSt exkl.

  • Referenz: 00U25-MAXX-B
  • Produkttyp: Arbeitsbeleuchtung

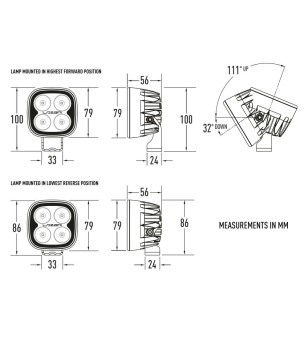

  • Abmessungen (mm): 79 (b) x 79 (h) x 56 (d)
  • E-Prüfzeichen: ja
  • Lichtbild: Work / Scene
  • Verkaufseinheit: Pro Einheit
  • Standardlieferzeit: 1-3 Werktage
Der Utility-25 MAXX ist eine leistungsstarke LED-Arbeitsleuchte, die neue Maßstäbe setzt. Mit einem kompakten 80x80mm Gehäuse und 11W LEDs bietet diese Lampe außergewöhnliche Leistung. Robust und vielseitig, ist sie perfekt für anspruchsvolle Anwendungen.
...Weiterlesen

Work-Scene Lichtbild

Menge

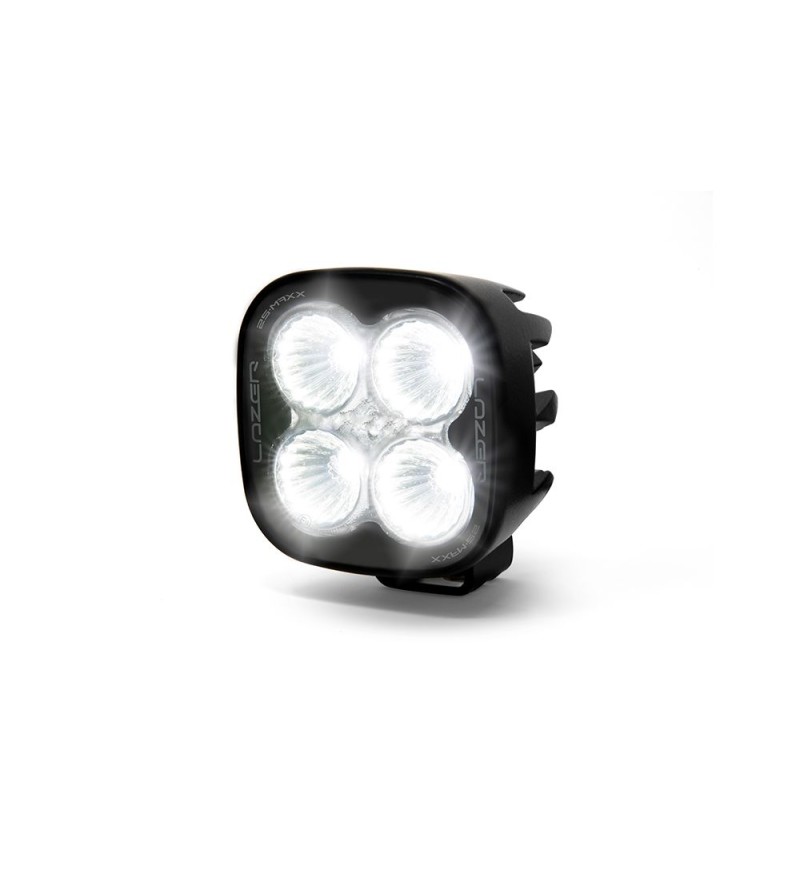

Lazer Utility 25 MAXX

What's Included:

  • 1x Utility-25 MAXX Work Lamp
  • 1x Utility-25 Centre Mount

Utility 25 MAXX

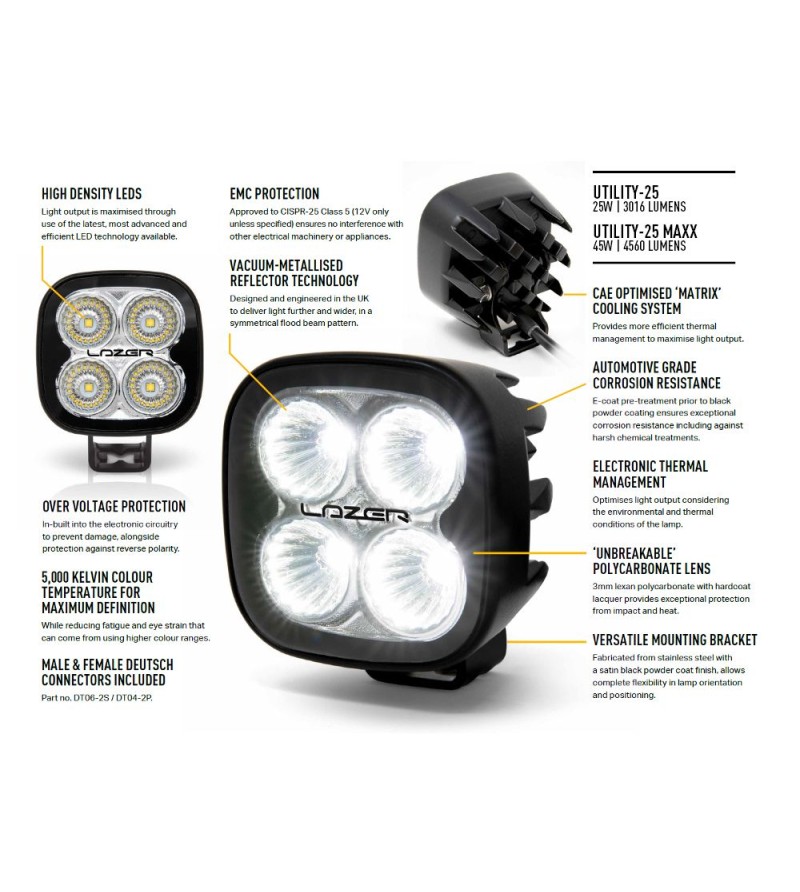

The latest LED work light from Lazer Lamps, the Utility-25 MAXX, is a versatile medium-duty work light. With powerful 11W LEDs, this lamp offers impressive illumination despite its compact size, thanks to advanced LED technology and a rugged design. The Utility-25 MAXX shares the durable features of the larger Utility-45 and Utility-80 models, providing consistent and reliable lighting for a wide range of applications and vehicles.

General Features

  • Voltage Range (DC): 10-32V
  • LED Lifespan: 50,000 hours
  • Weight: 360 grams

High Beam Function

  • Total Light Output: 4560 lumens
  • Color Temperature: 5000K
  • Power: 45 Watts
  • Current Draw (at 14.4V): 3.1 Amperes
  • Connector: 2-Pin Deutsch DT (+28 cm cable)

Certifications

  • IP Rating: IP68 / IP69K
  • EMC Standard: ECE R10
  • EMC Protection: CISPR-25 (Class 4)
  • Salt Spray Test: ISO 9227
  • Dump Load Protection: ISO 7637-2

Operating Conditions

  • Operating Temperature: -40°C to +90°C
  • Vibration (BS EN 60068-2-64): 10Hz > 1000Hz, 0.14 > 20 (m/s²)²/Hz

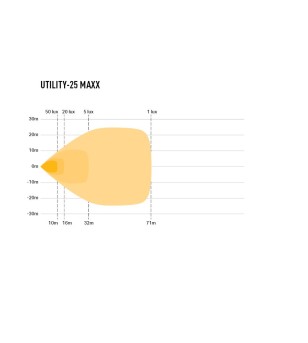

Photometric Data

  • Horizontal / Vertical Beam Angle: 78° / 78°
  • 1 Lux Range: 71 meters
  • 5 Lux Range: 32 meters
  • 20 Lux Range: 16 meters
  • 50 Lux Range: 10 meters
00U25-MAXX-B 5060404996540

Datenblatt

Zubehörtyp
Beleuchtung
Produkttyp
Arbeitsbeleuchtung
Produkt serie
Utility
Serienmodell
25
Ausführung
Maxx
Serie
Lazer Utility
Format ( Ø / ↔ )
1) Compact
Form
LED-Block (Pod)
Breite (mm)
79
Höhe (mm)
79
Tiefe (mm)
56
Lichtbild
Work / Scene
Beleuchtungstyp
LED
Beleuchtung - Type
Arbeitslampe
Lichtfarbe
Weiß
Positionslicht
Ohne Positionslicht
Farbtemperatur
5000K
E-Prüfzeichen
ja
ECE-Genehmigung
R10
Glasfarbe
Klar
Chrom / Edelstahl
nein
Farbe des Lampengehäuses
Schwarz
Material des Lampengehäuses
Aluminium
Farbe des Lampenrings
Schwarz
Material des Lampenrings
Aluminium
IP rating
IP68
IP69K
Lumen
4500
Lichtabstand (m) bei 1 Lux
71
Stromspannung
12V
18V
24V
30V
LEDs per lamp
4
Leistung pro LED
11W
Anzahl der Pins
2 Pins
Anschluss
Deutsch DT
Verkaufseinheit
Pro Einheit
Standardlieferzeit
1-3 Werktage
